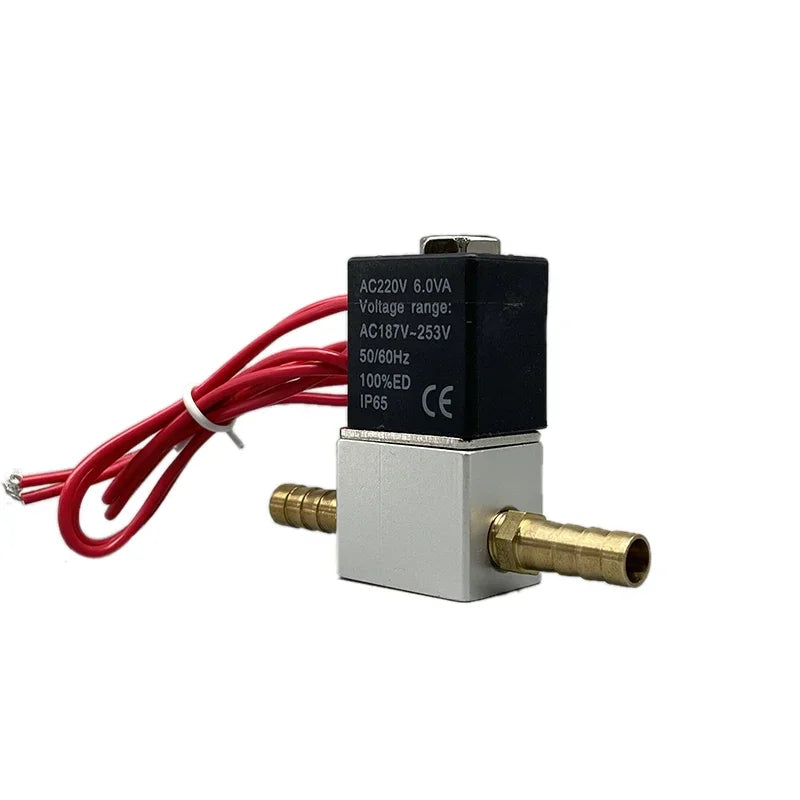

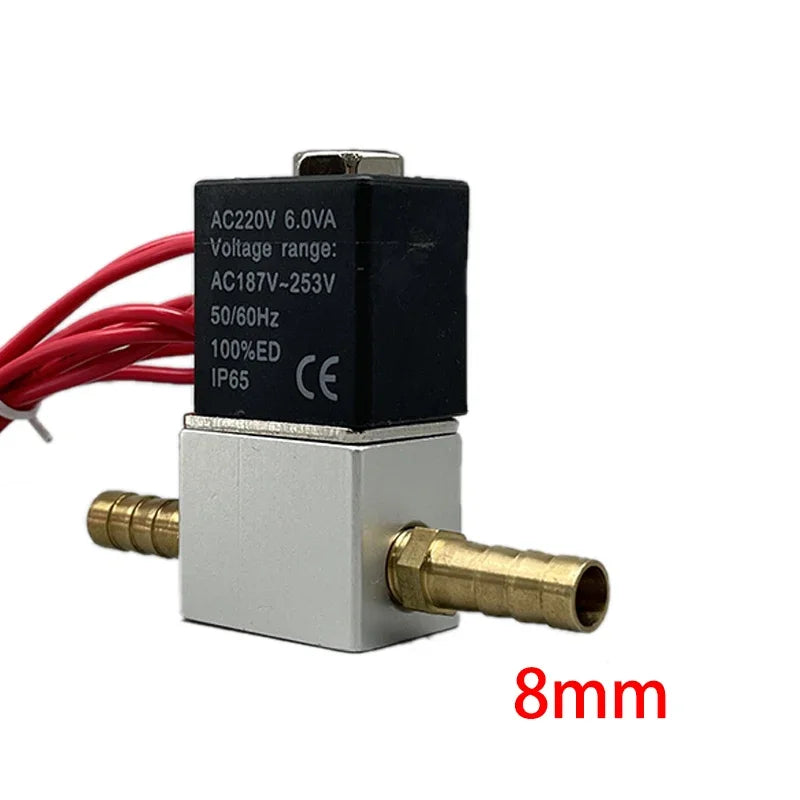

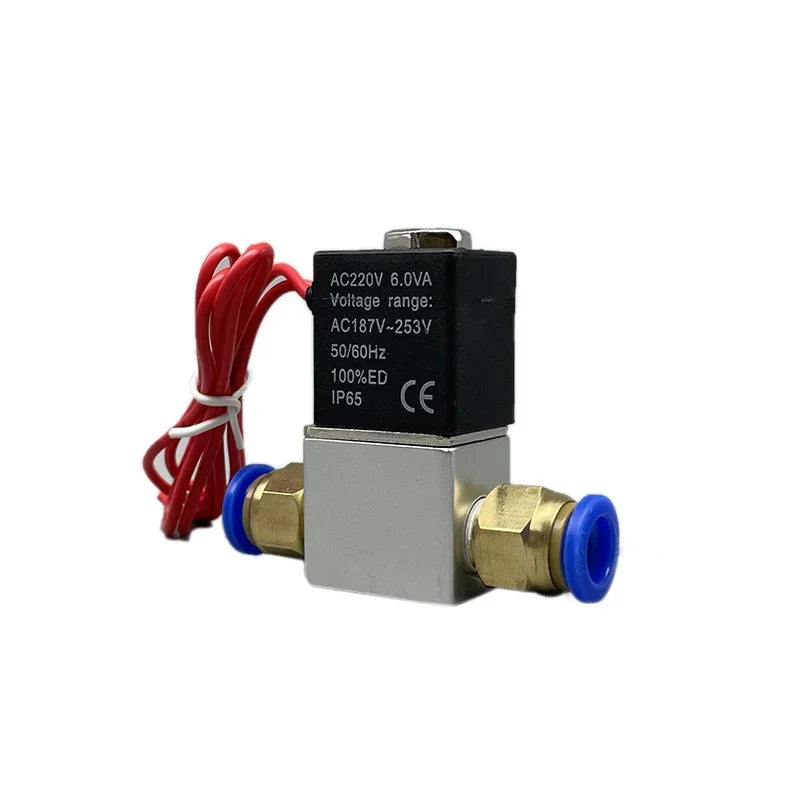

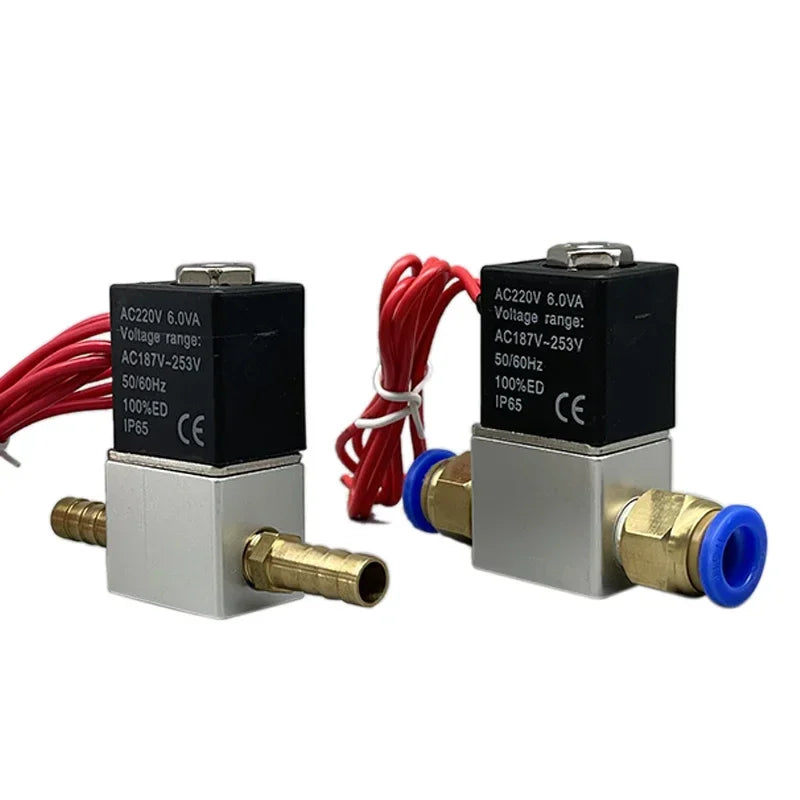

2-Way Normally Closed Solenoid Valve, 1/4" Port for Gas and Water
2-Way Normally Closed Solenoid Valve, 1/4" Port for Gas and Water
This 2-way normally closed solenoid valve controls the flow of gas or water in pneumatic and fluid systems, opening automatically when energized. It is designed for industrial or hobbyist setups requiring reliable flow regulation with an operating pressure range of 0 to 8 kgf/cm².
Key features
- Normally Closed Operation – The valve remains closed when de-energized and opens only when power is applied for precise flow control.
- Durable Construction – Features an aluminum body, brass armature tube, and stainless steel spring for lasting performance in various environments.
- Wide Compatibility – Supports multiple voltage inputs including DC12V, DC24V, AC110V, and AC220V to suit different system requirements.
- Versatile Mediums – Engineered to handle both gas and water working mediums across a temperature range of -5 to 70°C.
Specifications
| Model Number | 2V025-1/4 |
|---|---|
| Valve Type | 2 Way Normally Closed |
| Port Size | 1/4" Female |
| Body Material | Aluminum |
| Seal Material | NBR (Buna N) |
| Pressure Range | 0 - 8 kgf/cm² |
| Max Pressure Resistance | 12 kgf/cm² |
| Operating Temperature | -5 to 70°C |
| Available Voltages | DC12V, DC24V, AC110V, AC220V |
What's in the box
- 1 x Solenoid Valve
- 2 x Pipe Fittings
Ideal for
This valve is suitable for automation systems, pneumatic equipment, and water flow control projects requiring a 1/4" connection.
FAQ
Does this valve stay open without power?
No, this is a normally closed valve, which means it stays closed when de-energized and opens only when power is supplied.
What fluids can this valve handle?
This solenoid valve is designed for use with gas and water.
What is the maximum pressure it can withstand?
The valve has a maximum pressure resistance of 12 kgf/cm² and an operating pressure range of 0 to 8 kgf/cm².
