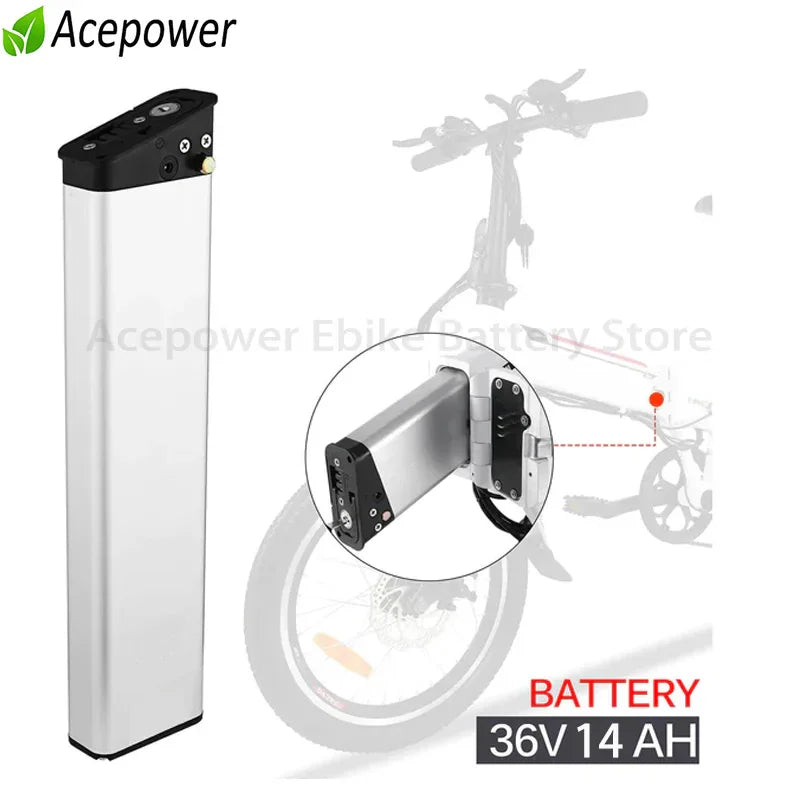

DCH014 silver e-bike battery with charging port and discharge pins, shown on a bicycle frame.

36V DCH-014 Lithium-Ion Battery for Folding E-Bikes, 325mm or 395mm

L325mm 36V 10.5Ah
$321.99
Skip to product information
DCH014 silver e-bike battery with charging port and discharge pins, shown on a bicycle frame.
  • DCH014 silver e-bike battery with charging port and discharge pins, shown on a bicycle frame.

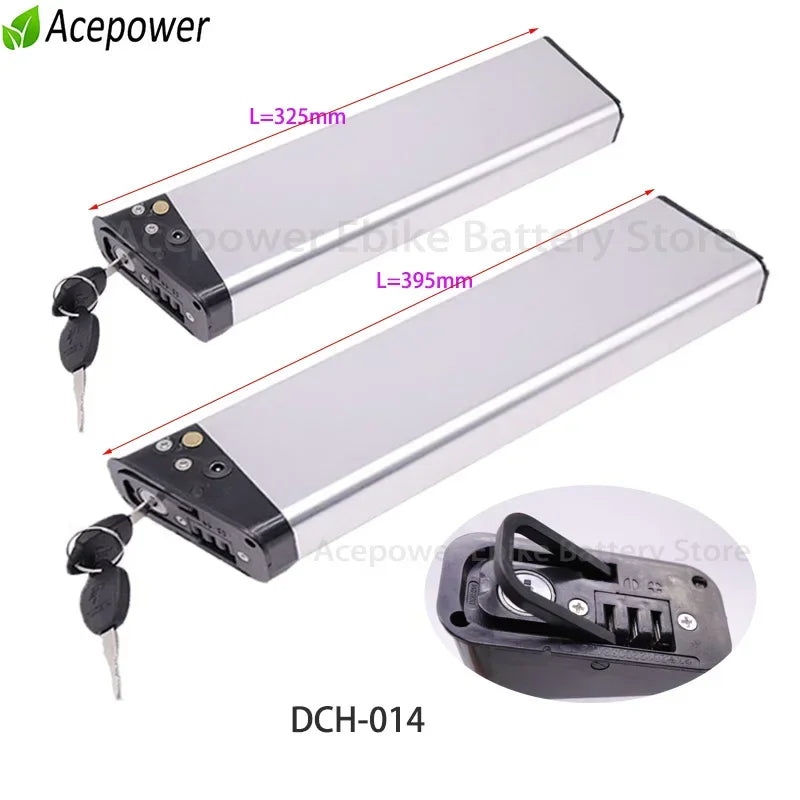

  • Two DCH014 silver electric bike batteries of different lengths with keys and charging port details.
  • Silver e-bike battery dimensions in millimeters showing width, length, and barrel size.

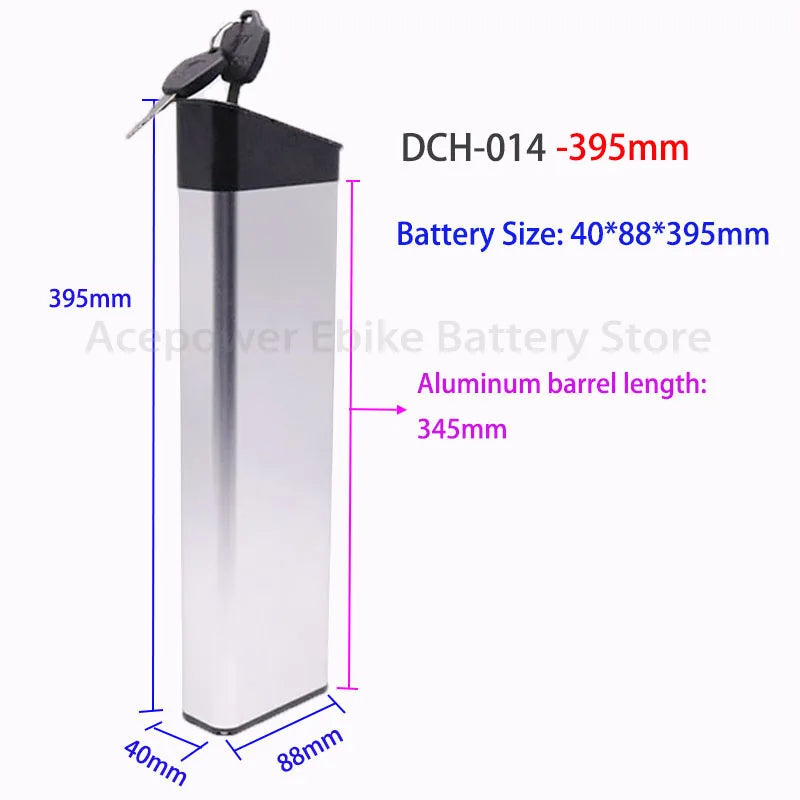

  • Silver e-bike battery dimensions in millimeters showing increased length and barrel specifications.

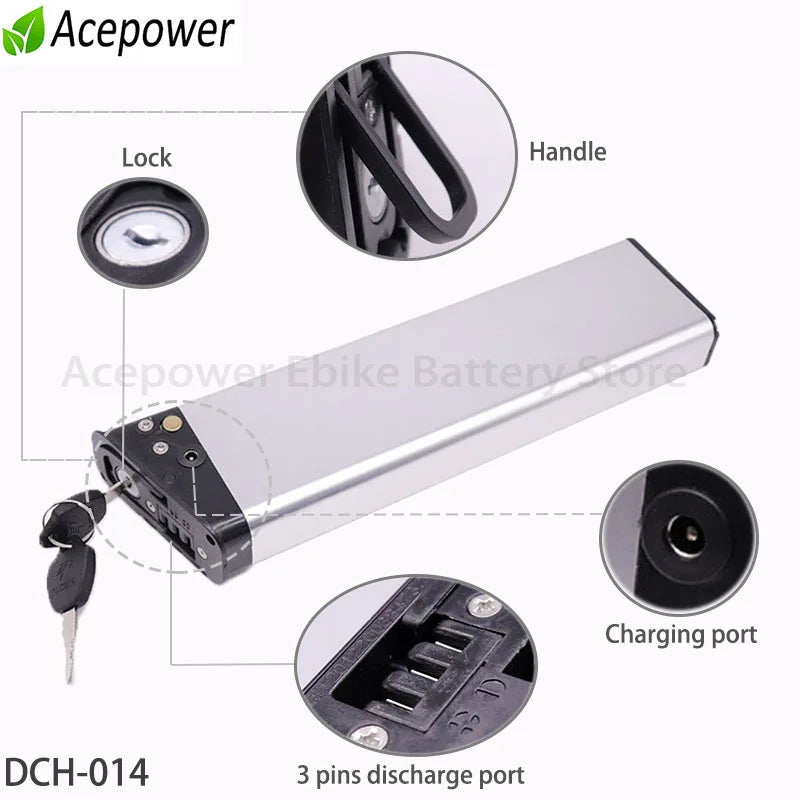

  • Silver e-bike battery showing lock, handle, charging port, and 3-pin discharge port features.

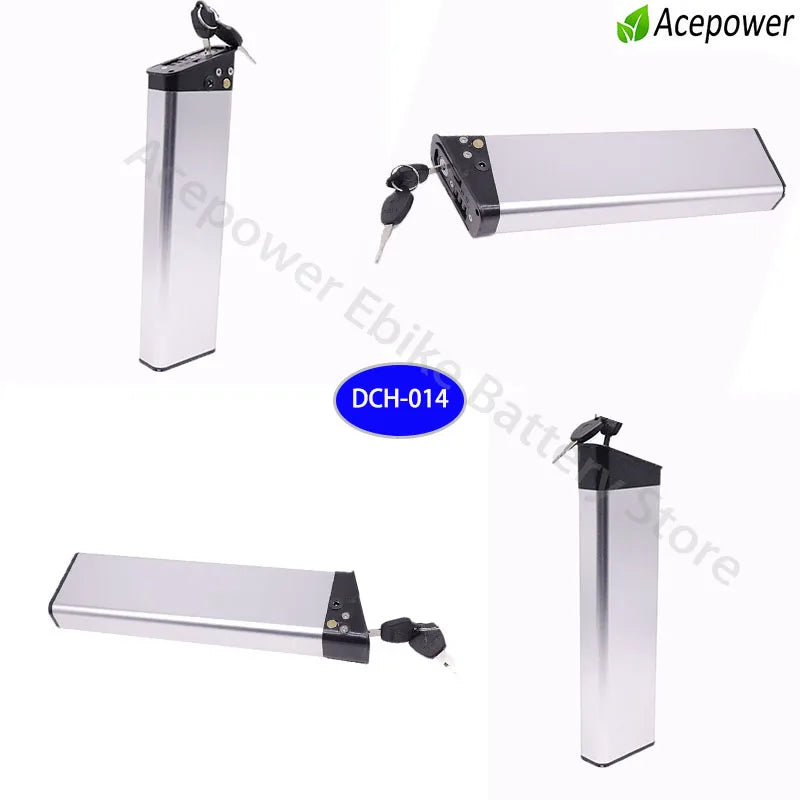

  • Multiple angles of a silver e-bike battery with keys showing the casing and charging interface.
  • DCH014 silver e-bike battery with charging port and discharge pins, shown on a bicycle frame.
  • Two DCH014 silver electric bike batteries of different lengths with keys and charging port details.
  • Silver e-bike battery dimensions in millimeters showing width, length, and barrel size.
  • Silver e-bike battery dimensions in millimeters showing increased length and barrel specifications.
  • Silver e-bike battery showing lock, handle, charging port, and 3-pin discharge port features.
  • Multiple angles of a silver e-bike battery with keys showing the casing and charging interface.
36V DCH-014 Lithium-Ion Battery for Folding E-Bikes, 325mm or 395mm

36V DCH-014 Lithium-Ion Battery for Folding E-Bikes, 325mm or 395mm

$321.99
Color

The 36V DCH-014 lithium-ion battery is designed for folding electric bikes, providing a replacement or spare power source for motors ranging from 200W to 500W. Available in two lengths of 325mm or 395mm, it fits specific e-bike frames including Ancheer AM1908 and ADO A16 models.

Key features

  • Integrated BMS – Built-in SEIKO IC battery management system protects against short circuits, overcharging, over-discharging, and over-current.
  • Long Cycle Life – Engineered for 800–1000 charge cycles while maintaining 80% capacity.
  • Wide Motor Compatibility – Designed to support e-bike motors ranging from 200W up to 500W.
  • Complete Kit – Includes both the battery pack and a compatible charger.
  • Certified Safety – Features CE, RoHS, UL, UN38.3, and MSDS certifications.

Specifications

Voltage 36V
Battery Type Lithium-ion with 18650 cells
Available Sizes 325mm (2kg) or 395mm (2.5kg)
Dimensions 40 × 88 × 325mm or 40 × 88 × 395mm
BMS 20A
Discharge Cut-off 30V
Charging Cut-off 42V
Operating Temp Discharge -20 to 65°C, Charge 0 to 45°C
Warranty 1 Year

What's in the box

  • 1 × 36V DCH-014 Battery
  • 1 × Battery Charger

Ideal for

This battery is suited for owners of folding electric bikes needing a replacement power source for daily commuting or recreational riding, provided the e-bike frame supports the 325mm or 395mm battery length.

FAQ

Does it fit my bike?

This battery is compatible with several models including Ancheer AM1908 and ADO A16. Please measure your current battery to confirm if you require the 325mm or 395mm length version.

Does this include a charger?

Yes, every battery order includes a compatible charger.

What motors does this work with?

This battery is designed to work with 36V e-bike motors ranging from 200W up to 500W.

What is the warranty period?

This product includes a 1-year quality warranty covering the battery cells and BMS.
