5-Inch 3-Jaw Precision Semi-Universal Dividing Head for Milling Machines
5-Inch 3-Jaw Precision Semi-Universal Dividing Head for Milling Machines
This 5-inch precision dividing head is designed for milling machines to accurately measure angles and divide circles into equidistant arcs. It is suitable for machinists looking to cut gear teeth, machine flutes, or drill bolt circles with high stability.
Key features

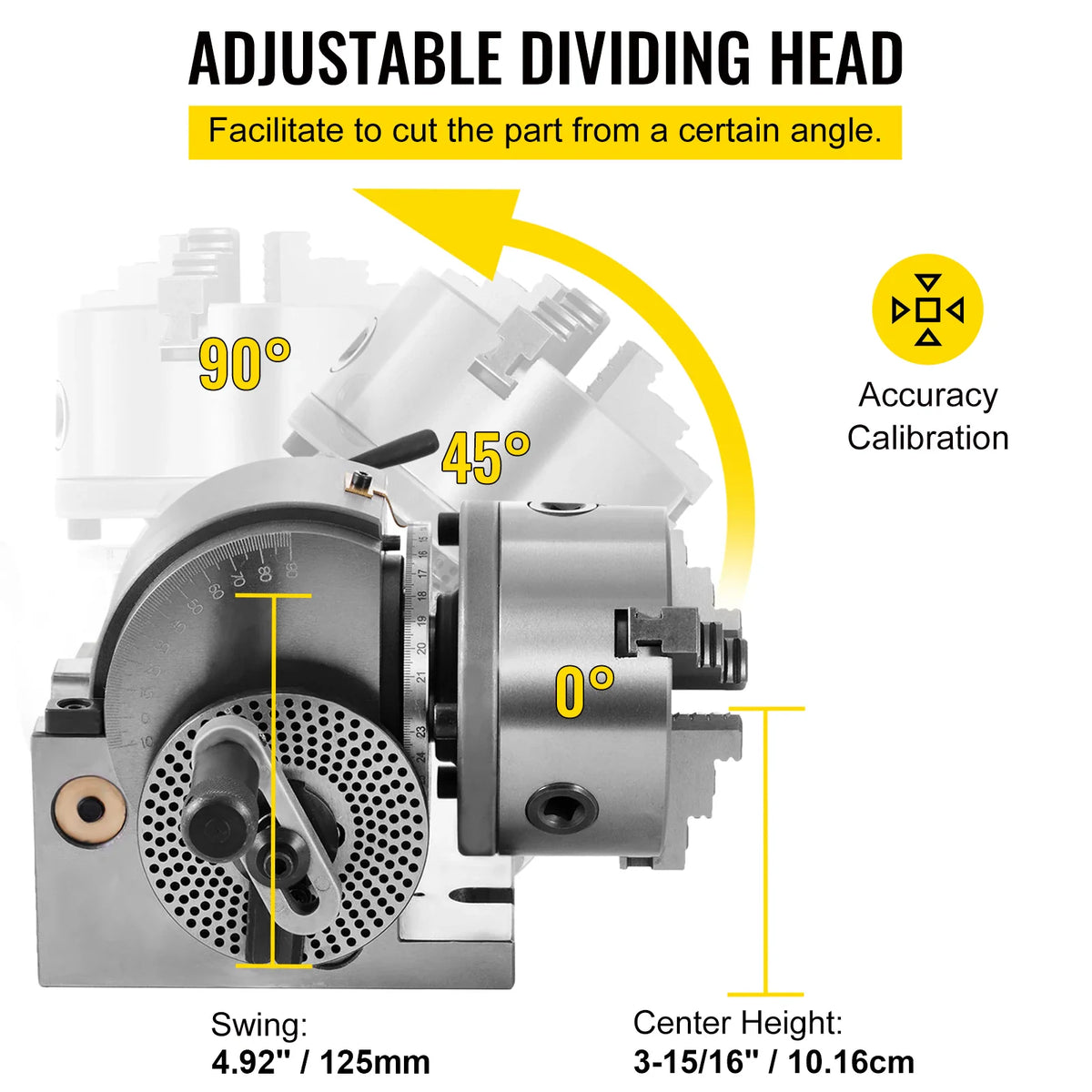

- Adjustable Tilt – The headstock adjusts from 10 degrees below horizontal to 90 degrees vertical to accommodate various machining angles.

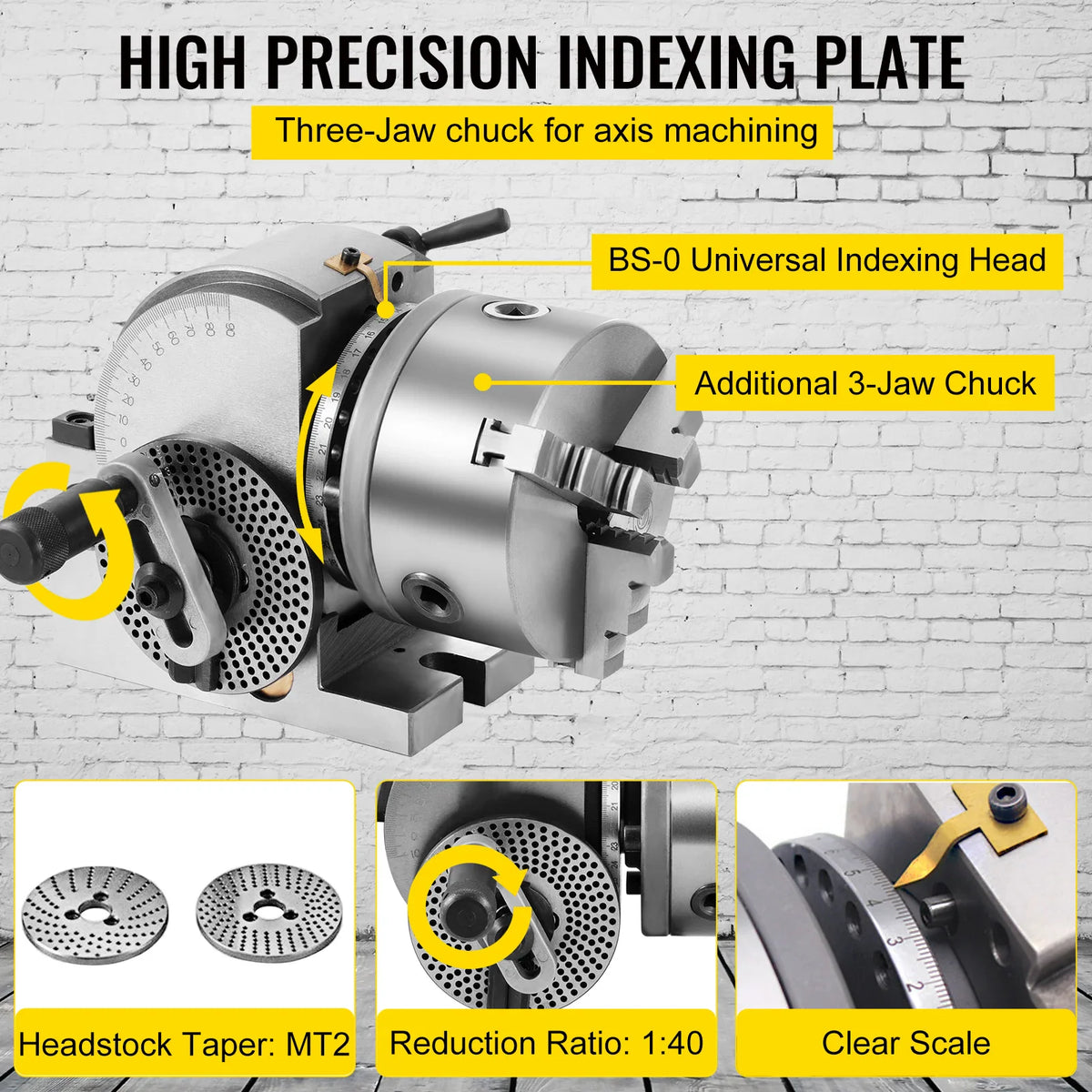

- Precise Indexing – Includes one direct indexing plate for simple divisions and three interchangeable plates (A, B, and C) to achieve divisions from 2-50.

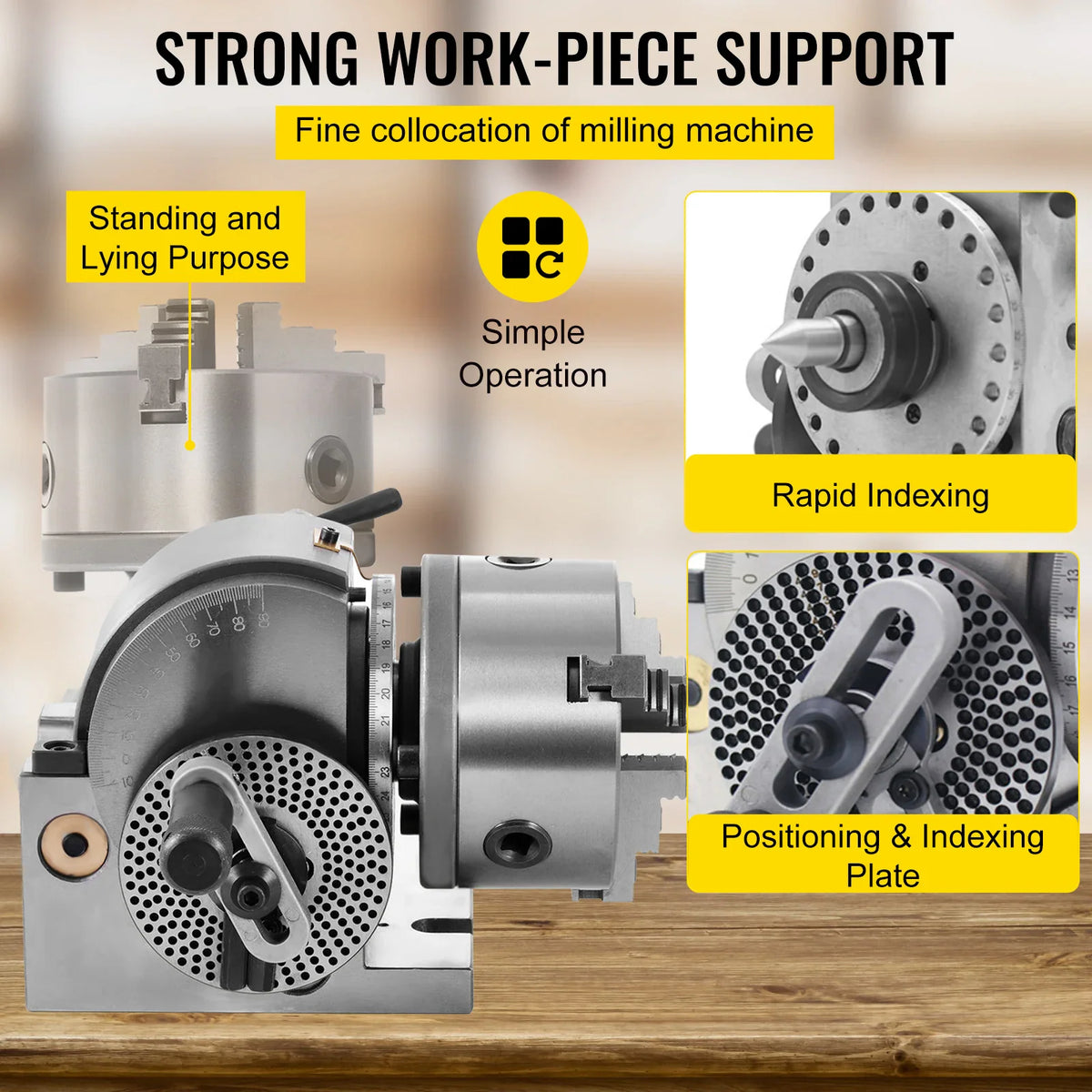

- Stable Support – Comes with an MT2 tailstock to provide rigid support for long or slender workpieces during operation.

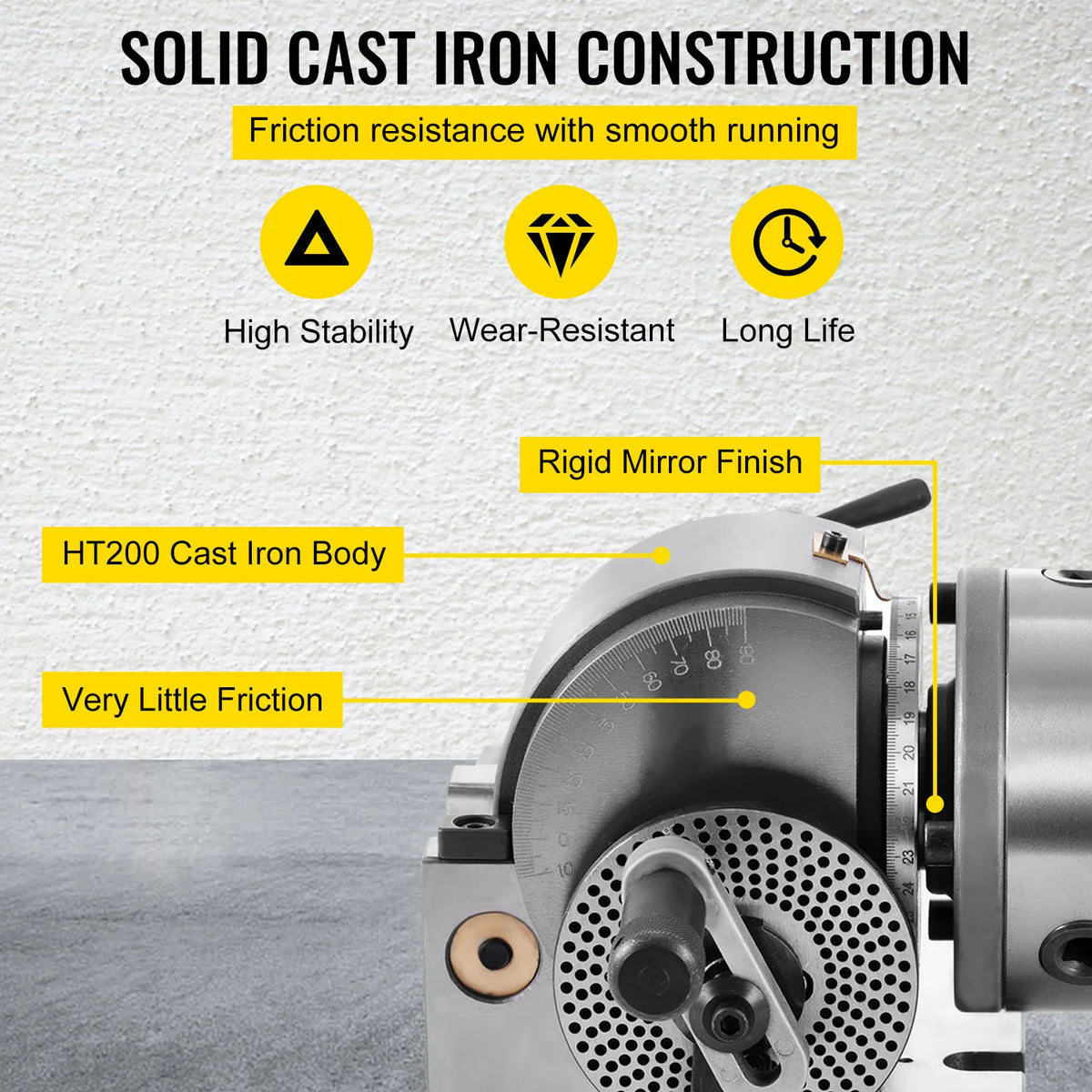

- Solid Construction – Built with cast iron and a wear-resistant mirror finish for long-term durability in workshop environments.
- Integrated Chuck – Includes a 125 mm 3-jaw chuck for immediate workpiece mounting.
Specifications
| Swing | 4.92" (12.5 cm) |
|---|---|
| Center Height | 3-15/16" (10 cm) |
| Headstock Taper | MT2 |
| Net Weight | 50.7 lbs (23 kg) |
| Headstock Dimensions | 9.5" x 7.5" x 4.92" (24 x 19 x 12.5 cm) |
| Tailstock Dimensions | 3.5" x 6" x 4" (9 x 15 x 10 cm) |

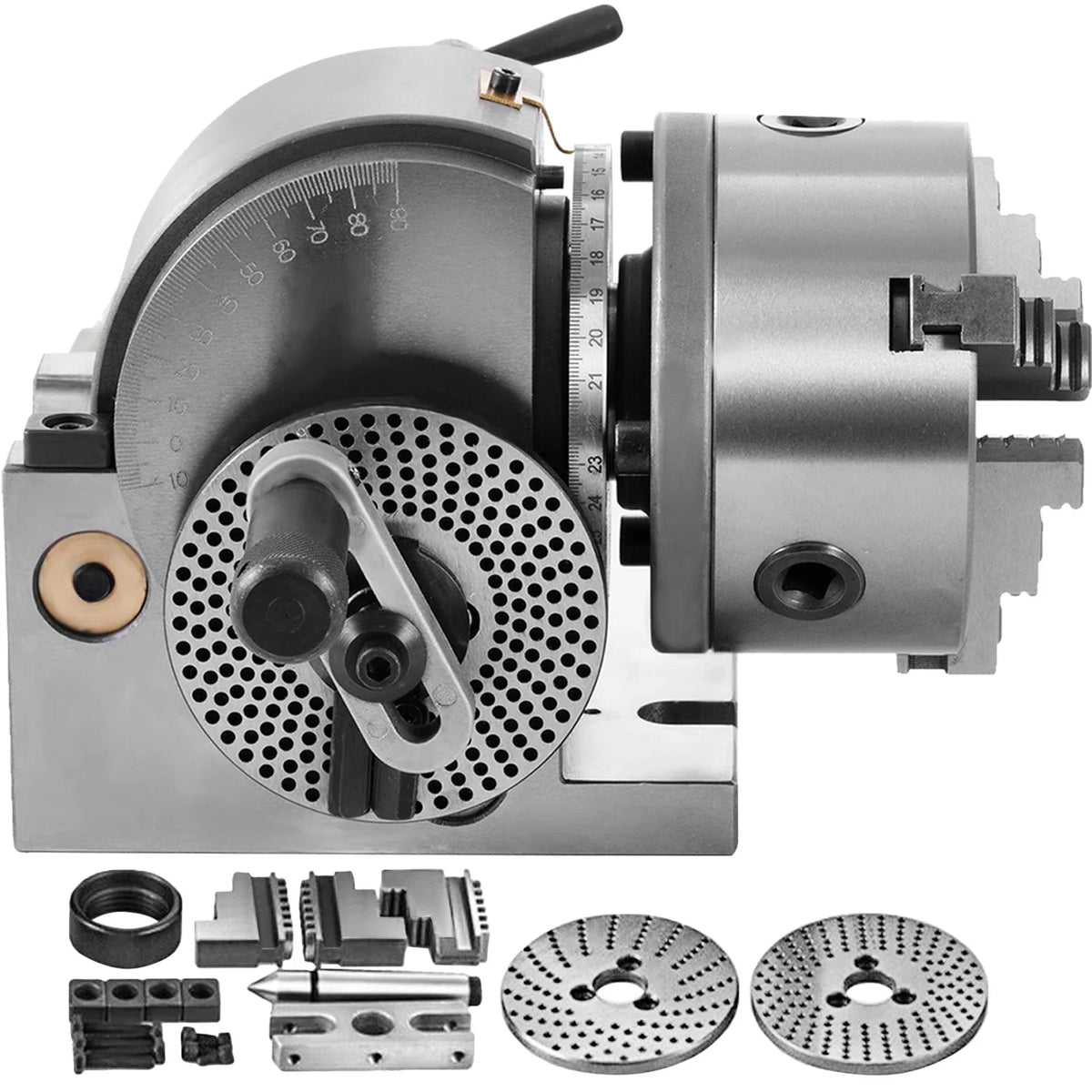

What's in the box
- 1 x Dividing Head
- 3 x Dividing Plates
- 1 x Tailstock
- 1 x 125 mm 3-Jaw Chuck
Ideal for

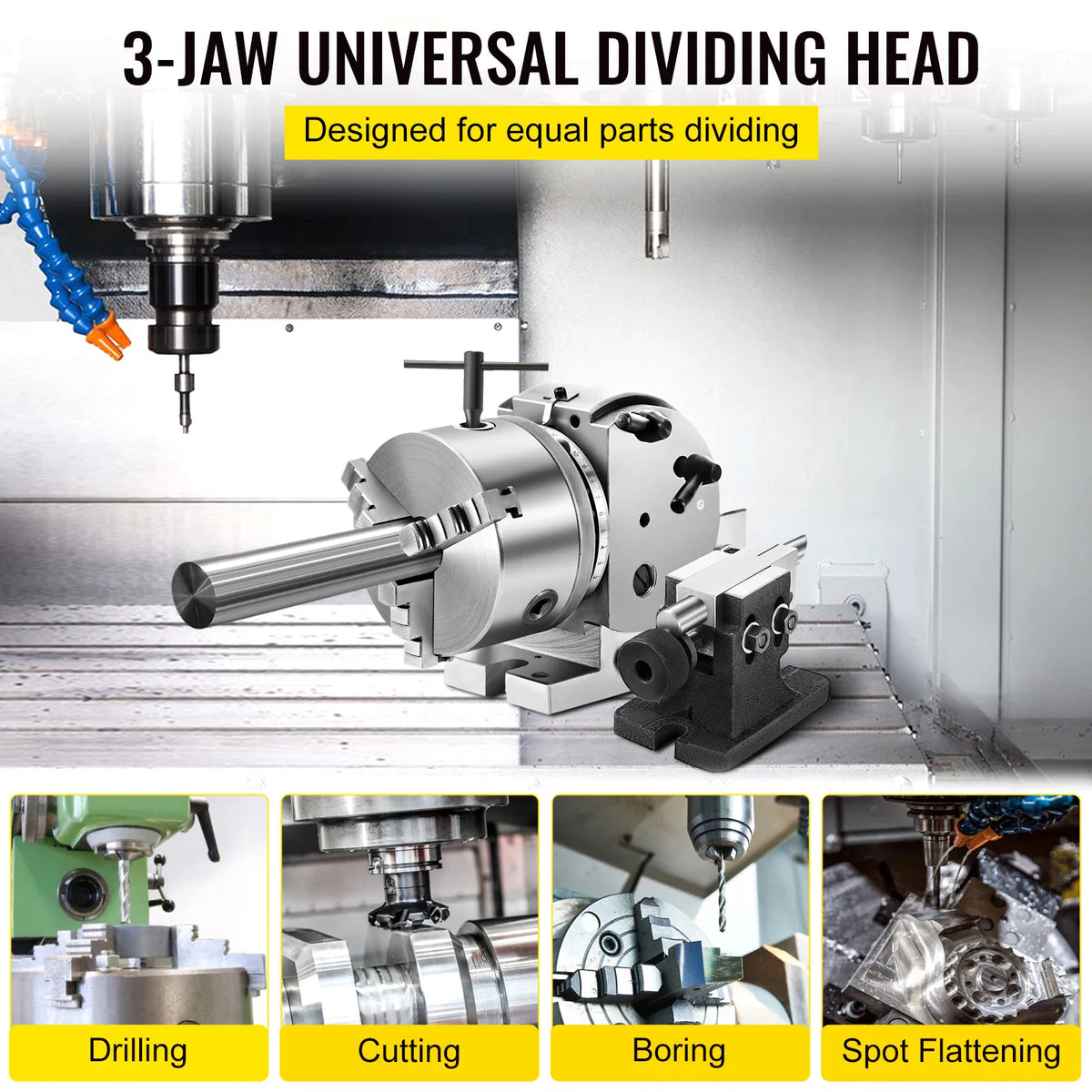

This dividing head is ideal for use on milling machine tables, drill presses, grinders, and boring machines to perform complex metalworking tasks that require precise rotational positioning.
FAQ
What machine tools is this compatible with?
It is designed for use on milling machine tables, drill presses, grinders, and boring machines.
Can this cut any number of divisions?
Using the included interchangeable indexing plates, you can achieve any division from 2-50. Some divisions between 51 and 380 may not be obtainable; consult the manual for specific settings.
What is the range of motion for the headstock?
The headstock can be tilted from 10 degrees below horizontal to 90 degrees vertical.
