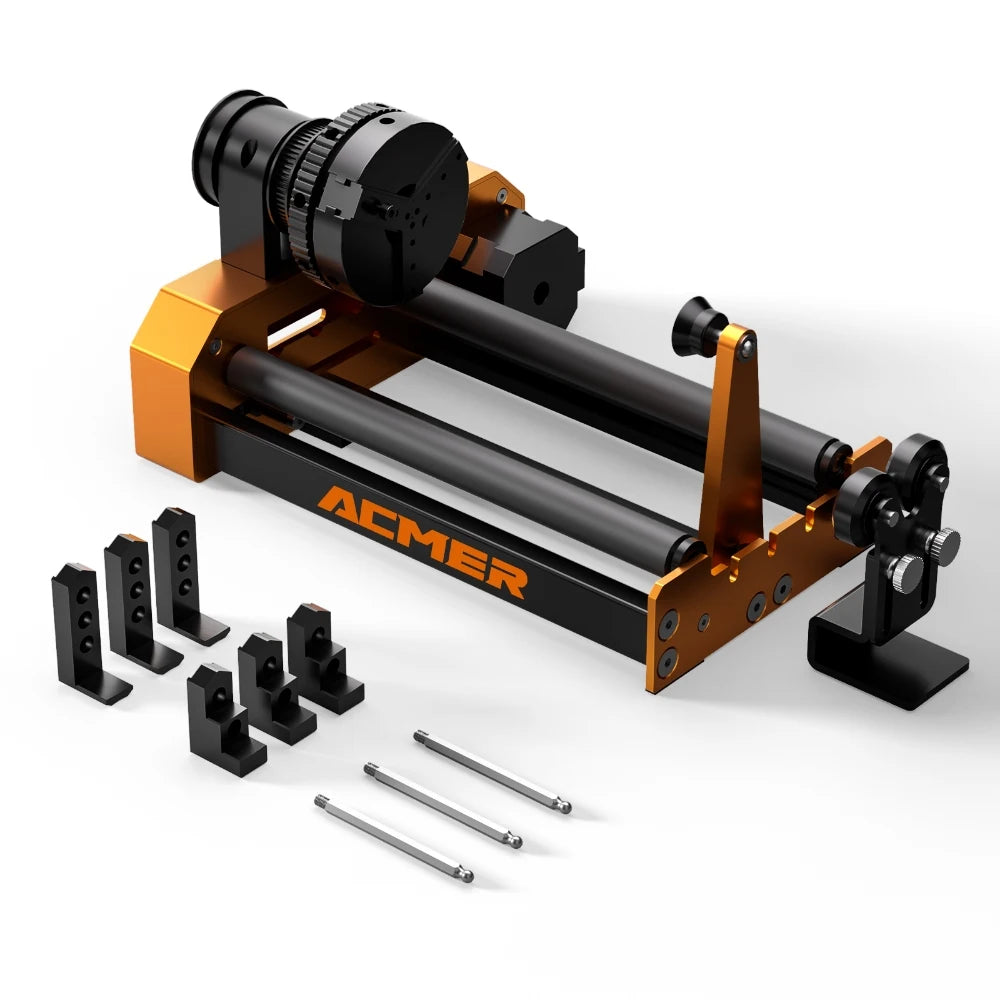

Acmer M4 4-in-1 Laser Engraver Rotary Chuck Module for Curved Surfaces
Acmer M4 4-in-1 Laser Engraver Rotary Chuck Module for Curved Surfaces

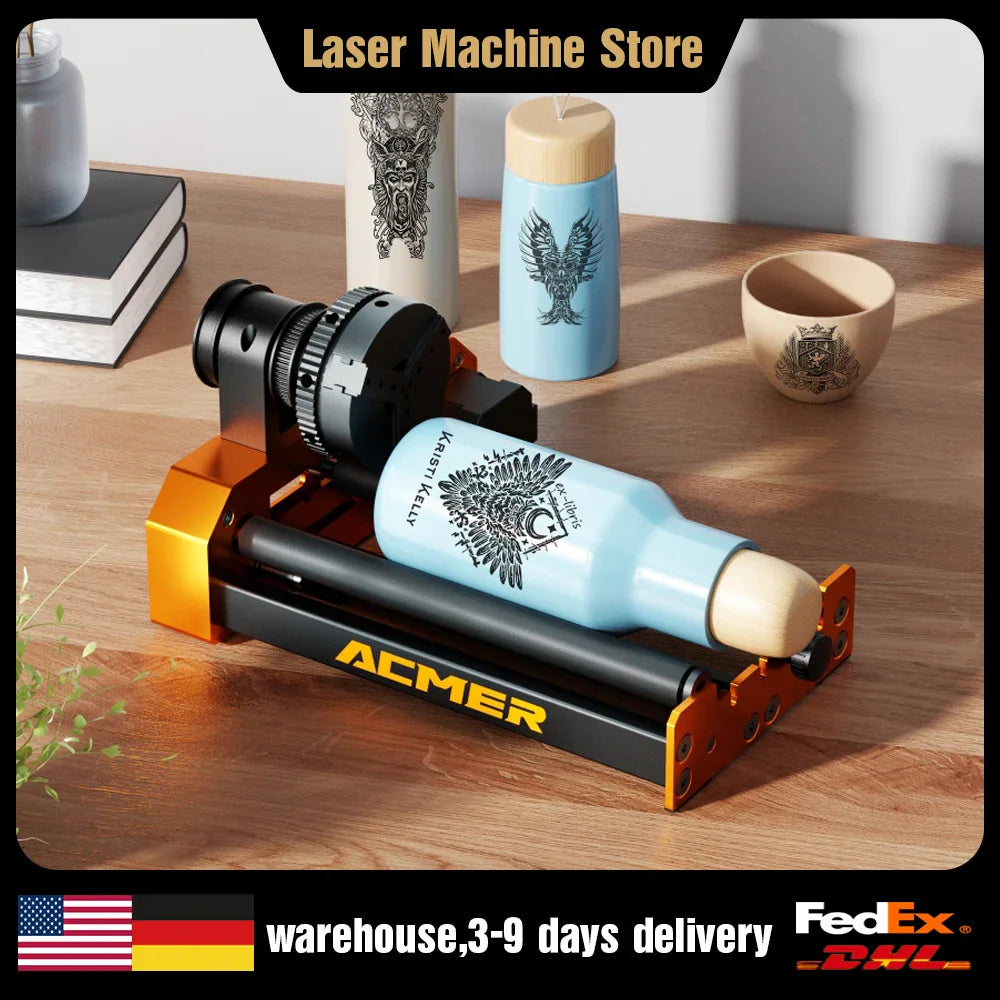

The Acmer M4 4-in-1 rotary chuck module allows you to engrave on cylinders, spheres, rings, and cones with a 4-138mm diameter capacity. This pre-assembled tool features adjustable 3-jaw clamping to secure objects like bottles, cans, and jewelry for precise 360-degree laser engraving.
Key features

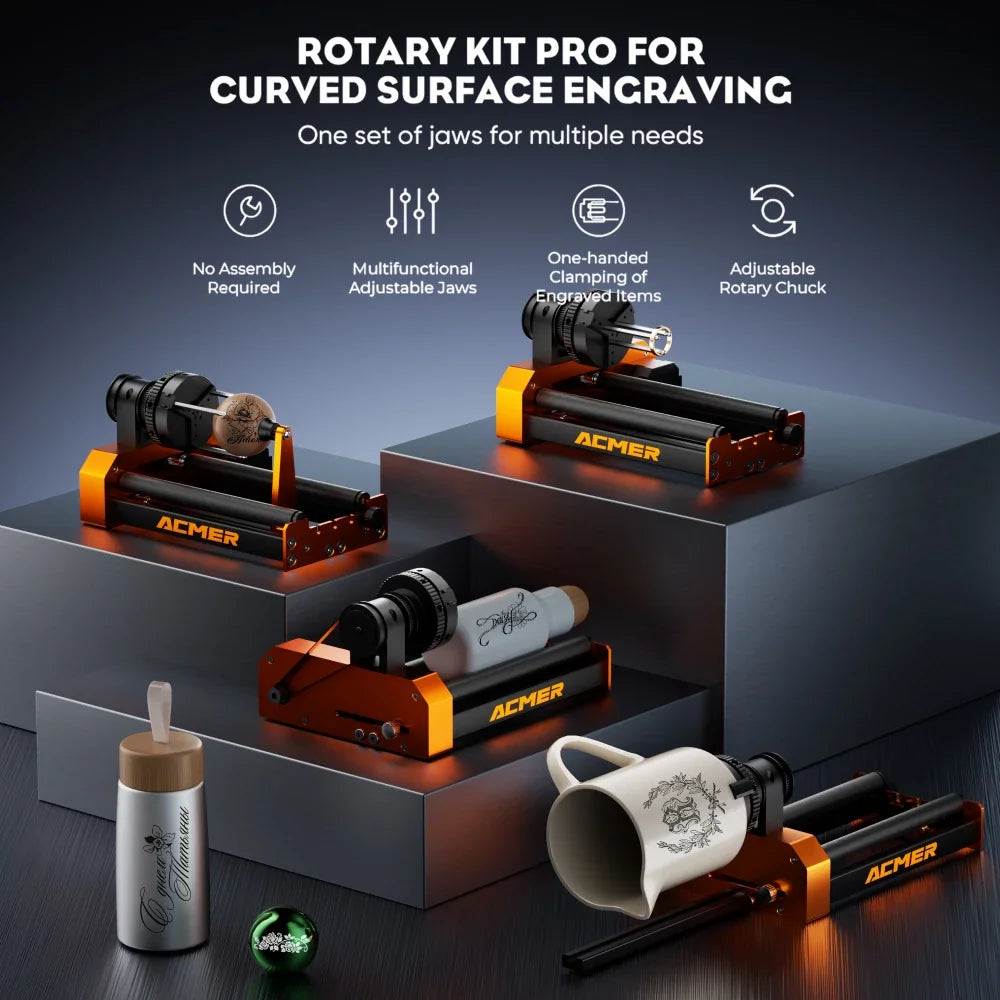

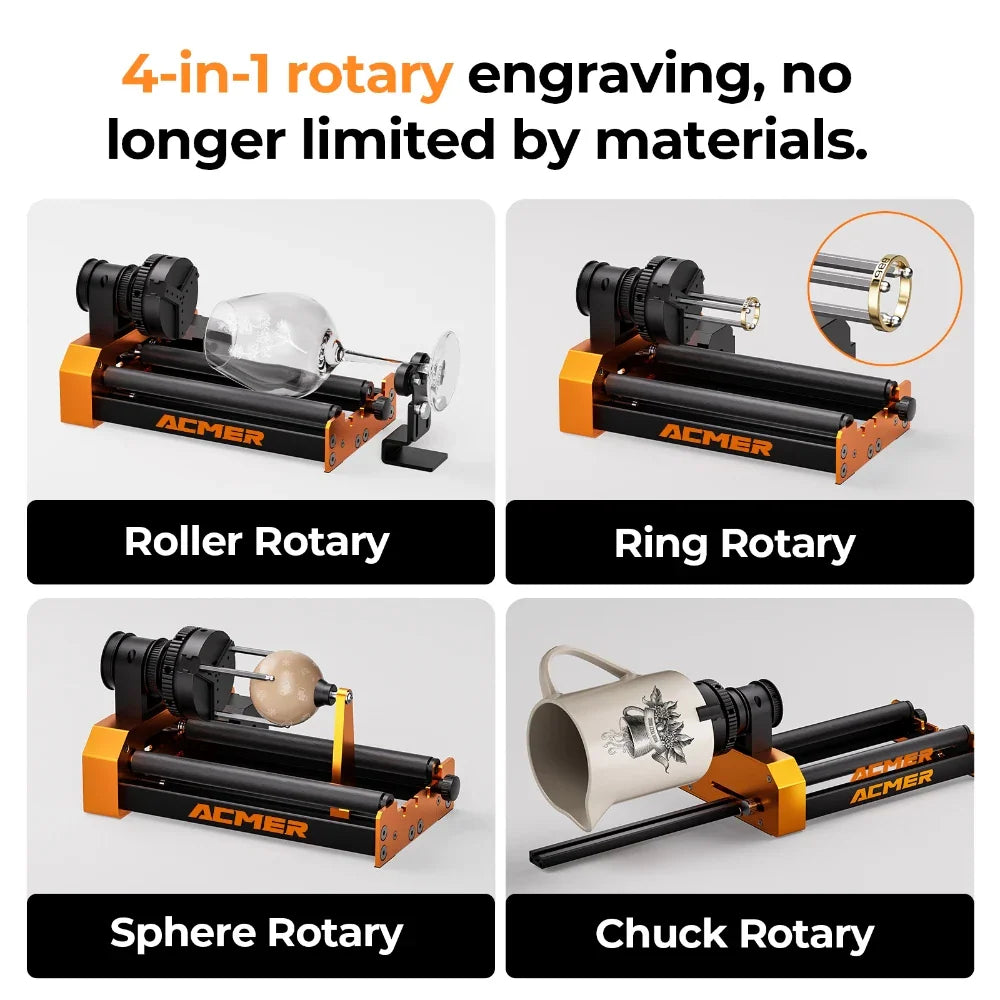

- 4-in-1 Versatility – Includes multiple modes to engrave cylinders, spheres, rings, and tapered items.
- Adjustable 3-Jaw Chuck – Enables one-handed, secure clamping of objects with a 4-64mm clamp diameter.
- 360° Rotary Engraving – Allows for continuous, accurate rotation while engraving curved surfaces.
- No Assembly Required – Comes pre-assembled for immediate integration with your laser engraving machine.
- Adjustable Design – Features 4 levels of width adjustment and a max roller spacing of 78 mm to accommodate various object sizes.
Specifications
| Brand | Acmer |
|---|---|
| Compatibility | Y-axis rotary-compatible laser engraving machines |
| Engraving Diameter Range | 4-138 mm (Roller mode: 3-150 mm) |
| Chuck Clamp Diameter | 4-64 mm |
| Body Material | Aluminum plate, aluminum profile, iron |
| Roller Material | Rubber |
| Roller Gears | 4 gears |
| Maximum Roller Spacing | 78 mm |
| Model | M4 |
Ideal for
This module is designed for artisans, small workshops, and gift customization businesses looking to expand their laser engraving capabilities to include wine bottles, metal cups, rings, and spherical objects.
FAQ
Does this module fit my laser machine?

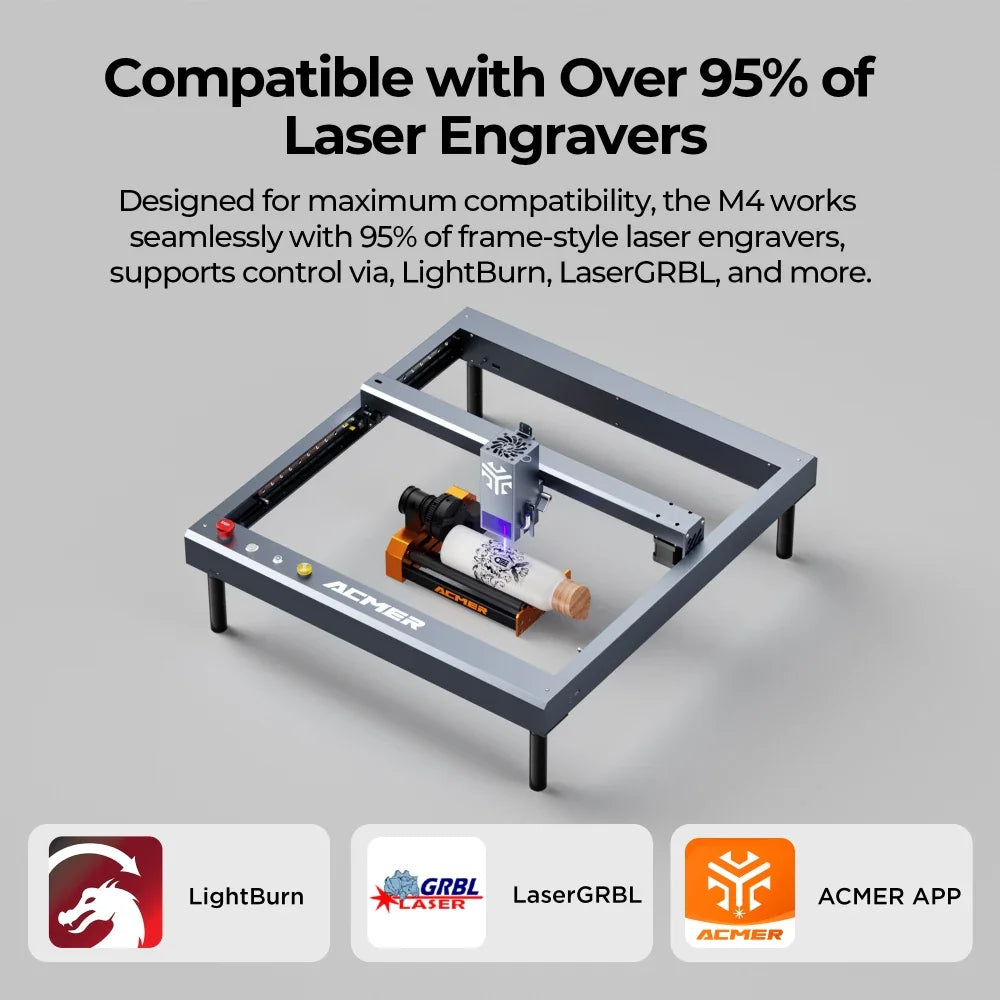

The Acmer M4 is compatible with most diode laser engraving machines that support Y-axis rotary attachments.
What types of items can I engrave?

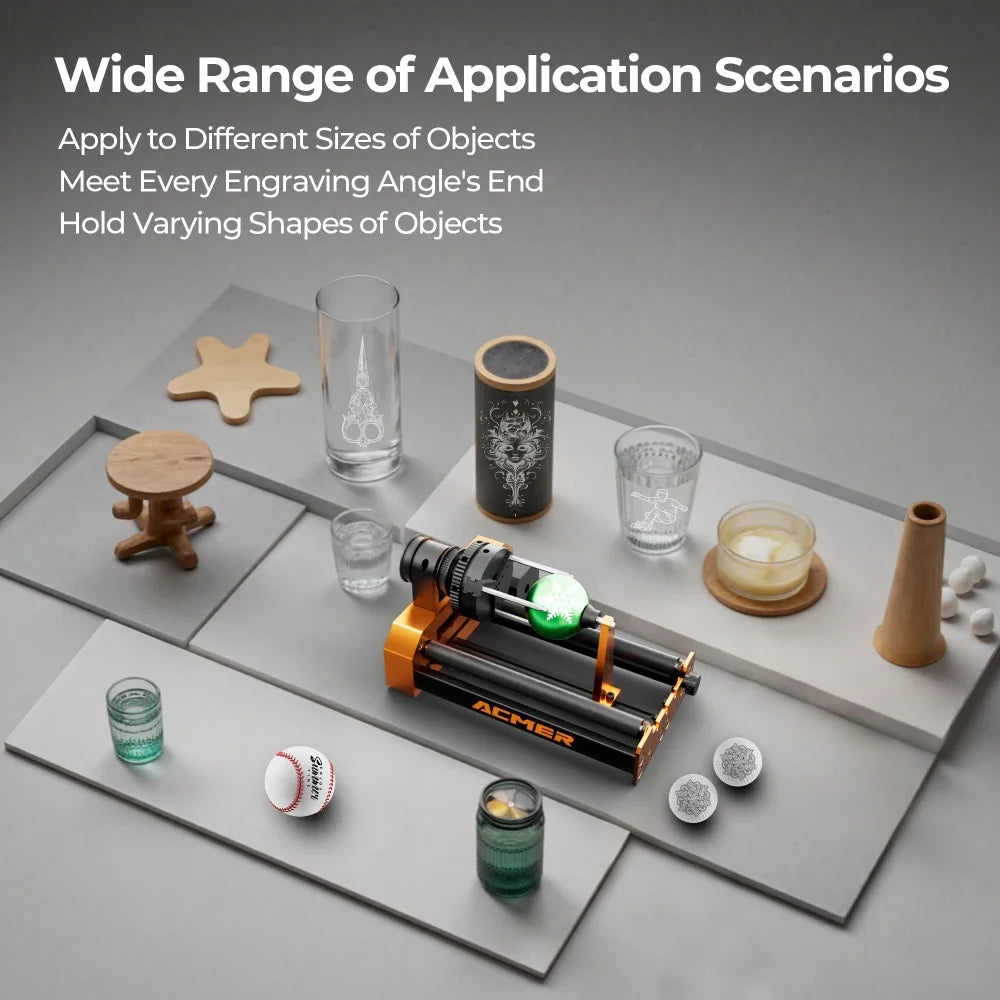

You can engrave cylinders, cones, spheres, rings, cans, and other curved objects within the 4-138mm diameter range.
Is assembly required?
No, the module comes pre-assembled and ready for immediate use.
