Allsome 2-in-1 Milling and Drilling Precision Vise Compound Worktable
$84.99

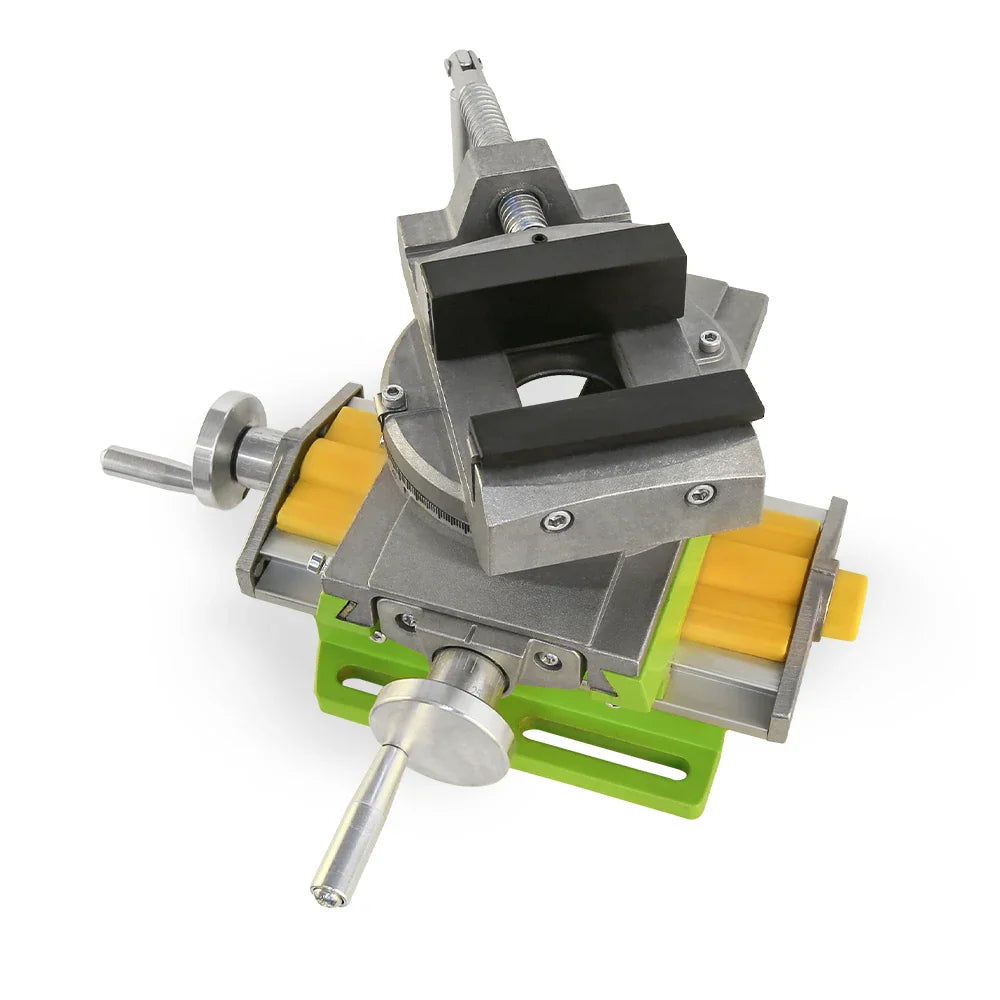

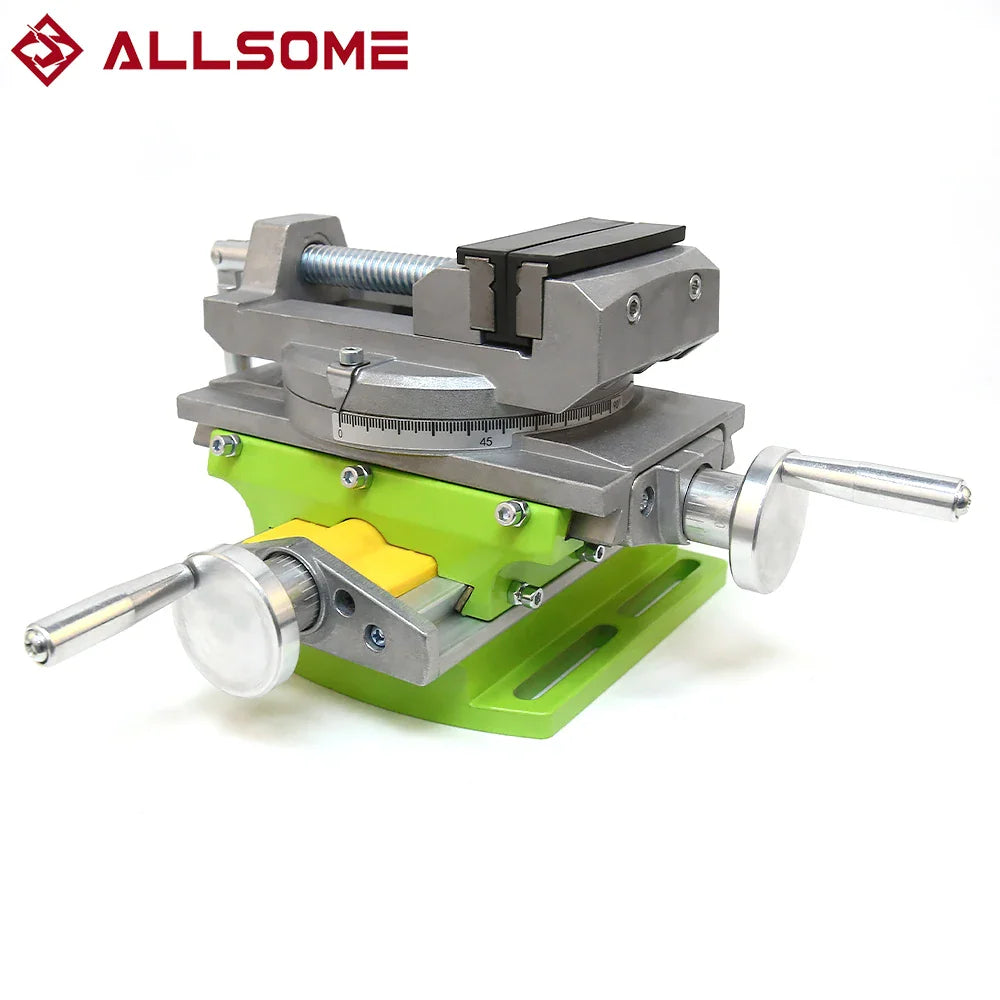

The Allsome 2-in-1 precision vise is an aluminum alloy compound worktable designed for milling and drilling tasks on a bench drill. It provides adjustable X and Y axis movement to help you align materials accurately for machining projects.
Key features
- Precision adjustment – features an X-axis stroke of 80 mm and Y-axis stroke of 67 mm for detailed positioning.

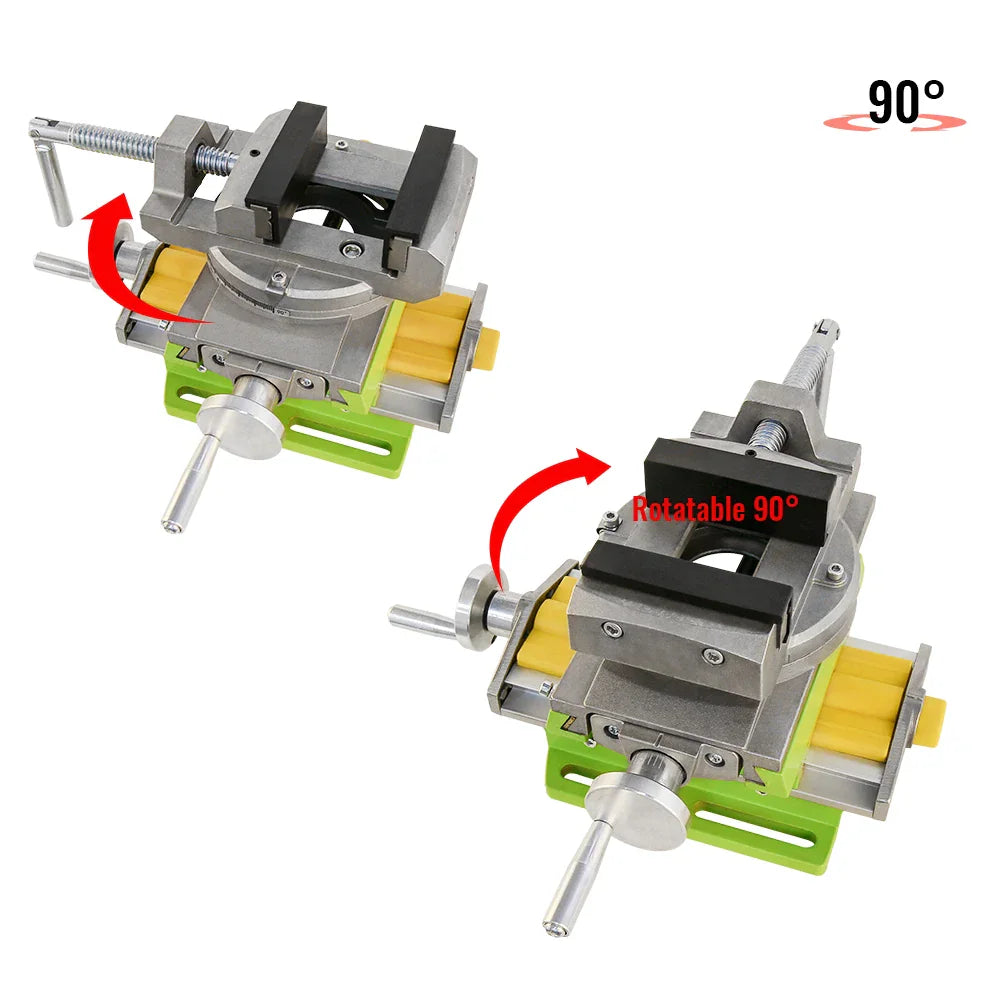

- Swivel base – allows for a 90° rotation to accommodate different drilling or milling angles.
- Sturdy construction – built from aluminum alloy for durability during metalworking tasks.

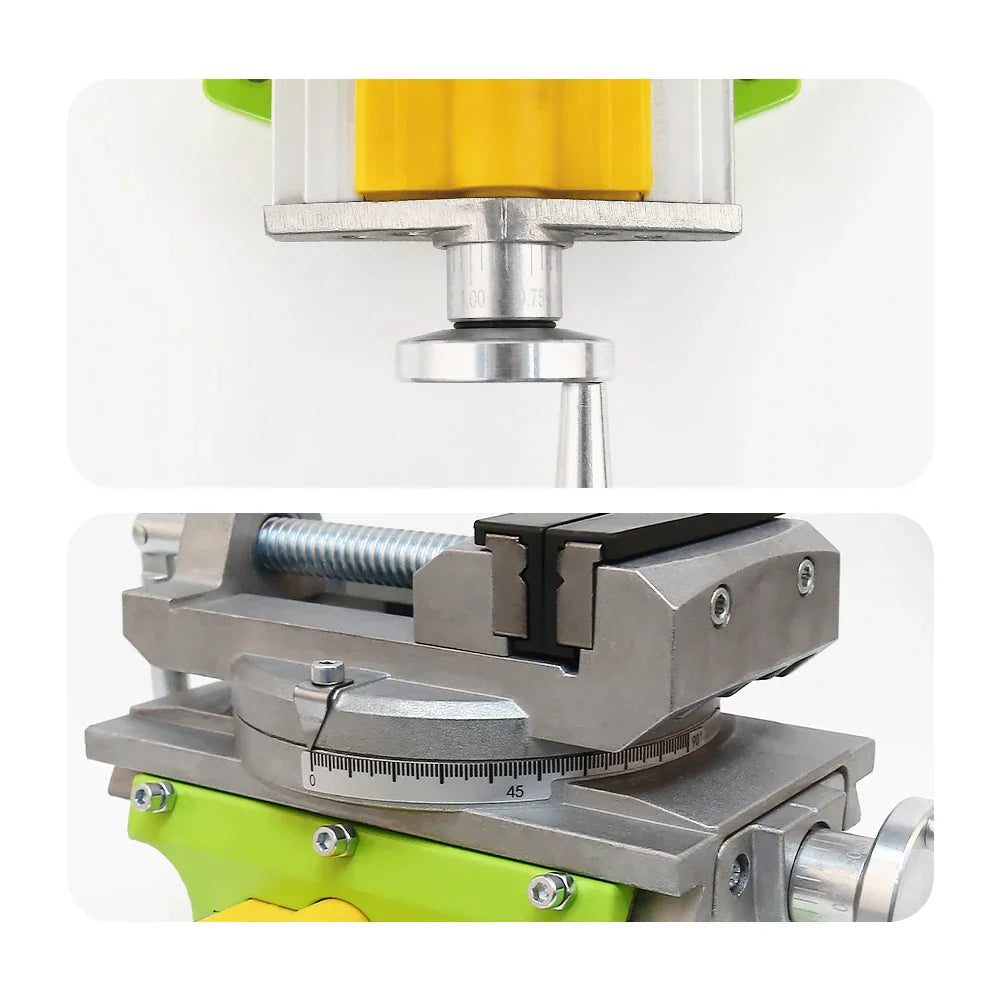

- Controlled movement – includes scale knobs where one full turn equals a 1.5 mm stroke for consistent adjustments.
- Maximum clamping – accepts workpieces up to 77 mm in size.
Specifications
| Material | Aluminum Alloy |
|---|---|
| X-axis Stroke | 80 mm |
| Y-axis Stroke | 67 mm |
| Rotation Angle | 90° |
| Maximum Clamping Size | 77 mm |
| Adjustment Scale | 1.5 mm per turn |
| Color | Green |
What's in the box
- 1 x Pliers holder
Ideal for
This compound worktable is ideal for DIY metalworkers and hobbyists using a bench drill who need precise, adjustable clamping for milling and drilling operations.
FAQ
What is the maximum clamping width?
The vise has a maximum clamping size of 77 mm.

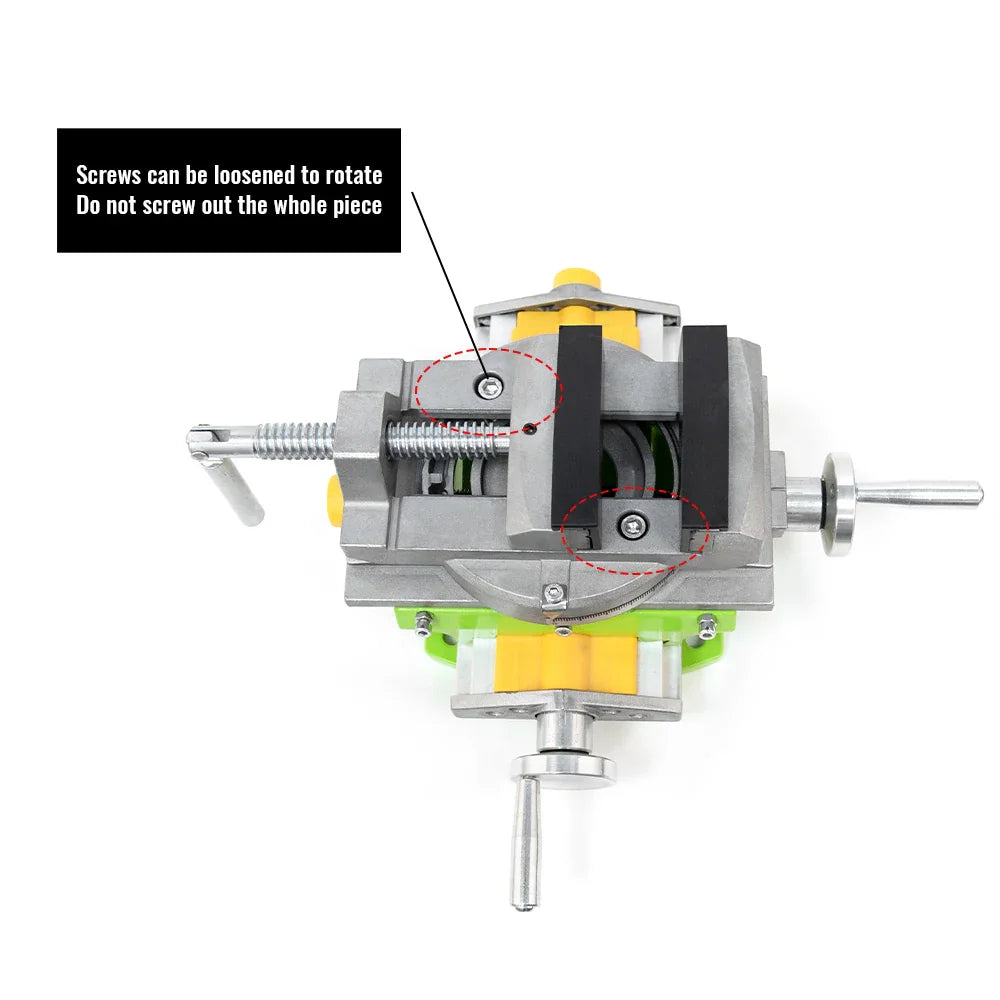

How do I rotate the base?
Loosen the screws to rotate the base; do not remove the screws entirely.
What is the adjustment precision of the knobs?
One full turn of the scale knob provides a 1.5 mm stroke.
