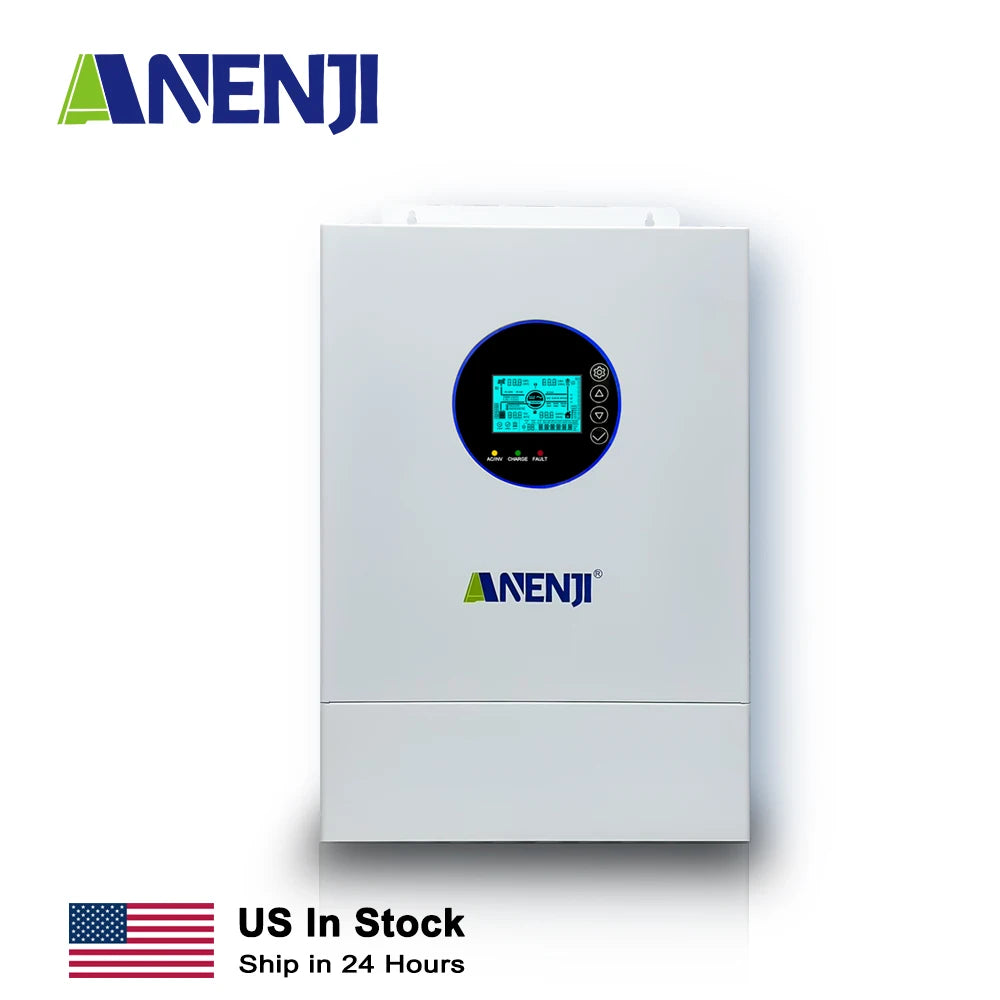

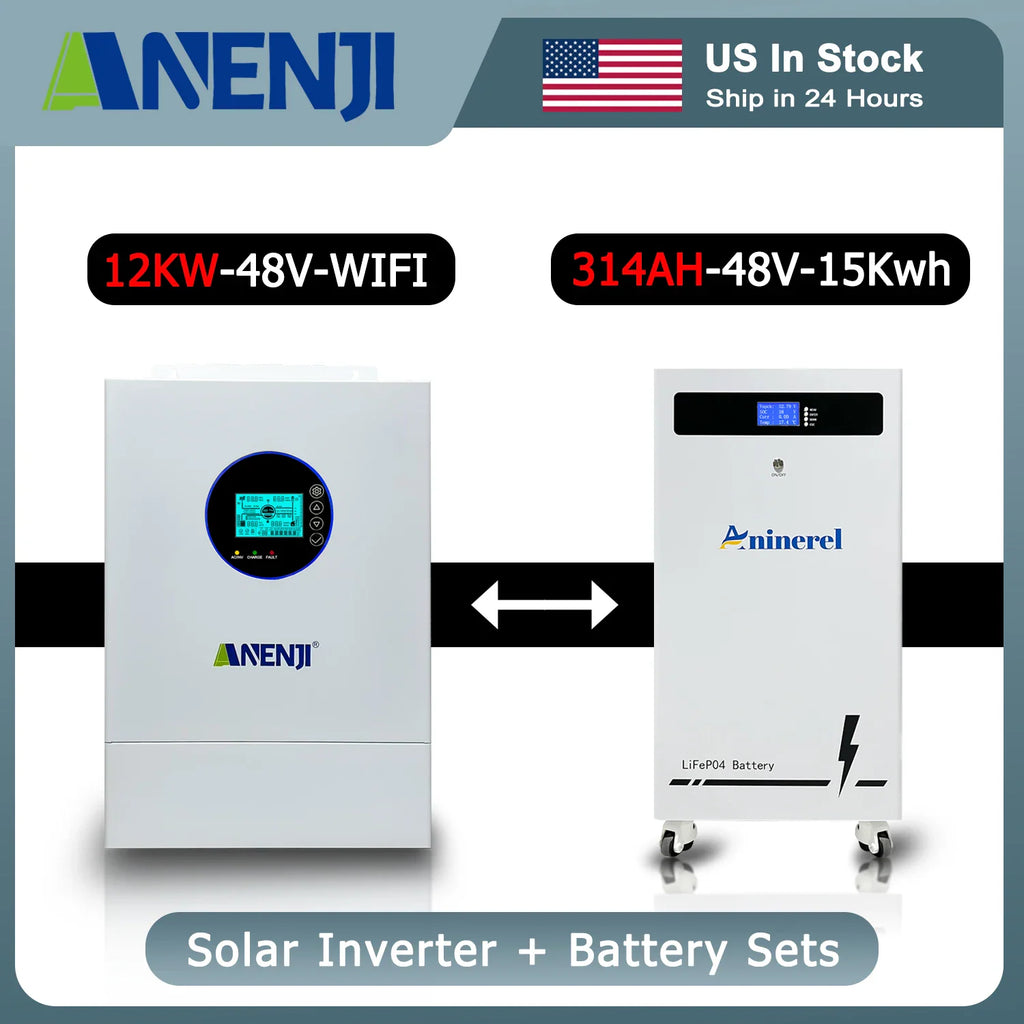

Anenji 12KW 48V Hybrid Solar Inverter and 314AH 15KWh LiFePO4 Battery Set
$1,656.99

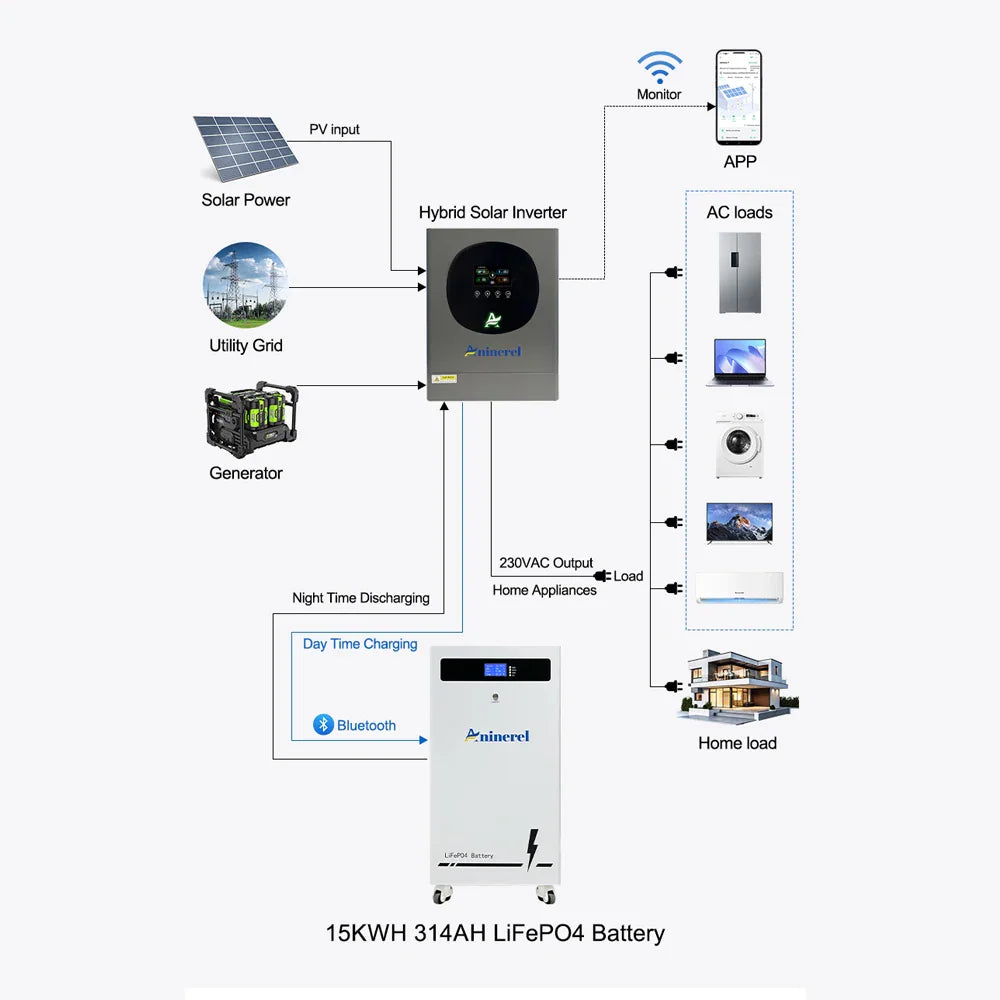

This 12KW 48V hybrid solar inverter and 314AH 15KWh LiFePO4 battery set provides a reliable pure sine wave power solution for off-grid and residential energy storage. It is designed for homeowners and professionals looking to optimize electricity costs through smart scheduling, solar integration, and high-capacity backup power.
Key features
- Pure Sine Wave Output – Delivers stable, high-quality electricity compatible with sensitive appliances like computers and refrigerators.
- Dual 200A MPPT Controllers – Enhances solar charging efficiency by maintaining the maximum power point from photovoltaic panels.
- Built-in BMS Protection – The battery features an integrated management system with eight protective functions, including overcharge, short circuit, and thermal safety.

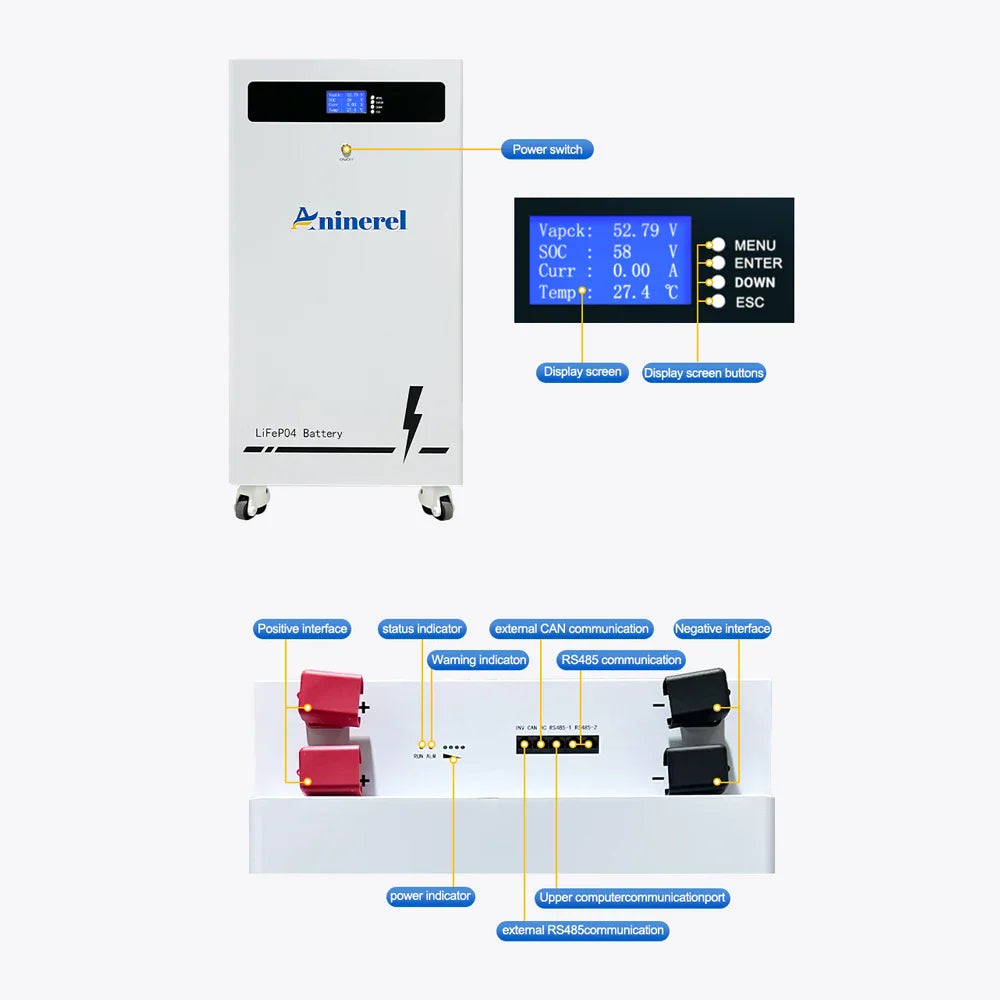

- Smart Monitoring – Supports real-time management via WiFi remote monitoring for the inverter and Bluetooth connectivity for the battery.
- Parallel Capability – Allows for system expansion with support for up to 6 inverters in parallel or 15 batteries in parallel.

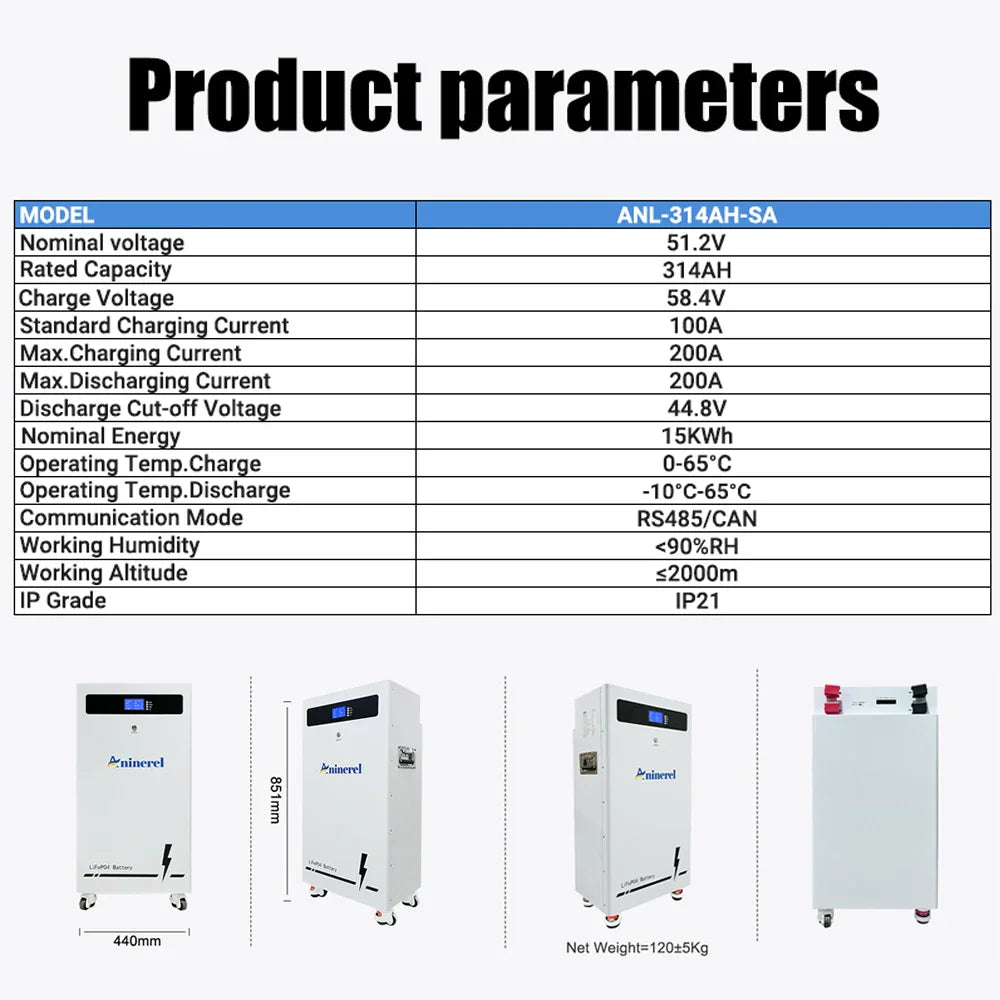

Specifications
| Voltage | 48V |
|---|---|
| Inverter Output | 12KW, 120/240VAC Split Phase |
| Battery Capacity | 314AH (15.36KWh) |
| Battery Chemistry | LiFePO4 |
| PV Input Voltage | 90-500Vdc |

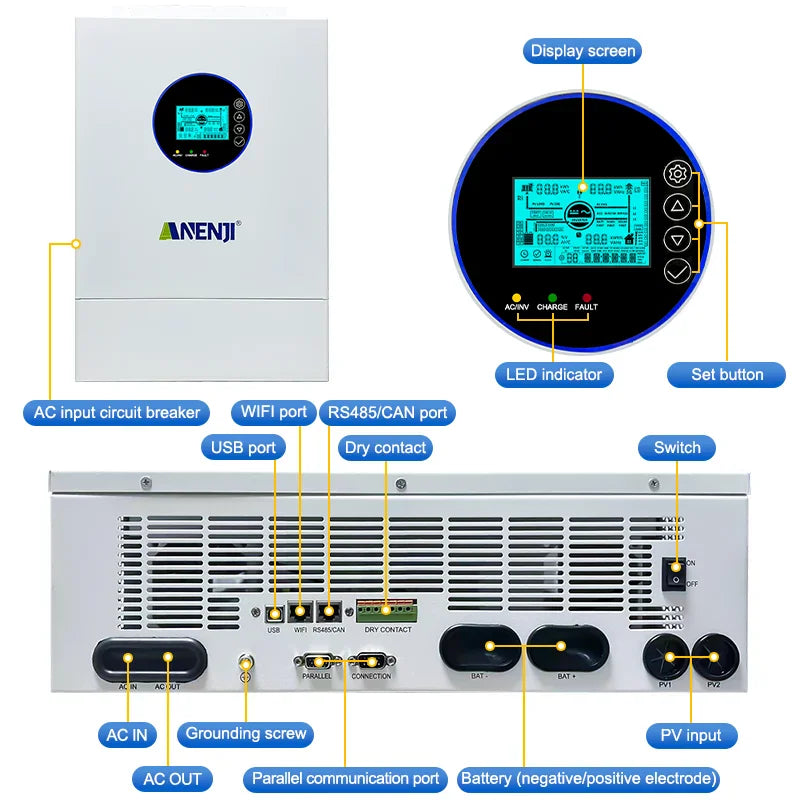

| Communication | RS485, CAN, USB, WiFi, Bluetooth |
| Operating Temp (Battery) | Charge: 0-65°C, Discharge: -10°C-65°C |
| Options | 12KW Inverter, 314AH Battery, or Combined Bundle |
What's in the box
- 11KW 48V Solar Inverter
- User manual
- Parallel cable
Ideal for
This system is ideal for residential solar power installations, emergency home backup, motorhomes, marine applications, and off-grid setups requiring consistent, efficient energy management.
FAQ
Does this system work with LiFePO4 batteries?
Yes, the inverter is specifically designed to be compatible with LiFePO4 battery chemistry.
Can I monitor the system remotely?
Yes, the inverter includes WiFi remote monitoring, and the battery features built-in Bluetooth for monitoring via a mobile app.

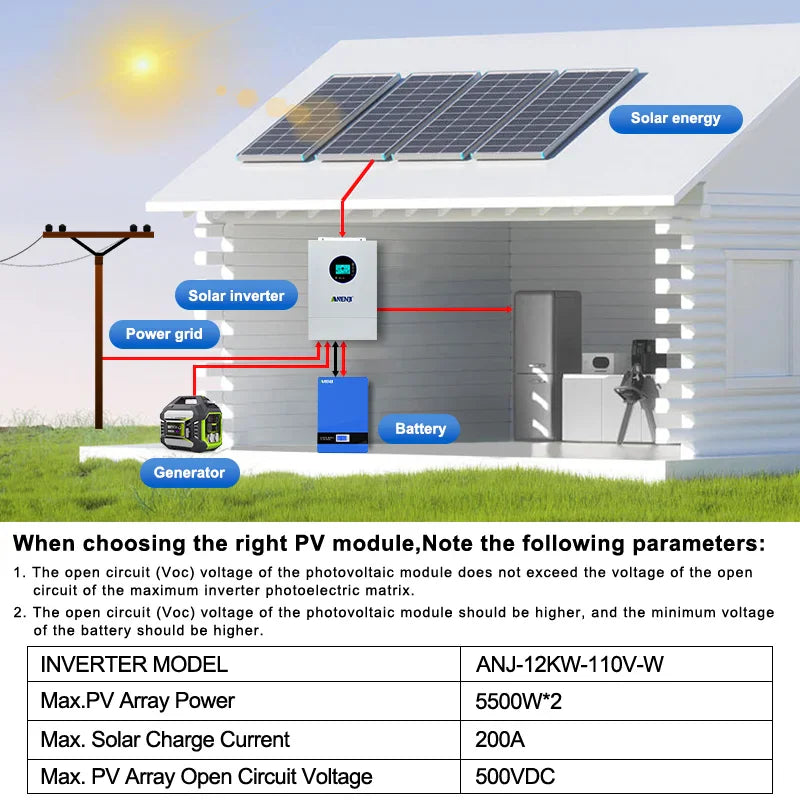

What is the maximum PV input voltage?
The open circuit voltage of the series-connected PV panels must not exceed 500V to avoid damaging the inverter.
