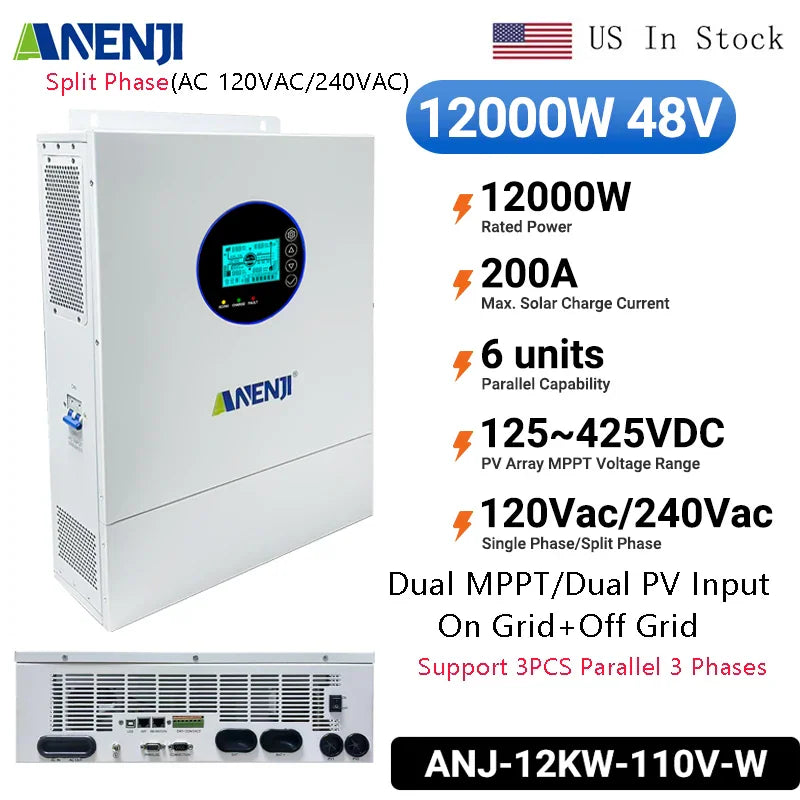

Anenji 12KW 48V Hybrid Solar Inverter, Split Phase, Dual MPPT
Anenji 12KW 48V Hybrid Solar Inverter, Split Phase, Dual MPPT

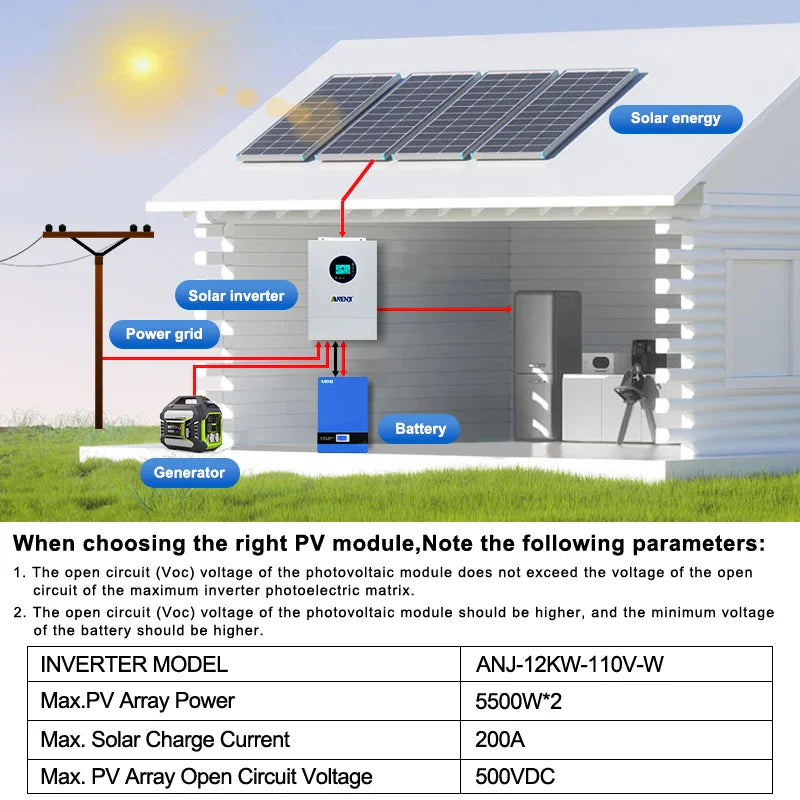

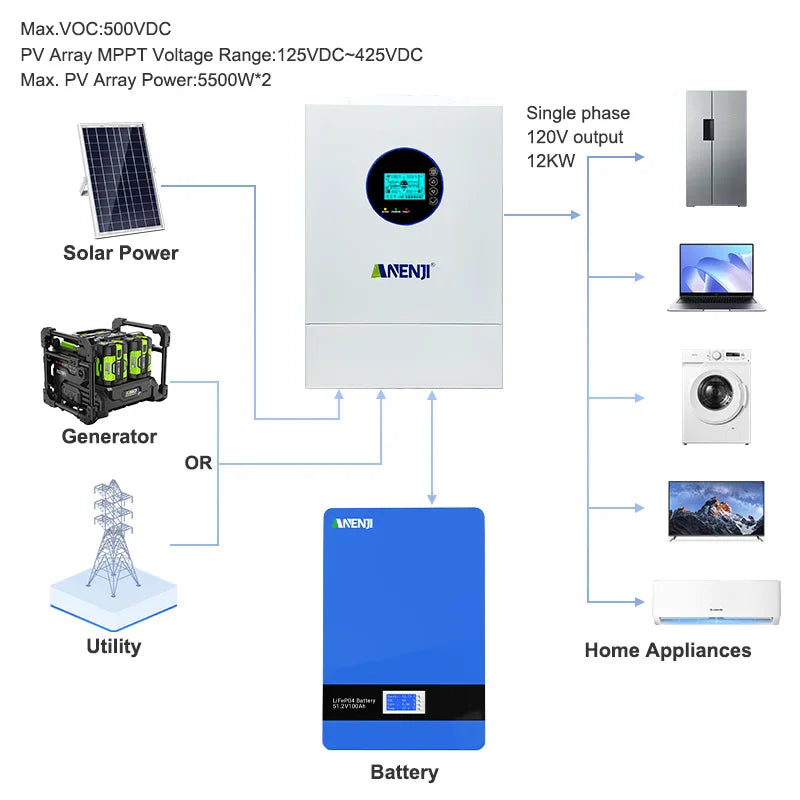

The Anenji 12KW 48V Hybrid Solar Inverter provides a pure sine wave output of 120VAC or 240VAC, designed to manage energy for off-grid or grid-tie systems. This unit features dual PV inputs and a built-in 200A MPPT solar charger, making it suitable for managing large solar arrays with battery storage or working without batteries.

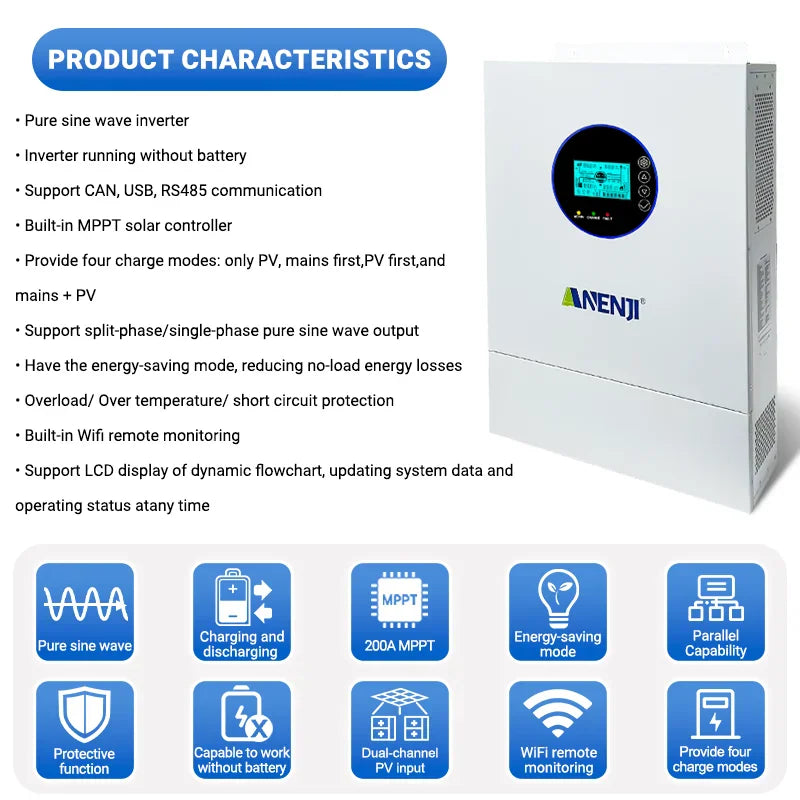

Key features
- Versatile Power Output – Provides 120VAC (L1/N, L2/N) or 240VAC (L1/L2) split-phase output with a 12,000W rated power and 18,000VA surge capacity.
- Dual MPPT Input – Includes two independent MPPT trackers with a maximum PV array power of 6000W each and a maximum PV voltage of 500VDC.
- Flexible System Integration – Supports LiFePO4 battery compatibility, RS485/CAN communication protocols, and can be used in parallel configurations for 3-phase systems up to 480VAC.
- Grid-Tie Capable – Supports feeding power back to the grid and features multiple output priorities to optimize battery performance.

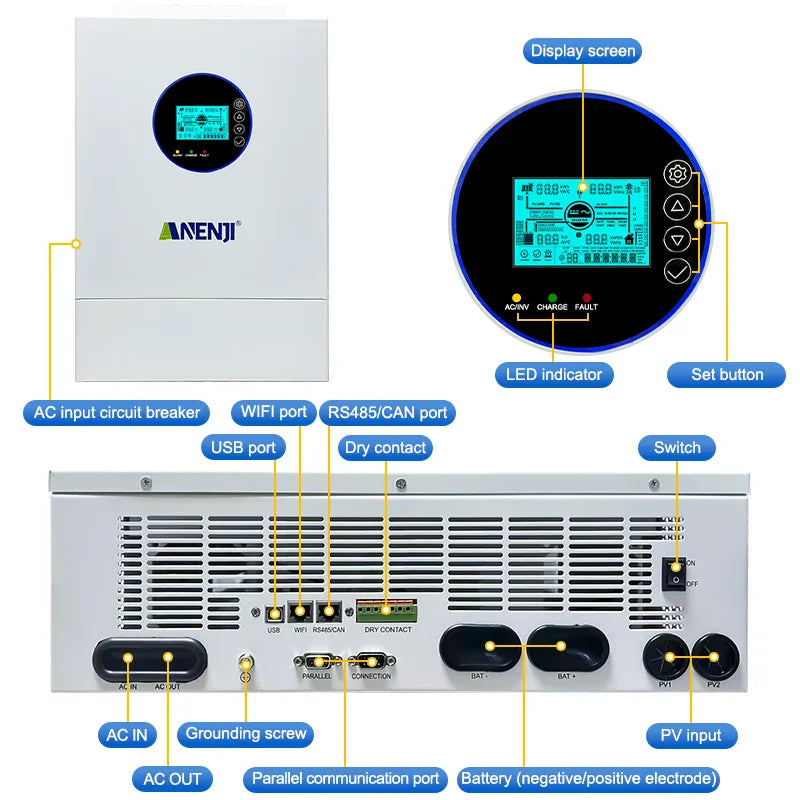

- Smart Monitoring – Equipped with an LCD touch display and supports WiFi remote monitoring and PC software for function configuration.
Specifications
| Rated Power | 12000W |
|---|---|
| Battery Voltage | 48VDC |
| Output Voltage | 120VAC / 240VAC |
| Maximum Charge Current | 200A |
| Max PV Array Power | 6000W x 2 |
| Max PV Input Voltage | 500VDC |
| Weight | 29kg |

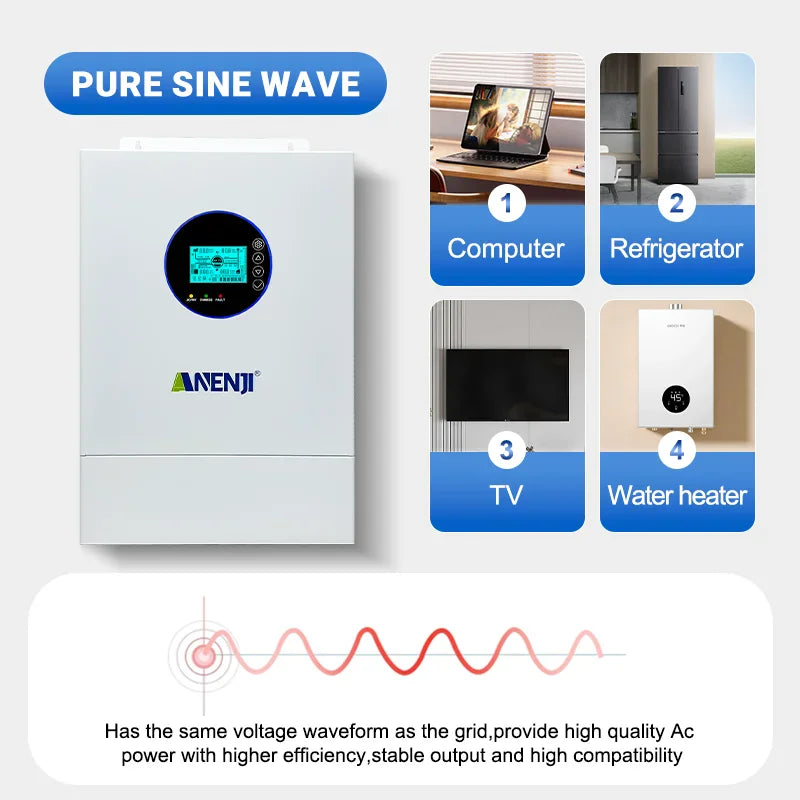

| Waveform | Pure sine wave |
| Communication | RS485/CAN |
What's in the box
- Solar inverter
- Instruction manual
Ideal for
This inverter is ideal for off-grid homes, energy-independent workshop setups, or grid-tie systems requiring large-scale power management and split-phase voltage capabilities.
FAQ
Does this inverter work without batteries?
Yes, this unit supports working without batteries.
Is this unit compatible with LiFePO4 batteries?
Yes, it is designed to work with LiFePO4 battery systems.
Can I use this in a 3-phase system?
Yes, it supports a parallel configuration of 3 units to provide a 3-phase 460VAC-480VAC output.
What is the maximum PV input voltage?
The maximum MPPT voltage is 500VDC.
