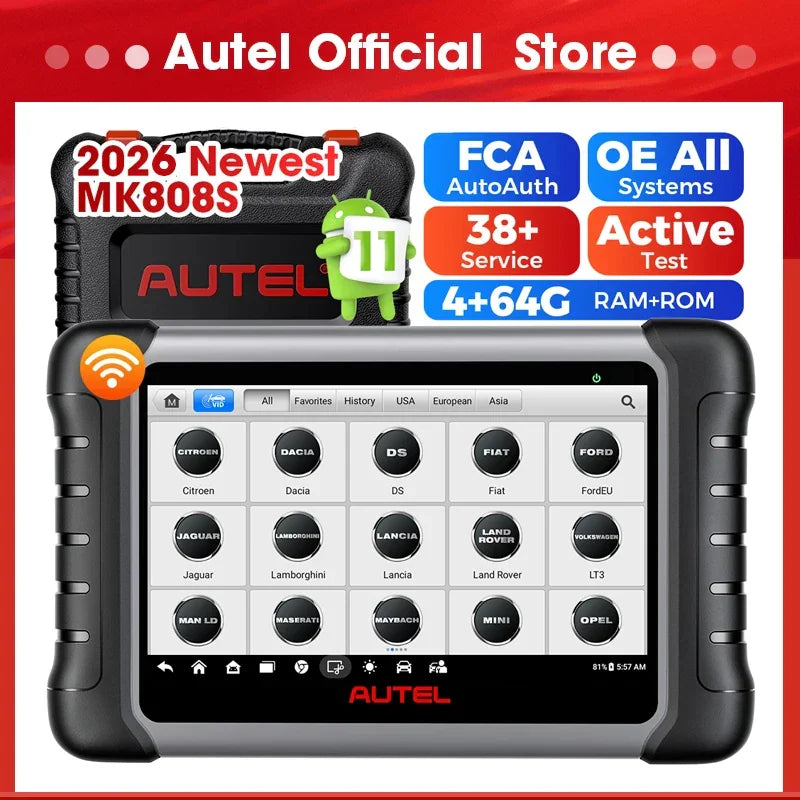

Autel MK808S Automotive Diagnostic Scanner Bi-Directional OBD2 Tool
Autel MK808S Automotive Diagnostic Scanner Bi-Directional OBD2 Tool

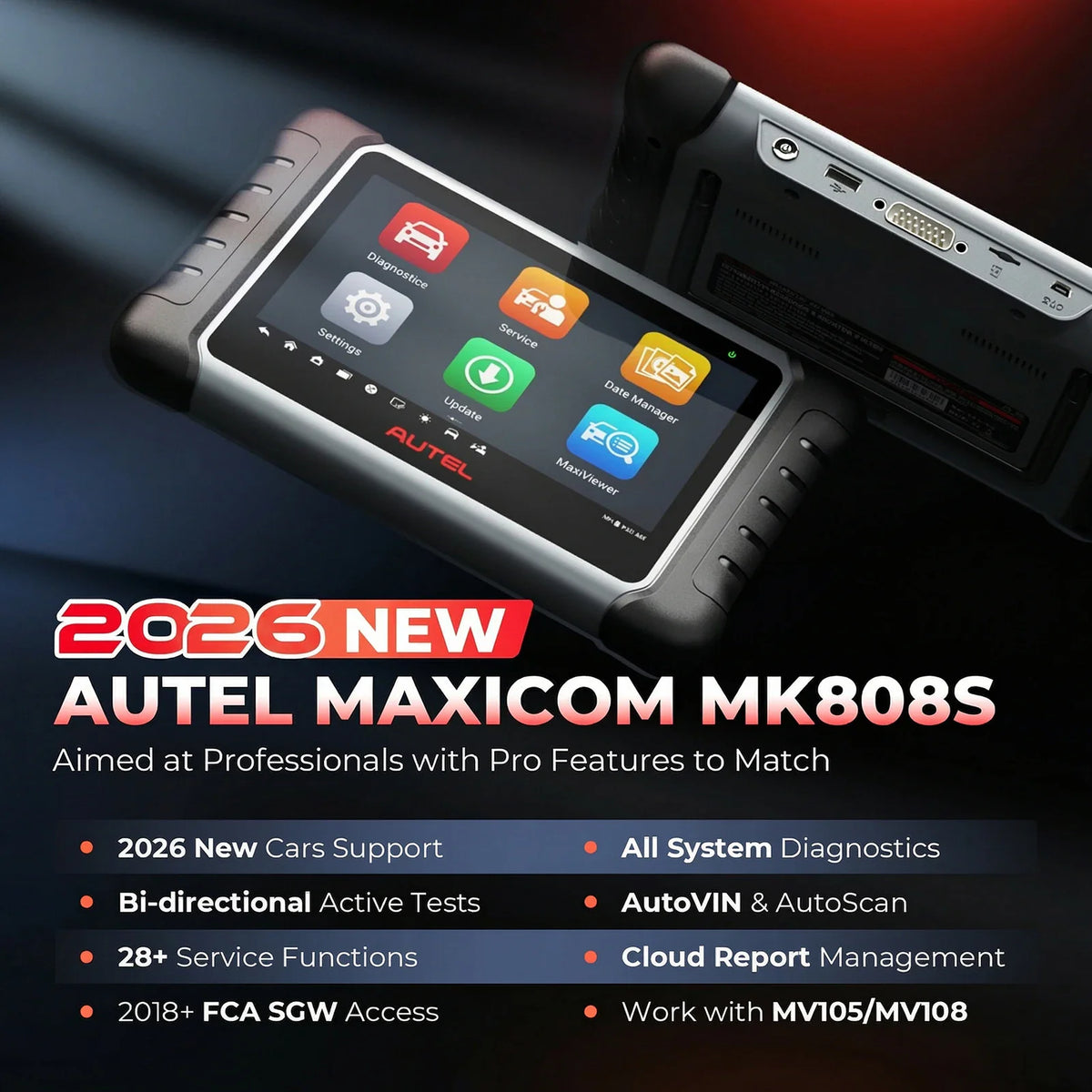

The Autel MK808S is a professional-grade automotive diagnostic scanner featuring bi-directional control and 38+ special reset service functions. It is designed for mechanics and car enthusiasts who need an OE-level diagnostic tool to perform system-wide scans, component tests, and complex maintenance on most vehicles manufactured after 1996.
Key features
- Bi-Directional Control – Perform active tests to communicate with vehicle subsystems, allowing you to trigger components like fuel pumps or cooling fans directly from the tablet.
- Comprehensive Diagnostics – Access all system modules including ABS, SRS, Engine, and Transmission to read codes, erase errors, and view live data streams in text or graph formats.
- Advanced Hardware – Operates on an Android 11 platform with a 7-inch touchscreen, 4GB RAM, and 64GB ROM for responsive, efficient performance.
- Wide Vehicle Compatibility – Supports 80+ car makes across US, EU, and Asian regions, with dedicated FCA Auto Auth access for 2017 and newer Fiat Chrysler vehicles.
- Expandable Capability – Compatible with Autel MV105/MV108 inspection cameras to examine tight areas like engine cylinders and spark plug holes.
Specifications
| Operating System | Android 11 |
|---|---|
| Processor | Rockchip RK3566 |
| Memory | 4G RAM / 64G ROM |
| Display | 7-inch touchable LCD (1024x600) |
| Battery | 5000mAh lithium-polymer |
| Connectivity | Wi-Fi 2.4 & 5 GHz |
| Weight | 885 g |

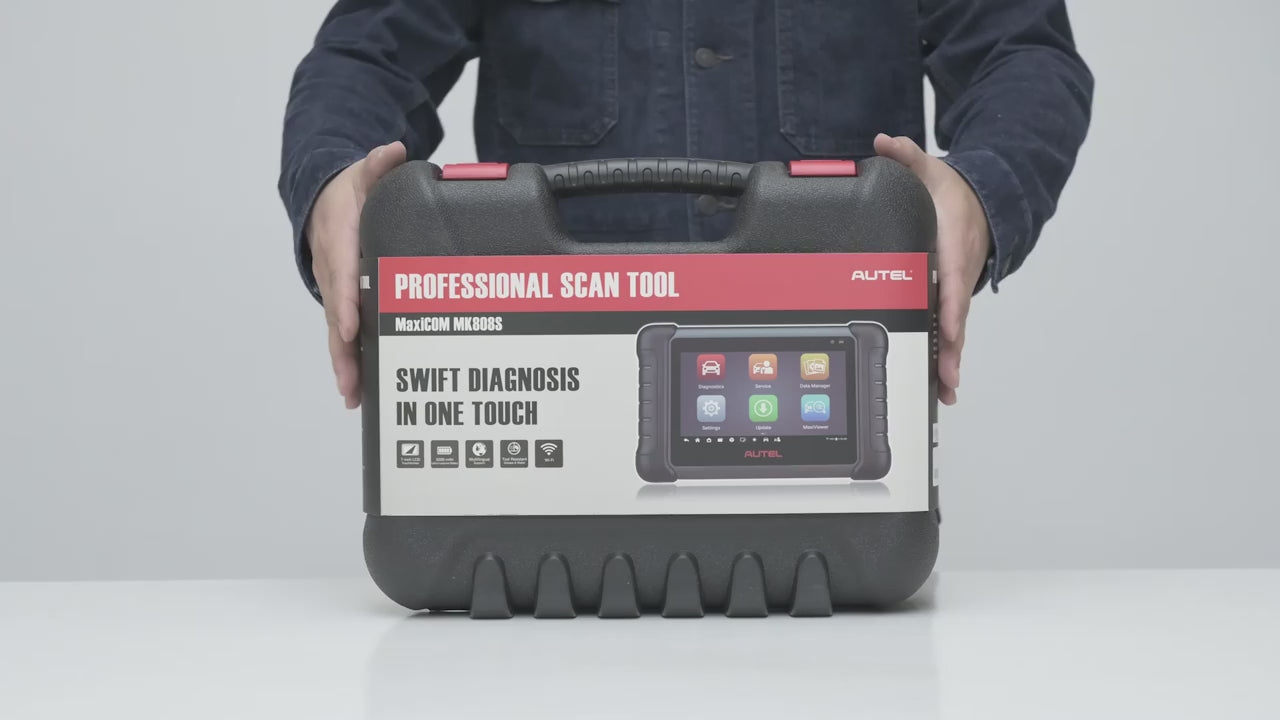

What's in the box
- Autel MK808S tablet unit
- Main cable
- USB external power adapter
- Mini USB cable
- Quick reference guide
- Carry case
Ideal for
This tool is ideal for automotive technicians, professional workshops, and serious DIY mechanics who require a powerful, mobile diagnostic solution for deep system access and vehicle maintenance.
FAQ
Does it fit my car?
The scanner is compatible with over 80 makes of US, EU, and Asian-made vehicles manufactured after 1996 that use OBD2 systems.
Can this perform ABS bleeding?
Yes, the MK808S includes ABS bleeding as one of its 38+ special reset service functions to assist with brake maintenance.
How do I update the software?
The device includes one year of free software updates, which can be managed directly through the tablet's interface.
Is the inspection camera included?
No, the Autel MV105/MV108 inspection cameras must be purchased separately.
