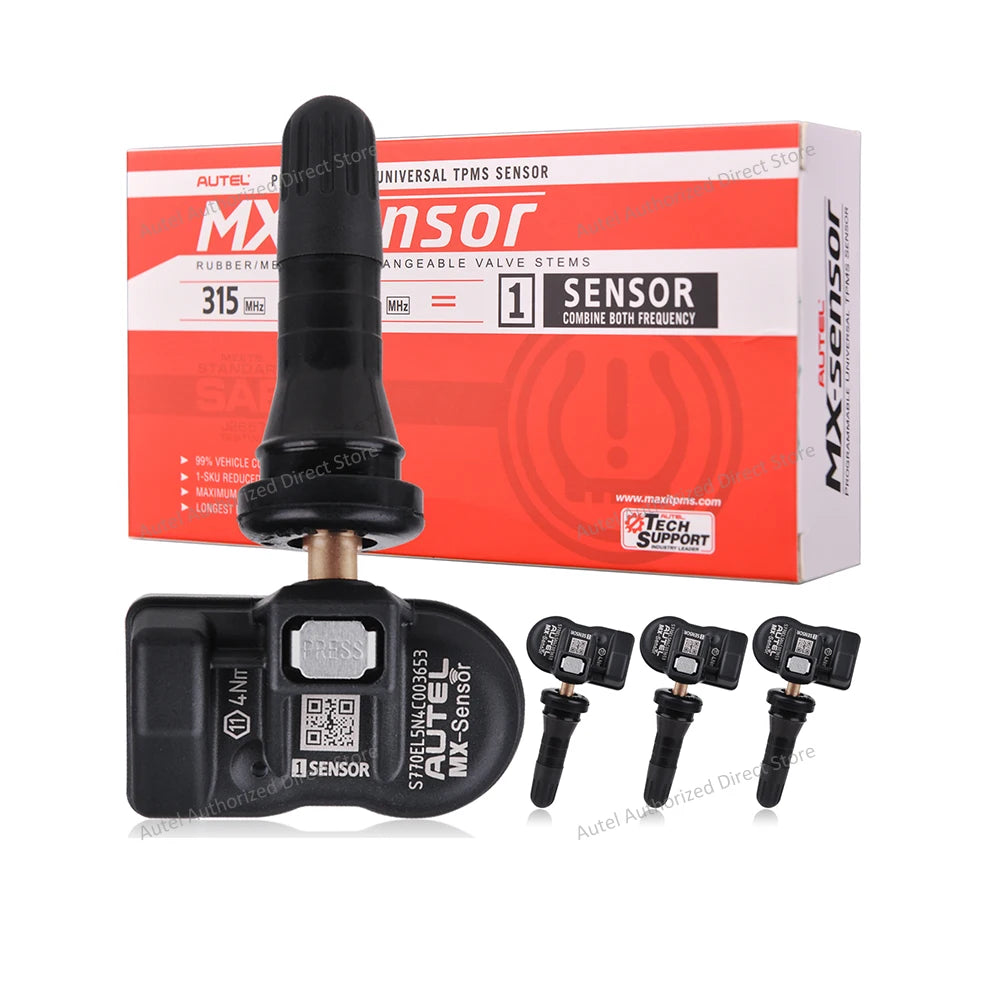

Autel MX-Sensor 2in1 TPMS Tire Pressure Sensor 315MHz + 433MHz
Autel MX-Sensor 2in1 TPMS Tire Pressure Sensor 315MHz + 433MHz
The Autel MX-Sensor is a 2-in-1 universal tire pressure monitoring system (TPMS) sensor that combines 315MHz and 433MHz frequencies to provide coverage for 99% of vehicle models. Designed for professional tire shops and home mechanics, this programmable sensor ensures precise tire pressure monitoring to help prevent tire failure.

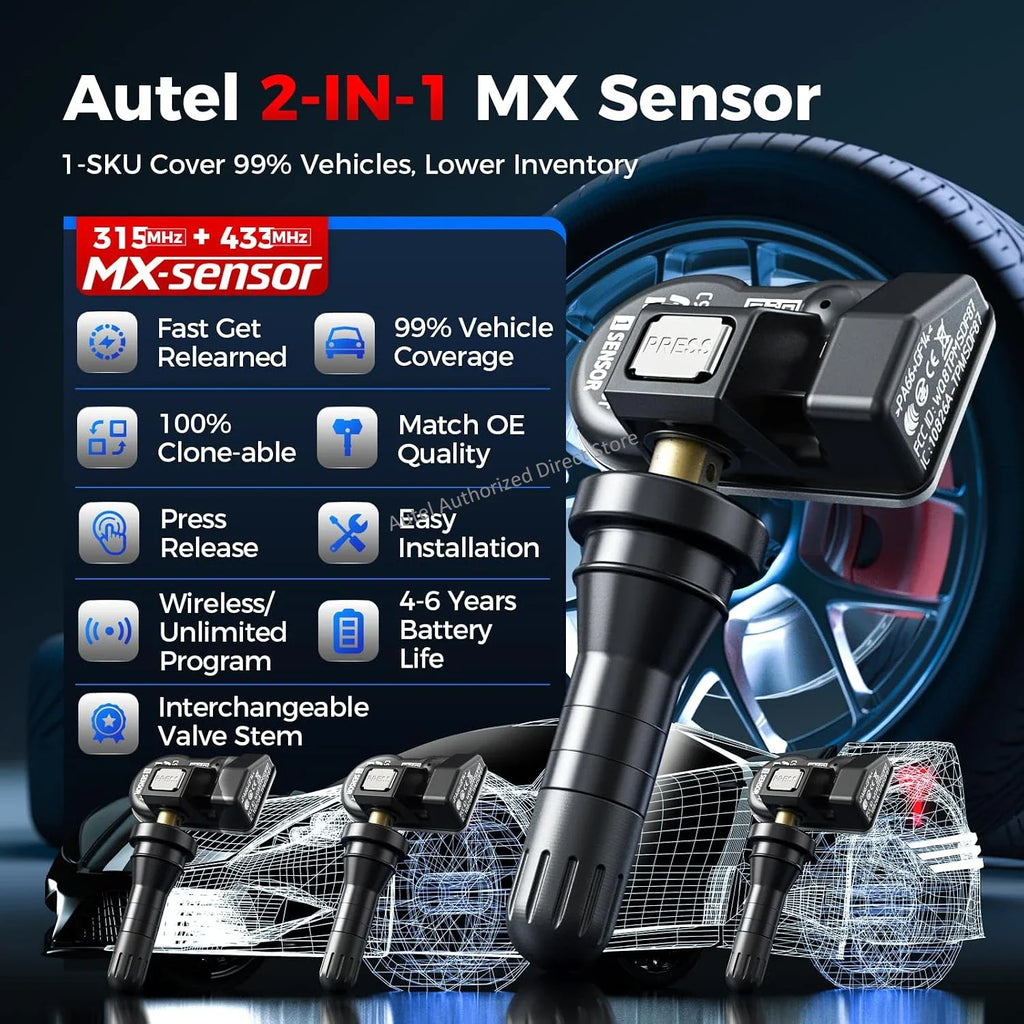

Key features
- Dual Frequency – A single SKU covers both 315MHz and 433MHz, simplifying inventory for 98-99% of vehicle applications.

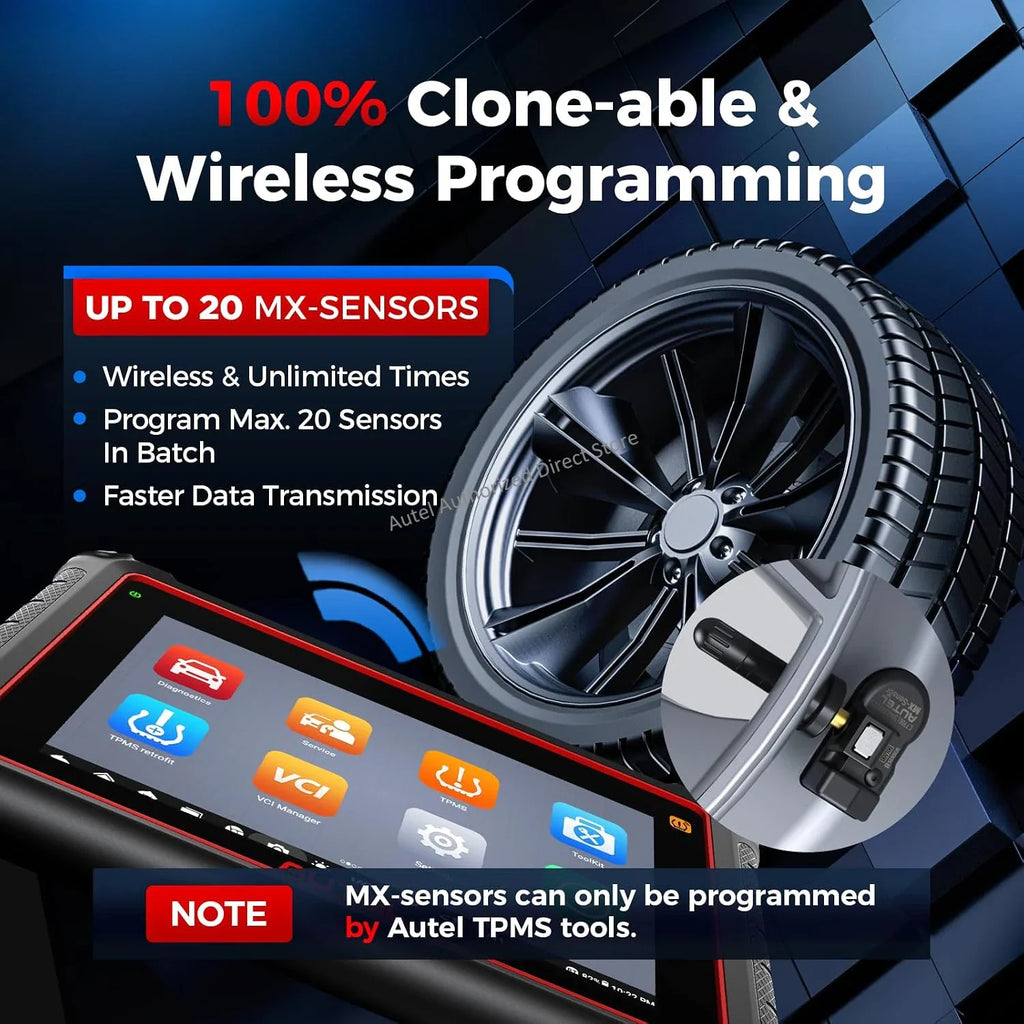

- Wireless Programming – Allows for quick, contact-free setup and supports batch programming of up to 20 sensors at once using compatible Autel tools.

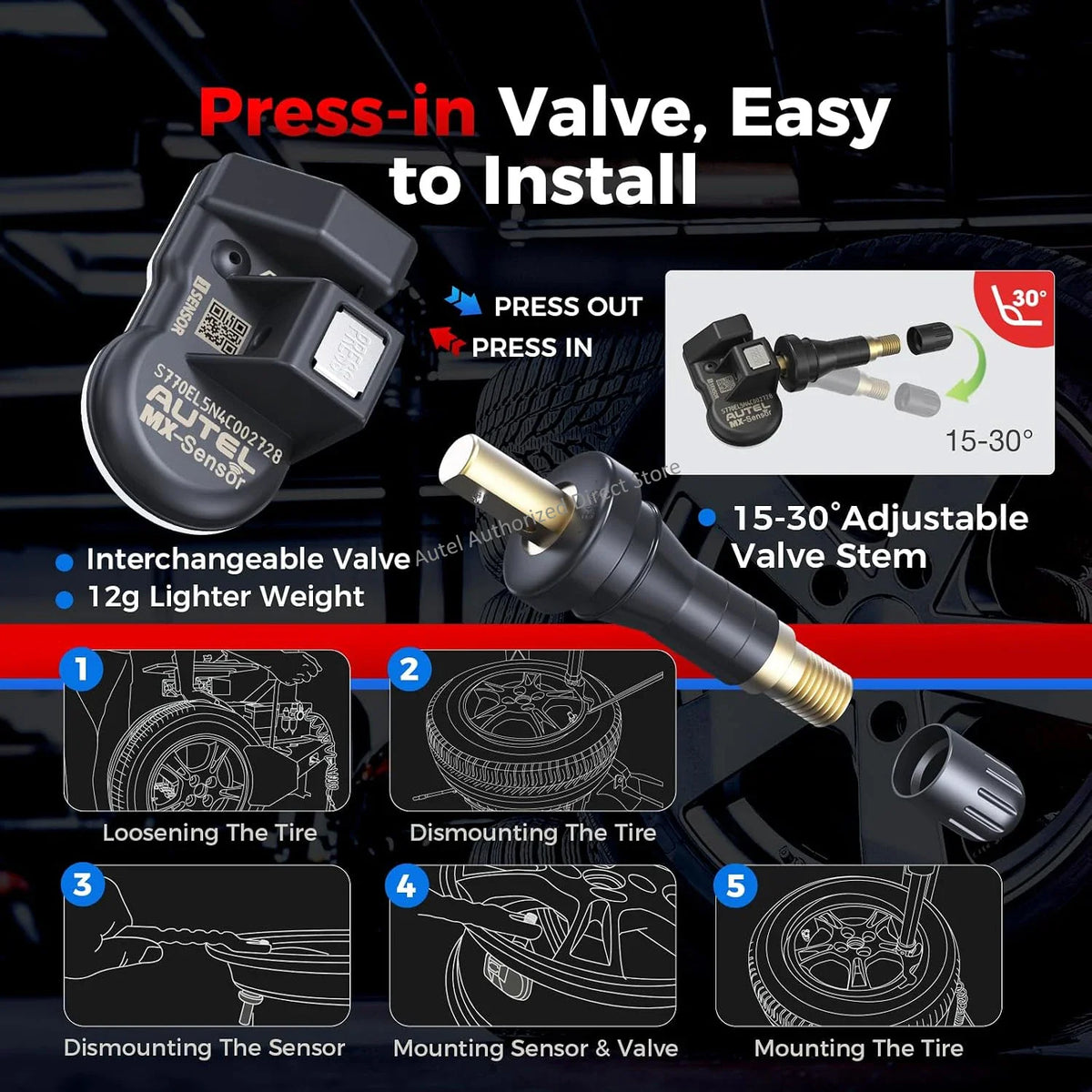

- Interchangeable Valve Design – Features a patented press-in design that allows rubber and metal valve stems to be swapped by hand without tools.

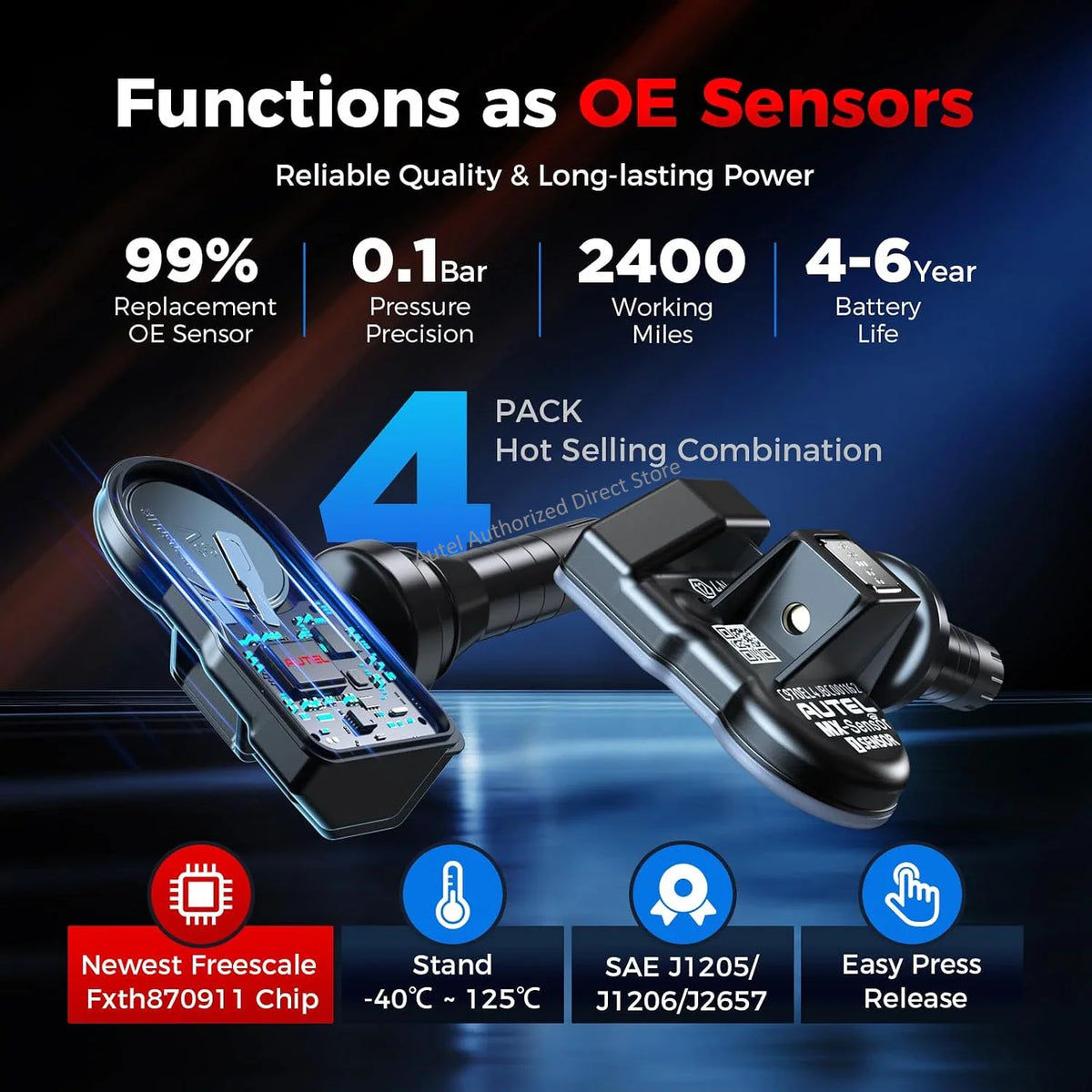

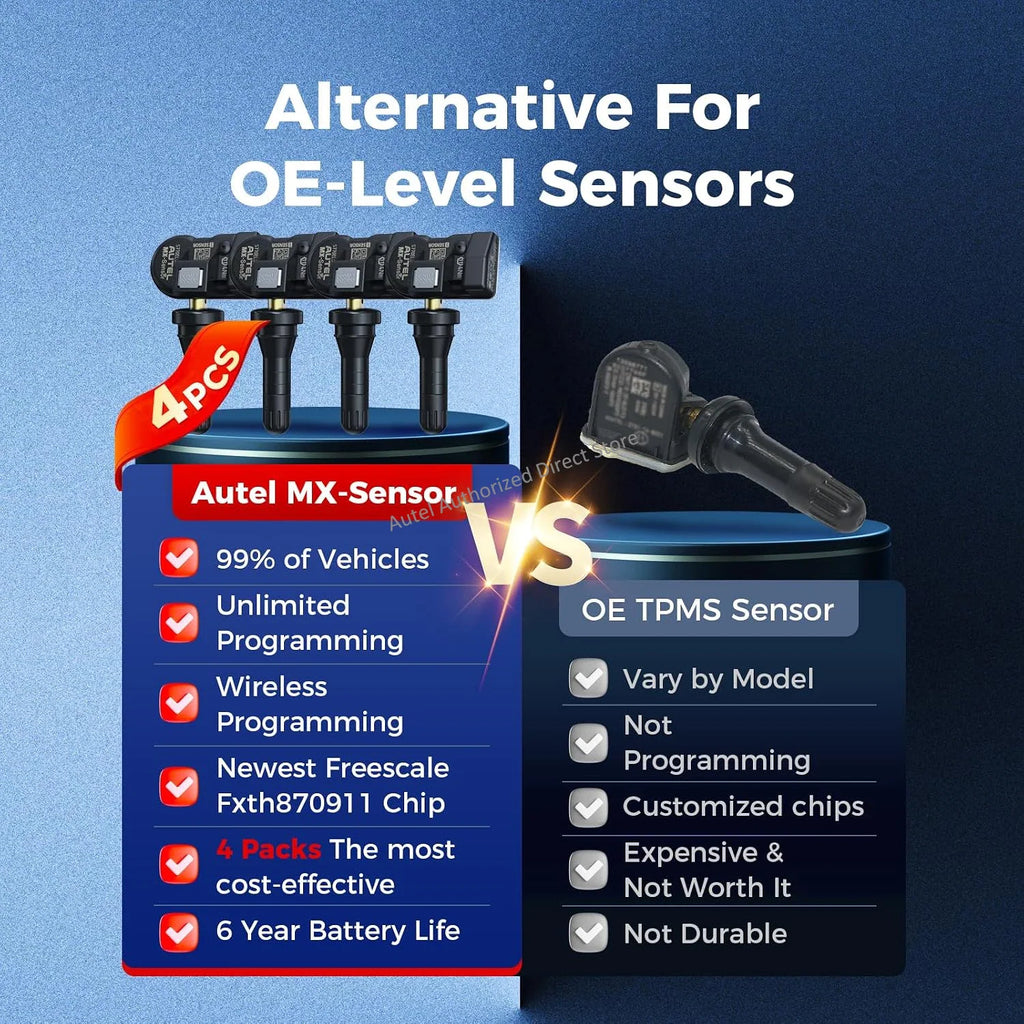

- OEM-Level Performance – Tested to meet SAE industry standards J1205/J1206 with a 6-year battery life and durability that matches original equipment sensors.
- 100% ID Clone-able – Sensors can be cloned with original sensor IDs, eliminating the need for a vehicle relearn procedure when installed in the same position.
Specifications
| Material | Metal and Rubber |
|---|---|
| Frequency | 315 MHz and 433 MHz |
| Dimensions | 42.4 mm × 24.1 mm × 16.0 mm |
| Weight (without valve) | 11 g |
| Battery Life | 4–6 years |
| Operating Temperature | -40°C to +125°C |
| Pressure Range | 0–800 kPa |
| Accuracy | ±10 kPa (pressure), ±5°C (temperature) |

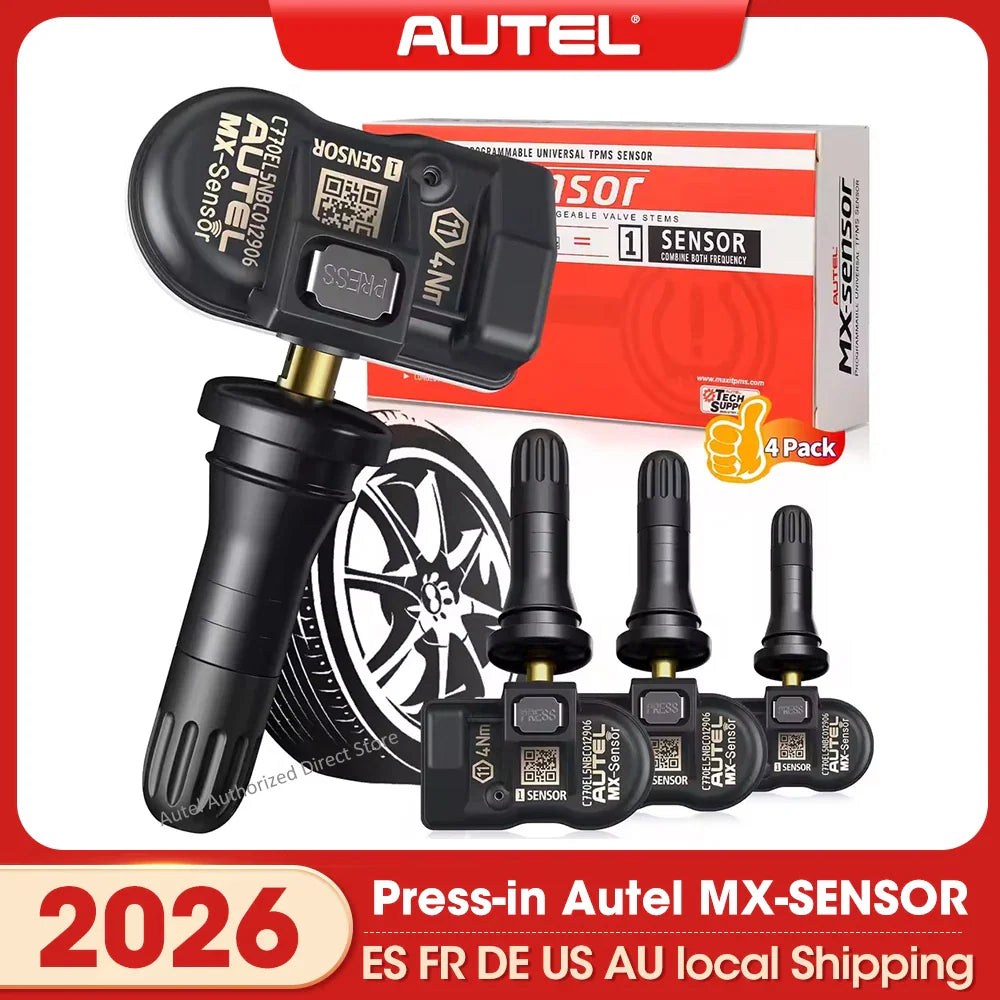

| Available Options | 4-piece pack, 8-piece pack |
Ideal for
This sensor is ideal for vehicle owners and tire service shops requiring a reliable, universal TPMS replacement. It fits most Japanese, German, and American passenger vehicles, though it is not compatible with commercial heavy-duty trucks, Bluetooth-based TPMS systems, or heavily modified vehicles.
FAQ
Does it fit my vehicle?

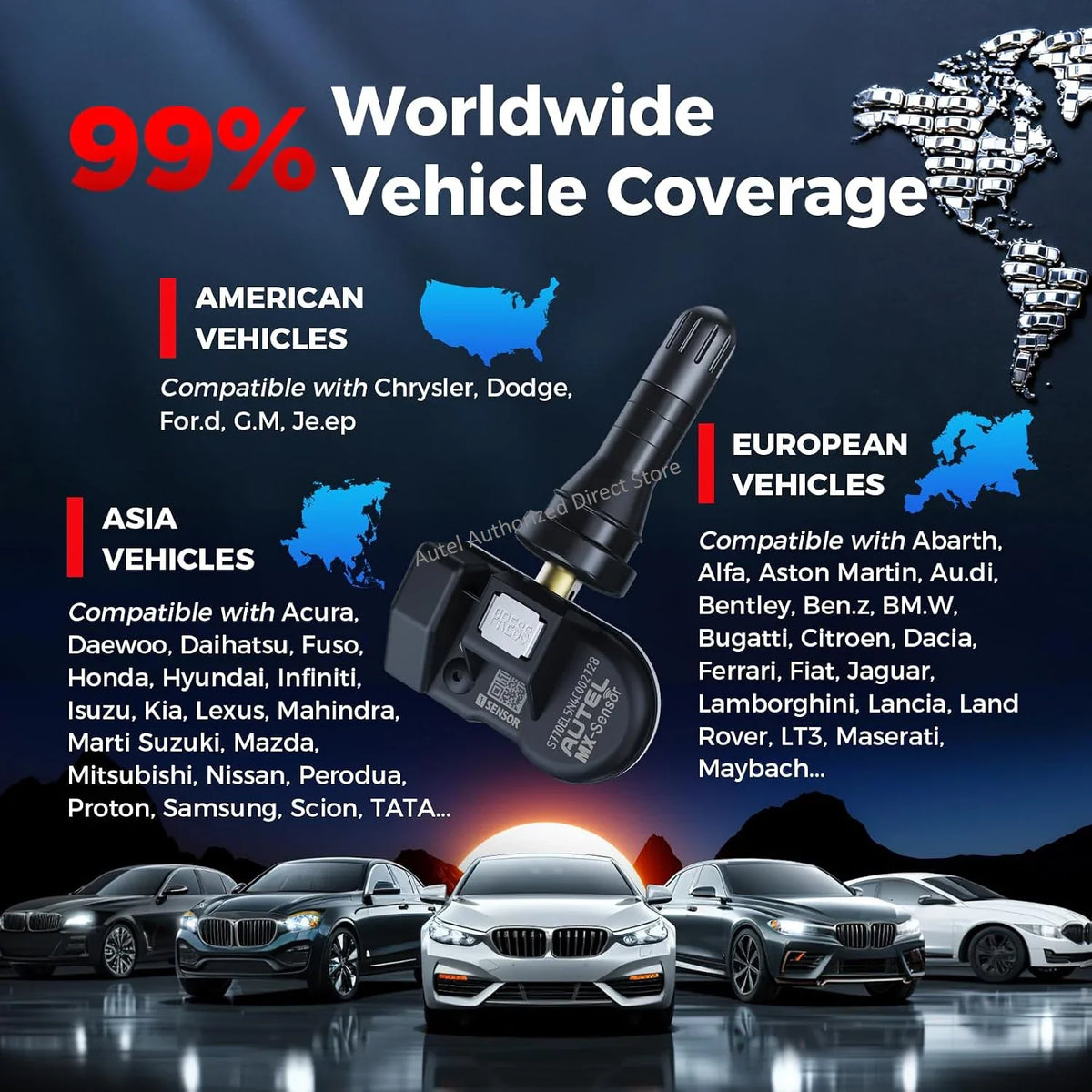

This sensor covers 99% of vehicle models. You can verify compatibility by checking your specific year, make, and model at the official Autel TPMS website or by contacting support with your VIN.
Can I install it without programming?
No, the sensor ships blank and must be programmed using an Autel TPMS tool (such as the TS408, TS501, or TS508WF) before installation.
Why won't my scan tool program the sensor?
Autel MX-Sensors are designed to work exclusively with Autel TPMS programming tools; they are not compatible with other brands of scan tools.
What should I do if programming fails?
Ensure the tire is completely deflated to 0 PSI, as air pressure can block the programming signal. Verify you are using a compatible Autel tool and follow the sequence: program first, mount second, and inflate last.
