Auto Circuit Tester Probe for 6V-24V DC Systems
Auto Circuit Tester Probe for 6V-24V DC Systems

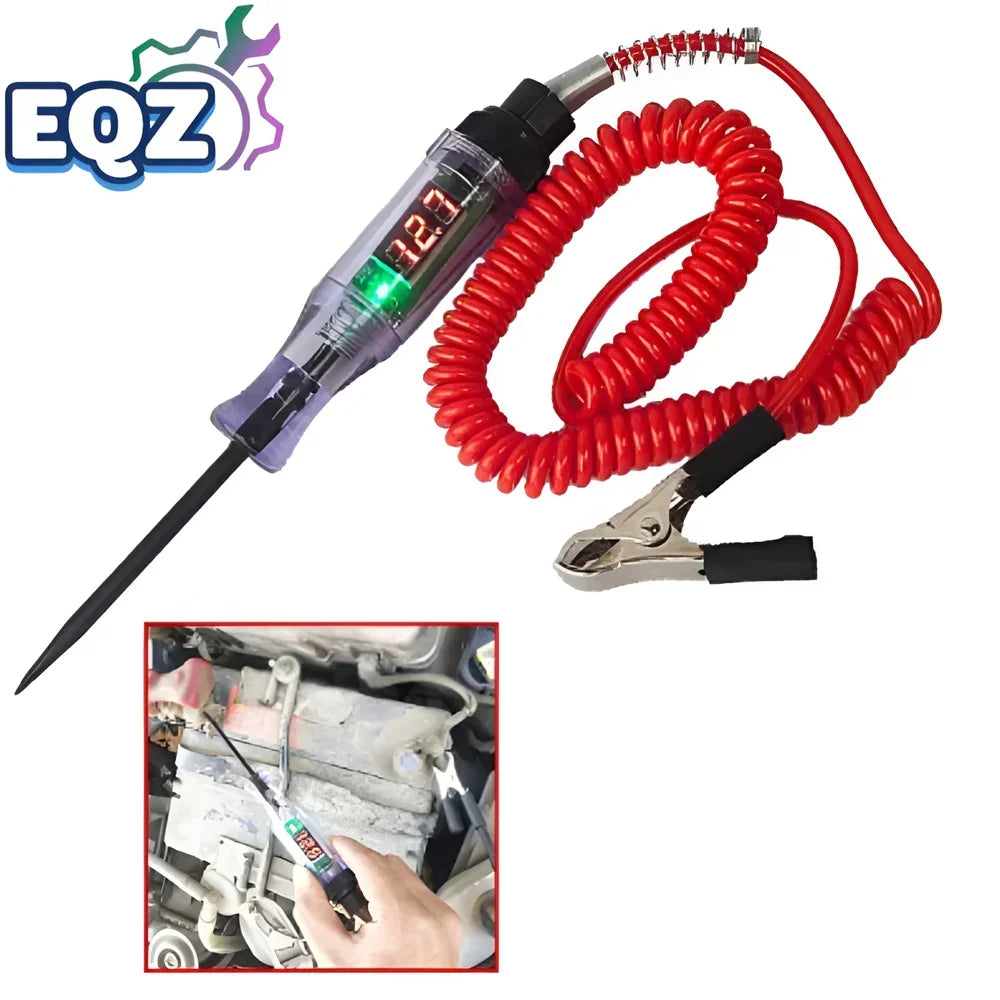

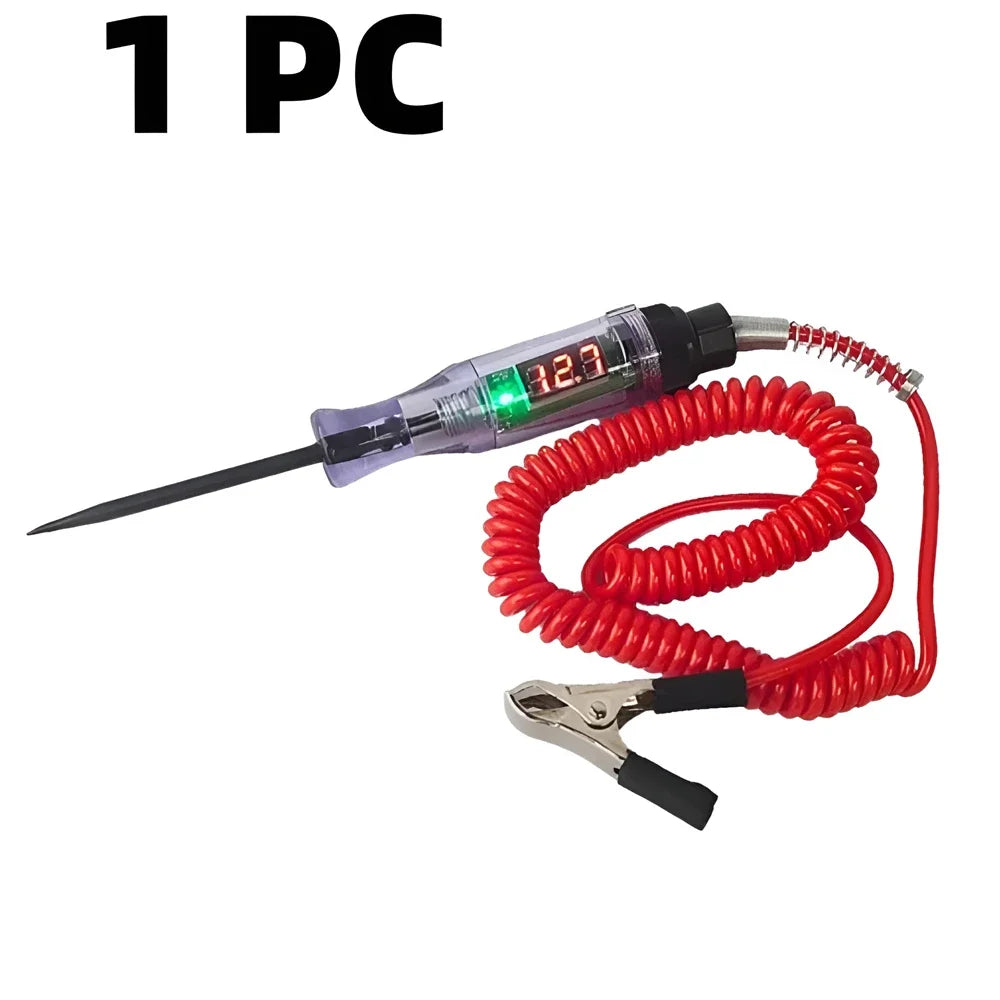

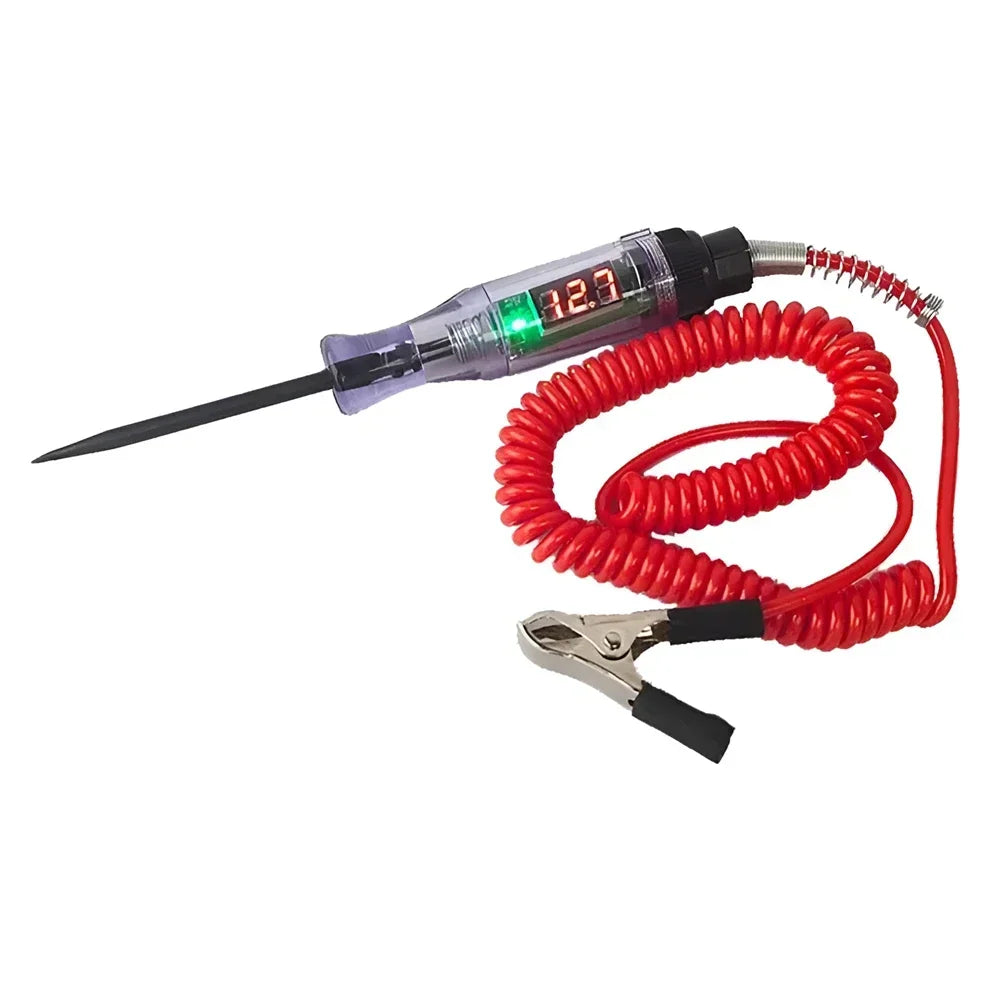

This auto circuit tester probe allows you to verify electrical continuity in 6V to 24V DC systems. It is designed for automotive technicians and DIY mechanics to diagnose fuses, switches, and wiring in cars, trucks, motorcycles, trailers, and boats.
Key features
- Wide Voltage Compatibility – Supports testing across a 6V to 24V DC range for versatile use.

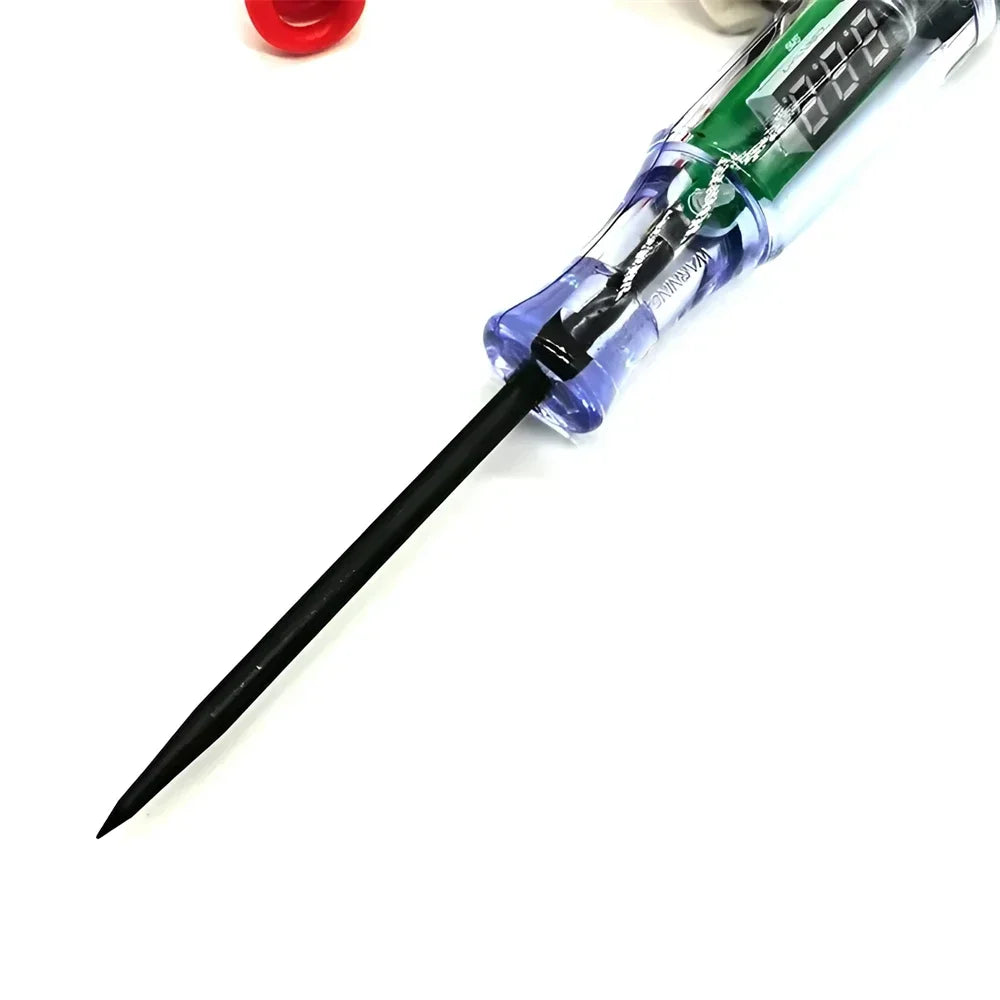

- Sharp Steel Probe – Designed to easily pierce wire insulation to check circuits without damaging them.
- Integrated Indicator – Features a 3-watt replaceable light bulb that illuminates when a circuit is live.

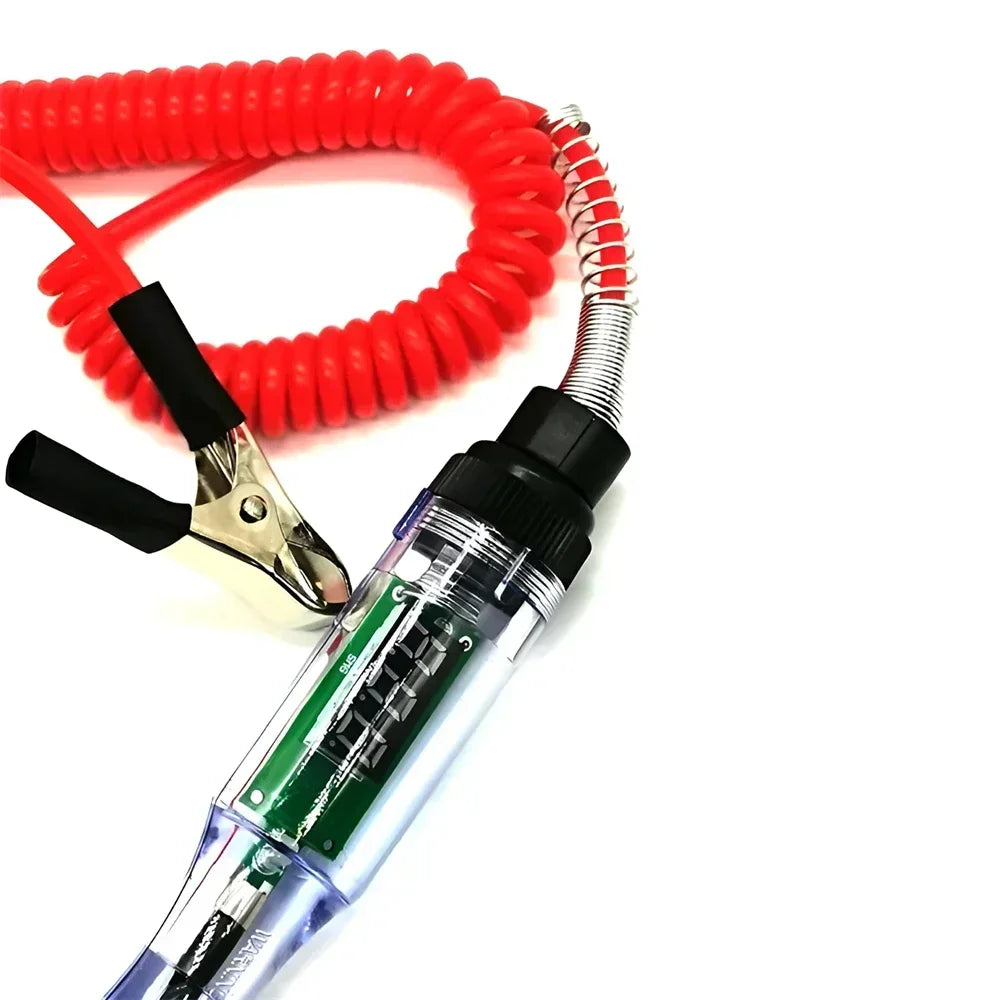

- Convenient Alligator Clip – Includes a 20A capacity alligator clip for grounding the tool against a metal chassis or negative terminal.

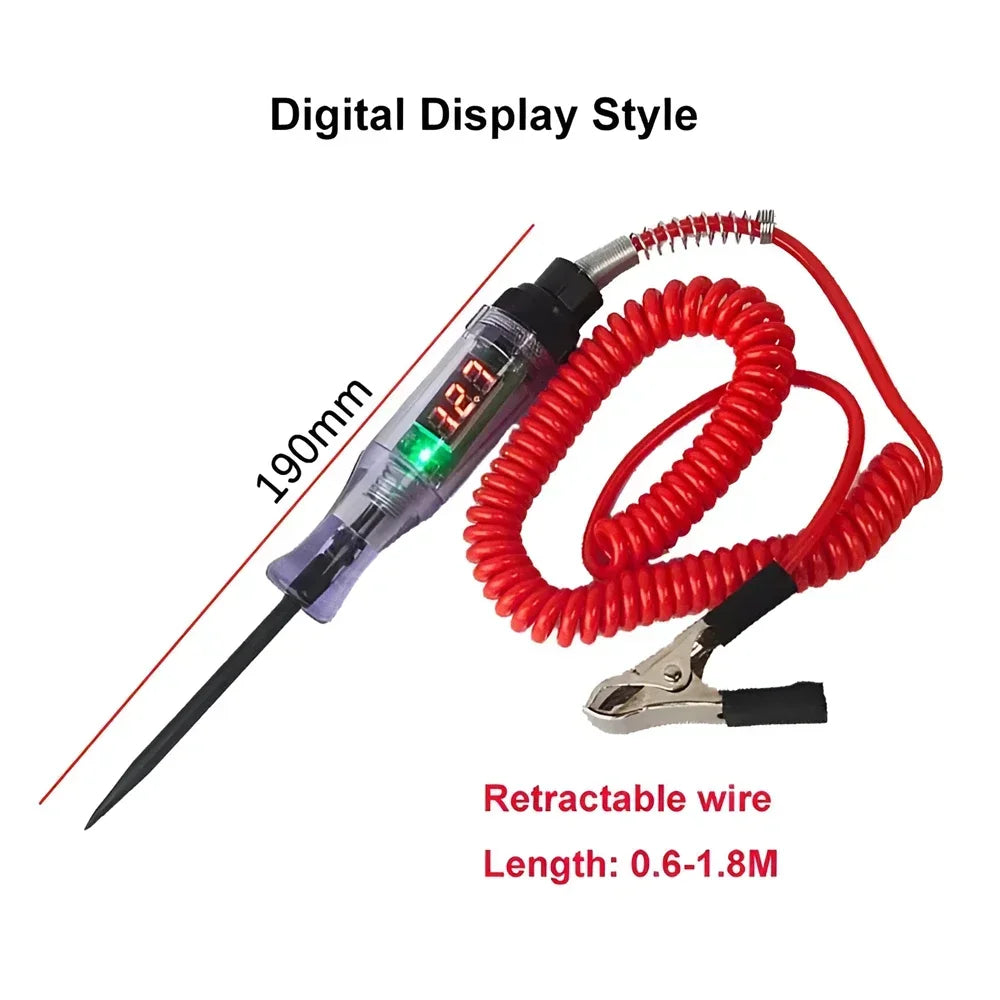

- Extended Reach – Provides a 96 cm wire length and 8.3 cm probe length for access to hard-to-reach connections.
Specifications
| Voltage Test Range | 6V - 24V DC |
|---|---|
| Probe Length | 8.3 cm |
| Pen Length | 17.3 cm |
| Wire Length | 96 cm |
| Bulb | 3 watt (replaceable) |
| Clamp Capacity | 20A |
| Materials | ABS and Metal |
| Available Packs | 1 PC, 2 PCS, 5 PCS |
Ideal for
This tool is ideal for automotive electrical maintenance and troubleshooting in low-voltage systems including cars, trailers, boats, and motorcycles.
FAQ
Does it fit 12V and 24V systems?
Yes, this tester is compatible with DC systems ranging from 6V to 24V. Please note that while the tool operates in this range, the printed label on the body may only reflect 6-12V.
How do I use this tester?

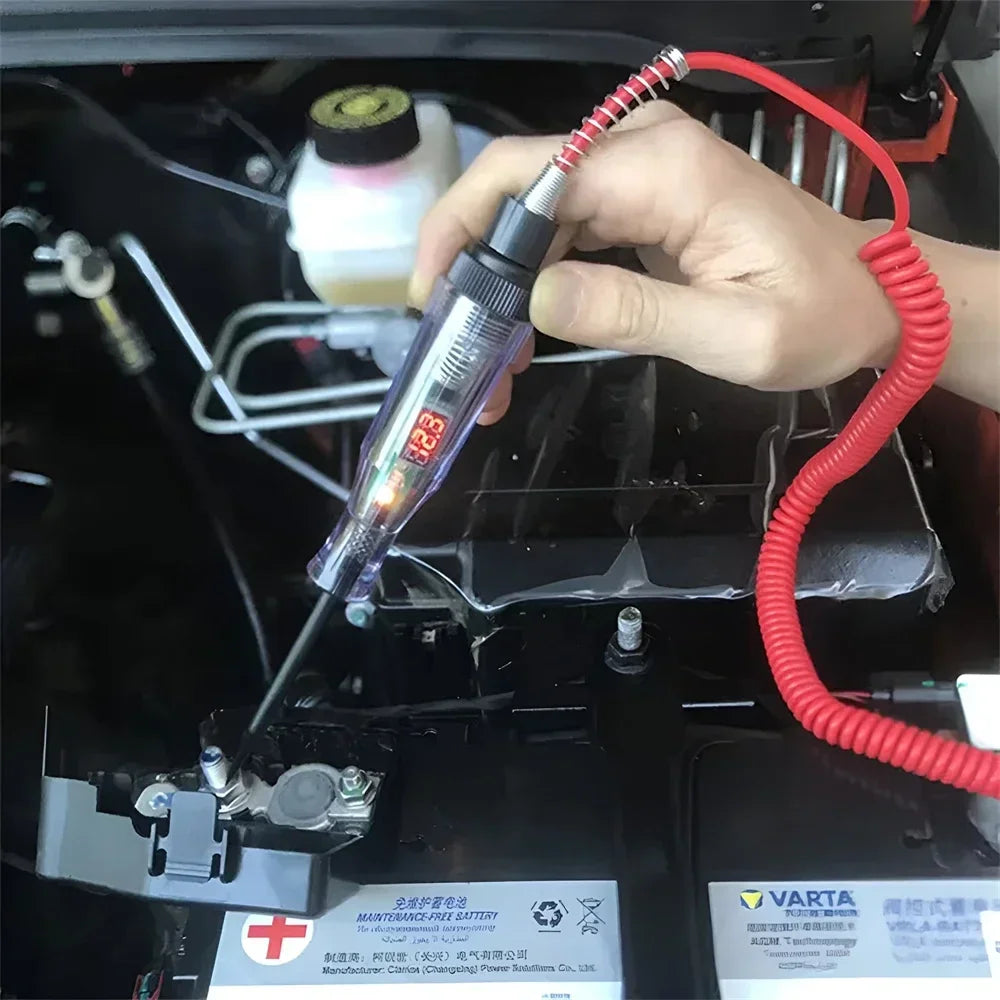

Connect the alligator clip to a ground source, such as a car's metal chassis or negative pole, and touch the probe tip to the conductive metal of the circuit. If the bulb lights up, the circuit is functional.
Can I replace the light bulb?
Yes, the internal 3-watt bulb is replaceable.
Is this for household AC electricity?
No, this tool is specifically designed for 6V-24V DC low-voltage automotive and vehicle systems.
