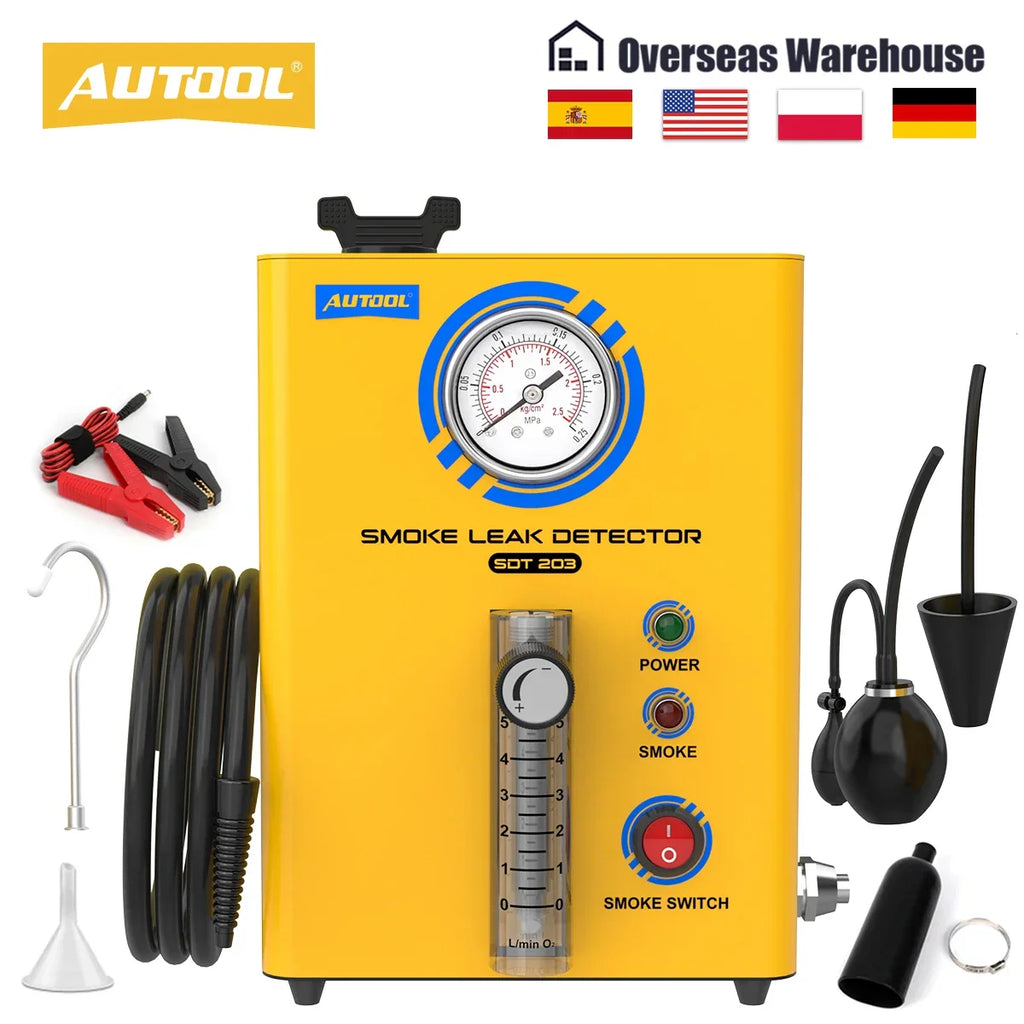

Autool SDT203 Car Smoke Leak Detector for EVAP and Pipe Systems
Autool SDT203 Car Smoke Leak Detector for EVAP and Pipe Systems

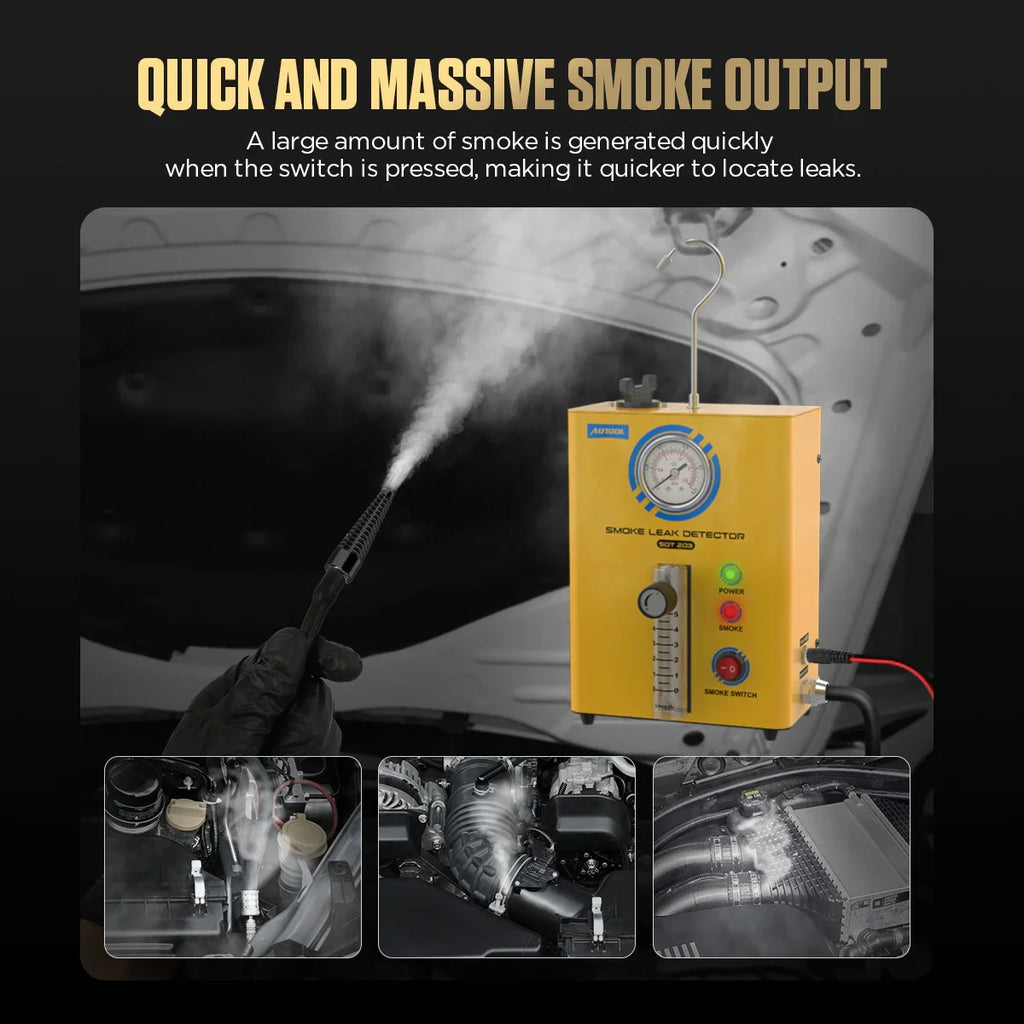

The Autool SDT203 is a smoke leak detector that operates on a 12V DC battery to identify leaks in automotive EVAP, intake, exhaust, and fuel tank systems. Designed for technicians and DIY enthusiasts, it generates smoke within 30 seconds to help pinpoint leaks in pipe systems quickly.
Key features

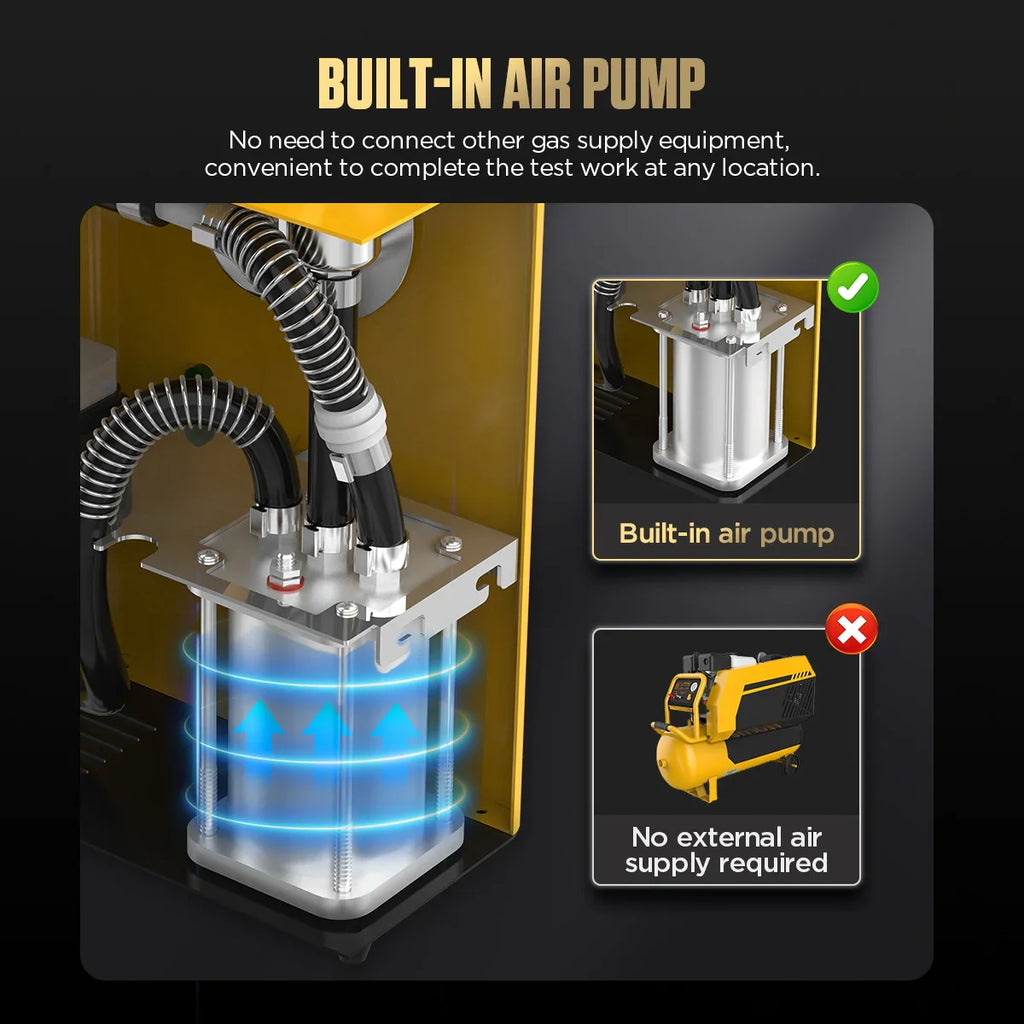

- Built-in Air Pump – Operates independently without the need for external air supply equipment.
- Pressure Monitoring – Includes a built-in pressure gauge with precise scales for accurate diagnostics.
- Dual Flow Control – Features adjustable smoke flow meters to display data clearly and allows independent selection of air or smoke modes.

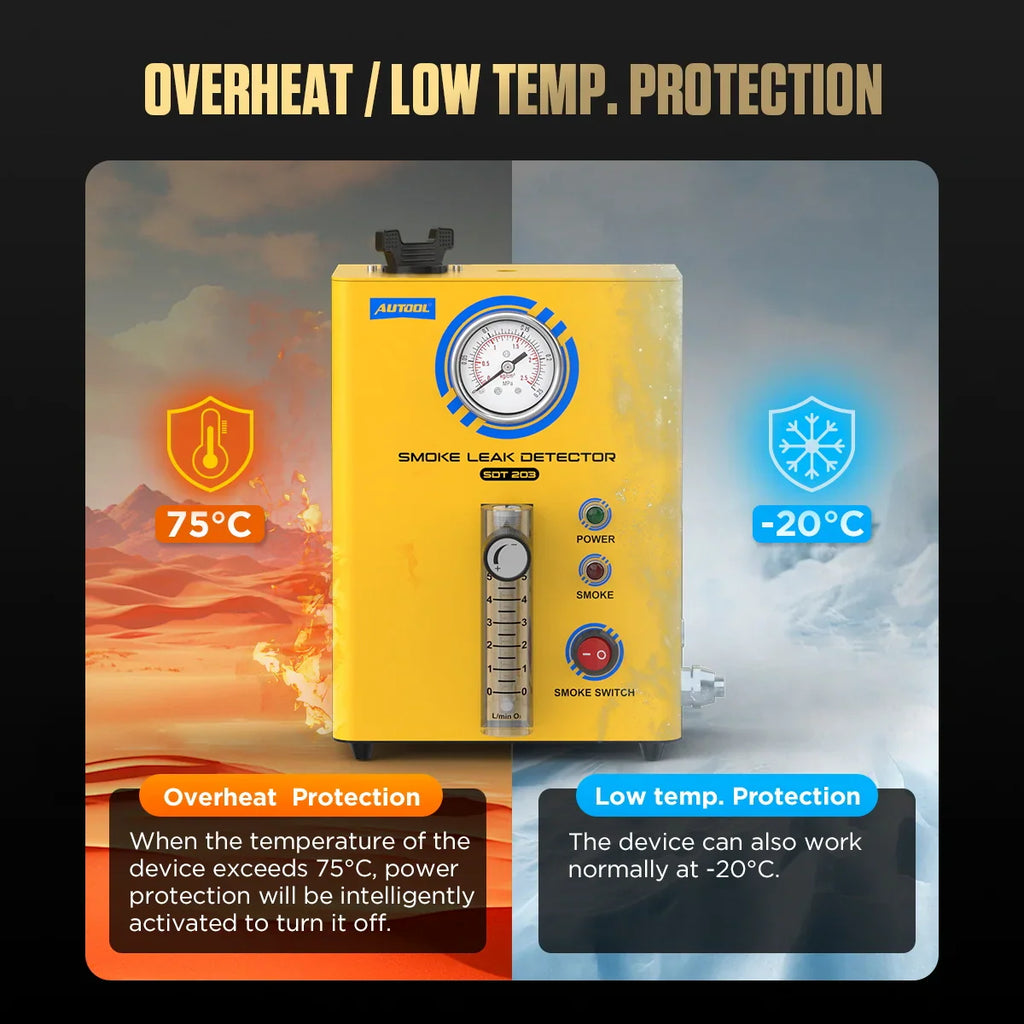

- Safety Protection – Equipped with an intelligent thermal protector that automatically shuts off the power if temperatures exceed 75 °C.
- Versatile Compatibility – Suitable for detecting leaks in cars, motorcycles, ATVs, light trucks, and speedboats.

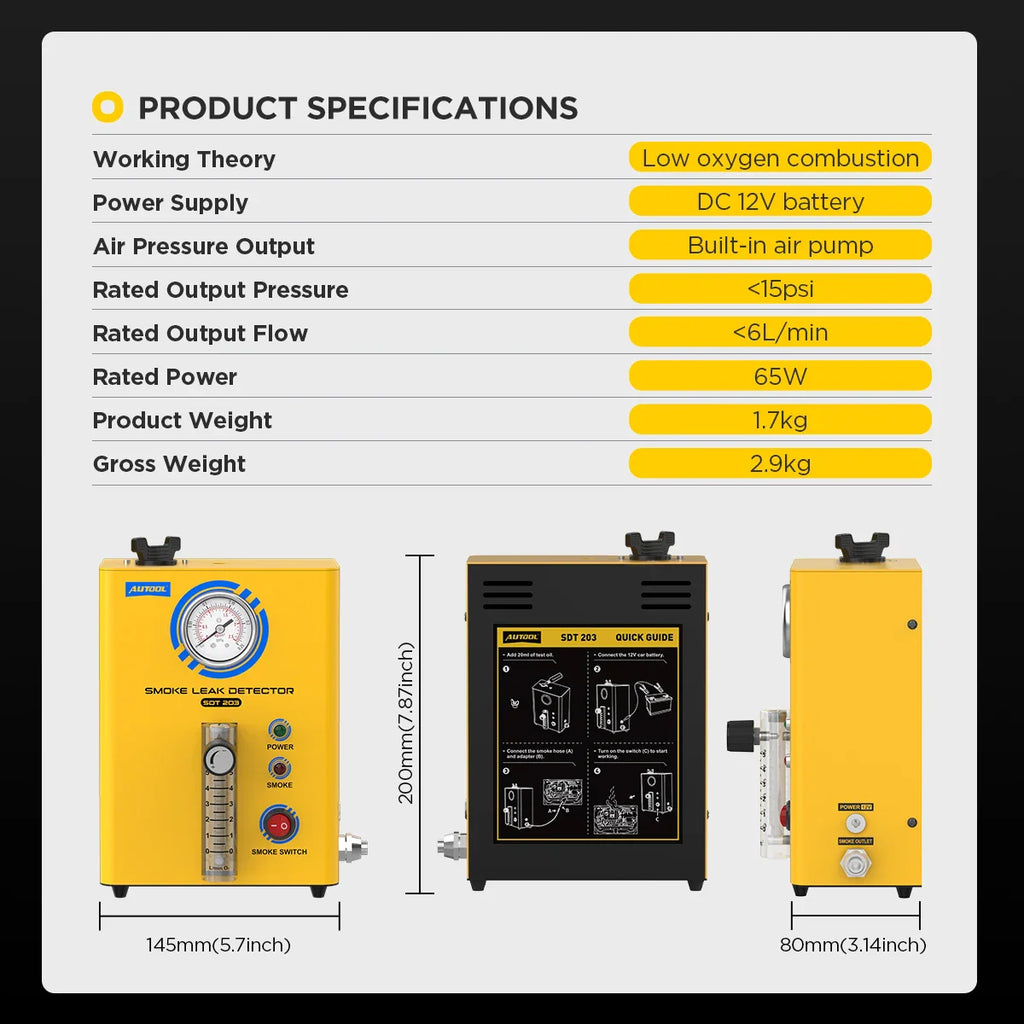

Specifications
| Model | SDT203 |
|---|---|
| Power Input | DC 12V battery |
| Rated Power | 65 W |
| Rated Output Pressure | <15 psi |
| Rated Output Flow | <6 L/min |

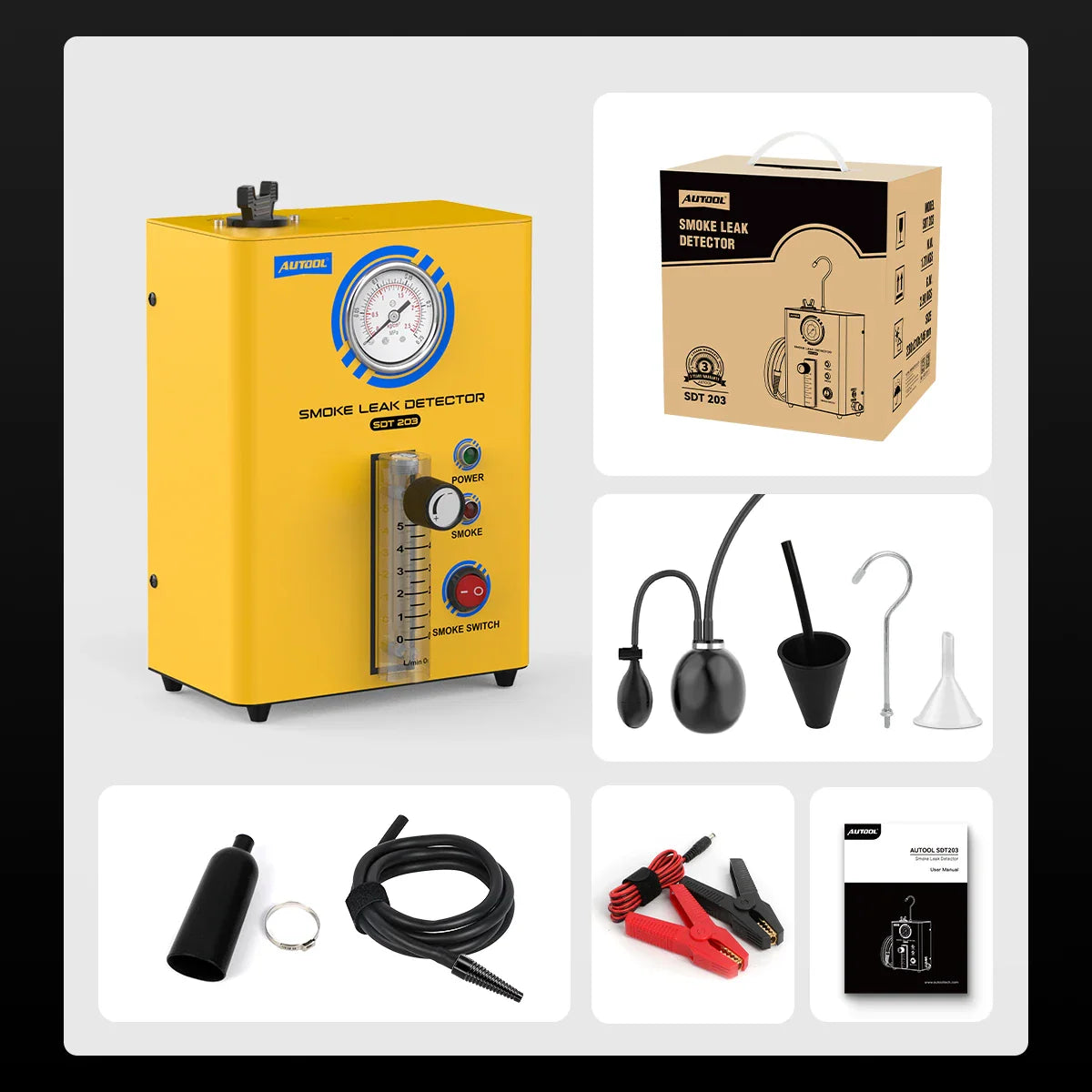

What's in the box
- Autool SDT203 main unit
- Power cord clamp
- Smoke hose
- Standard cone adapter
- Universal airbag
- Hard rubber hose plug
- Hook
- Funnel
- User manual
Ideal for
This tool is ideal for automotive mechanics and DIY enthusiasts performing diagnostic testing on engine systems, cooling lines, and various pipe fittings to resolve pressure-related OBD II trouble codes.
FAQ
Does it require an external air supply?
No, the Autool SDT203 features a built-in air pump and does not require an external air compressor.
What is the power source for this device?
The unit operates using a 12V DC battery.
Is it safe to use on my vehicle's EVAP system?
Yes, this detector is specifically designed to work on the EVAP system, as well as intake, exhaust, and fuel tank systems.
How long can I run the detector continuously?
Do not run the detector for more than 8 minutes at a time; it requires interval rest to maintain performance.
