Bside 4-in-1 Handheld Oscilloscope Multimeter and Signal Generator
Bside 4-in-1 Handheld Oscilloscope Multimeter and Signal Generator
The Bside 4-in-1 is a professional handheld tool combining a dual-channel digital oscilloscope, digital multimeter, and DDS signal generator. Designed for electrical DIY and professional testing, it features a 3.98-inch TFT display and measures peak voltages up to ±400V.

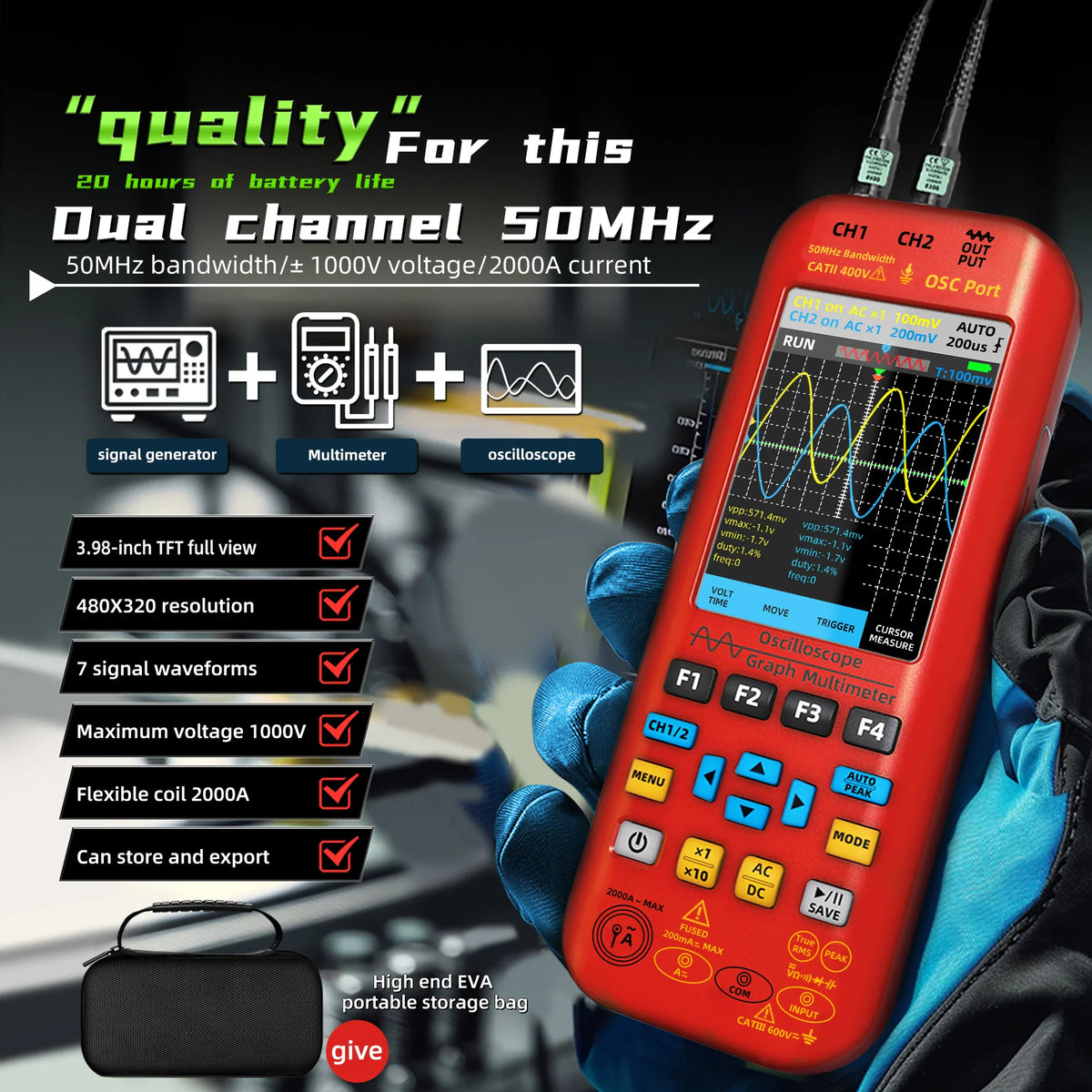

Key features
- 4-in-1 Versatility – Combines oscilloscope, multimeter, and signal generator functions in one portable unit.
- High-Performance Display – Features a 3.98-inch 480x320px TFT screen for clear waveform and measurement viewing.
- Built-in Signal Generator – Offers 7 types of function signals with a maximum output frequency of 2MHz and adjustable amplitude and duty cycle.

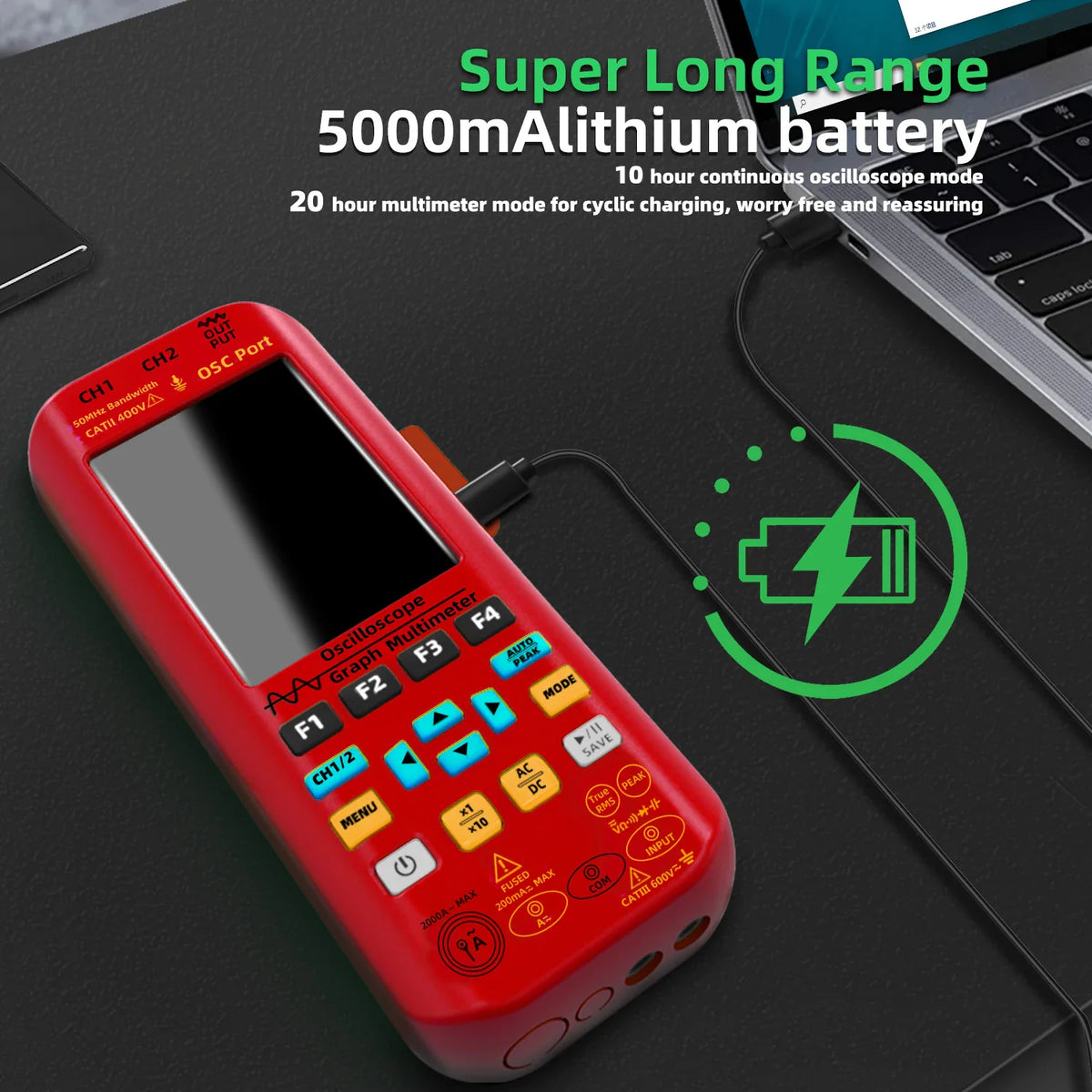

- Long Battery Life – Powered by two 18650 rechargeable batteries, providing up to 10 hours of operation in oscilloscope mode and 24 hours in multimeter mode.

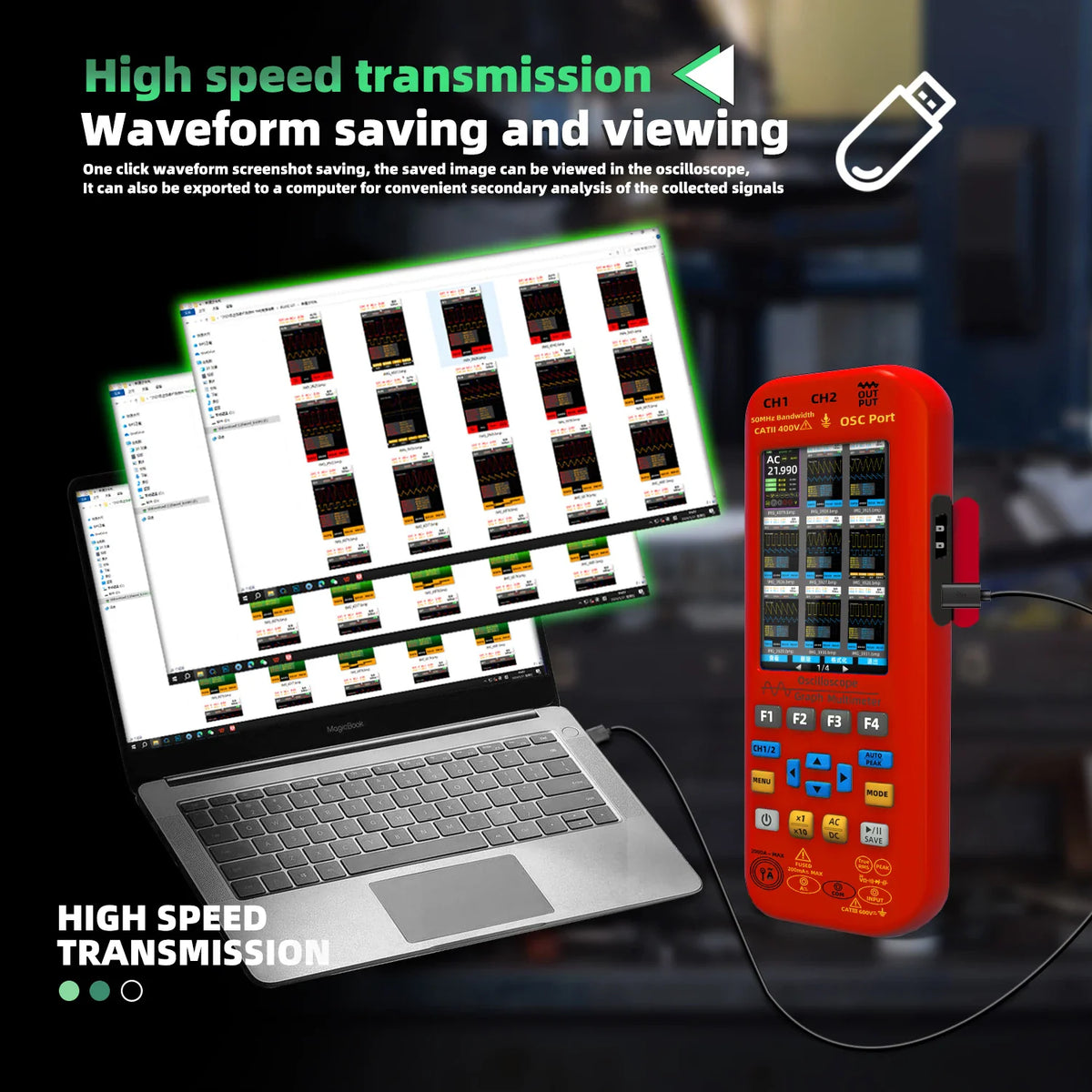

- Robust Connectivity – Supports data storage and export to external devices via a flash drive or computer.
Specifications
| Model | Bside O7 (25MHz) or O9 (50MHz) |
|---|---|
| Dimensions | 216.6 x 84.5 x 36 mm |
| Weight | 384 g |
| Battery | Built-in rechargeable 18650 x 2 |
| Max Input Voltage | ±400V (Peak) |
| Multimeter Counts | 6000 (O7) or 20000 (O9) |

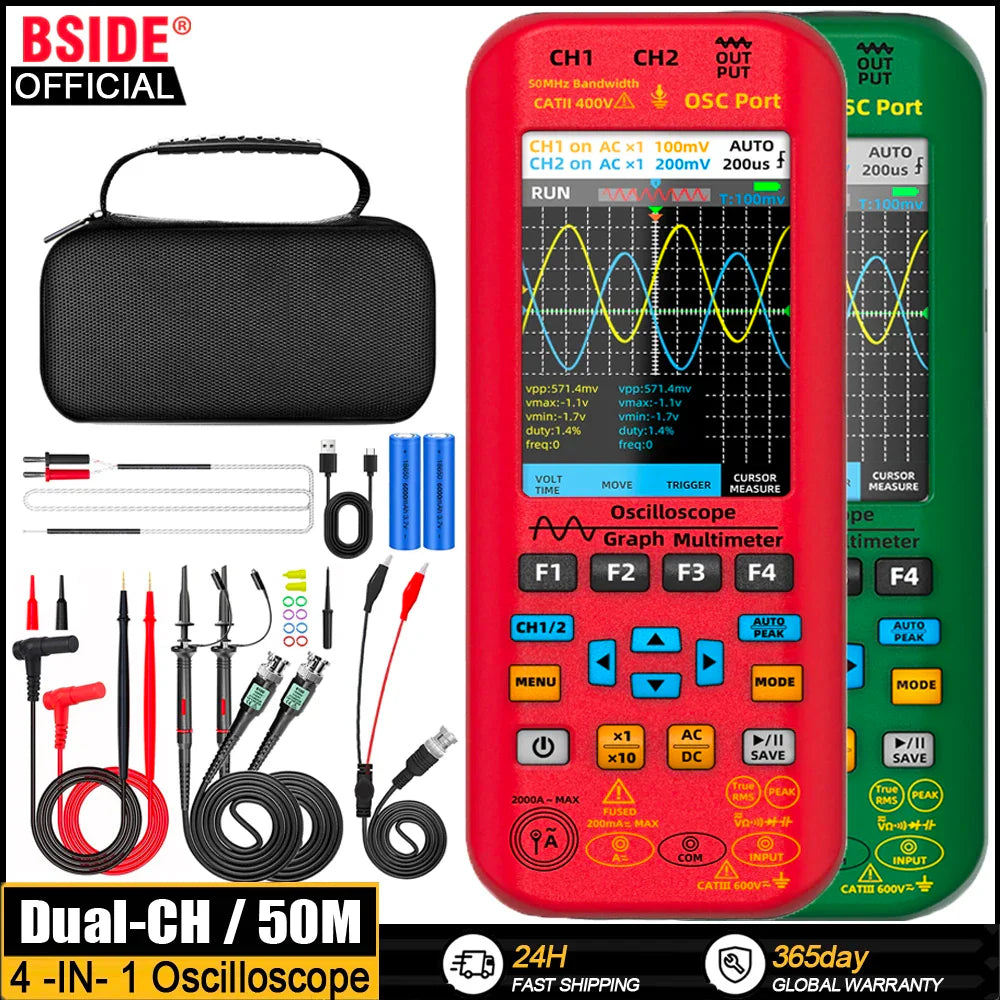

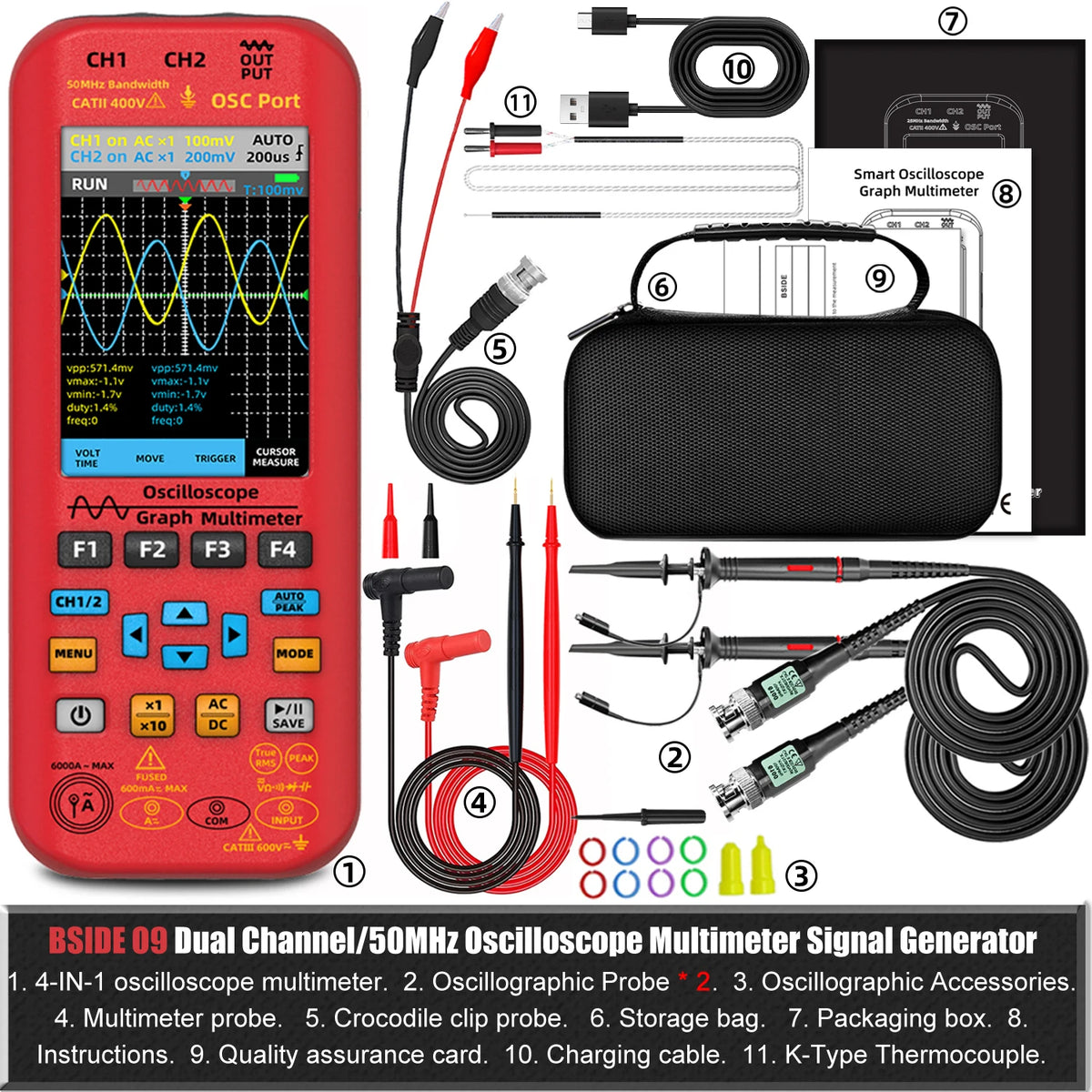

What's in the box
- Handheld Oscilloscope Multimeter
- EVA carrying case
- Oscilloscope probe and accessories
- Multimeter pen and crocodile clip
- Charging cable
- K-type thermocouple
- Instruction manual and warranty card
Ideal for
This tool is ideal for electronics technicians and electrical hobbyists who need a compact, all-in-one device for field testing, circuit troubleshooting, and signal analysis.
FAQ
Does it work with current clamps?
Yes, it is compatible with flexible current clamps and can support measurements up to 6000A.

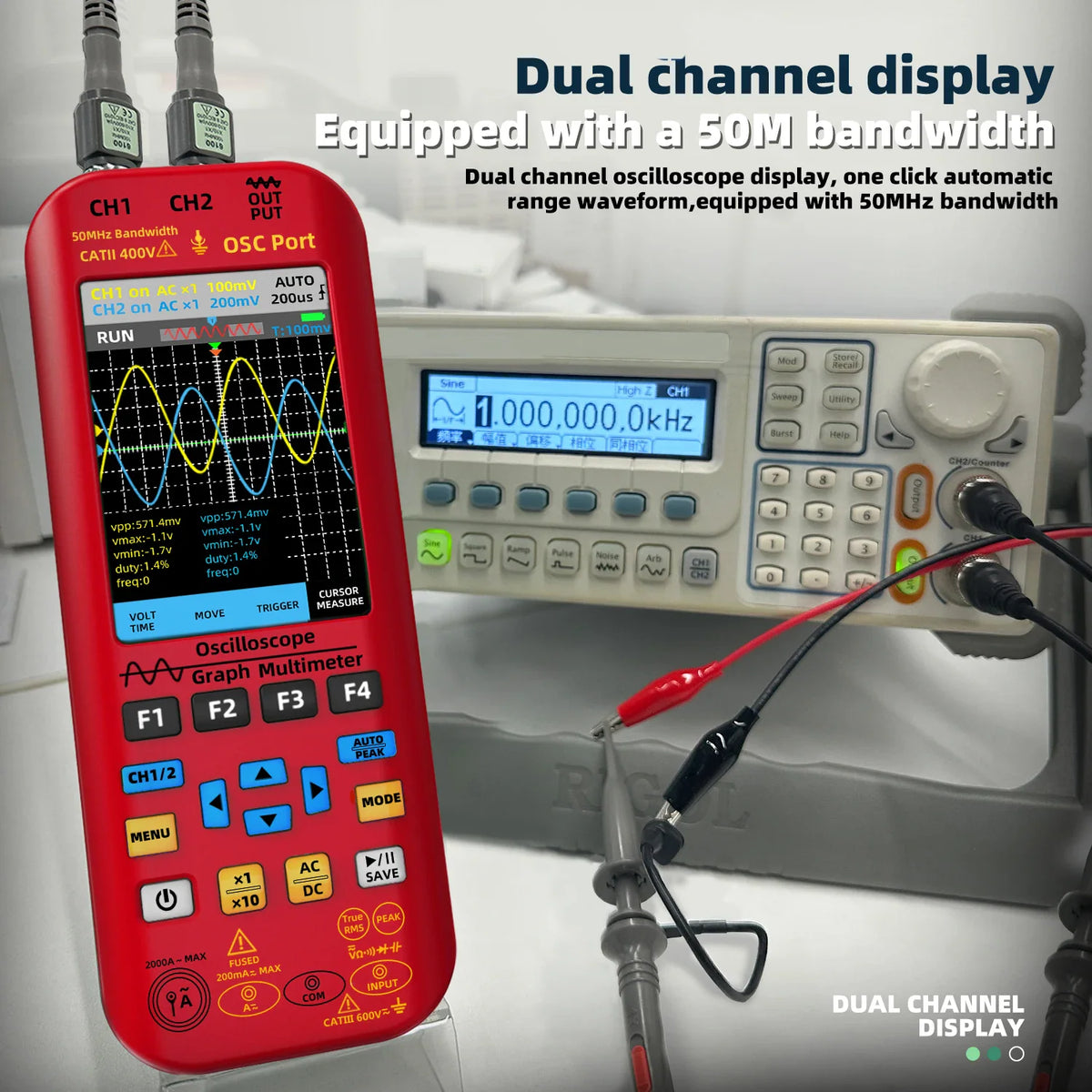

What is the maximum bandwidth?
The O7 model offers a 25MHz bandwidth, while the O9 model offers a 50MHz bandwidth.
Is the battery replaceable?
No, the unit features built-in 18650 batteries that are not intended to be demounted by the user.
