Bside HX1 Handheld Thermal Imaging Camera, 240x240 Resolution
Bside HX1 Handheld Thermal Imaging Camera, 240x240 Resolution

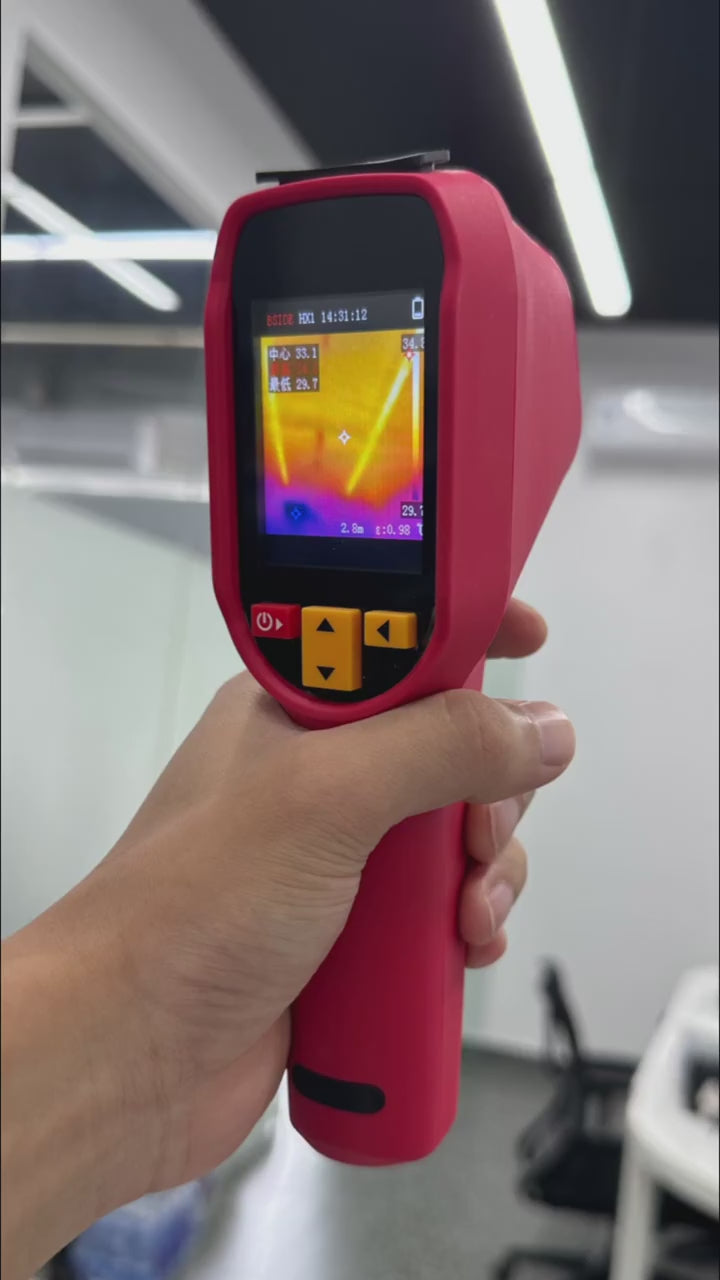

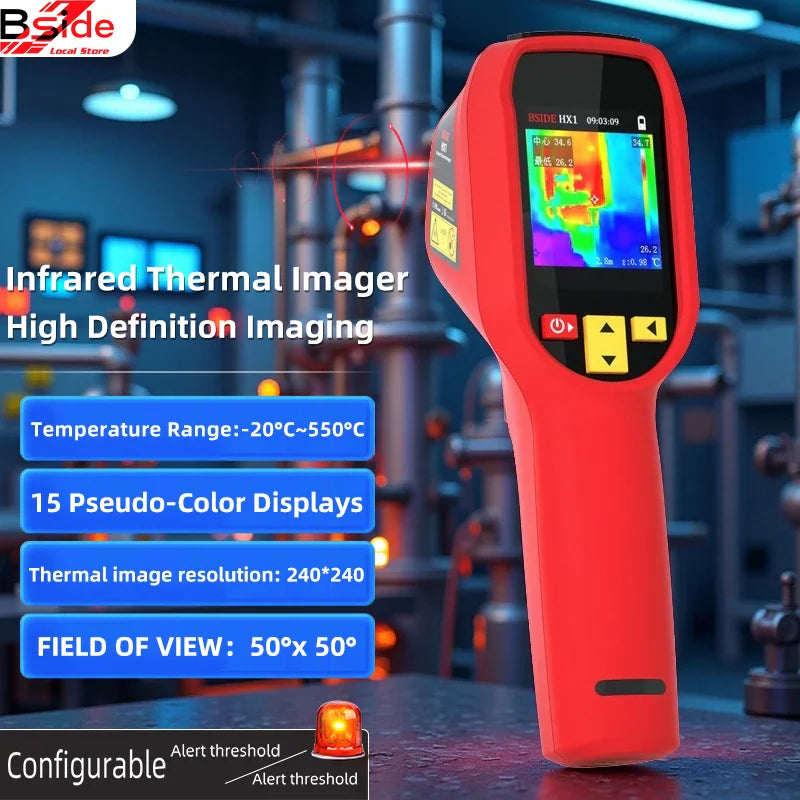

The Bside HX1 is a handheld thermal imaging camera featuring 240×240 IR resolution and a 2.4-inch LCD screen, designed for precise temperature monitoring in industrial, automotive, and electrical repair environments. With a temperature range of -20 °C to 550 °C and a 25Hz frame rate, it helps professionals identify overheating components and structural issues with ease.
Key features

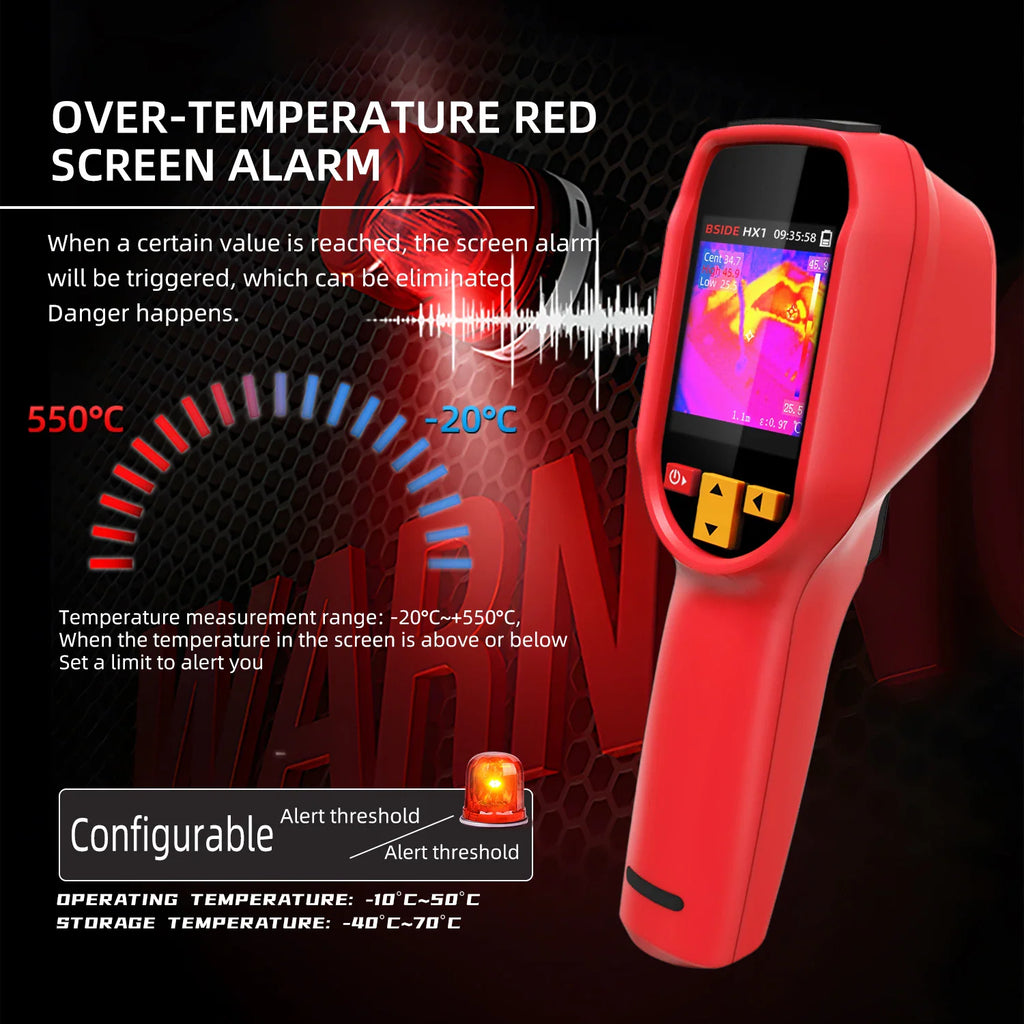

- High Accuracy – Detects temperatures from -20 °C to 550 °C with an accuracy of ±2 °C or ±2% of the reading.
- Rugged Design – Built with a double injection molding process that is IP54 rated and 1.5m drop-resistant.
- Long Battery Life – Powered by a 2500mAh lithium battery that provides over 7 hours of operation at 25 °C.

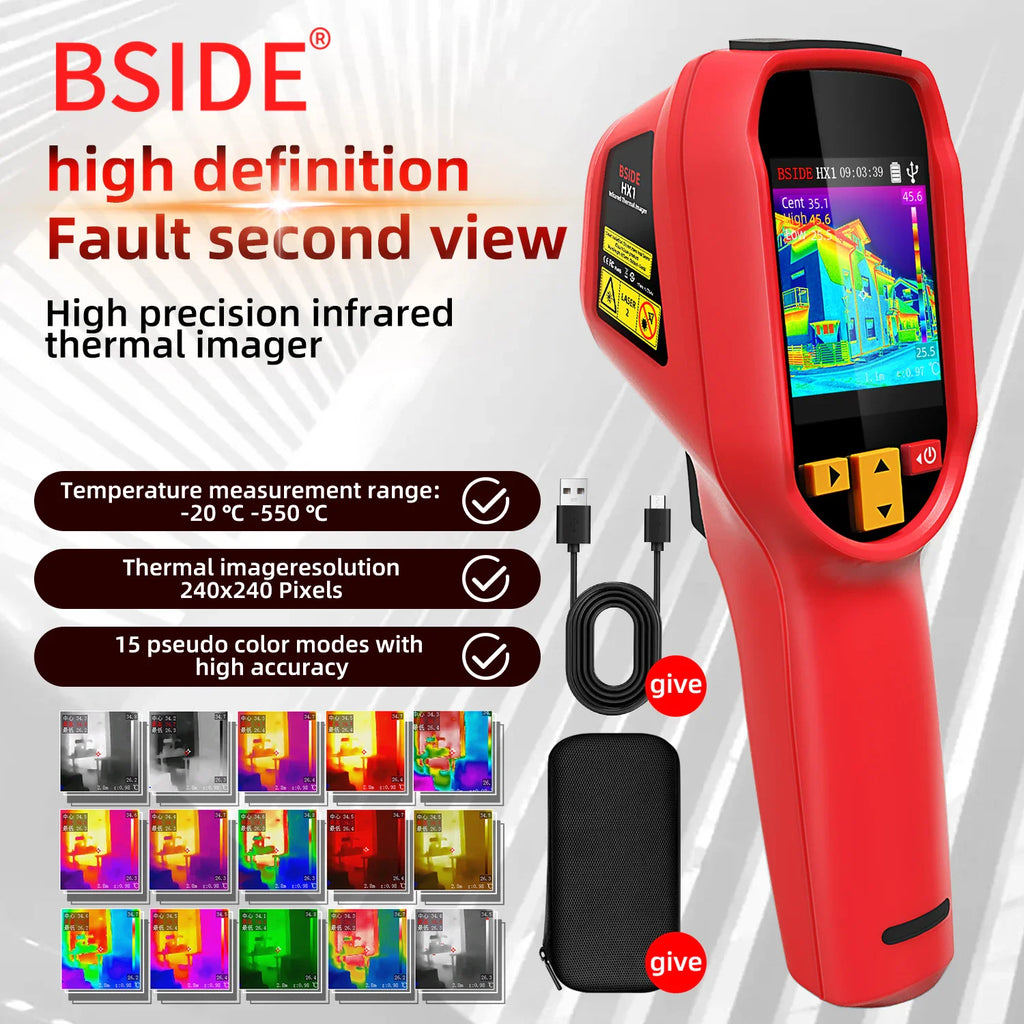

- Advanced Analysis – Includes 15 pseudo color modes and an adjustable emissivity range of 0.01 to 1.

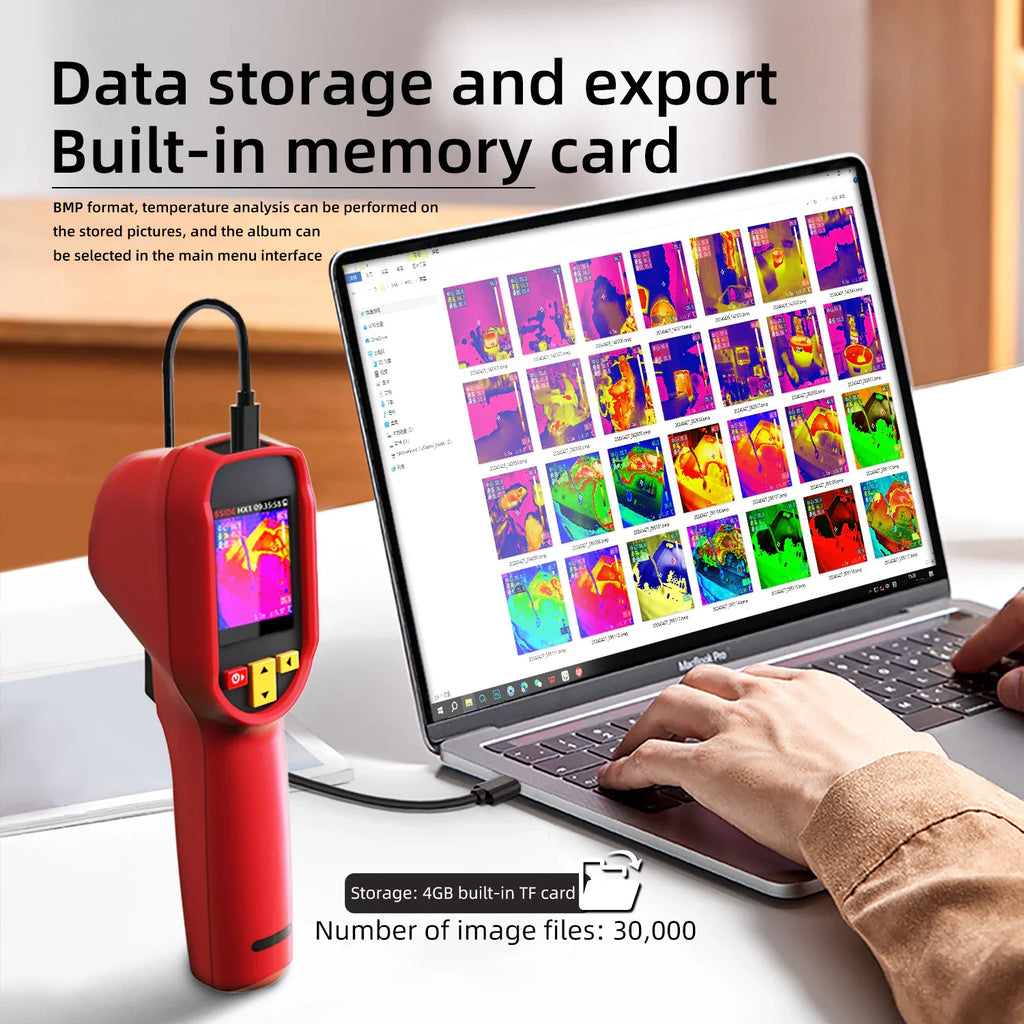

- Integrated Storage – Comes with a 4GB built-in TF card for storing up to 30,000 BMP format images.
Specifications
| Dimensions | 193.4 × 59.4 × 77.4 mm |
|---|---|
| Weight | 277 g |
| Screen | 2.4 inch TFT LCD (320 × 240 resolution) |
| IR Resolution | 240 × 240 pixels |
| Frame Rate | 25 Hz |
| Power Supply | 3.7V/2500mAh lithium battery (Type-C charging) |
| Protection Level | IP54 and 1.5m anti-drop |
| Model | Bside HX1 |
Ideal for
This camera is ideal for mechanics, electricians, and technicians performing PCB repair, automobile pipeline detection, or power infrastructure inspections.
FAQ
Does this camera record video?
The device stores captured images in BMP format; it does not explicitly state video recording capabilities.
Can it be mounted on a tripod?
Yes, the base of the unit features a screw hole for standard tripod mounting.
How long does it take to charge?
Charging takes less than 3 hours at 25 °C using a 5V/2A input.
