DDCS V4.1 4-Axis CNC Offline Motion Controller with MPG Handwheel
DDCS V4.1 4-Axis CNC Offline Motion Controller with MPG Handwheel
The DDCS V4.1 4-axis offline motion controller provides precise control for lathe and router machines without needing a computer. It features a 7-inch TFT screen, 17-key interface, and includes an MPG pendant handwheel for manual jogging and zero correction during operation.
Key features
- Standalone Operation – Manage complex CNC tasks directly on the device using ARM+FPGA architecture, eliminating the need for a constant PC connection.
- Enhanced Motion Planning – Achieve smoother paths for small line segments with configurable contour errors and a 32-bit speed generator.
- Comprehensive Tool Support – Includes functions for floating, fixed, and corner tool setting, plus multi-workpiece origin saving and loading.

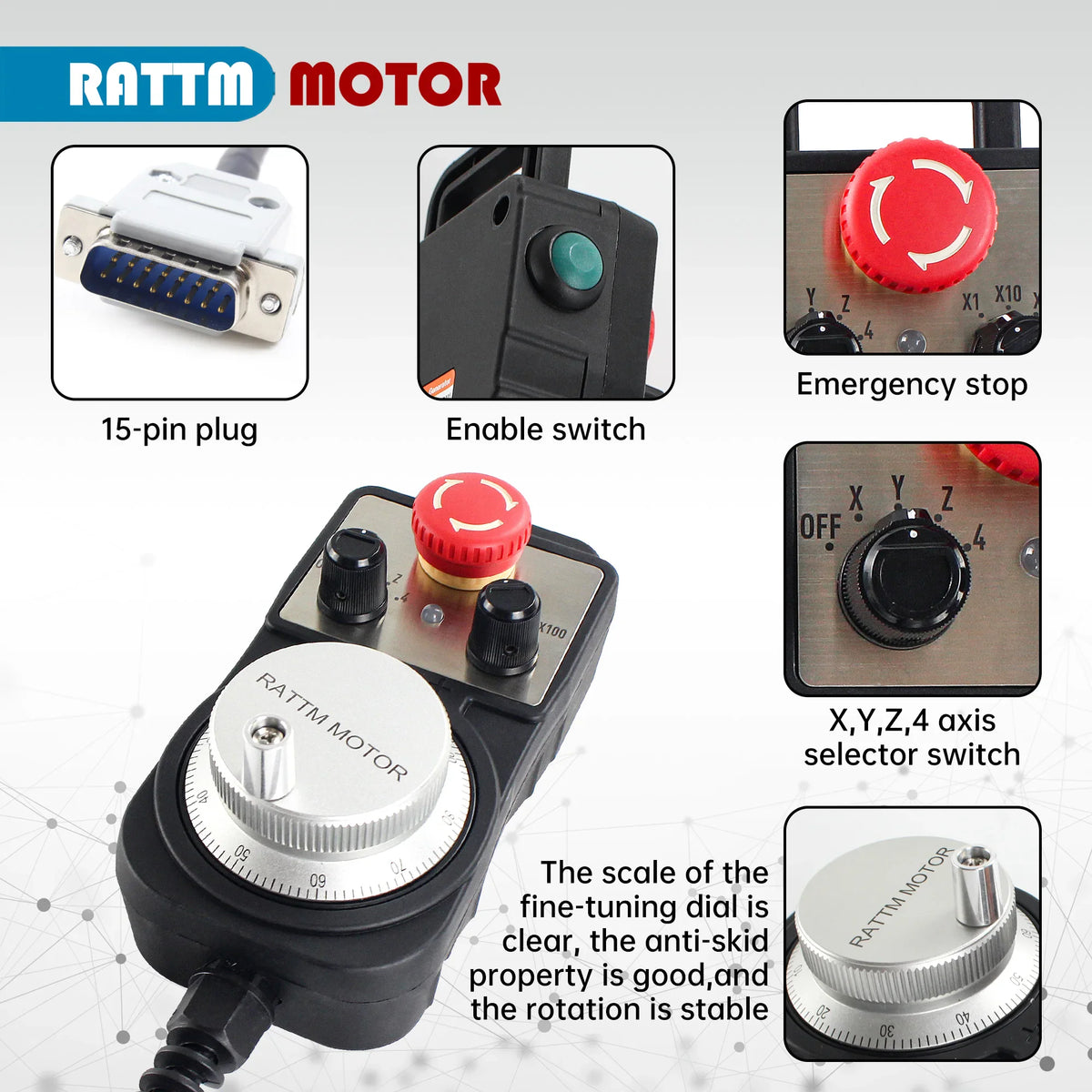

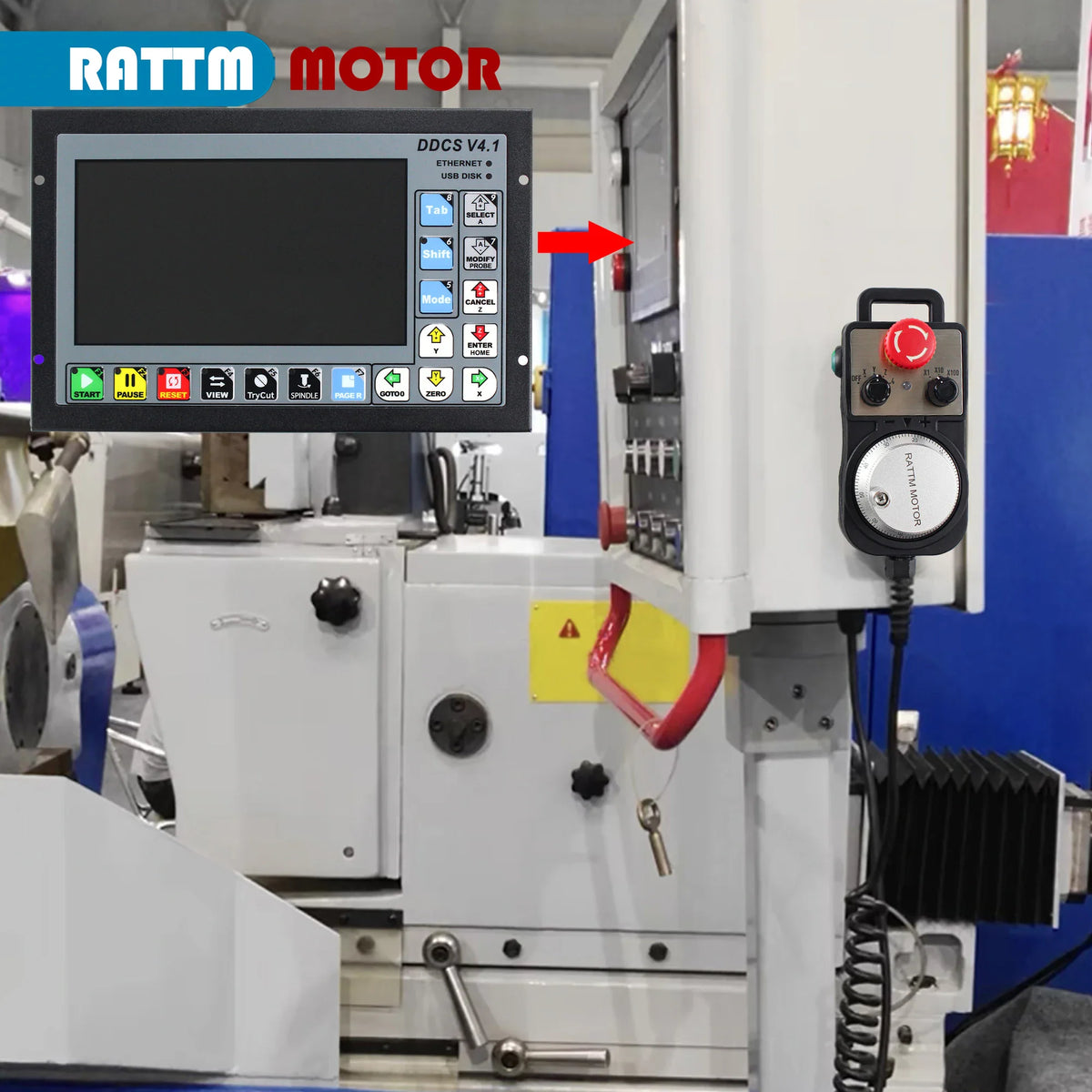

- MPG Handwheel – Offers precise manual control with 100 pulses per revolution, including an E-Stop button and IP65-rated protection against oil, water, and dust.
- Versatile Compatibility – Supports standard FANUC-compatible G-code and allows for Ethernet-based file transfer or U-disk loading.
Specifications

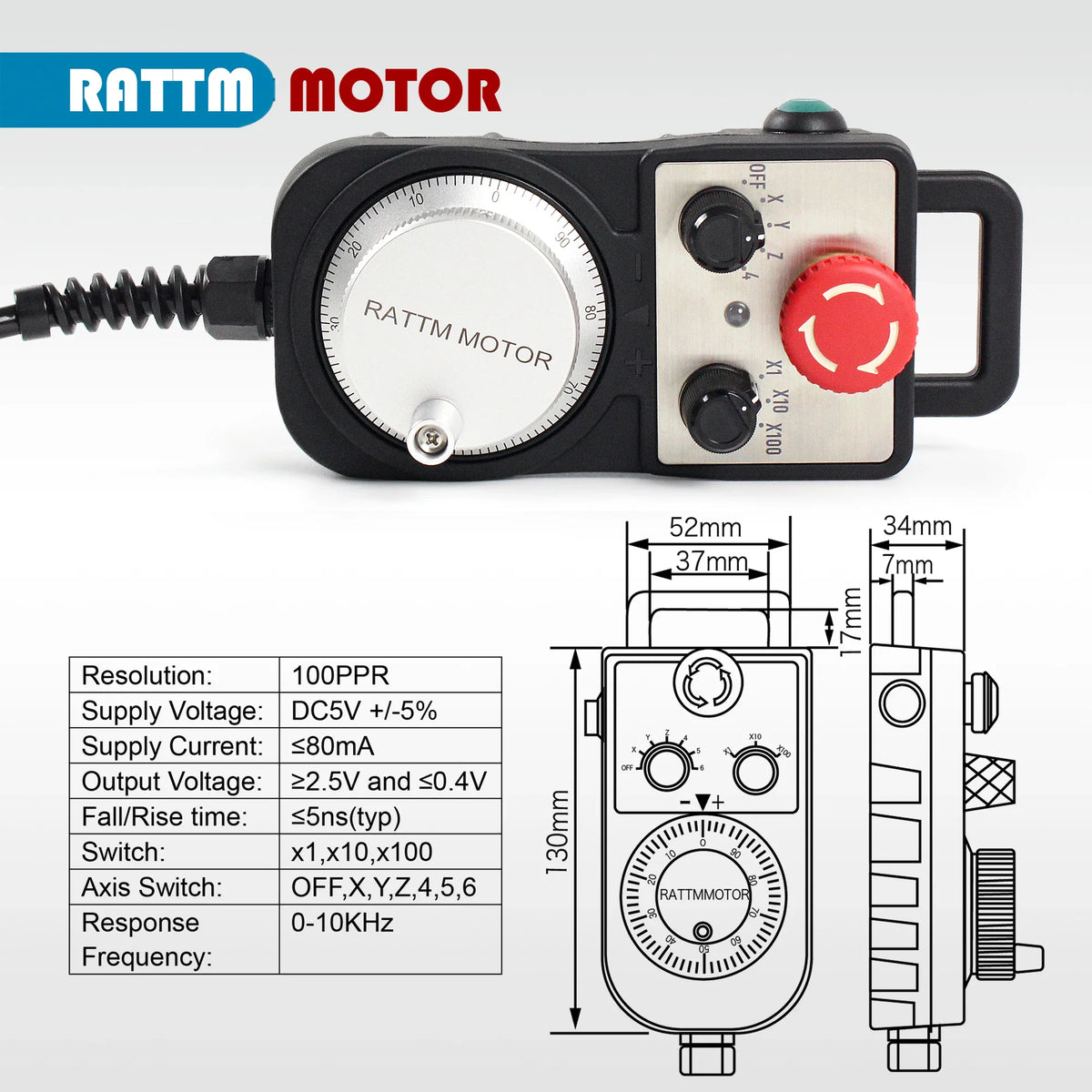

| Controller Model | DDCS V4.1 |
|---|---|

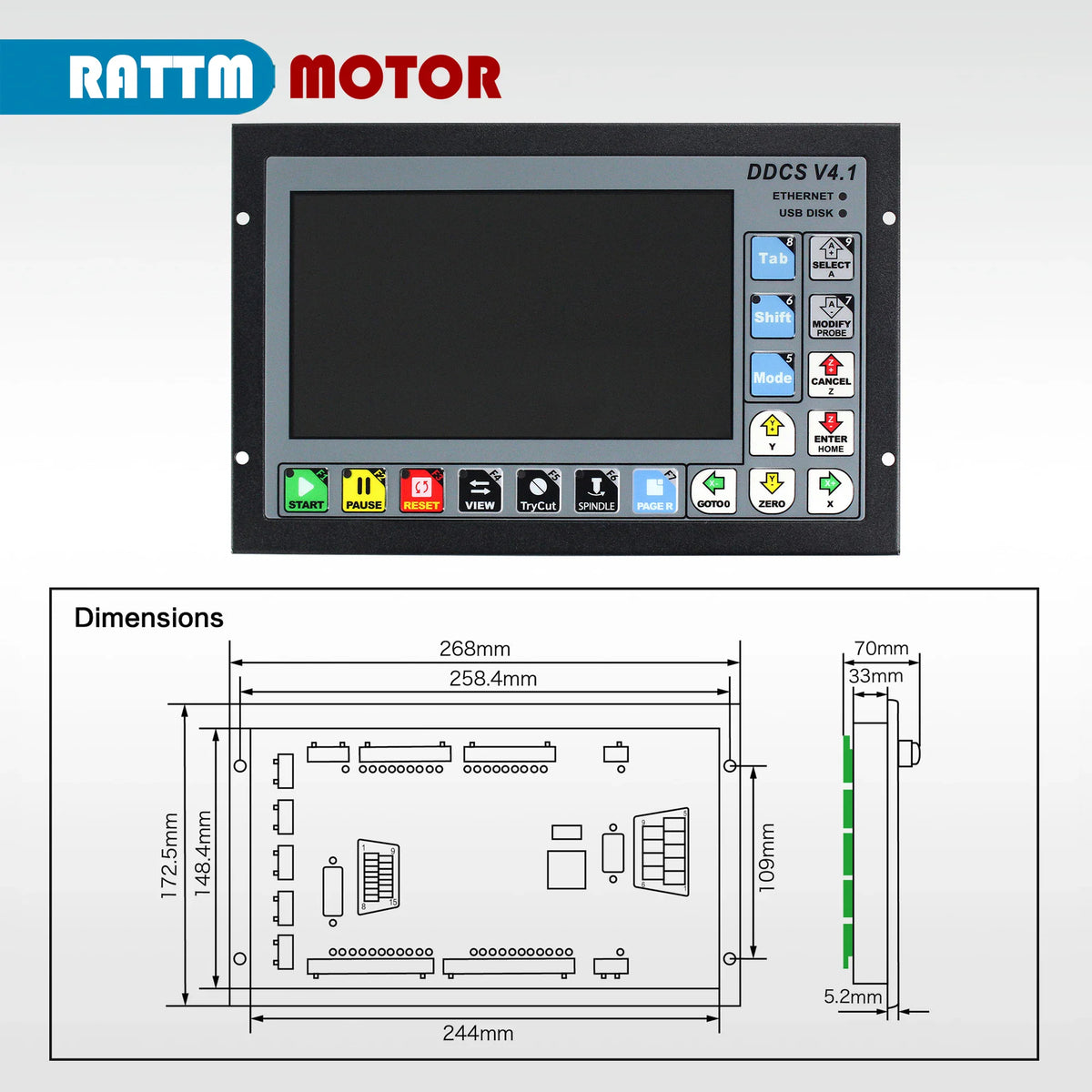

| Screen | 7-inch TFT (1024x600 pixels) |
| Power Input | 24VDC (min 0.5A) |
| Pulse Frequency | Max 500Khz |
| Handwheel Output | 100PPR |
| Handwheel Rating | IP65 |
| Handwheel Weight | 560g |
What's in the box

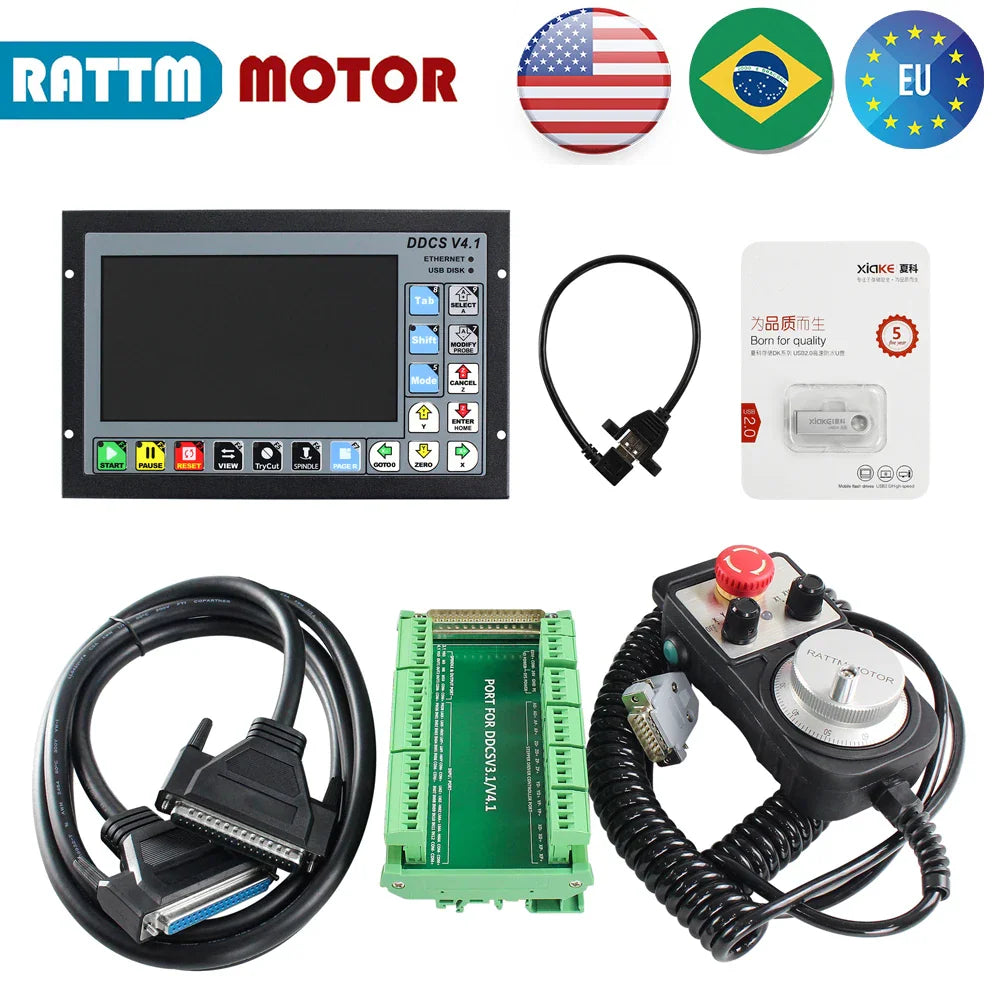

- 1 × DDCSV4.1 CNC controller
- 1 × 4GB USB flash drive
- 1 × USB extension cable
- 1 × Parallel port link cable
- 1 × Breakout Board
- 1 × E-Stop handwheel

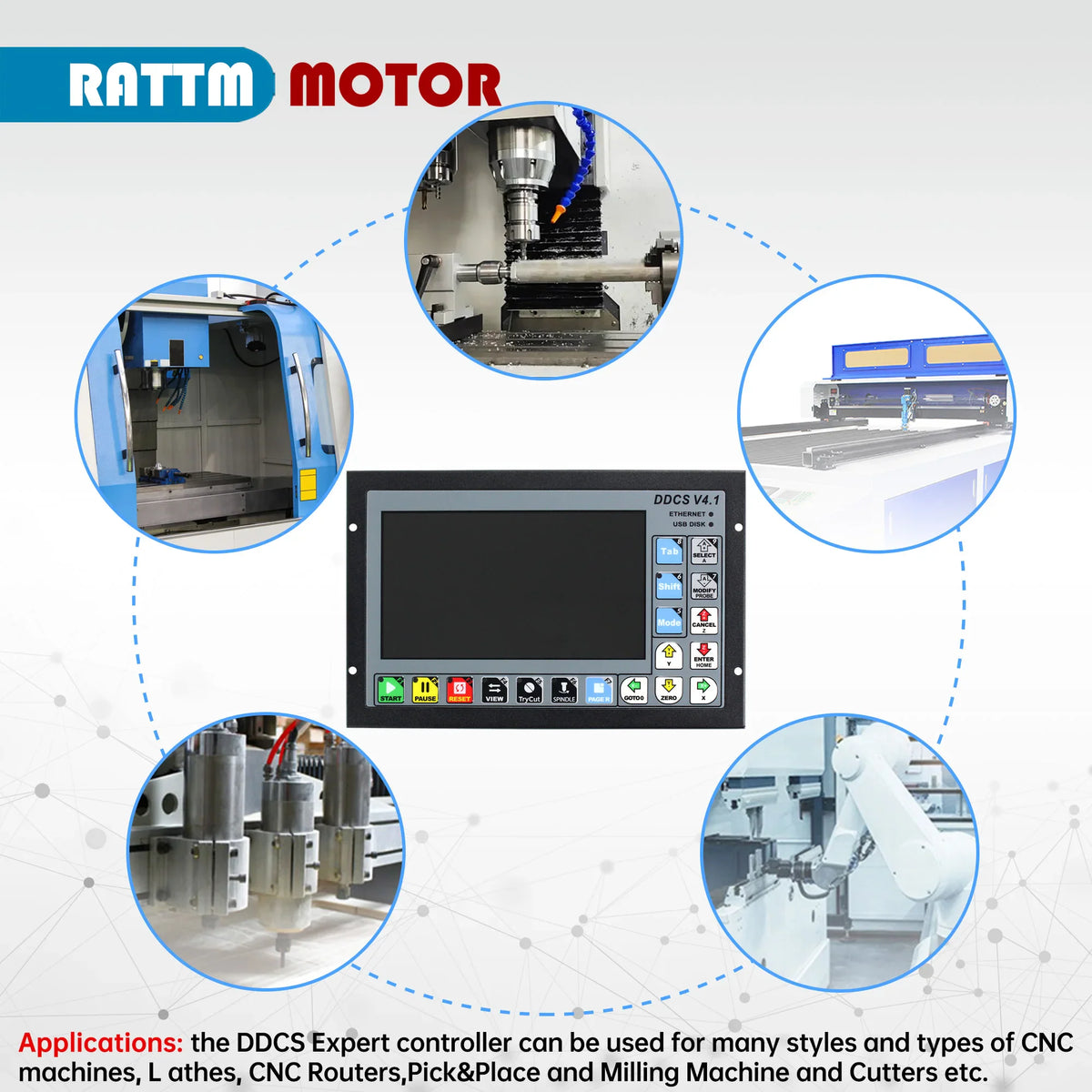

Ideal for
This controller is suited for CNC lathe and router operators who require a stable, offline system for precision machining and manual positioning tasks.
FAQ
Does it fit my machine?
The DDCS V4.1 is compatible with 3 or 4-axis CNC machines like routers and lathes, supporting differential and double-pulse drive modes.
Will it work with my limit switches?
The controller is designed to work with NPN-type limit switches.
How do I power it?
It requires a 24VDC power supply for the main control and a separate 24VDC supply for the IO ports, with a minimum current capacity of 0.5A for each.
