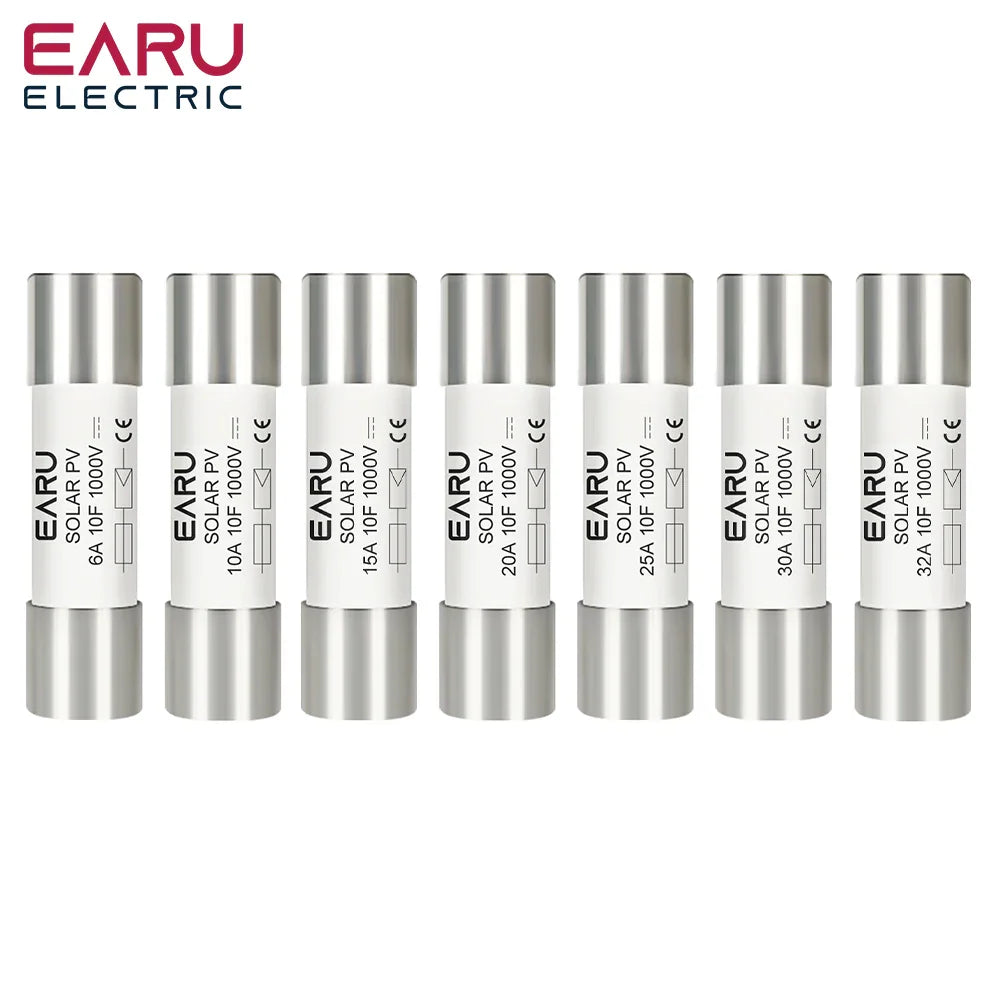

A collection of cylindrical solar PV fuses with different amperage ratings ranging from 6A to 32A.

EARU 1000V DC PV Solar Fuse, 10x38mm, 6A-32A

1PCS / 10A
$10.99
Skip to product information
A collection of cylindrical solar PV fuses with different amperage ratings ranging from 6A to 32A.
  • A collection of cylindrical solar PV fuses with different amperage ratings ranging from 6A to 32A.

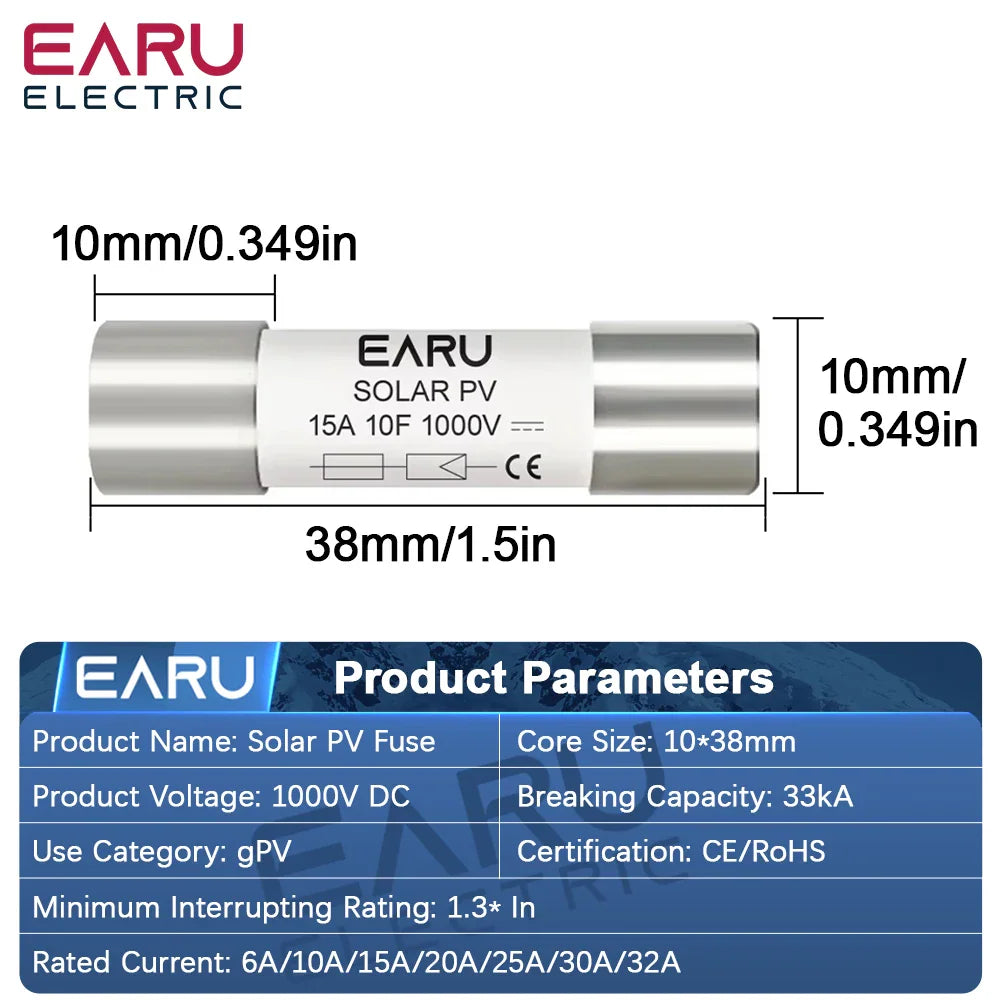

  • A 15A solar PV fuse shown with dimensions and a table of product parameters including voltage and current ratings.

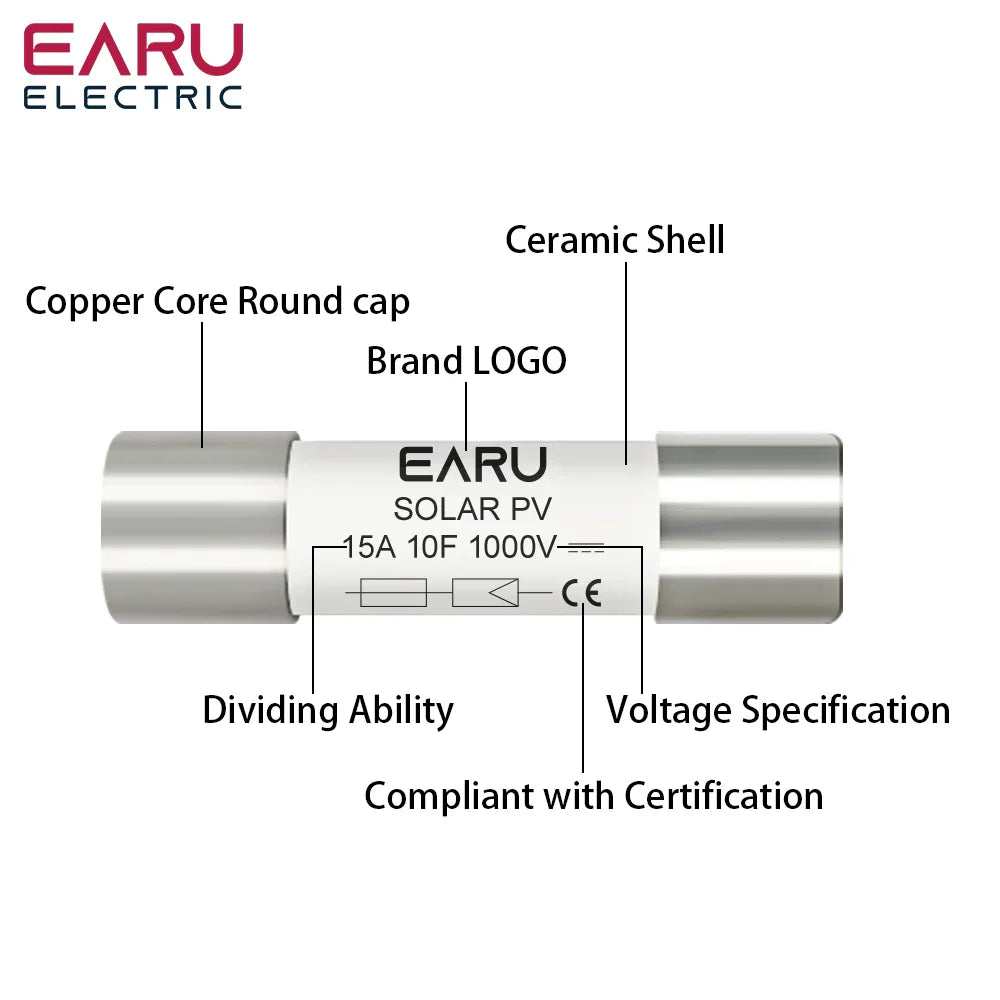

  • A solar PV fuse with labels pointing to its various components like ceramic shell, copper cap, and specifications.

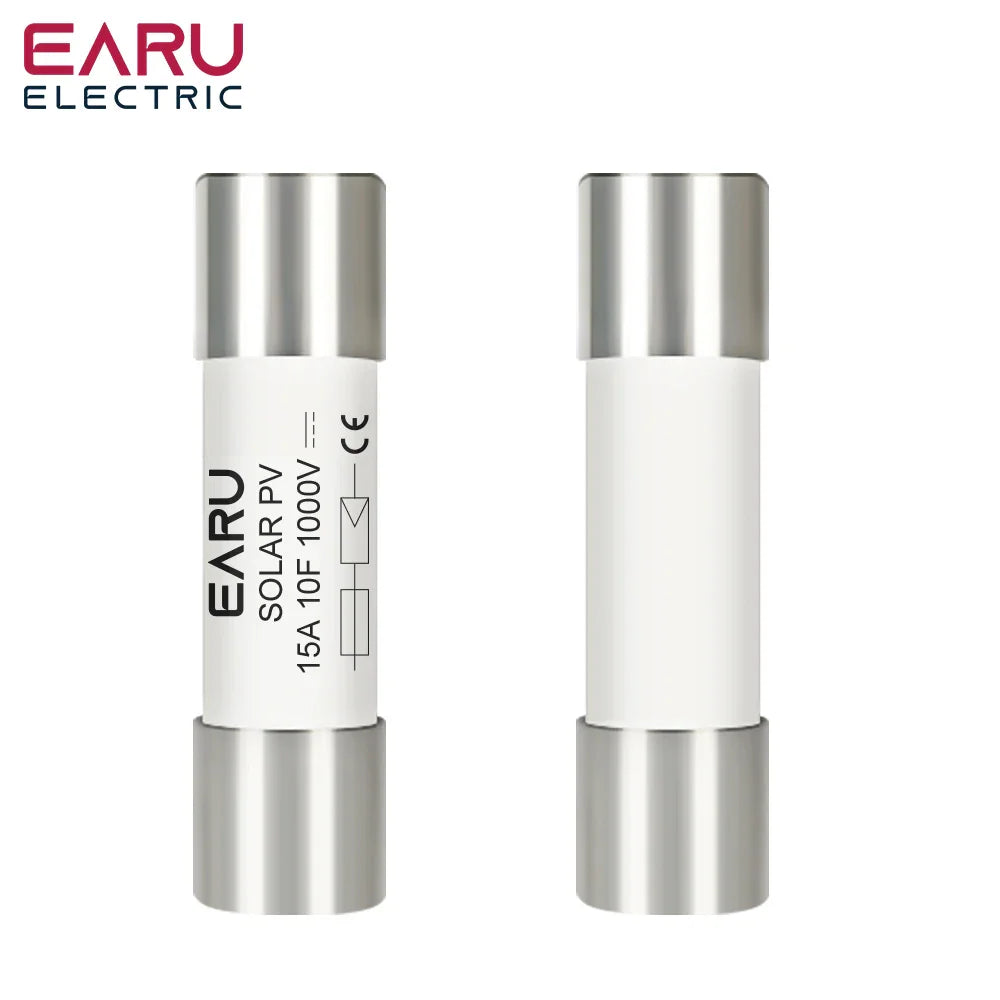

  • A single 15A solar PV fuse standing next to an empty fuse shell.

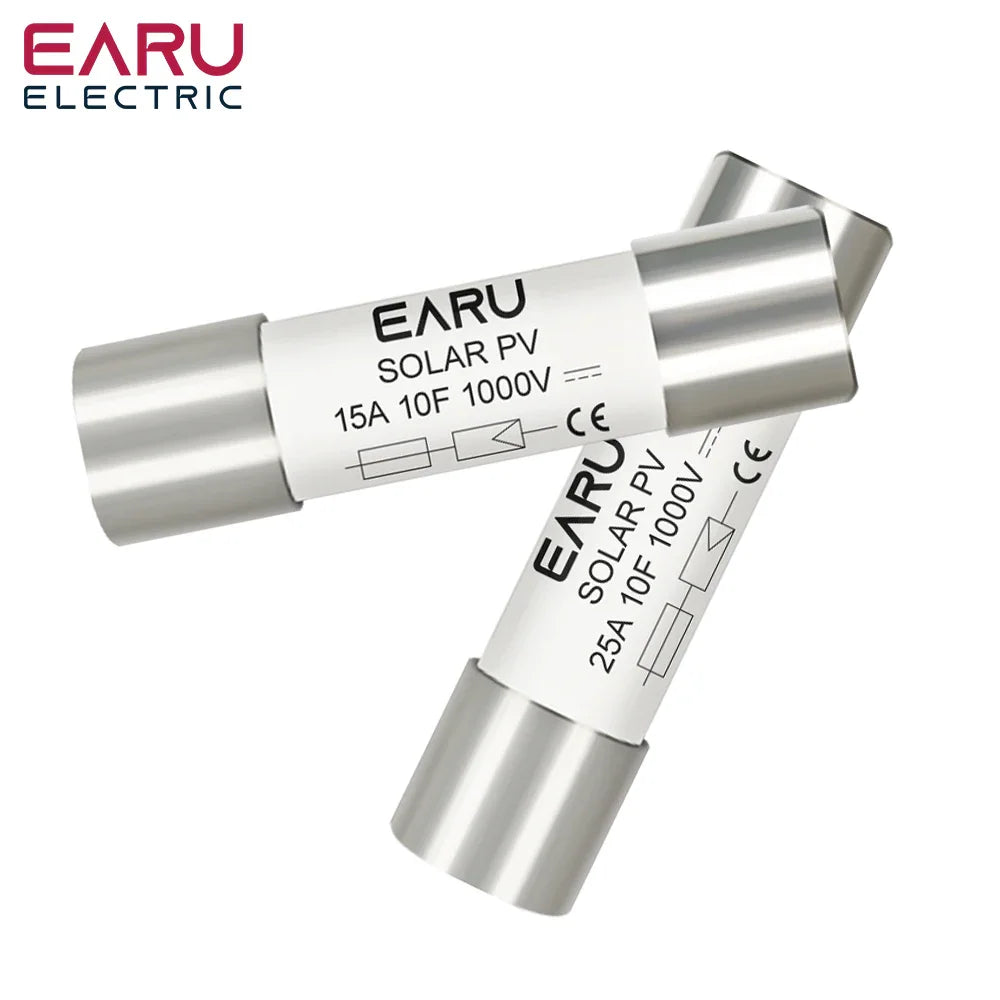

  • Two solar PV fuses of different amperage ratings positioned at an angle.

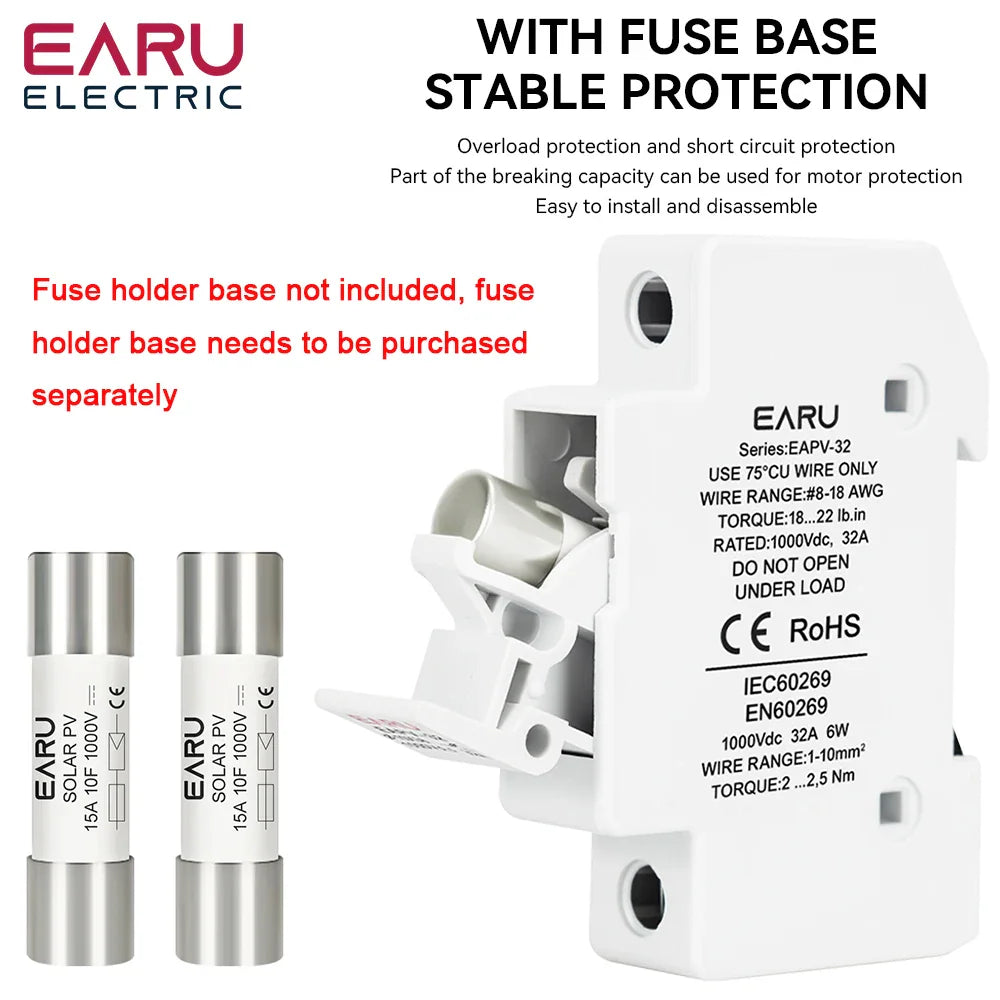

  • A solar PV fuse next to a white fuse holder base with technical specifications written on it.
  • EARU 1000V DC PV Solar Fuse, 10x38mm, 6A-32A
  • A collection of cylindrical solar PV fuses with different amperage ratings ranging from 6A to 32A.
  • A 15A solar PV fuse shown with dimensions and a table of product parameters including voltage and current ratings.
  • A solar PV fuse with labels pointing to its various components like ceramic shell, copper cap, and specifications.
  • A single 15A solar PV fuse standing next to an empty fuse shell.
  • Two solar PV fuses of different amperage ratings positioned at an angle.
  • A solar PV fuse next to a white fuse holder base with technical specifications written on it.
  • EARU 1000V DC PV Solar Fuse, 10x38mm, 6A-32A
EARU 1000V DC PV Solar Fuse, 10x38mm, 6A-32A

EARU 1000V DC PV Solar Fuse, 10x38mm, 6A-32A

$10.99
Size
AMP

The EARU PV String Fuse is a 10x38mm ceramic fuse designed for the protection and isolation of solar photovoltaic strings rated up to 1000VDC. This fuse helps interrupt low overcurrents caused by reverse currents or multi-array faults in solar panel systems.

Key features

  • Voltage Rating – Rated for 1000VDC systems to ensure compatibility with standard solar arrays.
  • High Breaking Capacity – Rated for 33kA DC to safely handle fault conditions.
  • Durable Material – Constructed with ceramic for stability in high-voltage applications.
  • Standard Size – Compact 10x38mm dimensions designed for standard photovoltaic string fuse holders.

Specifications

Brand EARU
Model Number EAFS-1038PV
Material Ceramics
Fuse Size 10x38mm
Rated Voltage 1000VDC
Rated Current 6A, 10A, 15A, 20A, 25A, 30A, 32A
Breaking Capacity 33kA DC
Standards EN IEC 60269-6

Ideal for

This fuse is ideal for solar professionals and DIY enthusiasts maintaining solar photovoltaic strings, solar panels, and DC string arrays requiring short circuit protection.

FAQ

Does this include a fuse holder?

No, this product is the fuse only. You must purchase the fuse holder separately if required.

What is the rated voltage?

This fuse is rated for 1000VDC.

Which current ratings are available?

You can choose from 6A, 10A, 15A, 20A, 25A, 30A, or 32A options.
