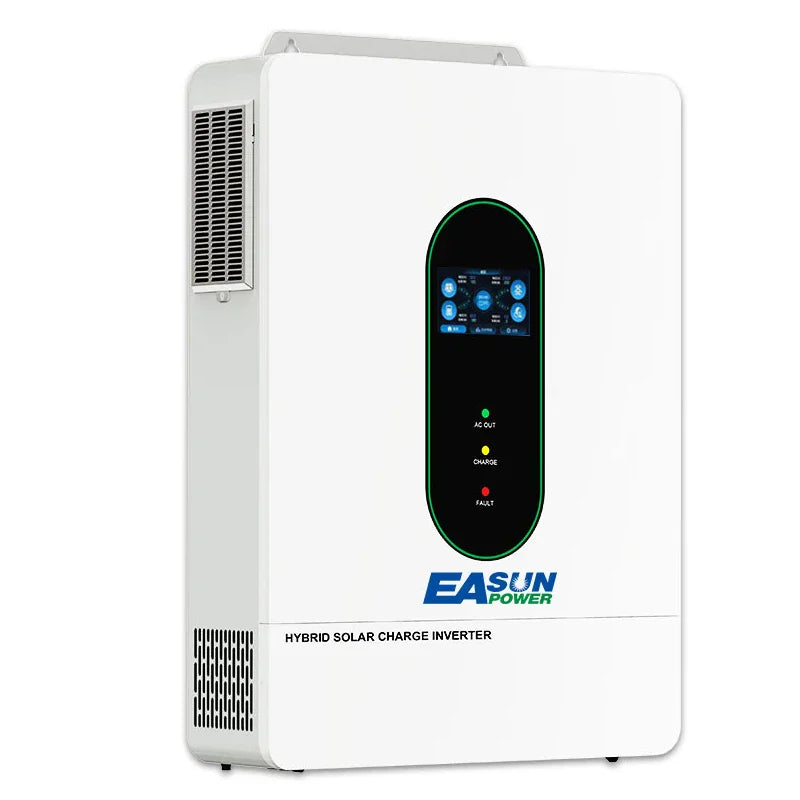

Easun 12kW Split Phase Hybrid Solar Inverter, 48V, 160A, Dual Output
Easun 12kW Split Phase Hybrid Solar Inverter, 48V, 160A, Dual Output

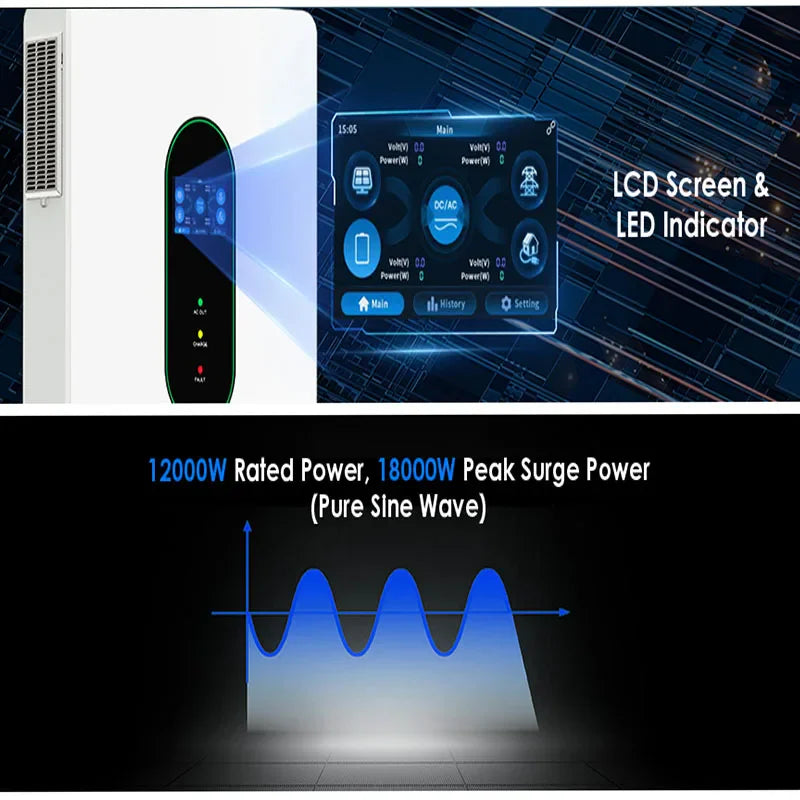

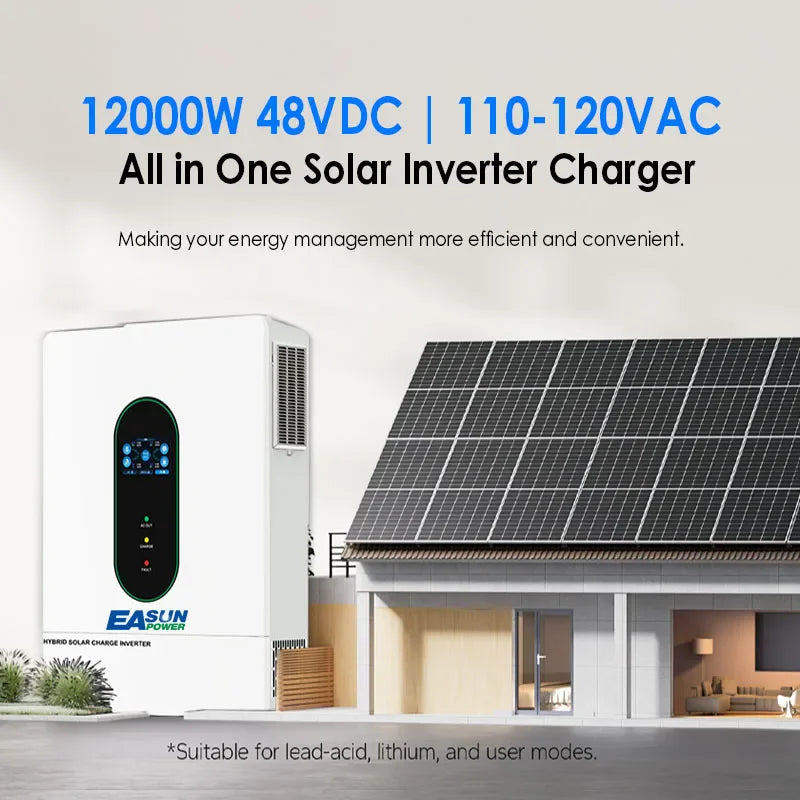

The Easun 12kW split phase hybrid solar inverter delivers 12,000W of pure sine wave power for off-grid or hybrid solar systems. Designed to operate with 48V battery banks and supporting dual 110V/240V outputs, it is suitable for power systems requiring high-capacity energy management and monitoring.
Key features
- Dual MPPT Design – Optimizes solar harvesting by allowing two independent PV string configurations with a 500Vdc maximum open-circuit voltage.
- Parallel Expansion – Supports parallel operation for up to 6 units, allowing you to scale your system's output capacity as needed.

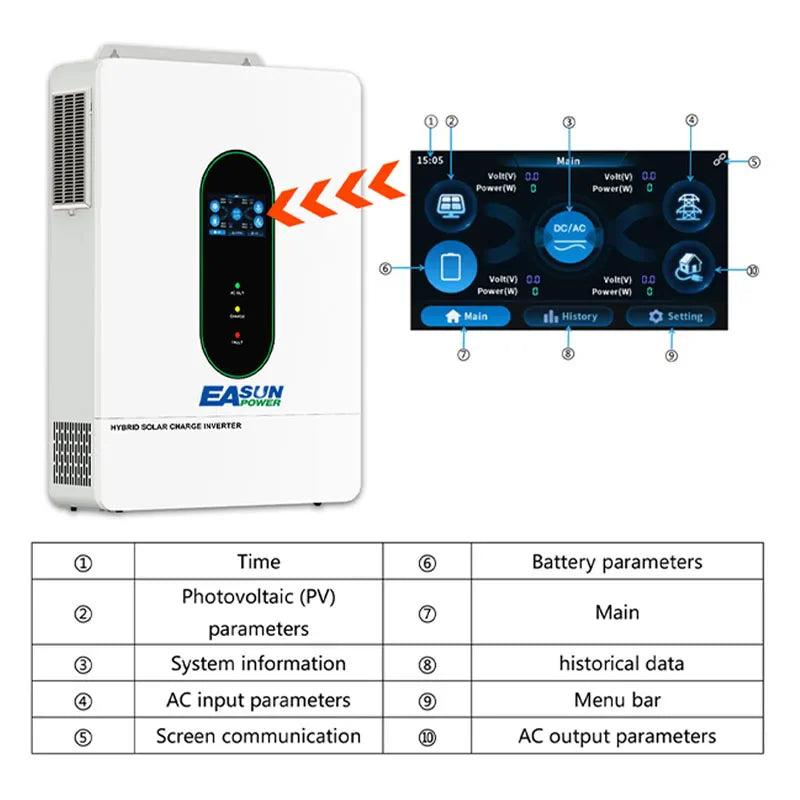

- Smart Connectivity – Includes integrated WiFi, USB, and RS485 communication interfaces for remote monitoring and control.

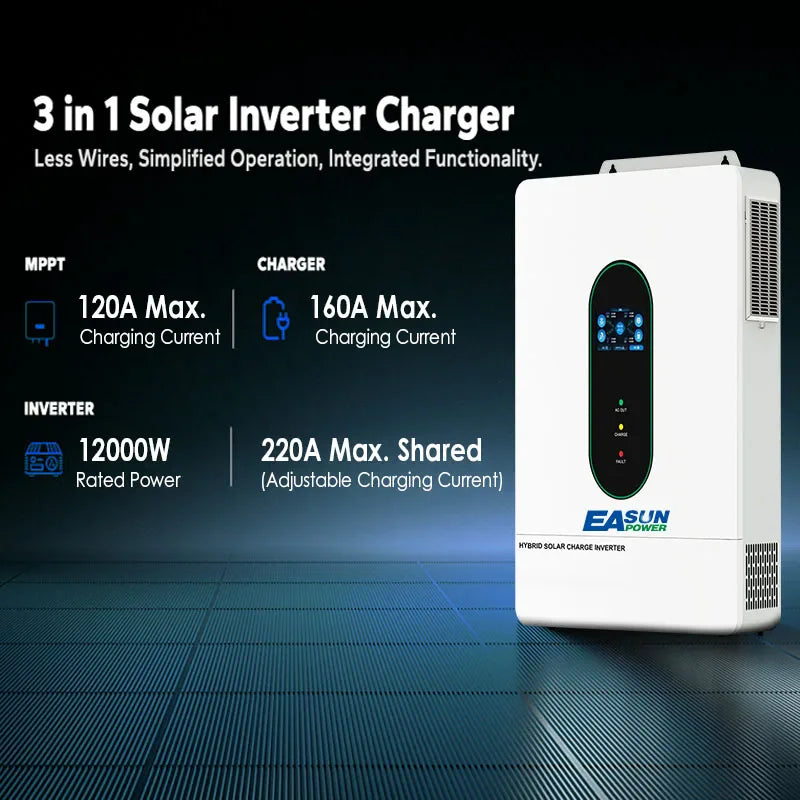

- Flexible Charging – Features a maximum charge current of 160A and is compatible with both lead-acid and lithium battery types.
- Durable Construction – Rated for operation in 5% to 95% humidity and features conformal coating protection for internal electronics.
Specifications

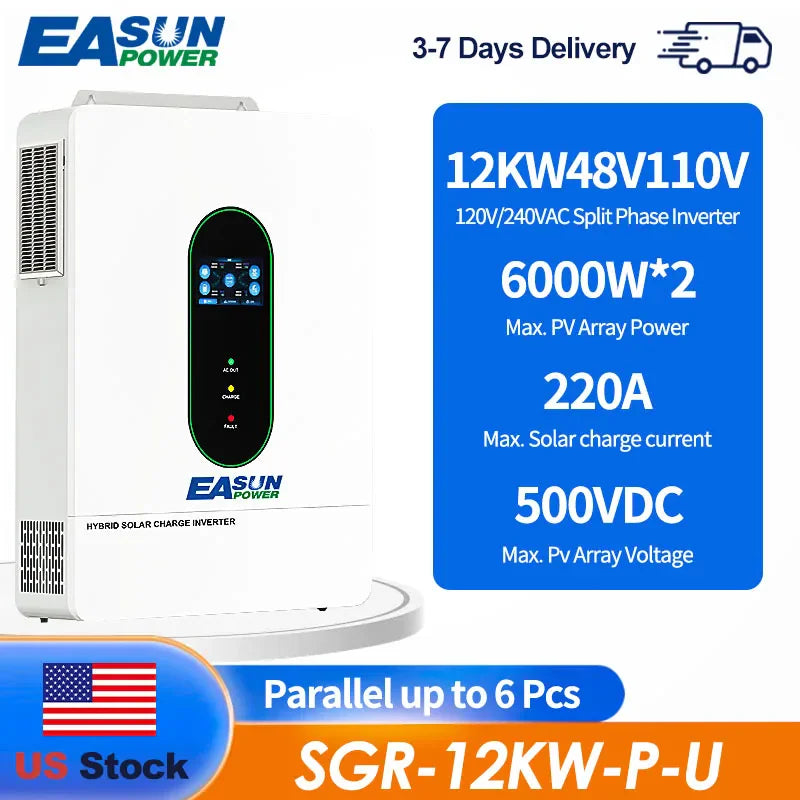

| Brand | Easun Power |
|---|---|
| Model | SGR-12KW-U-W-C-E-1 |
| Rated Power | 12,000W |
| Output Type | Split phase (120Vac/240Vac) |
| Battery Input | 48Vdc |
| PV Input | 500Vdc (Max) |
| Max Charge Current | 160A |
| Dimensions | 620mm × 450mm × 132mm |
| Weight | 27.5kg |
| Communication | USB, RS485, WiFi, GPRS, Dry node |
Ideal for
This inverter is ideal for large-scale residential or light commercial solar setups that require split-phase power (120V/240V), battery-based storage management, and the ability to expand system capacity by connecting multiple units in parallel.
FAQ
Does this inverter support lithium batteries?
Yes, it is compatible with both lead-acid and lithium battery types, with an adjustable charge voltage range of 40–58.6Vdc.
Can I monitor the inverter remotely?
Yes, the unit comes equipped with WiFi and communication interfaces including USB and RS485 for system monitoring.
Is this unit suitable for split-phase power requirements?
Yes, it provides a rated output of 120Vac (L1/N, L2/N) and 240Vac (L1/L2).
