Easun Power 12KW Split Phase Solar Inverter, 240V MPPT with WiFi
Easun Power 12KW Split Phase Solar Inverter, 240V MPPT with WiFi
The Easun Power 12KW Split Phase Solar Inverter is a grid-connected controller designed to manage solar, battery, and utility grid power for your home. Supporting 12,000 VA rated output power at 120V or 240V, it provides a stable pure sine wave output for your electrical loads.
Key features
- Versatile Power Management – Supports hybrid power supply from solar, battery, and utility grid with anti-feed-in and self-consumption functions.

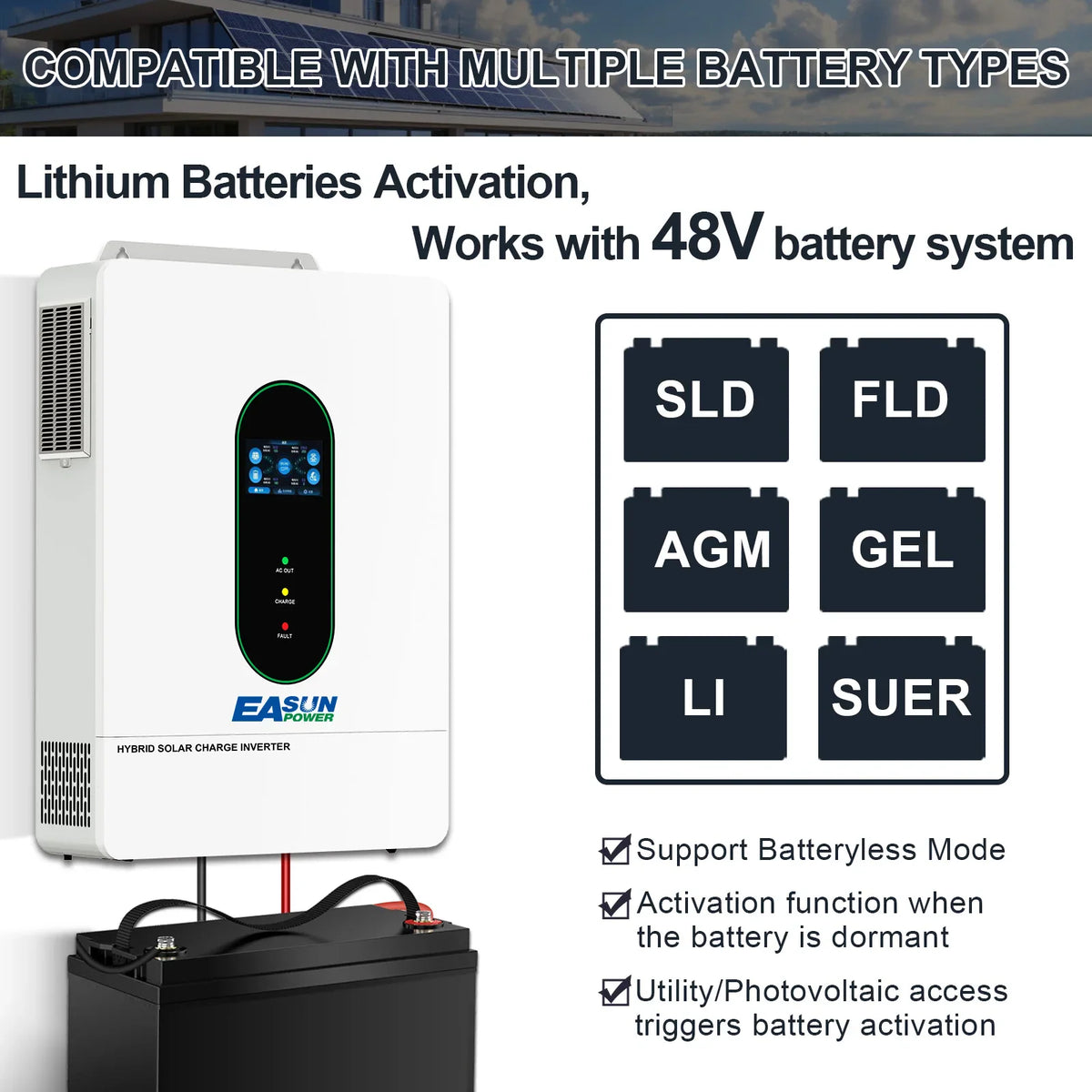

- Battery Flexibility – Compatible with both lead-acid and lithium batteries, featuring dual activation for dormant lithium batteries.

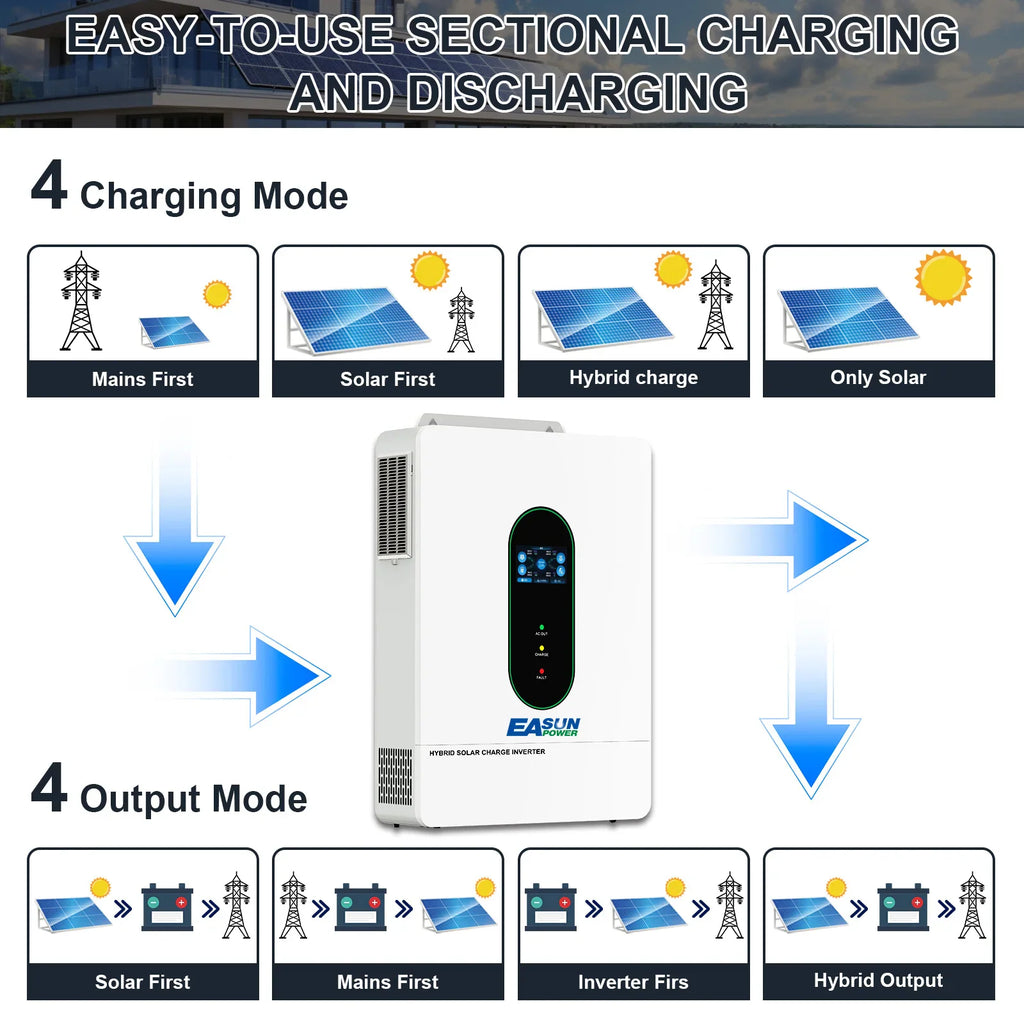

- Flexible Operation – Offers four charging modes and can function without a battery if needed.

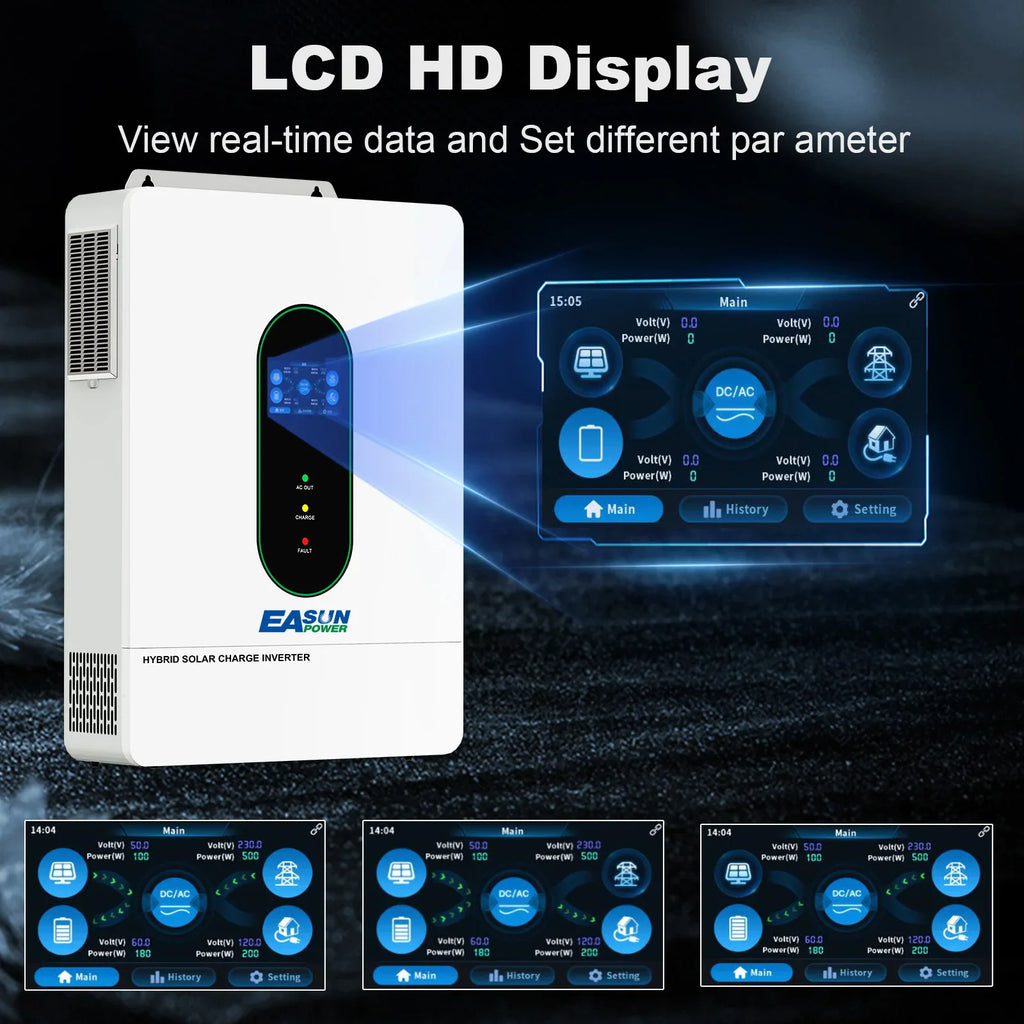

- Smart Monitoring – Includes WiFi, USB, and RS485 communication interfaces for system monitoring and control.

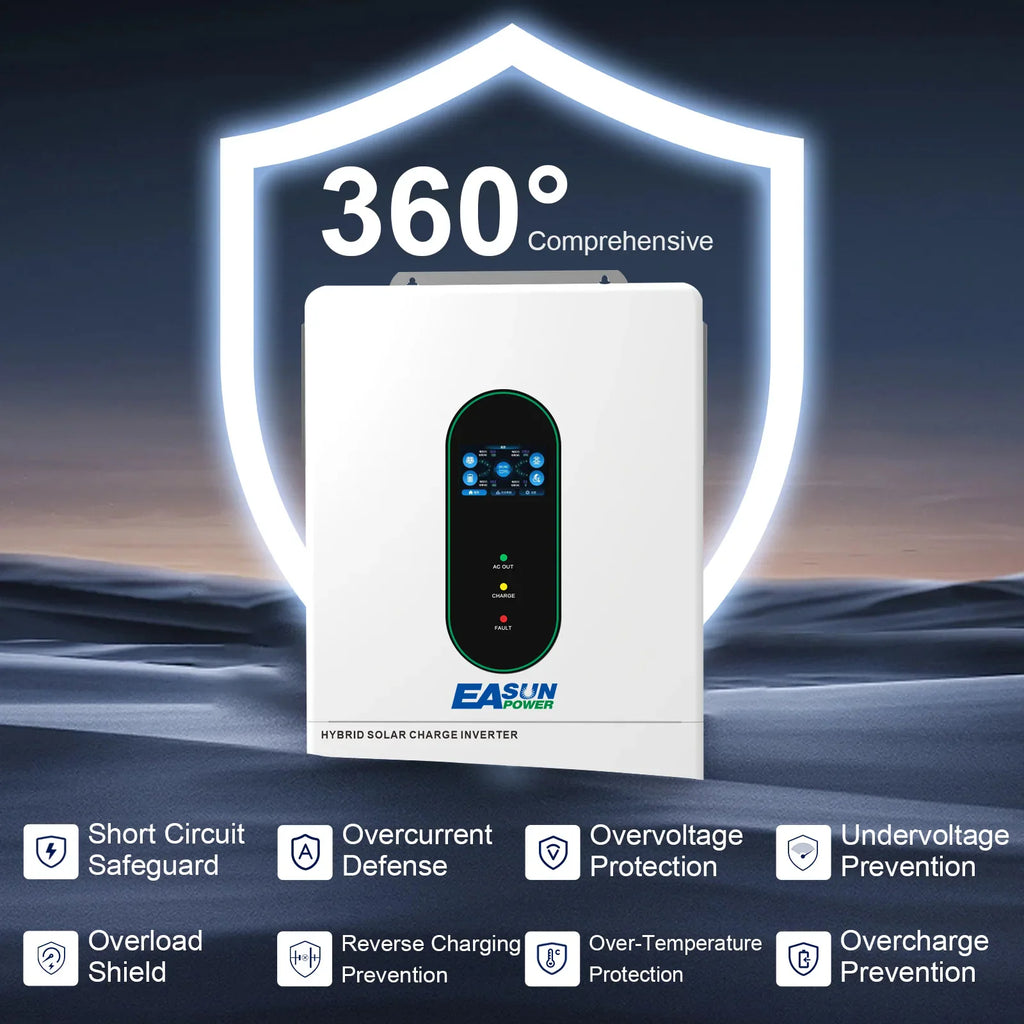

- Comprehensive Protection – Equipped with circuit breaker-based overload, short circuit, and reverse polarity protection.
Specifications
| Rated Output Power | 12,000 VA |
|---|---|
| Output Voltage | 120Vac (L1/N, L2/N) / 240Vac (L1/L2) |
| Output Waveform | Pure Sine Wave |
| Maximum PV Open Circuit Voltage | 500 Vdc |
| MPPT Voltage Range | 90 Vdc–450 Vdc |
| Max Charge Current | 160 A |
| Dimensions | 76 cm × 56 cm × 23 cm |
| Weight | 27.45 kg |
| Color | Gold |
| Operating Temperature/Humidity | 5% to 95% humidity |
Ideal for
This inverter is ideal for off-grid or hybrid home solar setups requiring split-phase power (120V/240V) and reliable battery integration for uninterrupted power supply.
FAQ
Does this inverter work without a battery?
Yes, this unit can be used without a battery, allowing solar and utility grid power to supply your loads simultaneously.
What types of batteries can I use?
It supports both lead-acid and lithium batteries, with specific dual activation functions for dormant lithium-ion batteries.

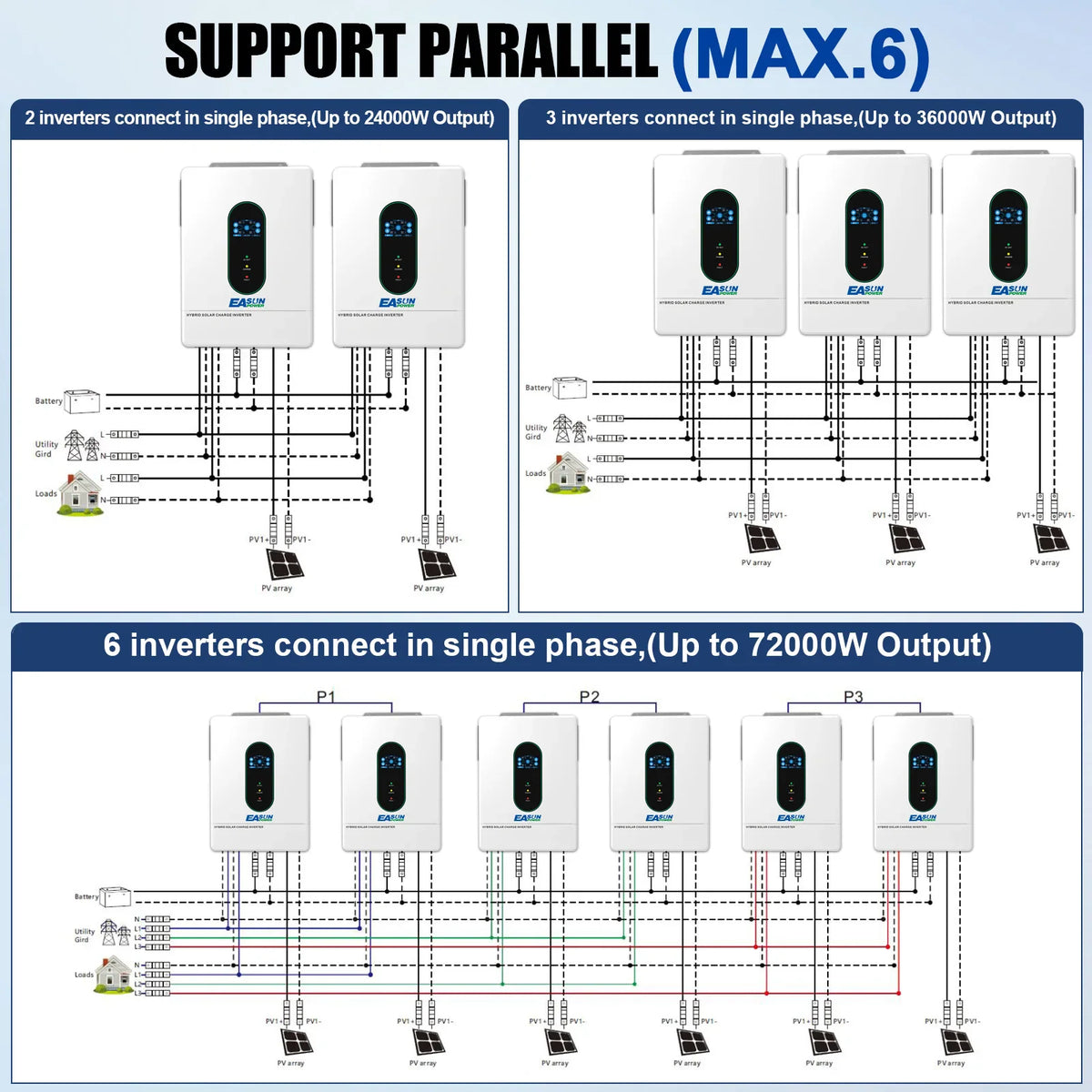

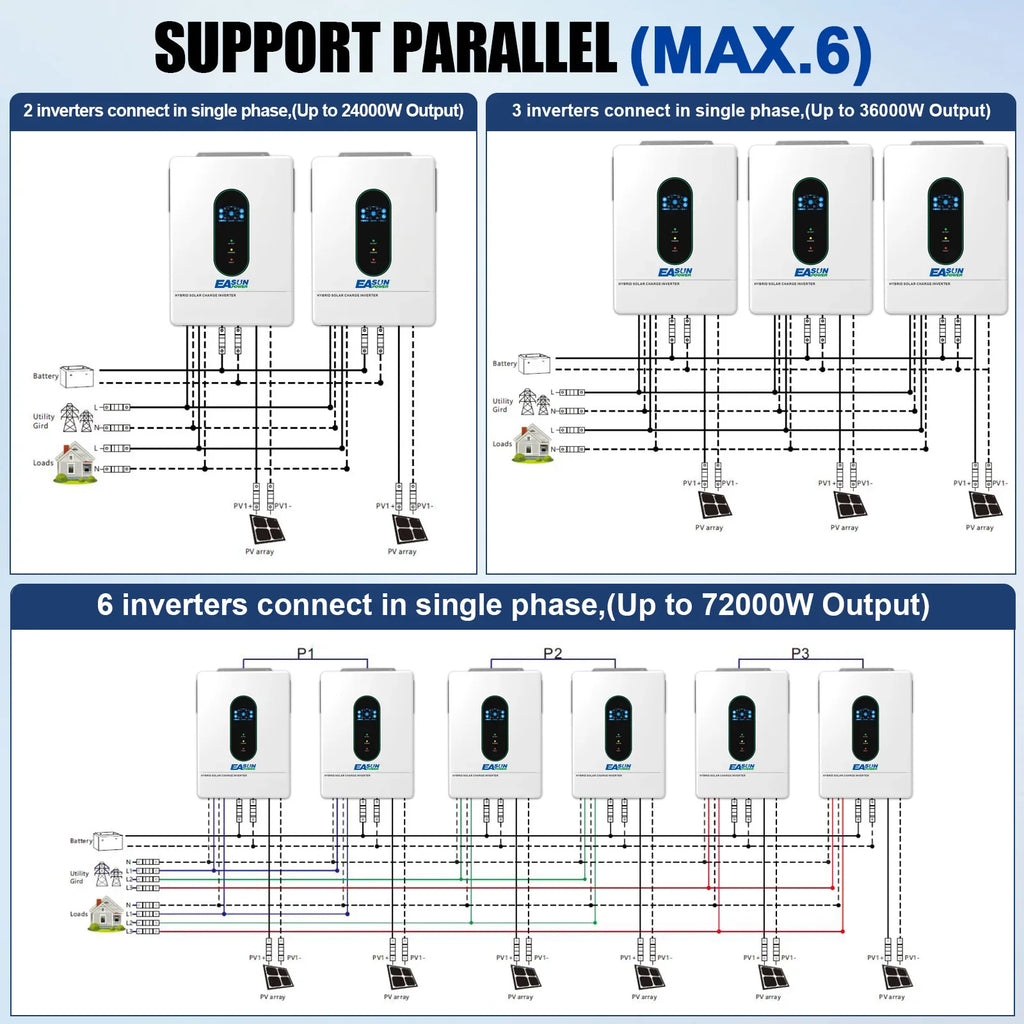

Can I connect multiple units together?
Yes, the system allows for a parallel connection of 1 to 6 units.
What is the conversion time?
The typical conversion time between bypass and inverter mode is 10 ms.
