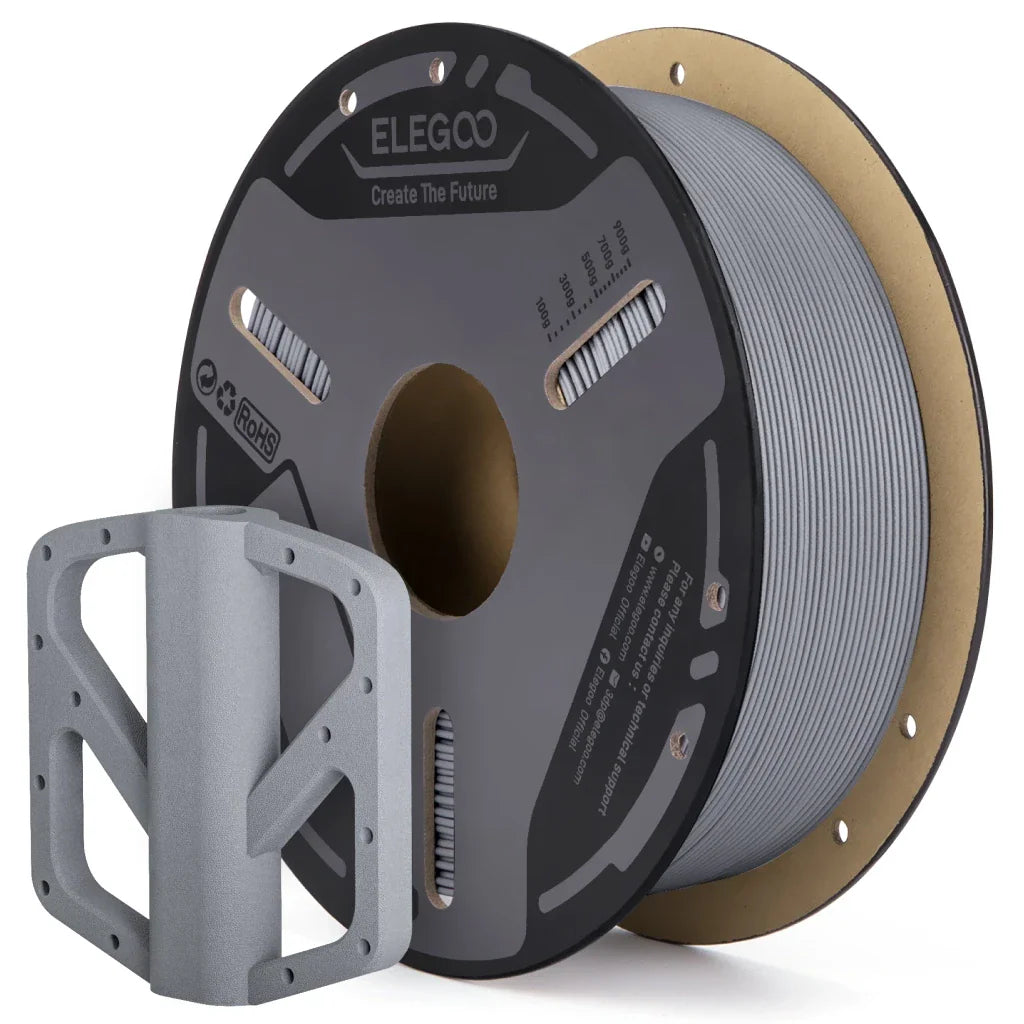

Elegoo PETG-GF Glass Fiber Filament 1.75mm, 1kg Gray
Elegoo PETG-GF Glass Fiber Filament 1.75mm, 1kg Gray
This Elegoo PETG-GF glass fiber filament is a 1.75mm material designed for FDM 3D printers that require high stiffness and electrical insulation. It is suitable for users looking for increased bending strength and structural integrity in their printed parts.
Key features
- High Stiffness – Features a bending modulus of 3345 ± 88 MPa for rigid, durable prints.
- Glass Fiber Reinforced – Provides enhanced mechanical properties including 83 ± 3 MPa bending strength.
- Thermal Performance – Offers a heat deflection temperature of 74 °C and a Vicat softening temperature of 83 °C.
- Broad Compatibility – Designed to fit most FDM 3D printers with a recommended nozzle temperature range of 240 - 270 °C.

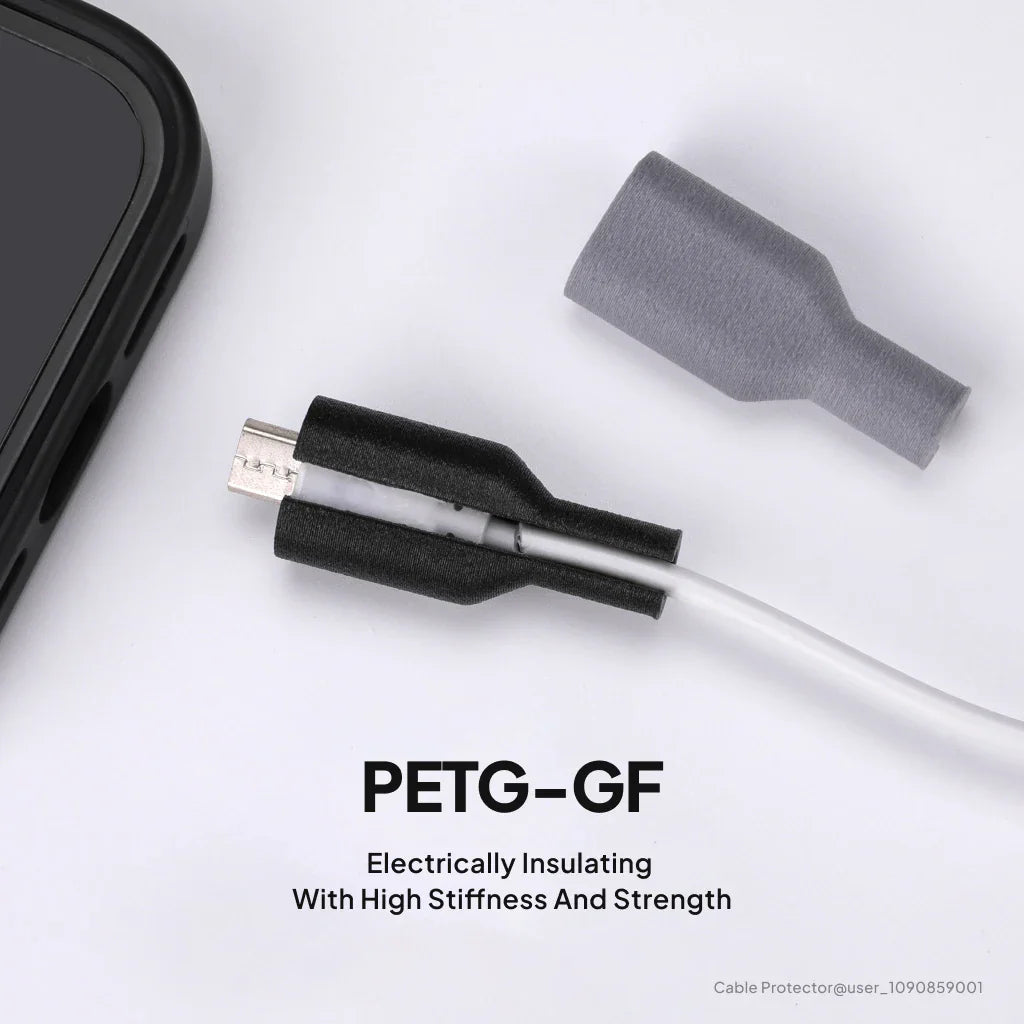

- Electrical Insulation – Material properties support applications requiring non-conductive components.
Specifications
| Material | PETG reinforced with glass fiber |
|---|---|
| Diameter | 1.75mm |

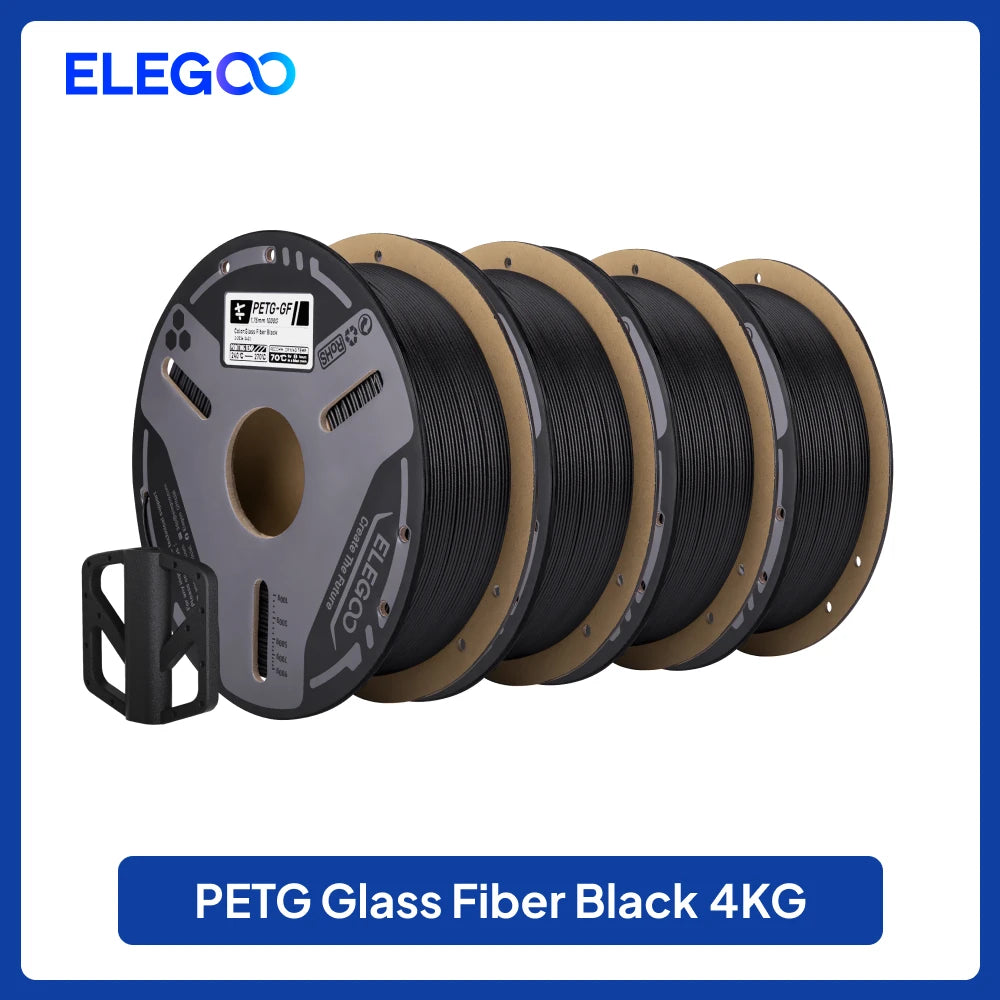

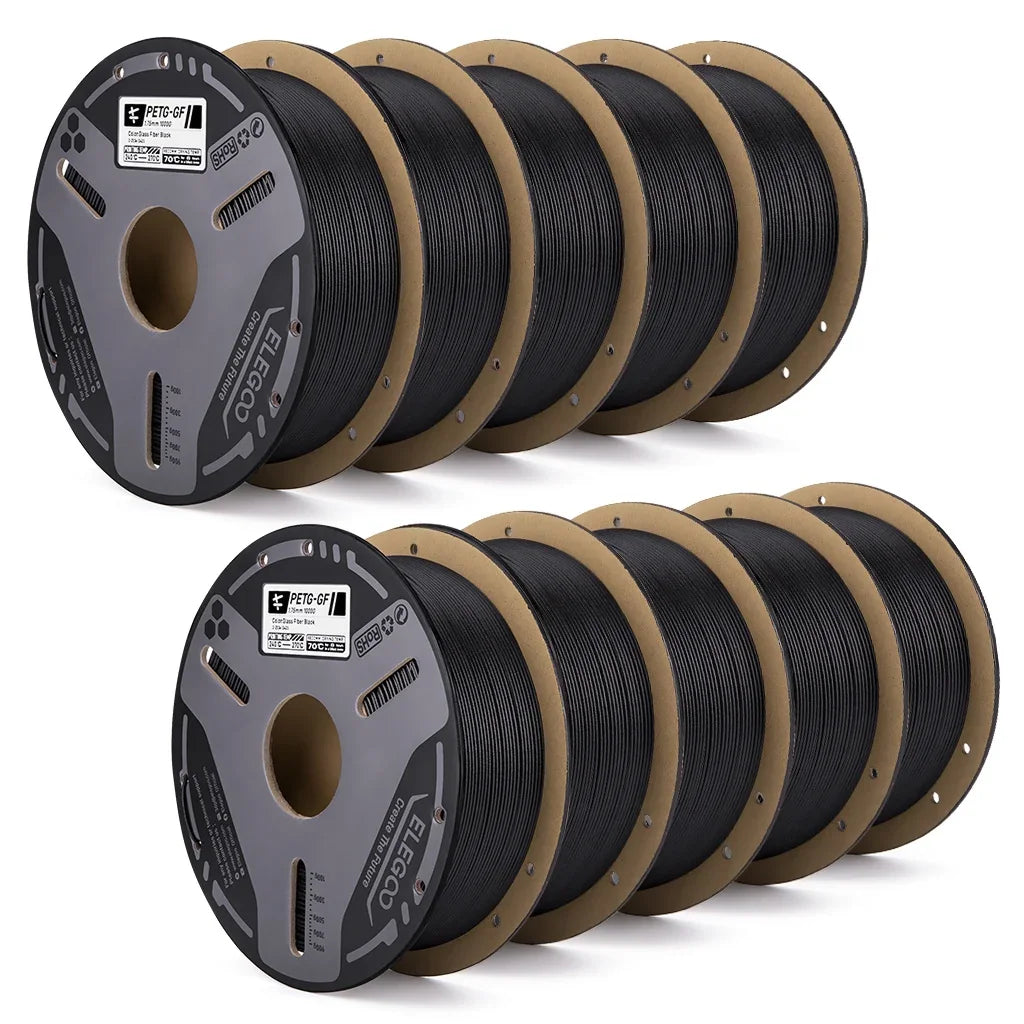

| Weight | 1kg (standard), with options up to 10kg |

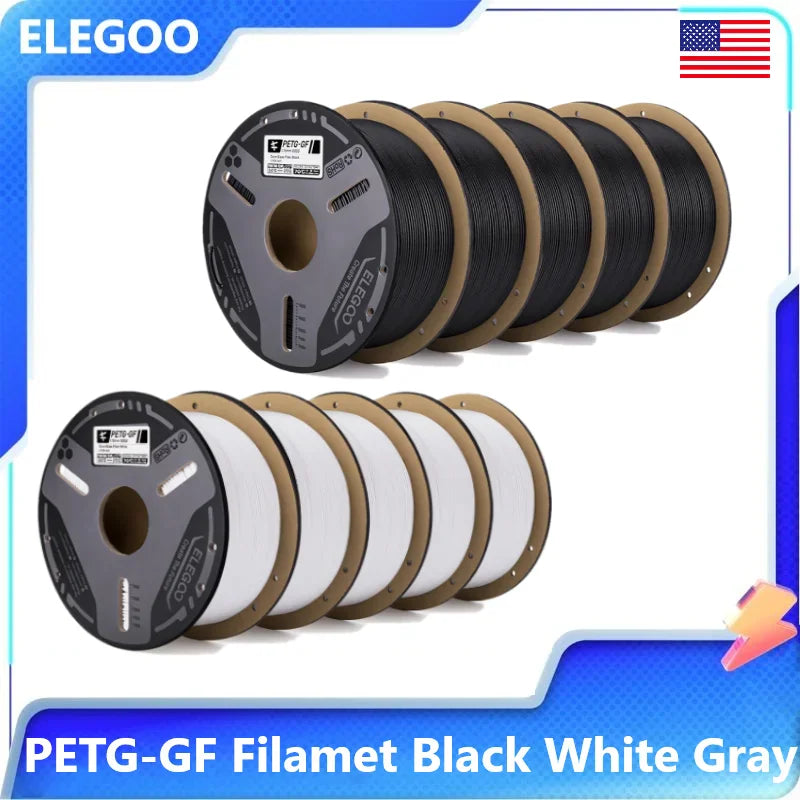

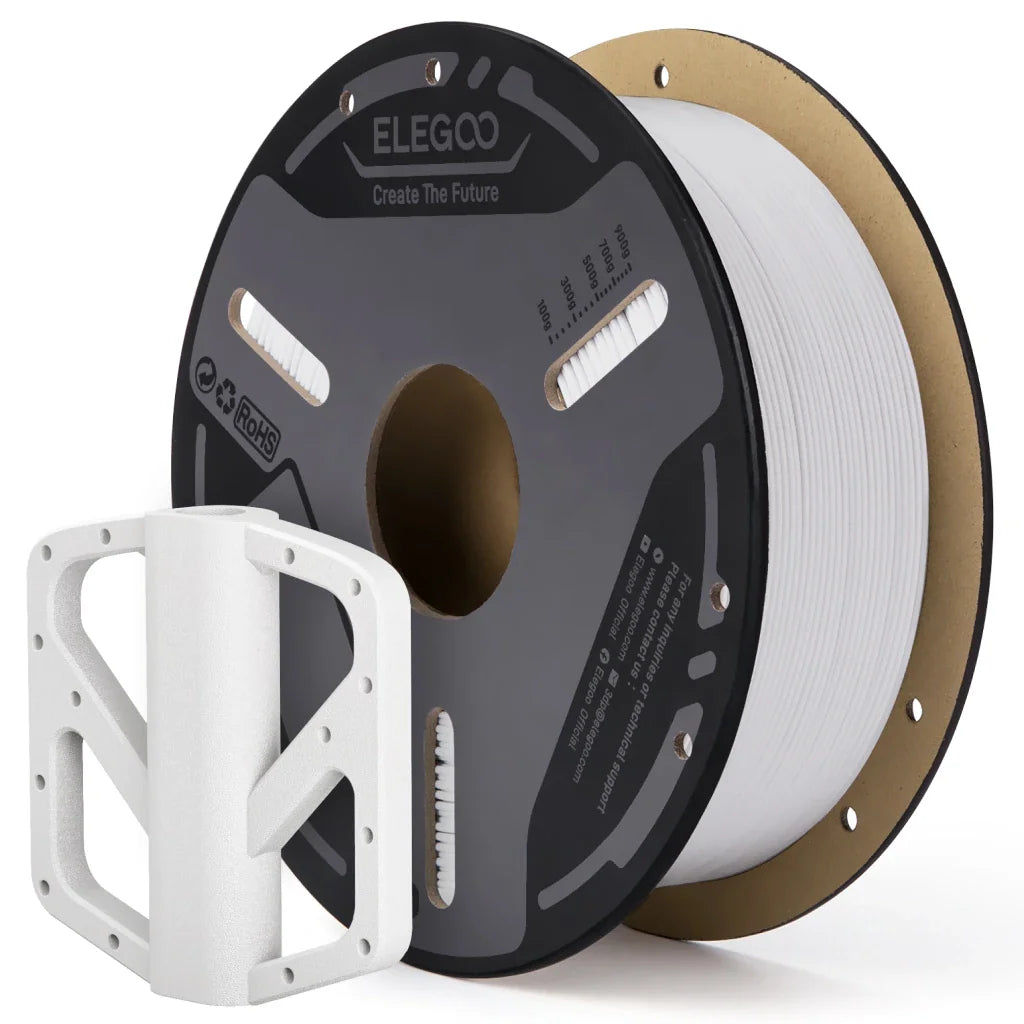

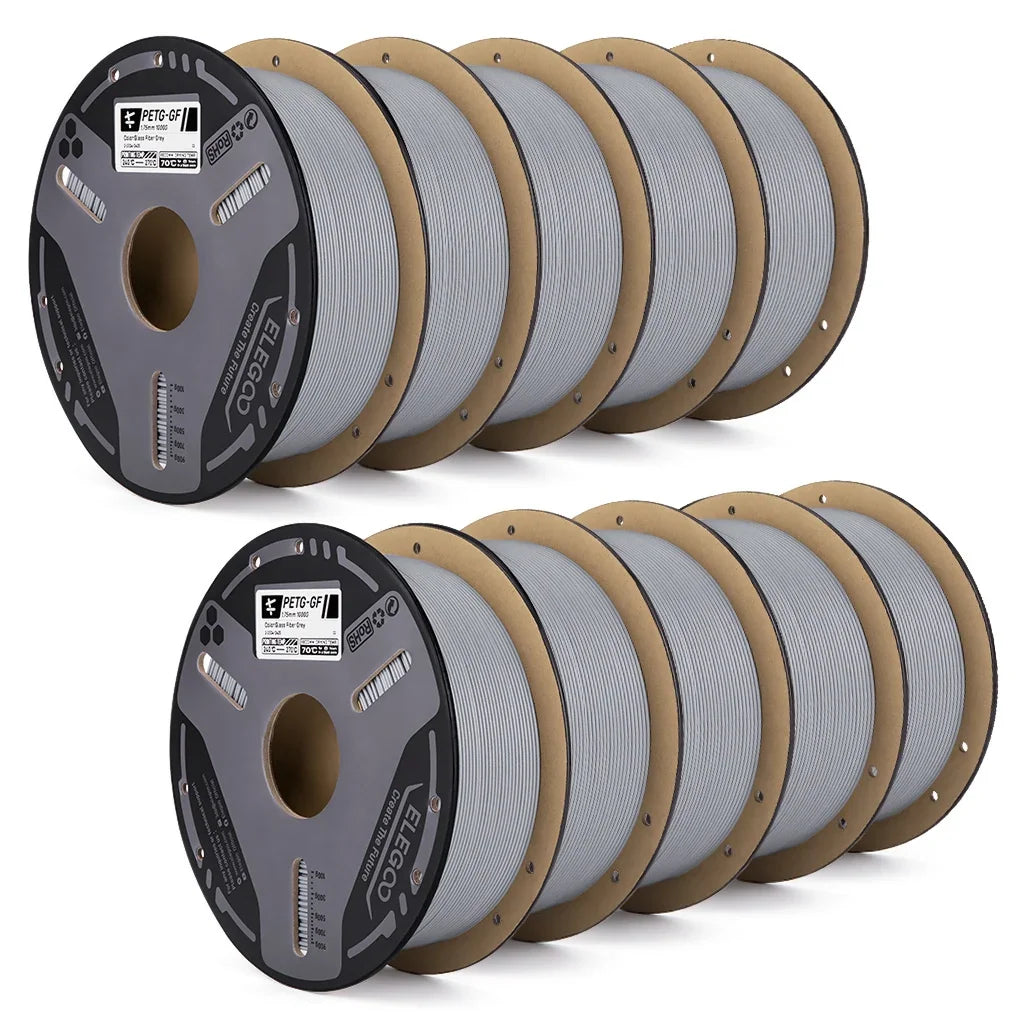

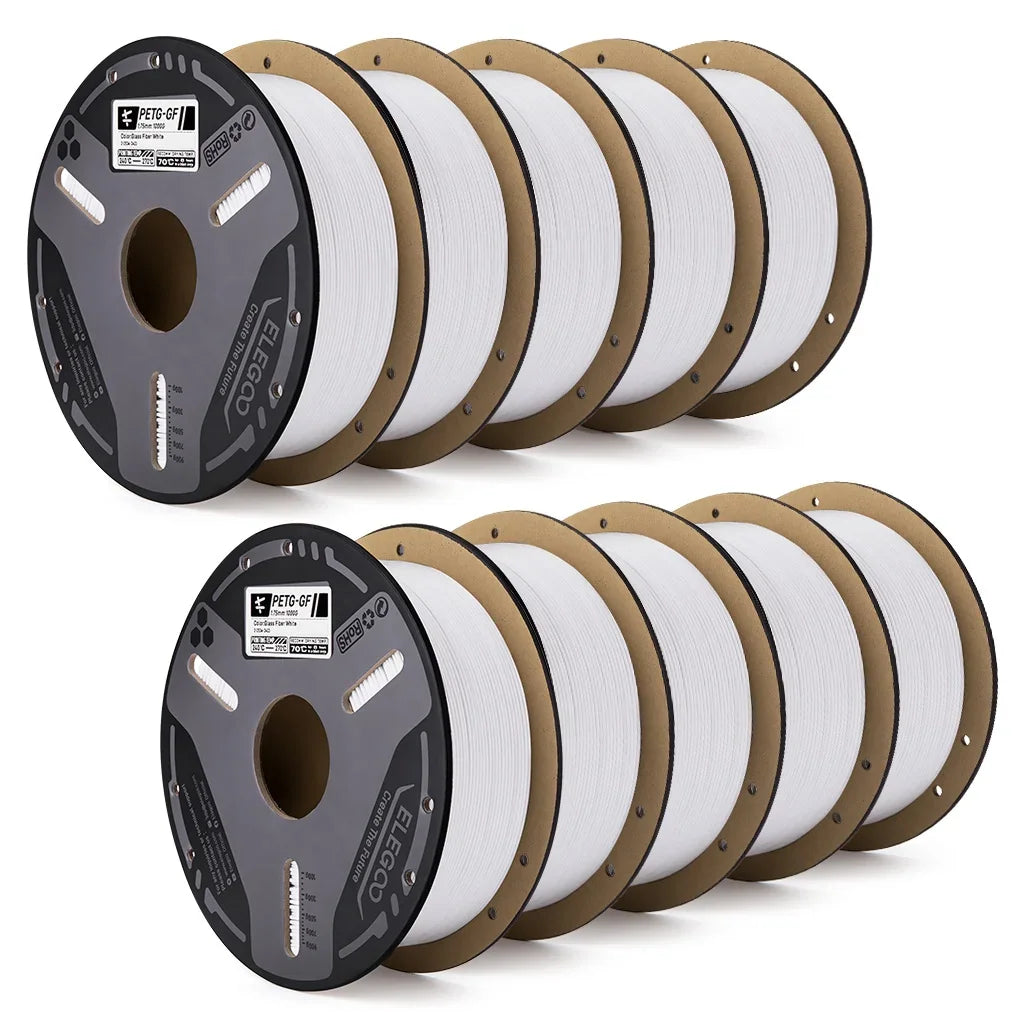

| Colors | Black, White, Gray, Blue, Purple, Green, Red, Pink, Orange |
| Nozzle Temperature | 240 - 270 °C |
| Bed Temperature | 65 - 75 °C |
| Density | 1.30 g/cm³ |
| Tensile Strength (XY) | 50 ± 3 MPa |
Ideal for
This filament is ideal for functional 3D printing projects that need structural stiffness and electrical insulation, such as housings, brackets, or custom mechanical parts.
FAQ
Does this filament fit my FDM printer?
This filament is 1.75mm in diameter and is designed to fit most standard FDM 3D printers.
What are the recommended drying settings?
It is recommended to dry the filament at 60 ± 5 °C before printing.
What is the required bed temperature?
The bed temperature should be set between 65 - 75 °C, though this may vary depending on your specific printer and build plate type.
