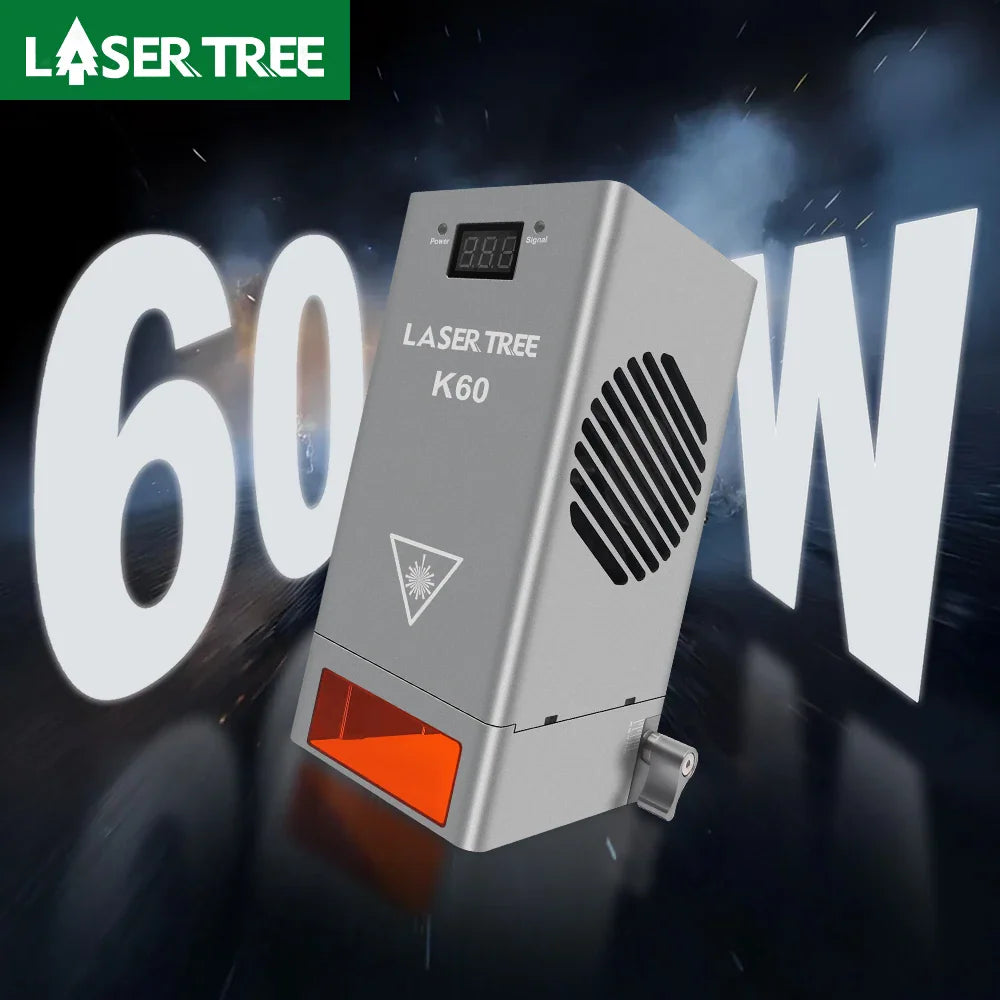

  • 60W laser module head with digital display and orange safety shield for laser engraving machine
  • 60W laser module internal structure diagram showing laser diodes, pine board cutting sample and optical power test

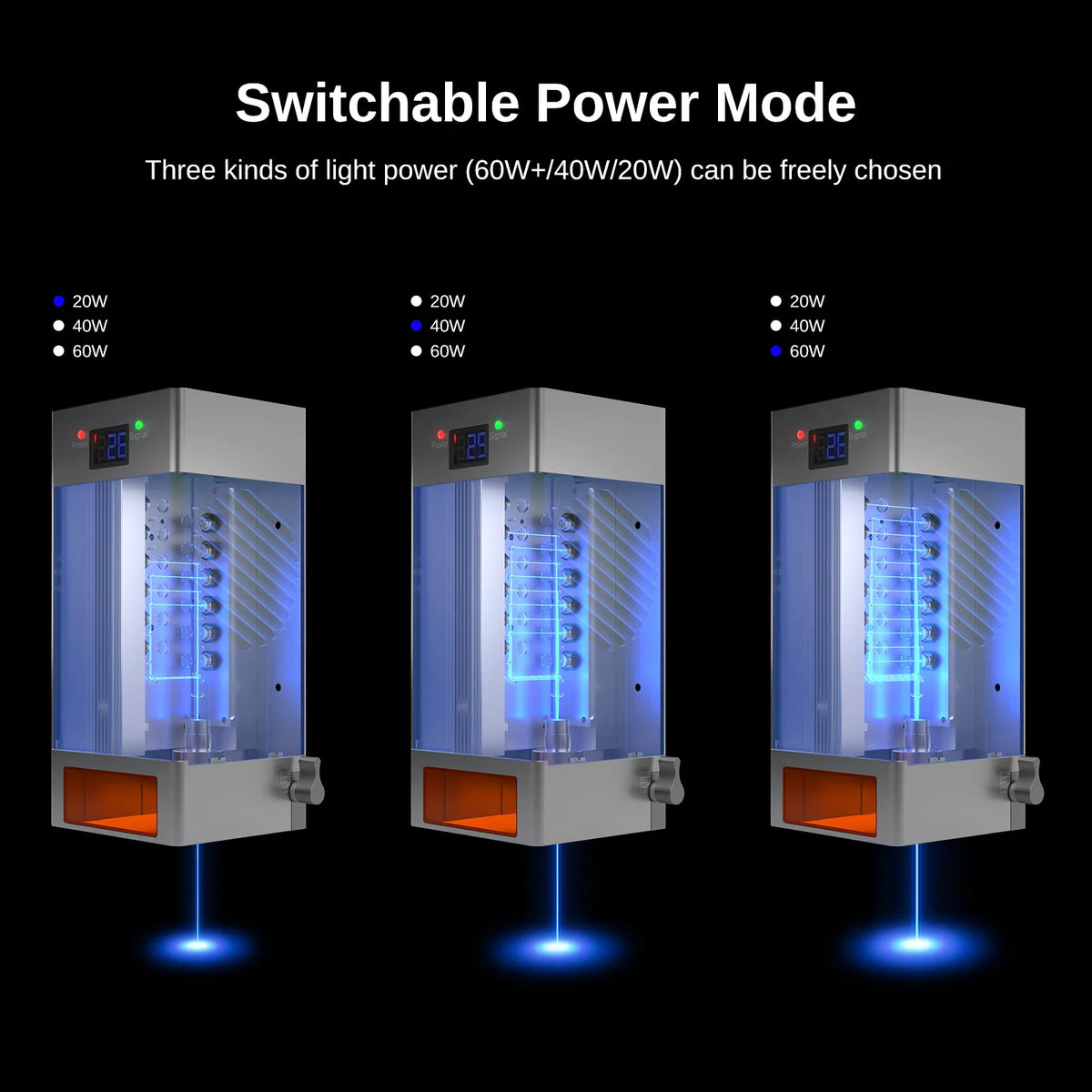

  • 60W laser module showing three switchable power modes 20W, 40W and 60W for engraving machines

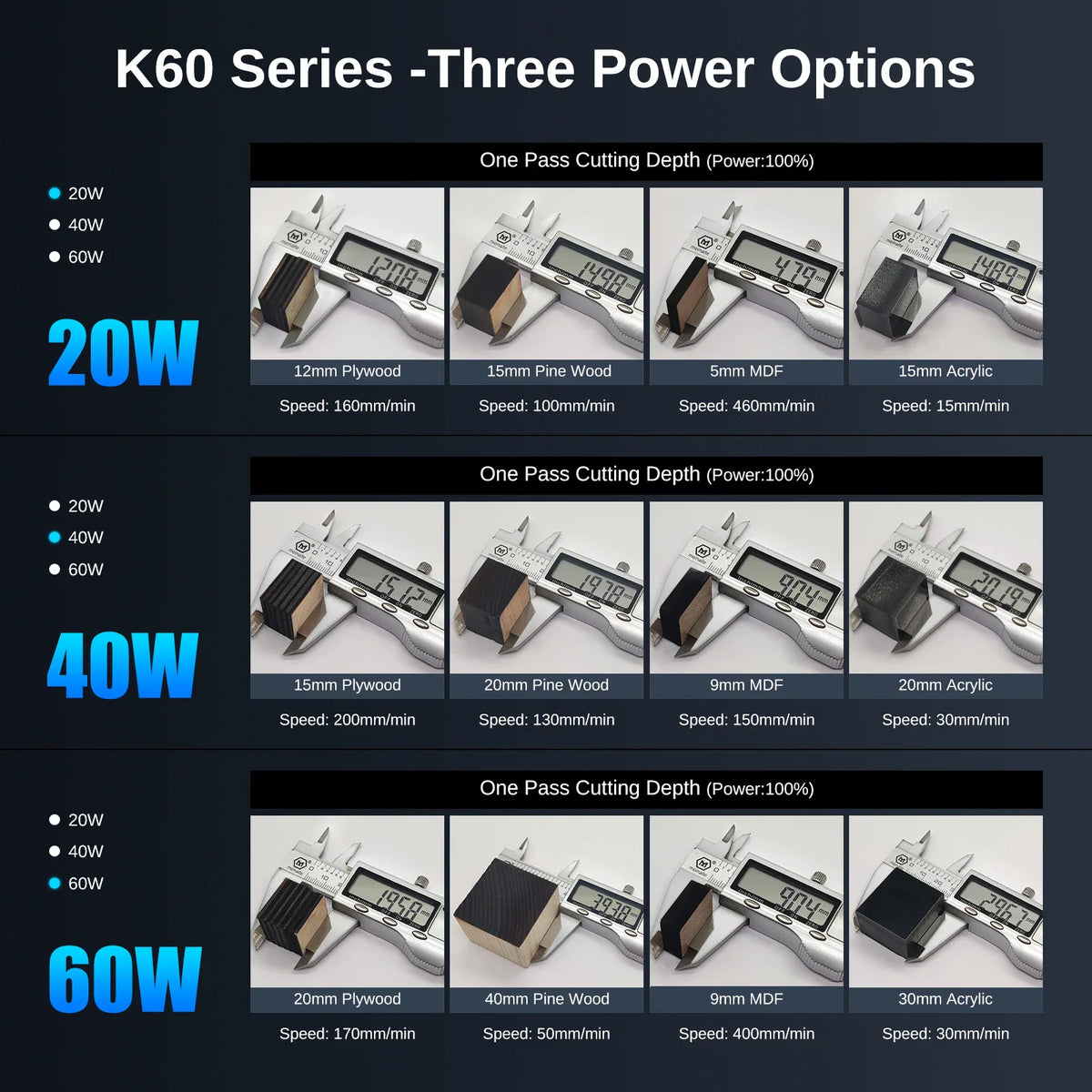

  • Comparison chart of laser cutting depth for wood, MDF and acrylic at 20W, 40W, and 60W power levels
  • Laser module alarm function guide for temperature warning and optical power switching

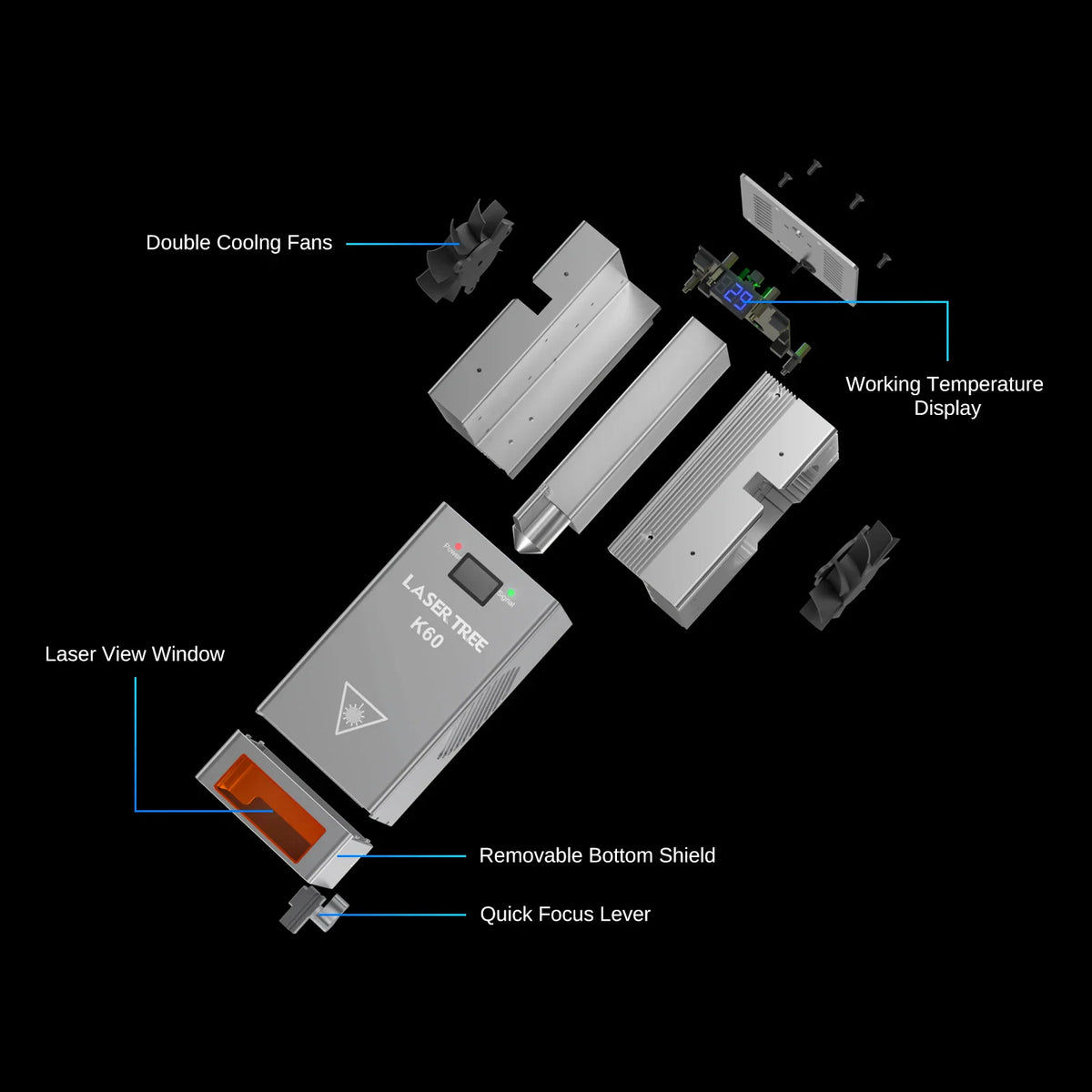

  • Exploded view diagram of 60W laser module parts including cooling fans, display and focus lever
  • Laser Tree Laser Module 20W-60W Air Assist Cutting Head for Engravers – 10W-AA-PRO-KIT-24V
  • 60W laser module head with digital display and orange safety shield for laser engraving machine
  • 60W laser module internal structure diagram showing laser diodes, pine board cutting sample and optical power test
  • 60W laser module showing three switchable power modes 20W, 40W and 60W for engraving machines
  • Comparison chart of laser cutting depth for wood, MDF and acrylic at 20W, 40W, and 60W power levels
  • Laser module alarm function guide for temperature warning and optical power switching
  • Exploded view diagram of 60W laser module parts including cooling fans, display and focus lever
Laser Tree Laser Module 20W-60W Air Assist Cutting Head for Engravers

Laser Tree Laser Module 20W-60W Air Assist Cutting Head for Engravers

$209.99
Color
Size

These Laser Tree professional laser modules are designed for high-precision cutting and engraving, available in output options from 20W to 60W. They are suitable for users looking to upgrade their existing laser engravers for faster, deeper, and more stable performance on wood, acrylic, and MDF.

Key features

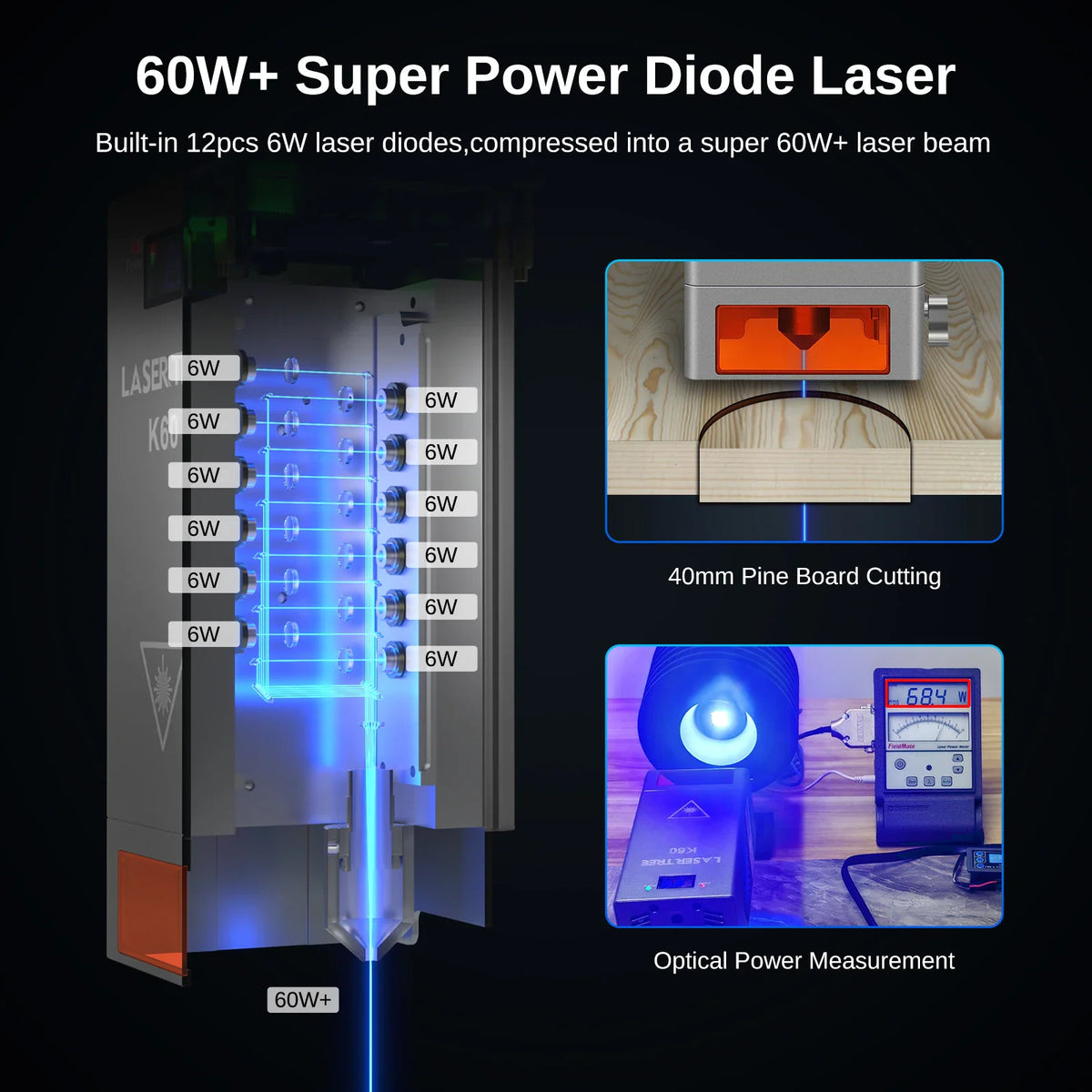

  • High-Power Cutting – Delivers optical power up to 60W using beam compression technology to cut thick materials like plywood and acrylic in a single pass.
  • Built-in Air Assist – Enhances cutting efficiency and edge quality by reducing air resistance and burn marks with an integrated airway system.
  • Advanced Cooling – Features a dual-fan cooling design running at 6,000 rpm to ensure thermal stability and extend the service life of the laser head.
  • Safety Monitoring – Integrated temperature sensors and buzzer alarms protect the module by alerting the user when internal temperatures exceed 55°C.
  • Broad Compatibility – Equipped with adapter boards and versatile mounting plates to fit a wide range of laser engraving machines on the market.

Specifications

Brand Laser Tree
Available Power Options 20W, 30W, 40W, 60W
Input Voltage DC 24V 10A
Wavelength 450nm (±10nm)
Focus Length 40mm
Cooling System Dual fans (6,000 rpm)
Module Weight 1263g
Material Aluminum & Copper

What's in the box

  • Laser Module
  • Tube and cable holder

Ideal for

These laser modules are ideal for makers, woodworkers, and small-batch manufacturers who need a reliable, high-power upgrade for their laser engraving equipment to process thick materials like pine, plywood, and acrylic efficiently.

FAQ

Which power option should I choose?

Choose based on your material thickness requirements. The 60W module offers the highest power for thick plywood and acrylic cutting, while the 20W versions are suitable for fine engraving and standard cutting tasks.

Is this compatible with my machine?

The modules include adapter boards and sliding plates with multi-hole mounting to improve compatibility with various laser engravers. You can verify electrical compatibility using the onboard power and signal LED indicators.

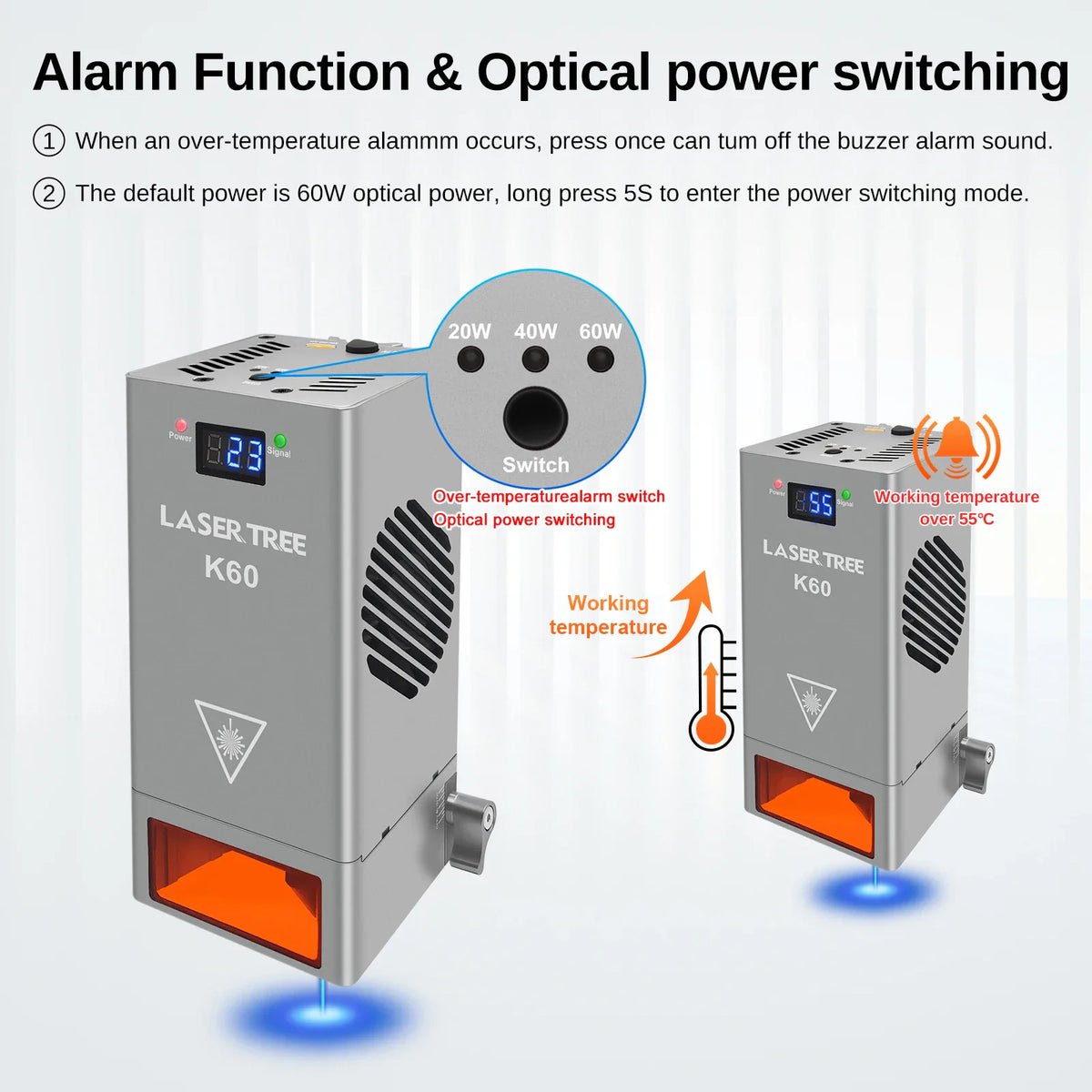

How does the temperature alarm work?

An internal thermistor monitors the core temperature. If the temperature exceeds 55°C, a built-in buzzer will sound an alarm to help you prevent damage and ensure a long service life.
