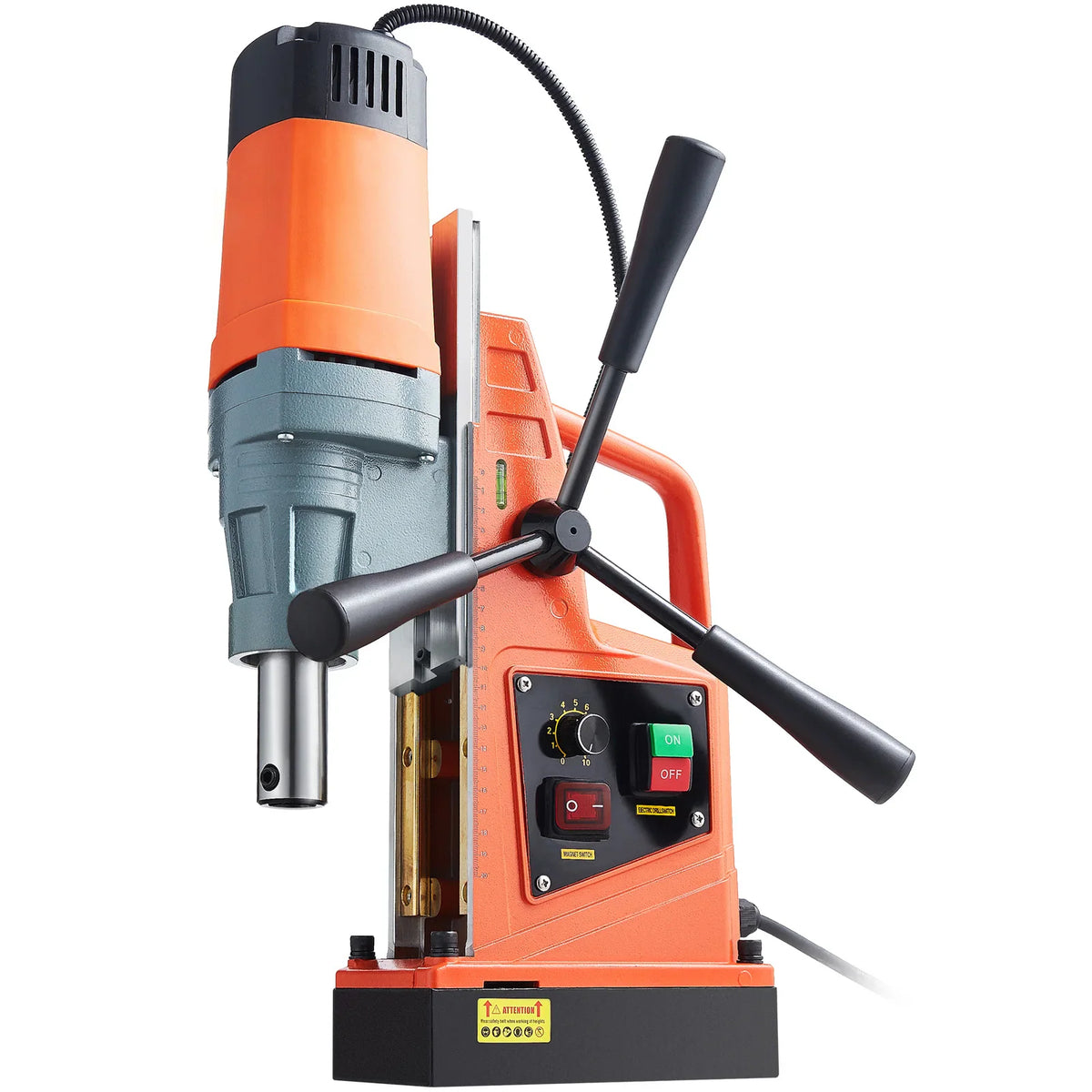

Magnetic Drill Press 1300W/1550W Portable Electric Drill with 13000N Base
Magnetic Drill Press 1300W/1550W Portable Electric Drill with 13000N Base
This portable magnetic drill press, available in 1300W or 1550W models, provides an electromagnetic holding force of 13000N for stable drilling into steel and iron surfaces. Designed for construction, industrial fabrication, and heavy-duty repairs, it features a 10-speed variable control up to 500 RPM for precise hole placement.
Key features
- Electromagnetic Base – Delivers 2922 lbf (13000N) of holding force to anchor the unit securely to steel or iron surfaces at any angle.

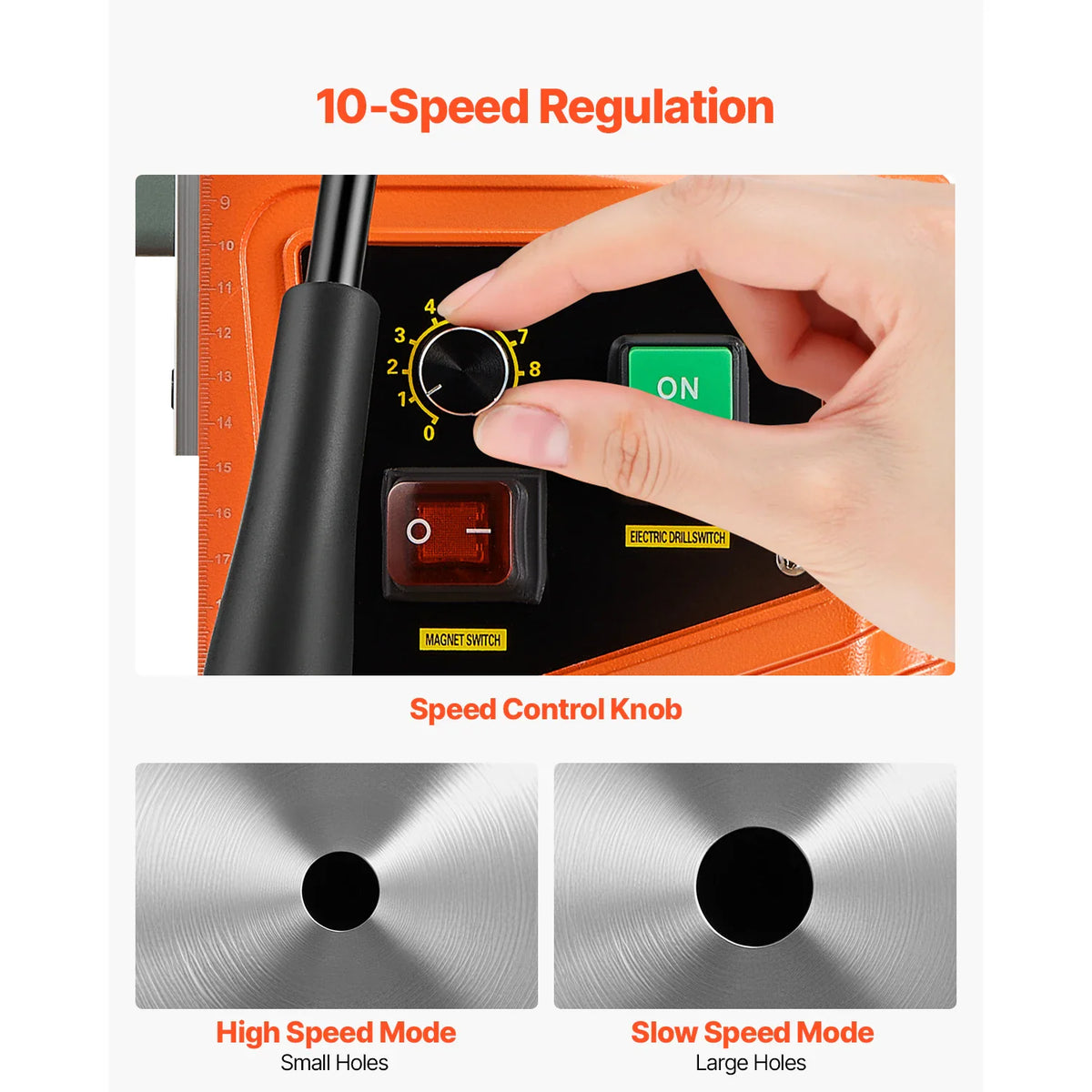

- Variable Speed Control – Offers 10-speed settings up to 500 RPM to match the drilling requirements of different hole diameters.

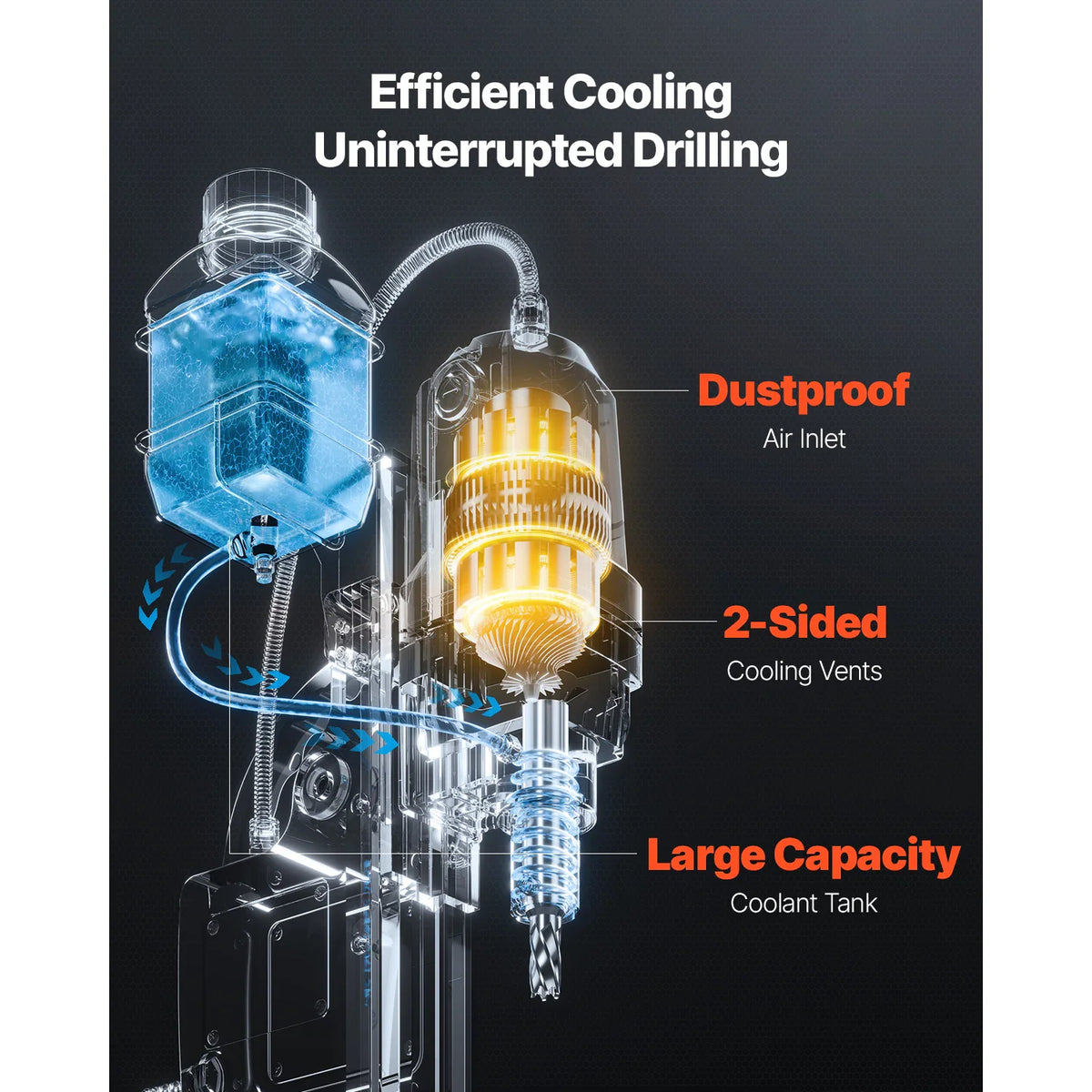

- Integrated Cooling System – Protects the motor from overheating during extended use and high-load drilling tasks.
- Durable Construction – Built with a titanium magnesium alloy rail for wear resistance and a guide rail frame that features a measurement scale for accuracy.
- Safety Protection – Includes overload protection to prevent motor damage and supports safe operation for overhead or horizontal drilling.

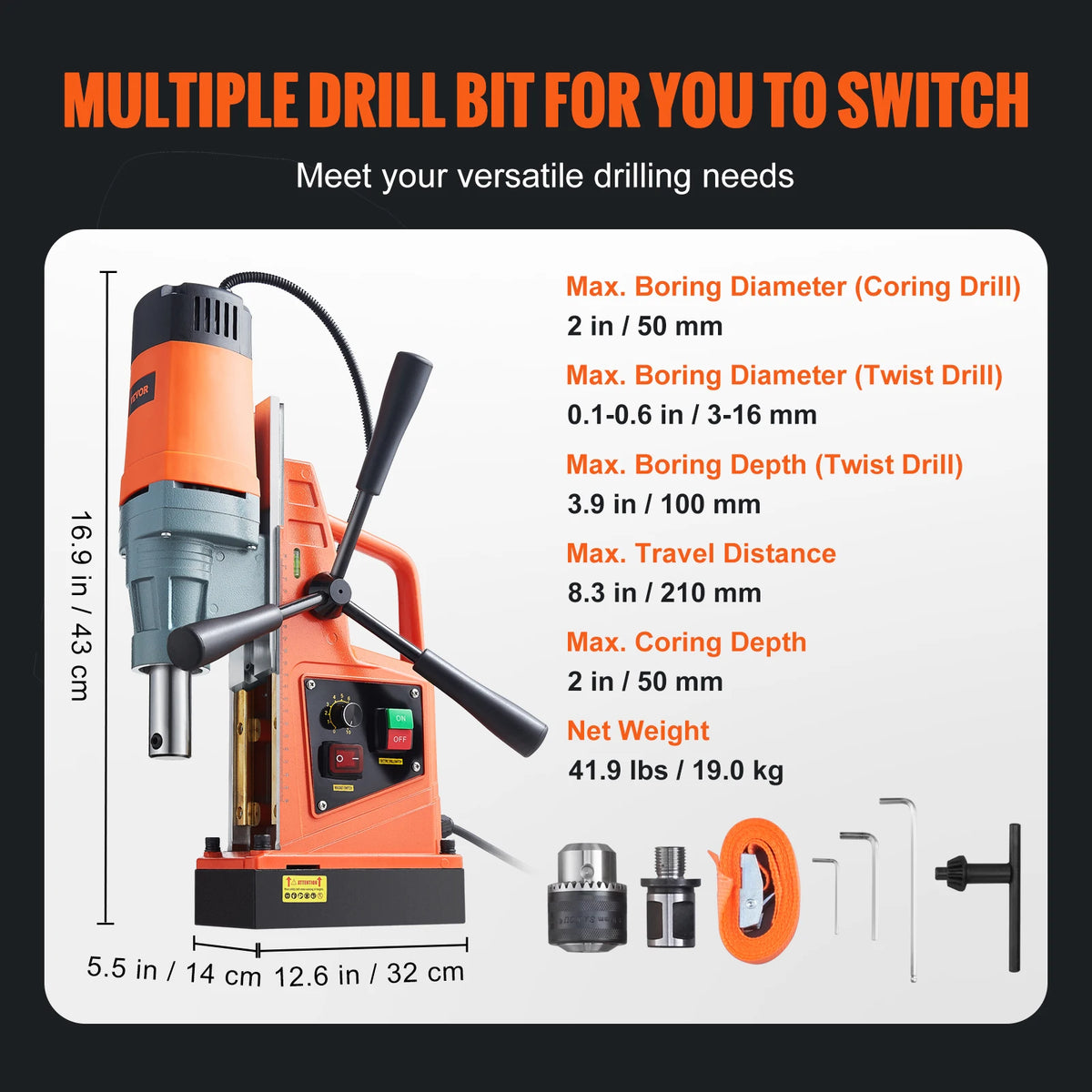

Specifications
| Power | 1300W or 1550W |
|---|---|
| Adhesion | 13000N (2922 lbf) |
| Speed | 0-500 RPM |

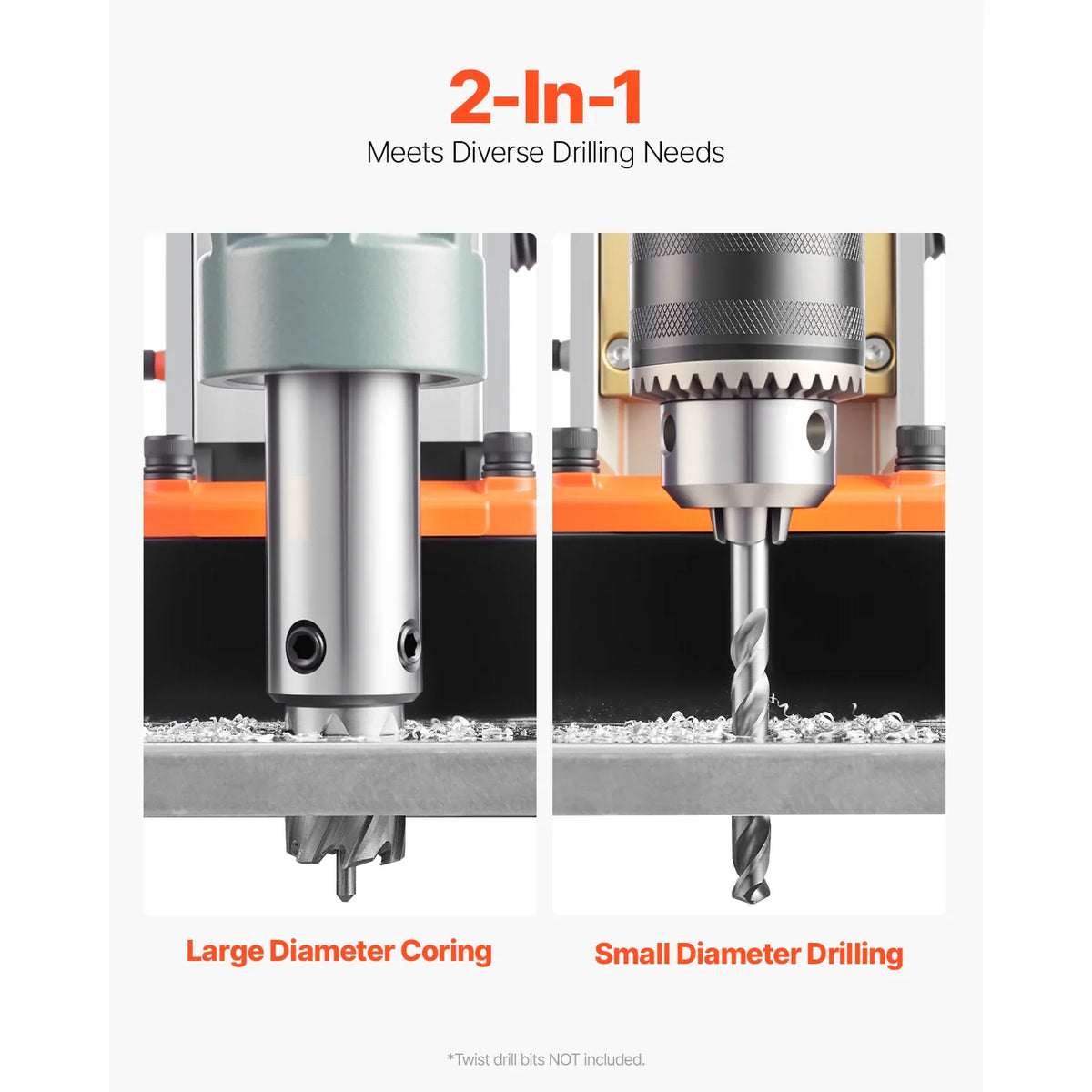

| Max Coring Diameter | 50 mm |
| Twist Drill Capacity | 3-16 mm |
| Max Coring Depth | 50 mm |
| Max Twist Drill Depth | 100 mm |
| Weight | 41.9 lbs / 19.0 kg |

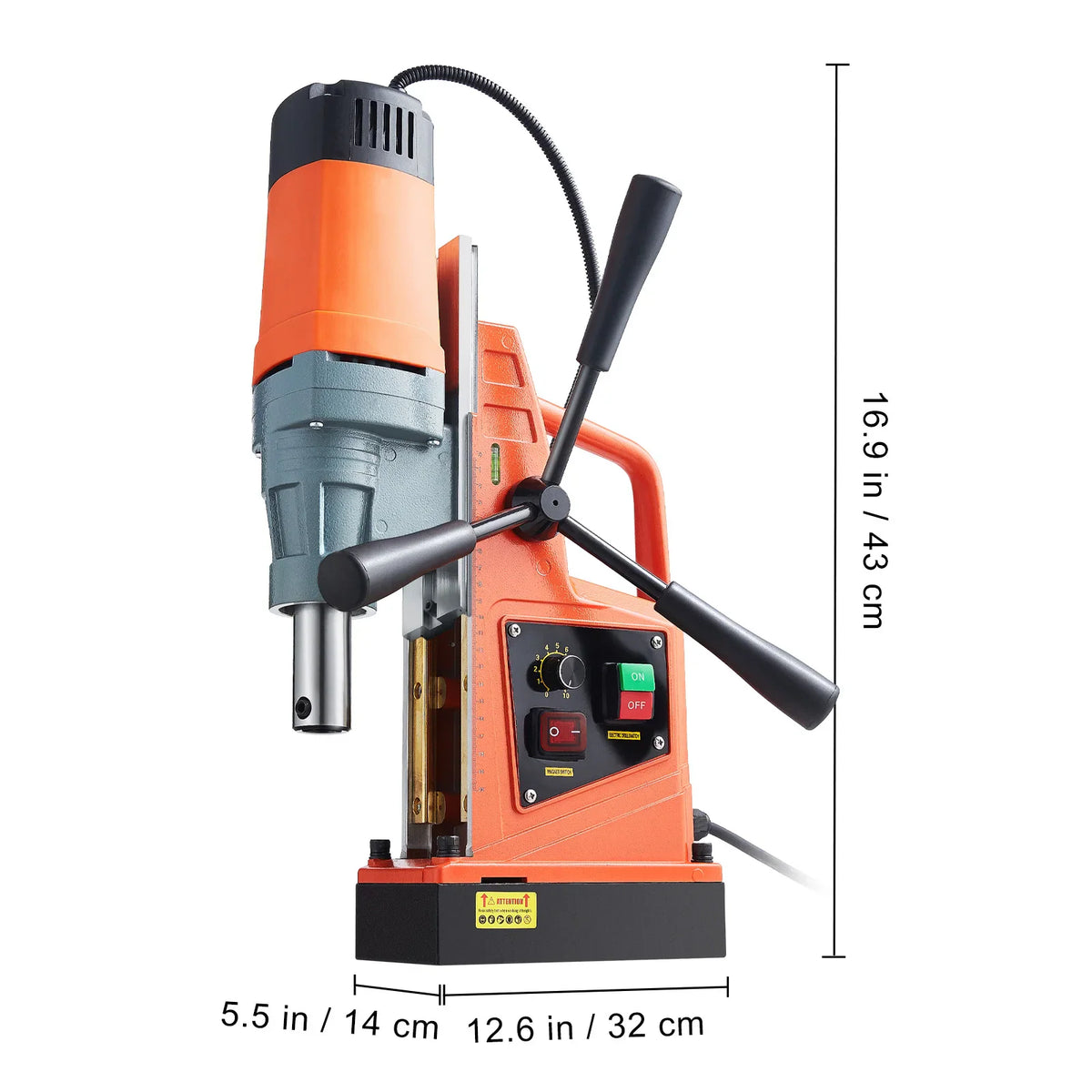

| Dimensions | 12.6 x 5.5 x 16.9 in (320 x 140 x 430 mm) |
Ideal for
This drill press is suitable for professional contractors, steel fabricators, and equipment installers working on projects like bridge construction, ship building, and industrial machinery maintenance. It is designed to work on steel or iron plates with a minimum thickness of 10 mm.
FAQ
Does it work on all metal surfaces?
It is designed for steel and iron structures with a thickness of at least 10 mm. It is not suitable for stainless steel or cast iron.

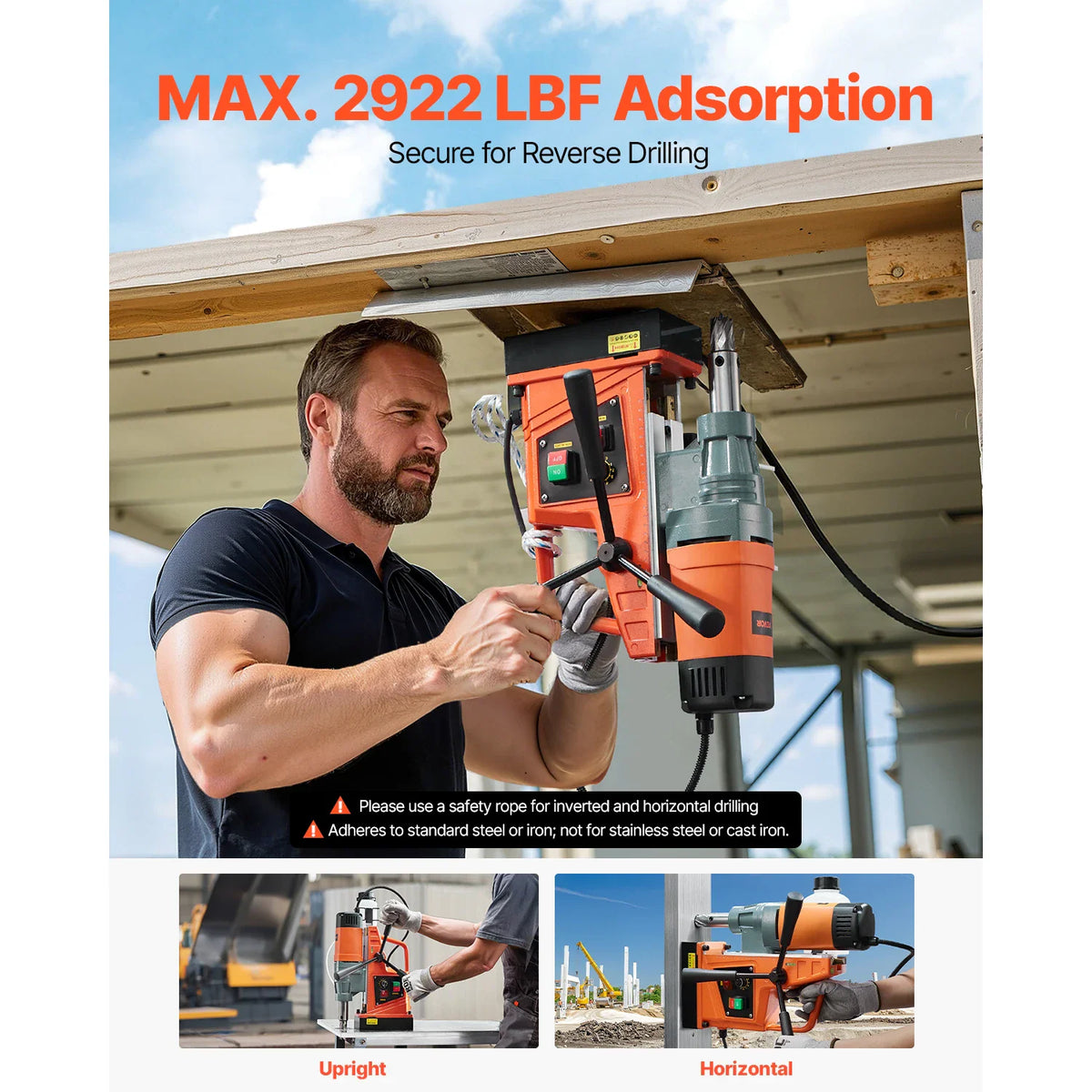

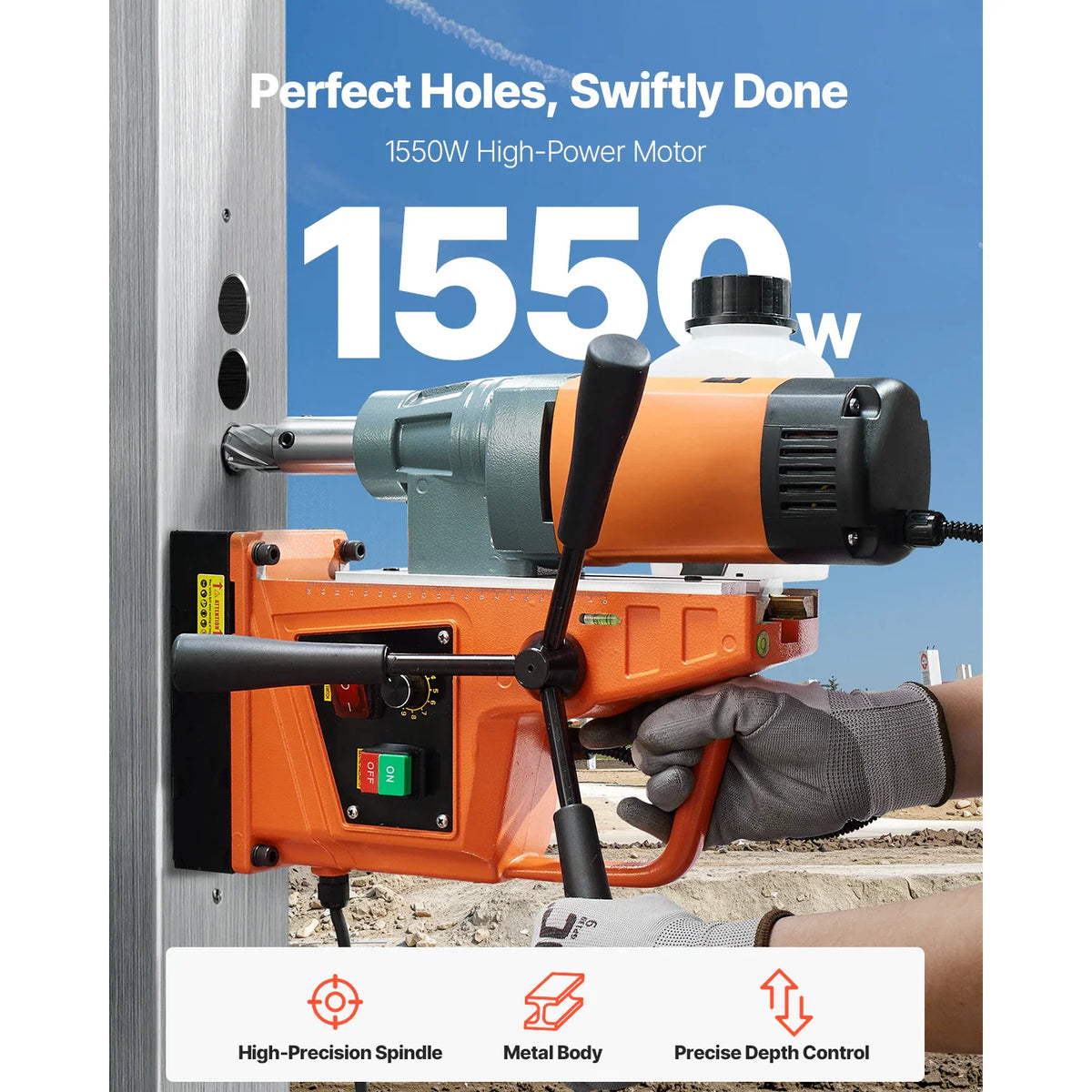

Can this be used for inverted or horizontal drilling?
Yes, the magnetic base allows for drilling at various angles. Please use a safety rope during inverted or horizontal operations.
Does it come with a drill chuck?
Yes, the unit includes a twist drill chuck with a 100 mm boring depth capacity.
