Mini Metal and Woodworking Lathe, 36W CNC Desktop Machine
Mini Metal and Woodworking Lathe, 36W CNC Desktop Machine

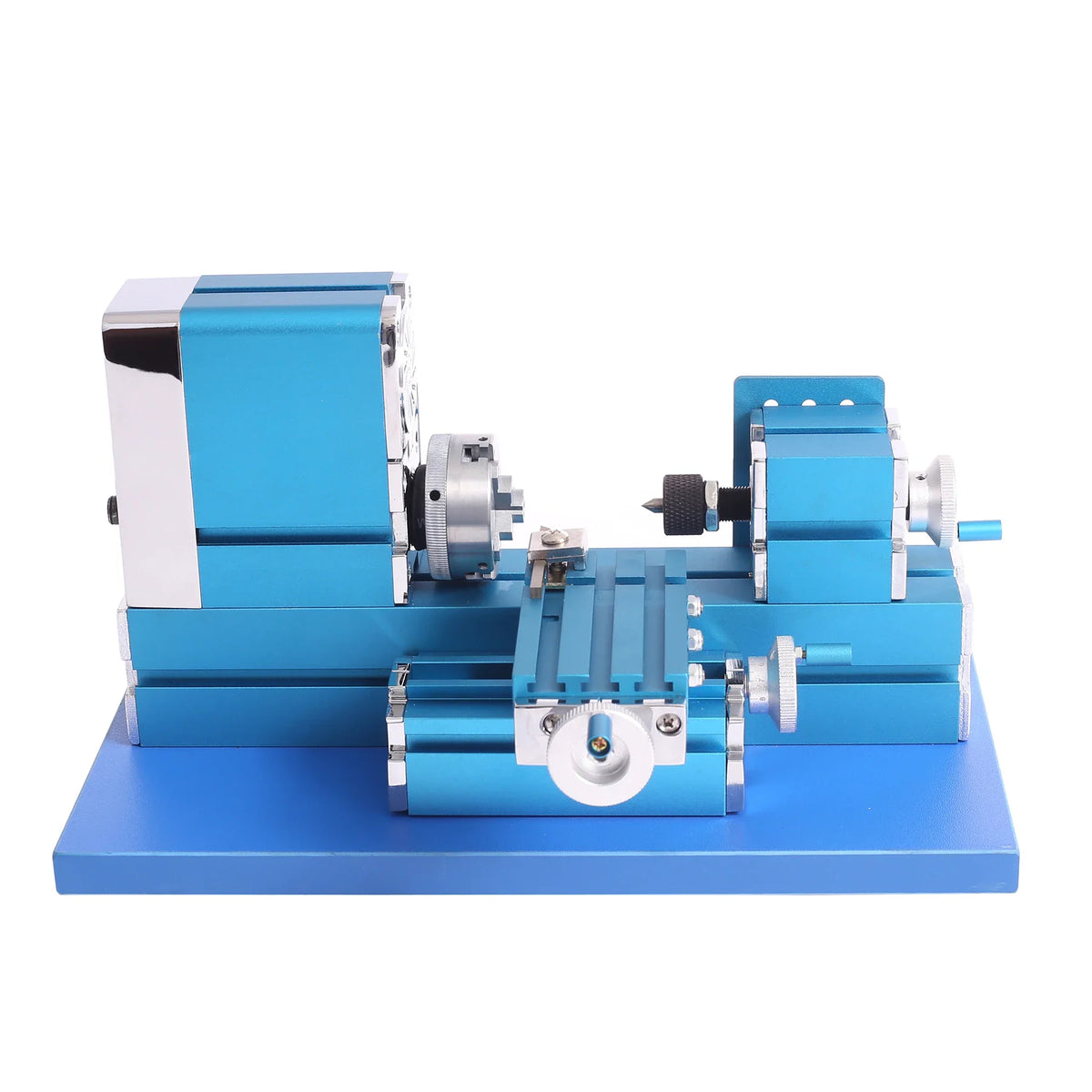

This 36W mini lathe is a desktop metal and woodworking machine designed for educational projects, model making, and hobbyist tasks. It processes materials like wood, plastic, and soft metals including pure copper and pure aluminum with a high-speed 20,000 RPM motor.
Key features
- Durable Construction – The main components, including the headstock, tailstock, and base, are made from metal for improved precision.
- Adjustable Processing – Features a 45mm Z-axis stroke and 35mm X-axis stroke to accommodate small-scale projects.
- Clamping Versatility – Includes a three-jaw chuck with a 0–10mm positive claw capacity and 10–45mm reverse claw capacity.
- Safety Accessories – Comes with protective goggles to assist in maintaining a safe work environment during use.
Specifications
| Motor Power | 36W |
| Motor Speed | 20,000 RPM ±15% |
| Center Distance | 110mm |
| Center Height | 25mm |
| Spindle Jump | <0.1mm |

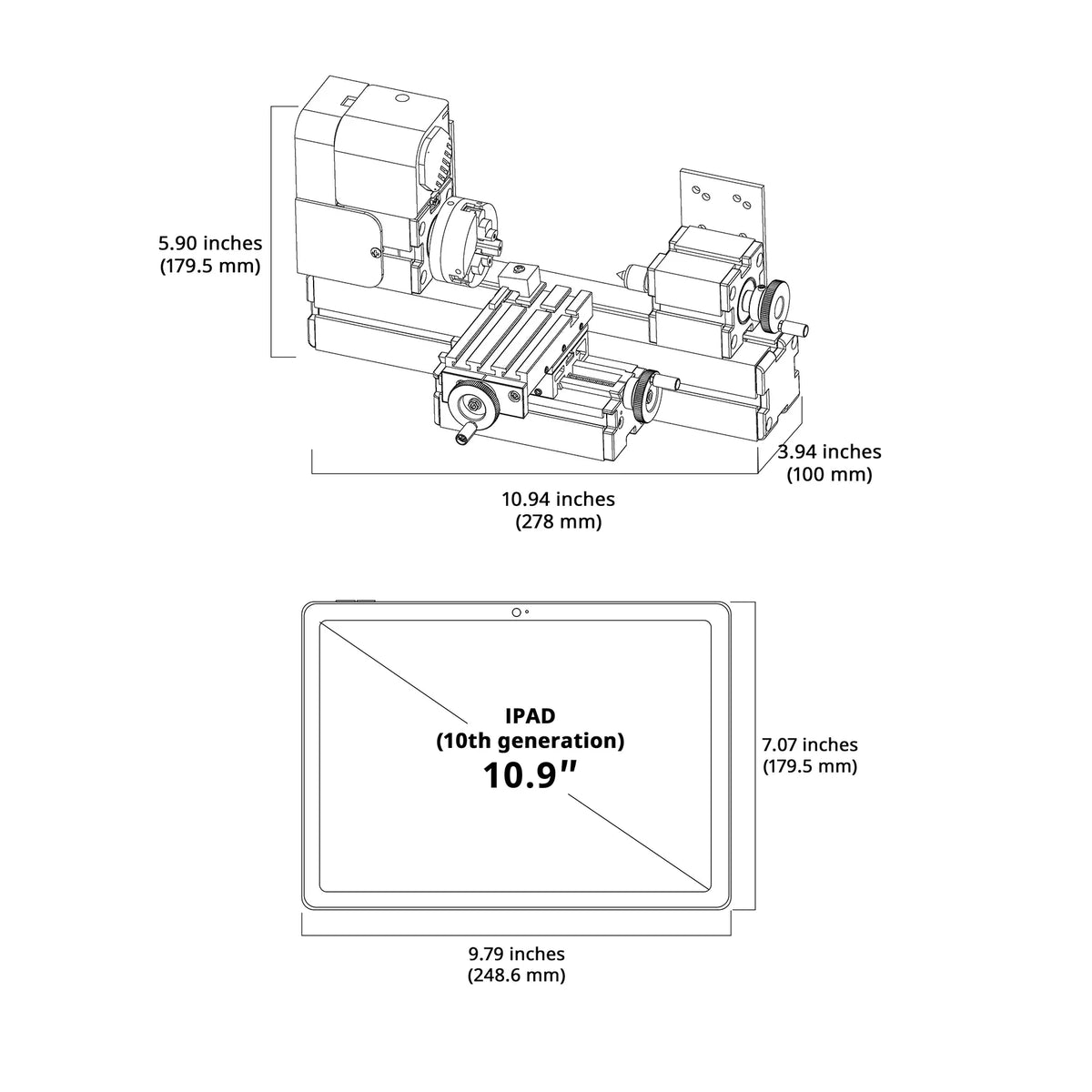

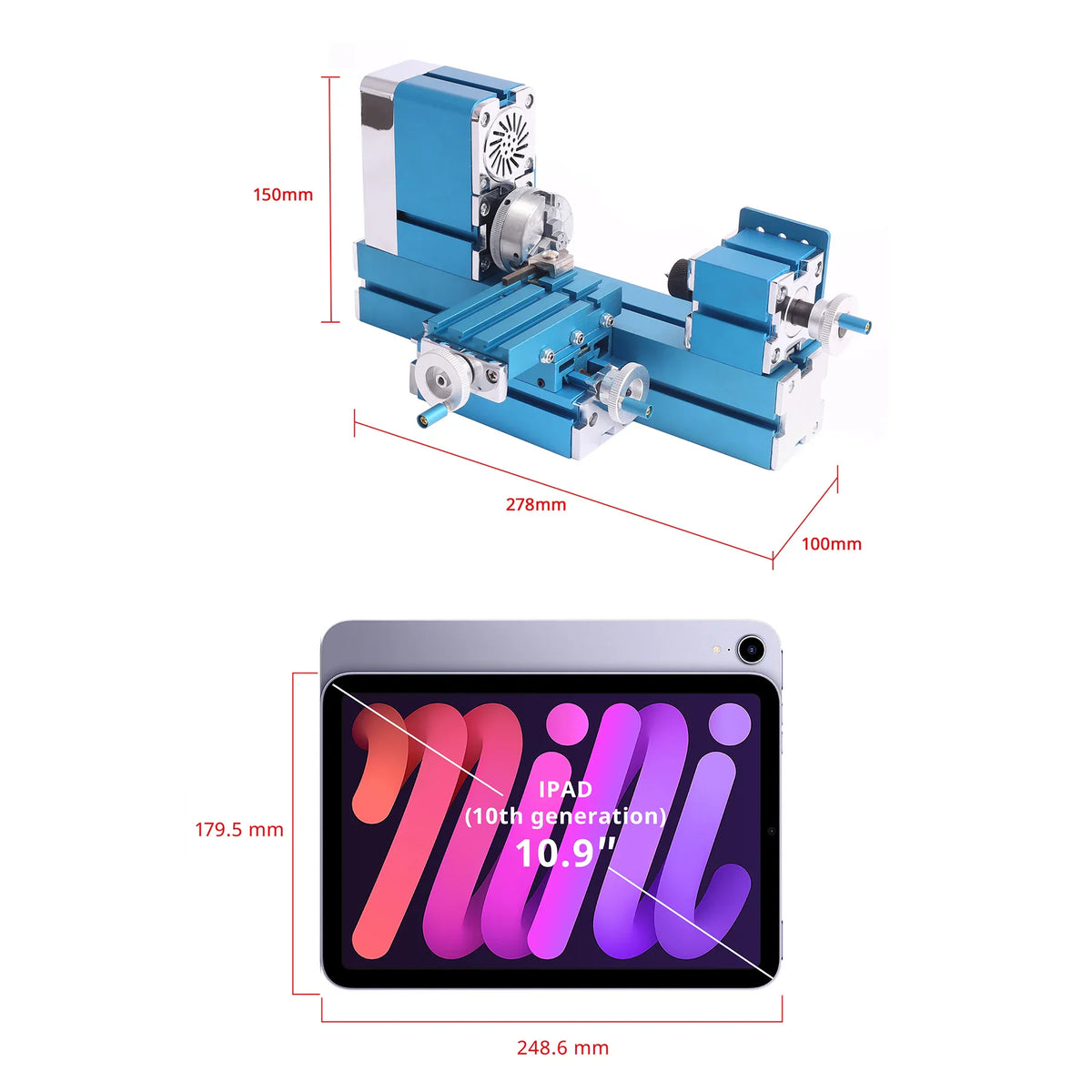

| Dimensions | 278 × 100 × 150 mm |
| Weight | 3.7 KG |
| Available Options | 110V US Plug, 220V EU Plug, 220V UK Plug |

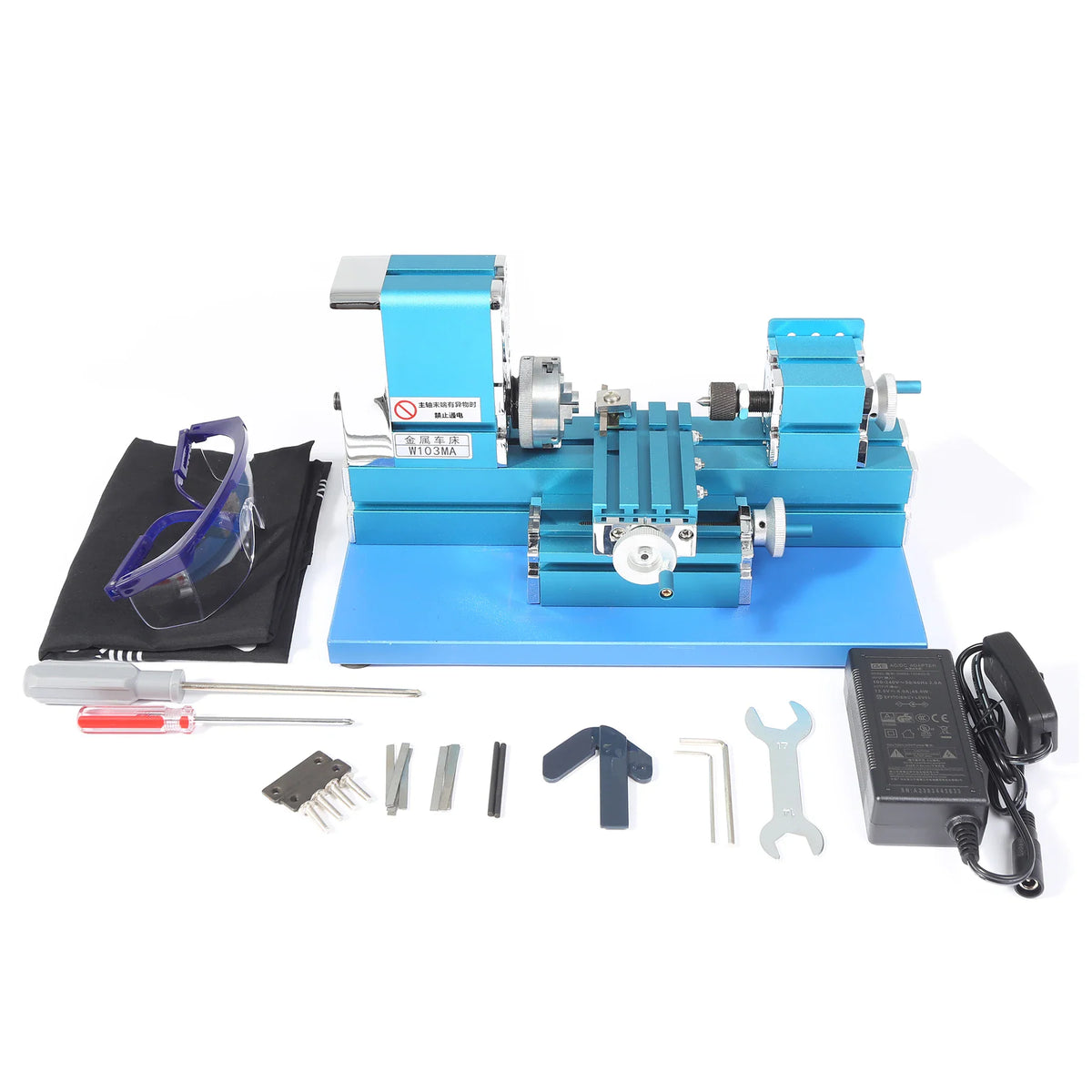

What's in the box
- 1 x Mini lathe
- 1 x Turning tool (3.5 × 3.5mm)
- 1 x Three-jaw chuck
- Accessories: Hexagon spanners, double-headed wrench, screwdriver, shims, center finder, clamping plates, and screws
- 1 x Apron
- 1 x Pair of goggles
Ideal for
This lathe is suited for student science creation, technology activity rooms, and DIY hobbyists focused on model making or small-scale machining.
FAQ
What materials can this lathe process?
It can process wood, plastic, and soft metals such as pure copper and pure aluminum.

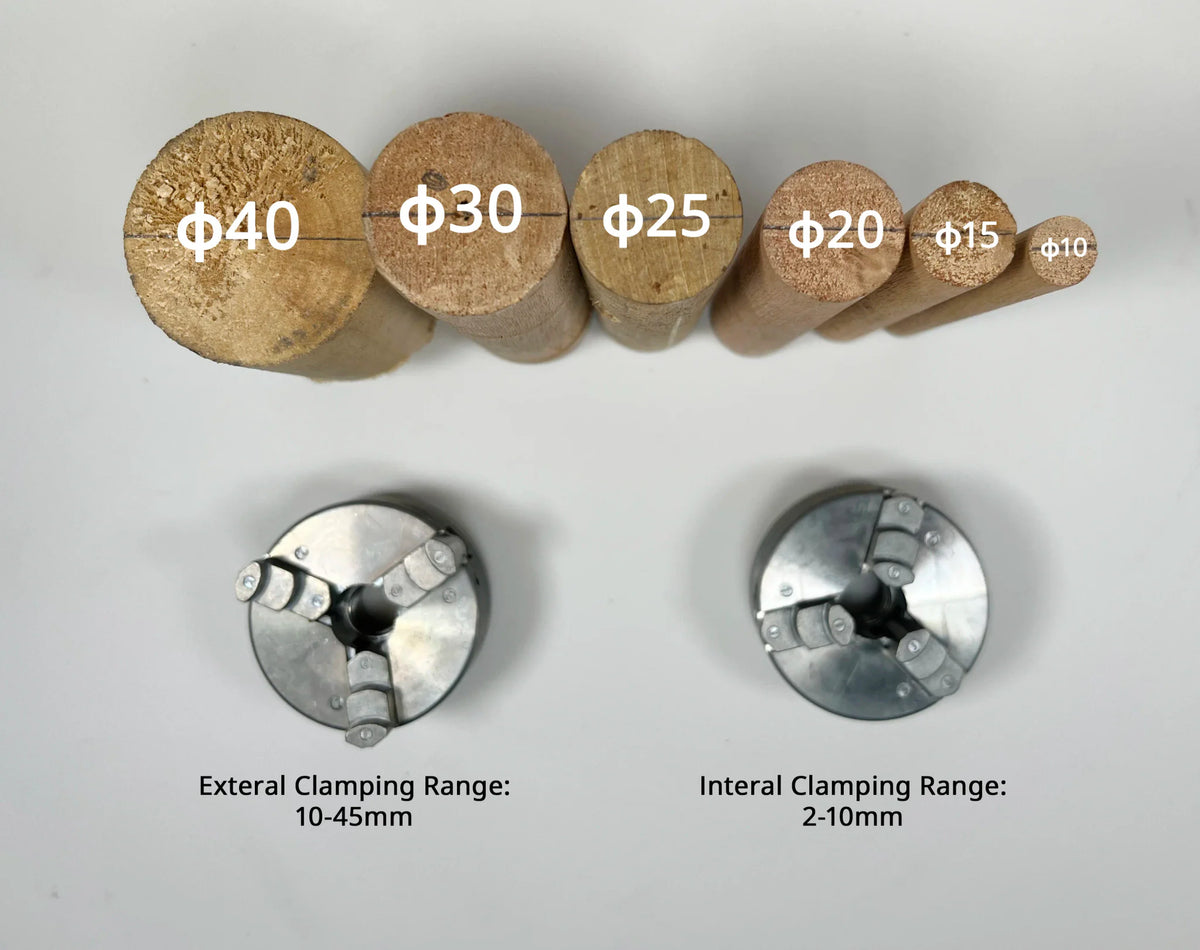

What is the maximum processing diameter?
The processing capacity is 0–10mm using the positive claw and 10–45mm using the reverse claw.
Does it come with the necessary tools for assembly?
Yes, the package includes inner hexagon spanners, a double-headed wrench, a cross screwdriver, and additional clamping hardware.
