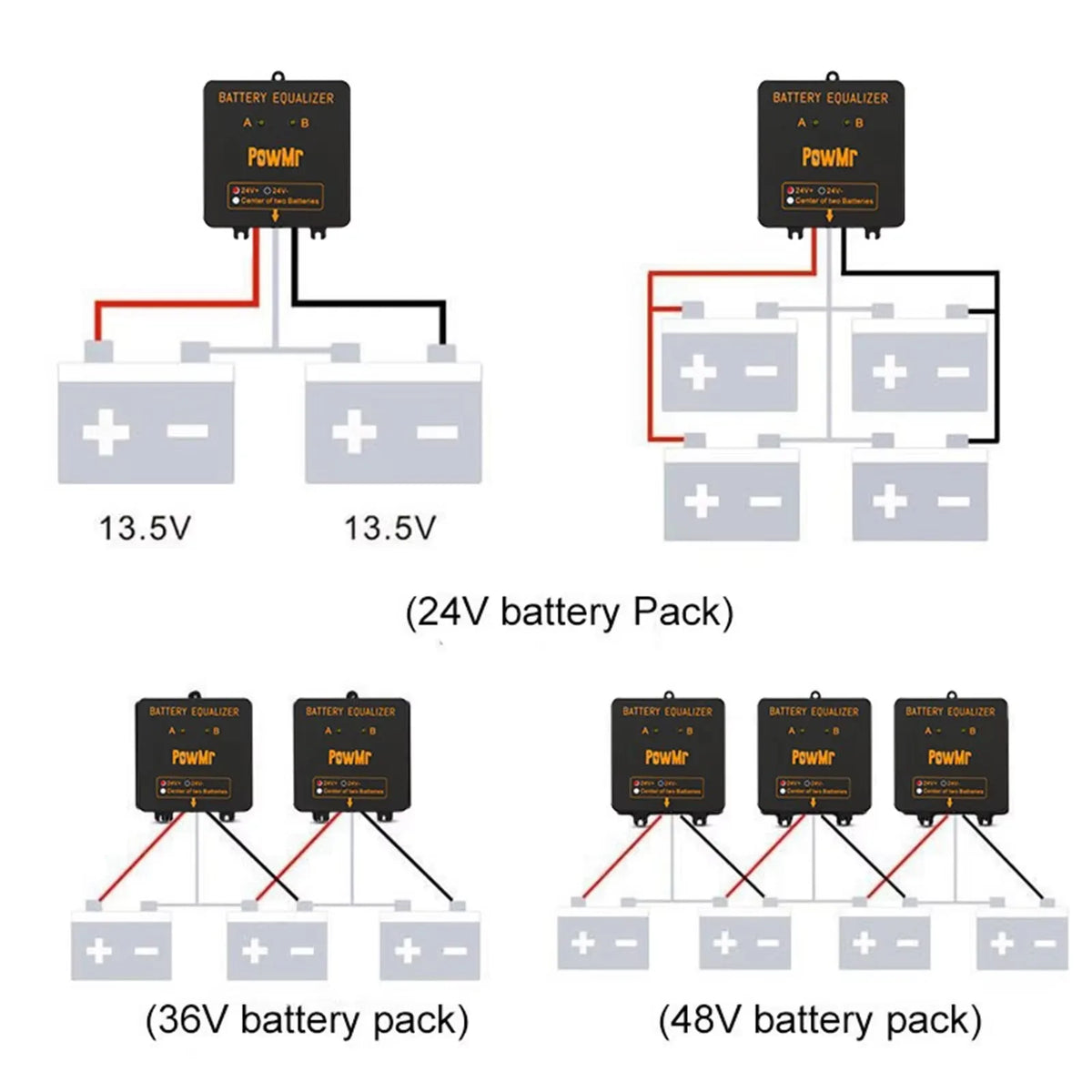

  • Technical wiring diagrams for battery voltage equalizers for 24V, 36V, and 48V battery packs.

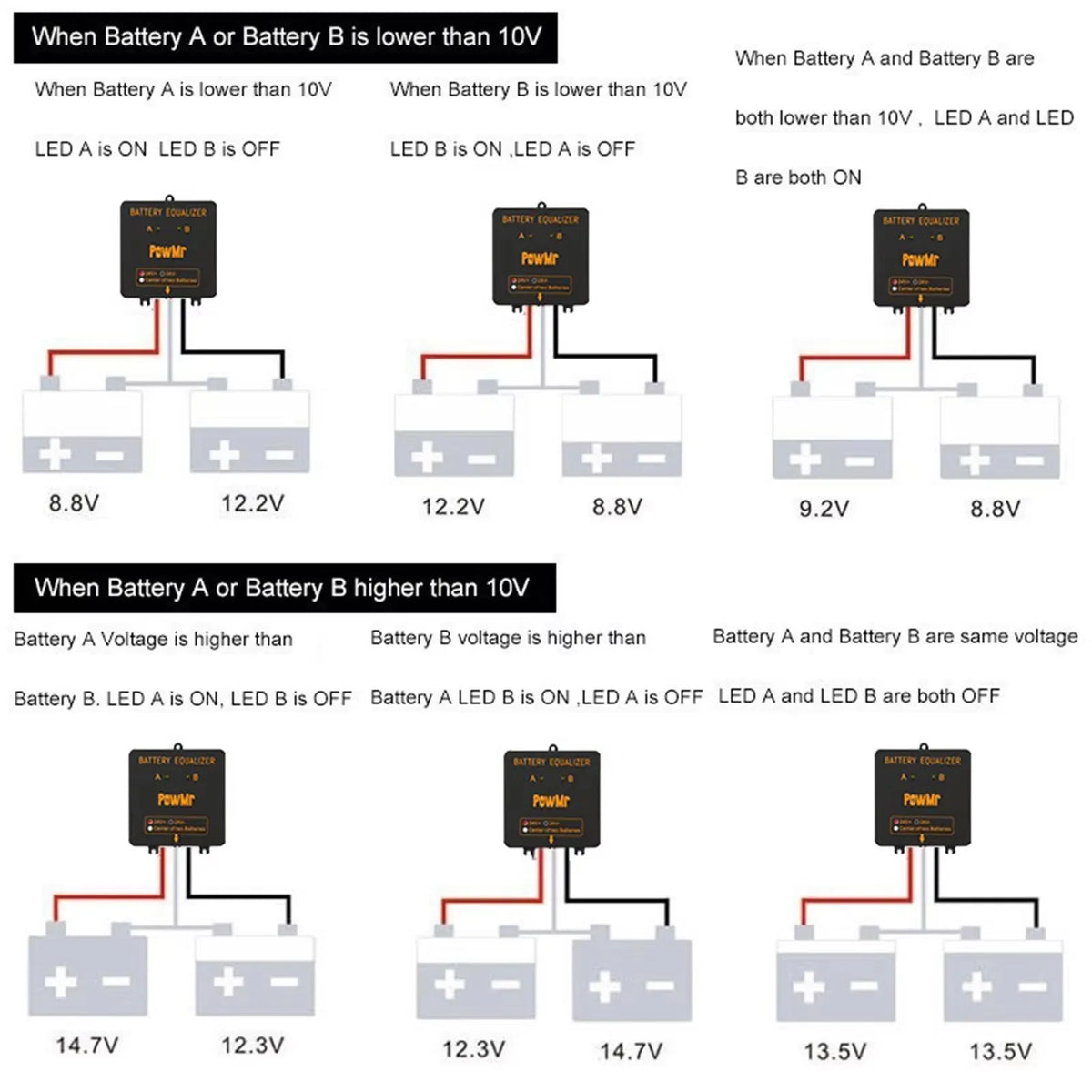

  • Instructional diagrams showing LED status indicators for the battery voltage equalizer under different voltage conditions.

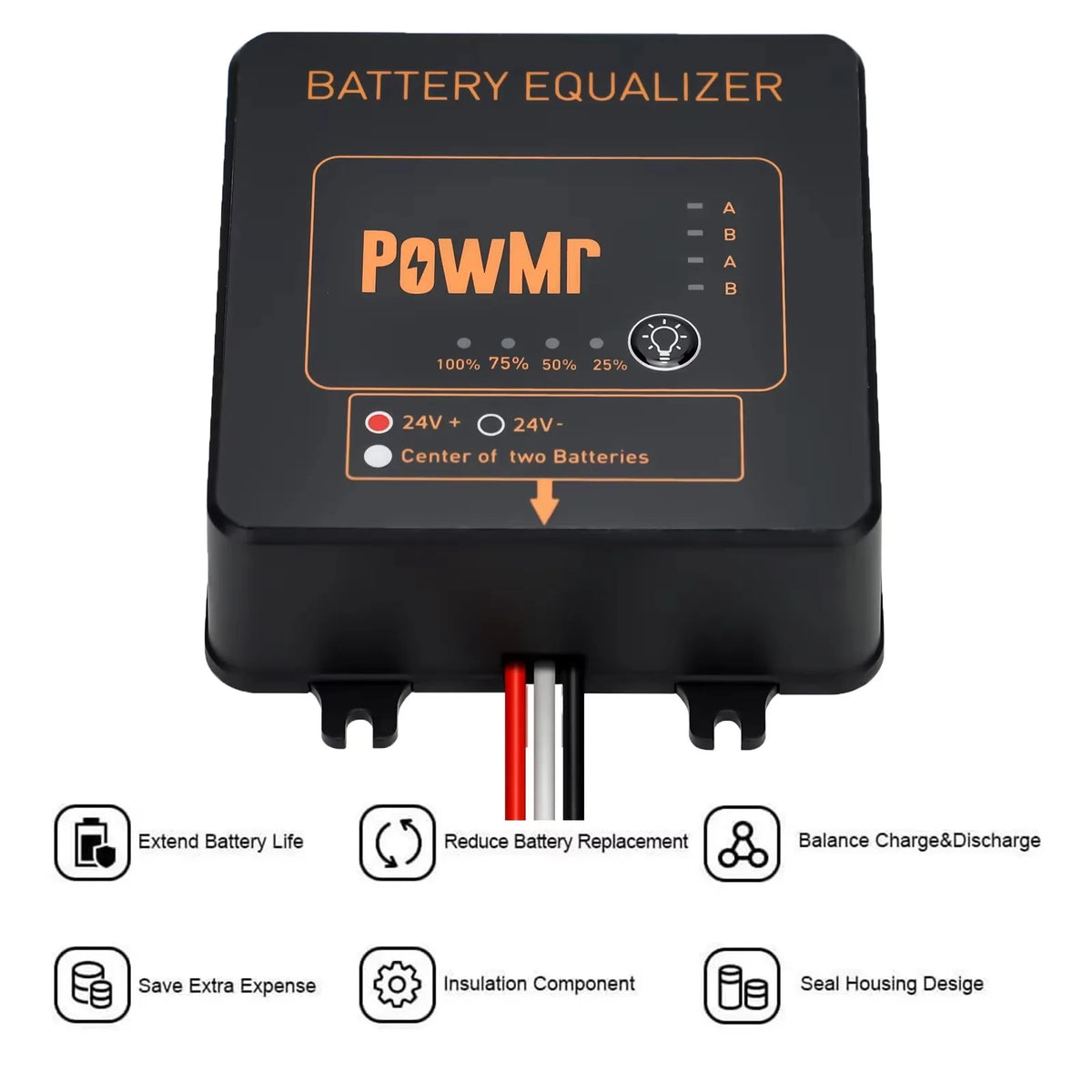

  • Battery voltage equalizer device highlighting key features like extended battery life and balanced charging.

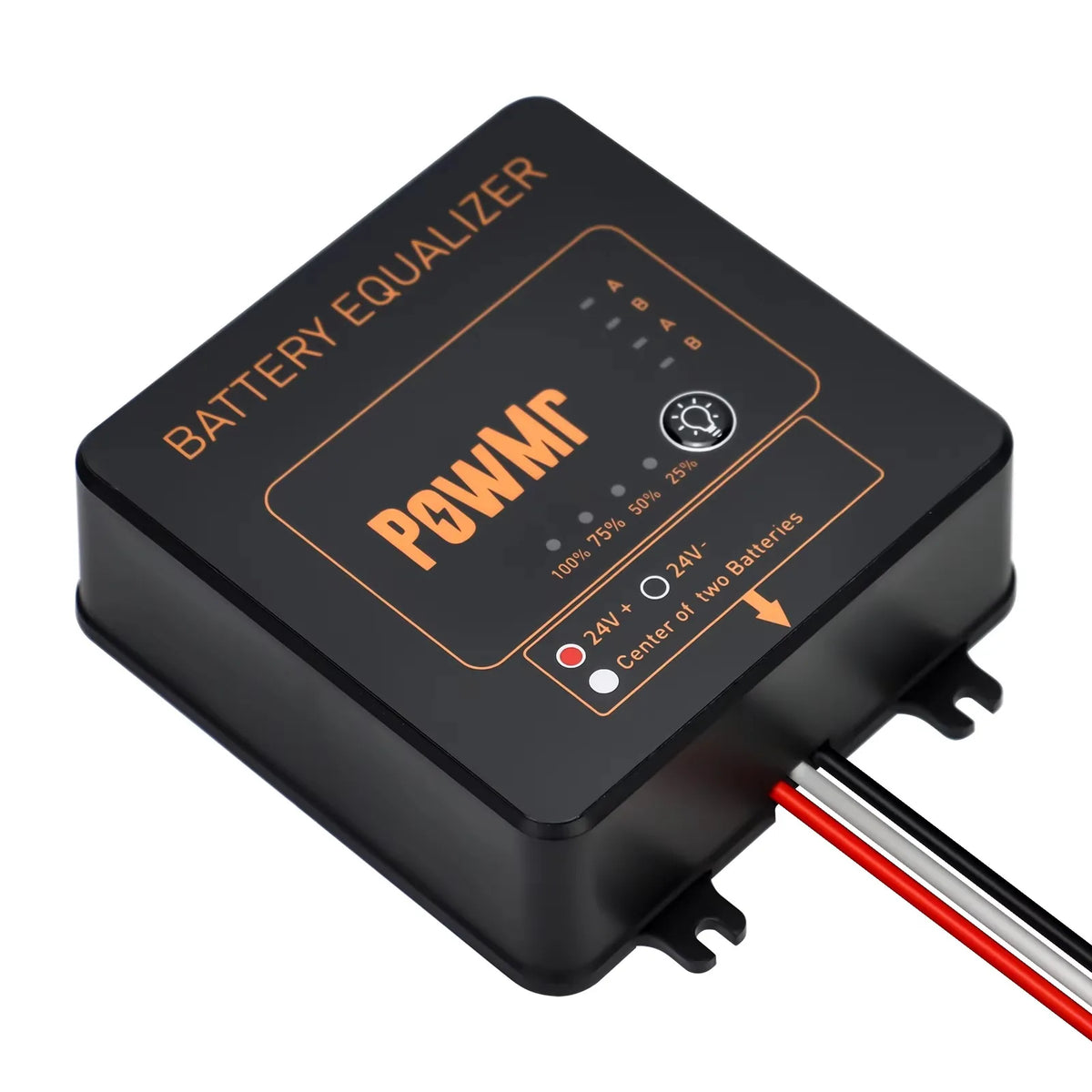

  • Top-down view of a black battery voltage equalizer device with clear status indicator lights and labels.
  • Angled view of a black square battery voltage equalizer device with wires connected.

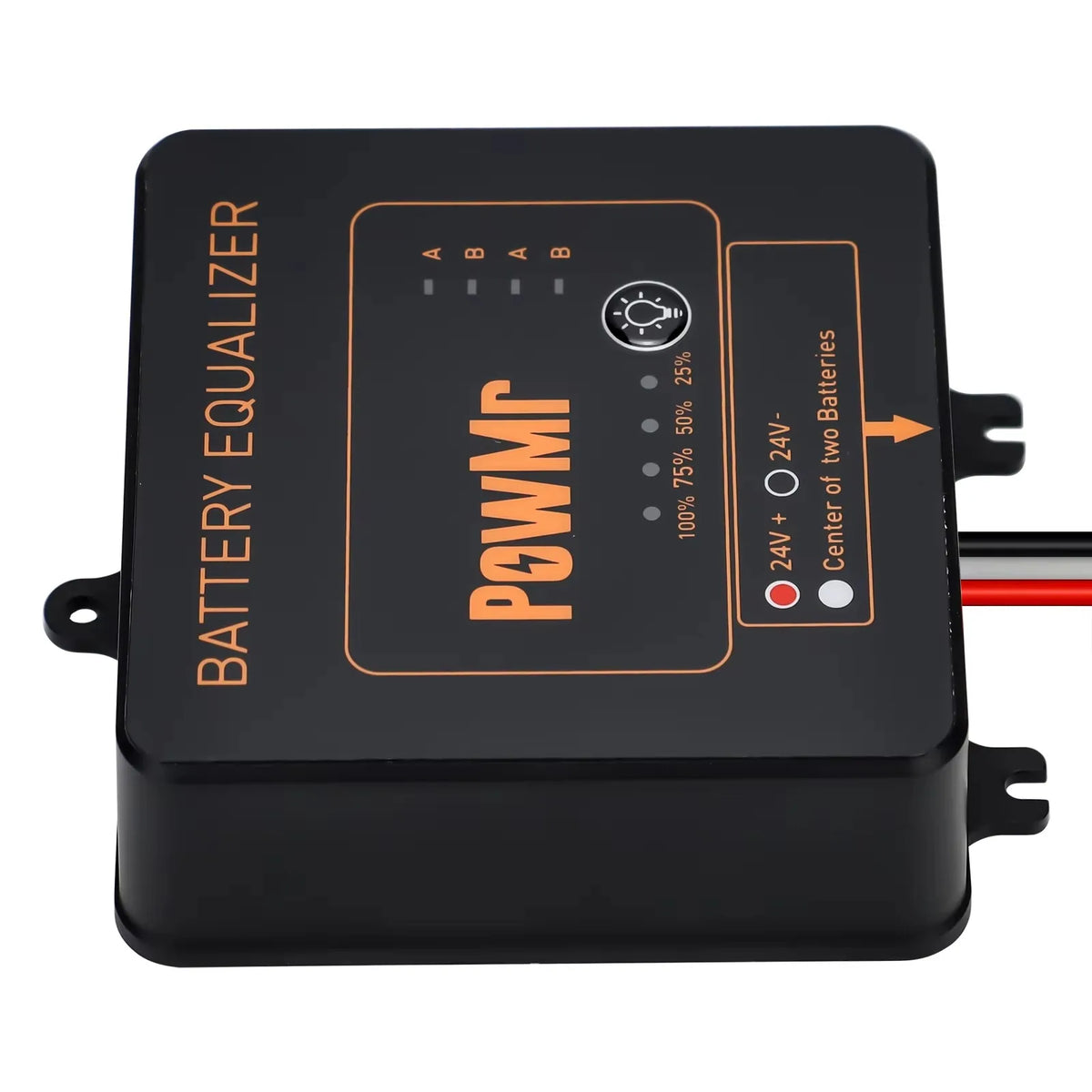

  • Top-down view of a black battery voltage equalizer control module.
  • A black rectangular 24V battery equalizer device with three wire connectors at the bottom.
  • Battery voltage equalizer unit diagram showing connection setups for different battery banks.
  • Technical wiring diagrams for battery voltage equalizers for 24V, 36V, and 48V battery packs.
  • Instructional diagrams showing LED status indicators for the battery voltage equalizer under different voltage conditions.
  • Battery voltage equalizer device highlighting key features like extended battery life and balanced charging.
  • Top-down view of a black battery voltage equalizer device with clear status indicator lights and labels.
  • Angled view of a black square battery voltage equalizer device with wires connected.
  • Top-down view of a black battery voltage equalizer control module.
PowMr Battery Balancer Voltage Equalizer for 12V Gel, Flood, and AGM Batteries

PowMr Battery Balancer Voltage Equalizer for 12V Gel, Flood, and AGM Batteries

$57.99
Color

The PowMr Battery Balancer is a voltage equalizer designed to maintain consistent voltage levels in series-connected 12V Gel, Flood, and AGM lead-acid batteries. By shunting current from higher-voltage batteries to lower-voltage ones when a 20mV difference is detected, it helps optimize battery performance and extend overall lifespan.

Key features

  • Voltage Balancing – Automatically balances voltage levels in charging, discharging, or standby states to keep battery packs healthy.
  • Precise Detection – Activates when it detects a 20mV difference between two batteries in a series connection.
  • Safety Protection – Includes reverse polarity protection to prevent damage during installation.
  • Versatile Compatibility – Supports 24V, 36V, and 48V battery systems by using 1, 2, or 3 units respectively.
  • Status Monitoring – Features LED indicators for visual confirmation of voltage status and battery capacity levels.

Specifications

Brand PowMr
Model Number BE24-N
Working Voltage 2 x 12V
Optimizing Current 0–5A
Standby Current < 3mA
Dimensions 78 x 78 x 28 mm
Protection Reverse polarity protection
Operating Temperature -20°C to +55°C
Compatibility Gel, Flood, AGM lead-acid batteries
Available Options 1PC, 2PCS, 5PCS, 10PCS packs

Ideal for

This equalizer is ideal for solar power systems, RV battery banks, and marine setups that use multiple 12V lead-acid batteries connected in series to achieve 24V, 36V, or 48V configurations.

FAQ

Does this work with lithium batteries?

No, this model is designed specifically for 12V Gel, Flood, and AGM lead-acid batteries.

How many units do I need for a 48V system?

You need to use 3 units connected in series to balance a 48V battery system.

What happens if the batteries are imbalanced?

The device detects a 20mV difference and shunts current from the higher-voltage battery to the lower-voltage battery until their levels are equal.

Is this waterproof?

The specifications do not list an IP rating, so it is recommended to keep the device in a protected, dry environment.
