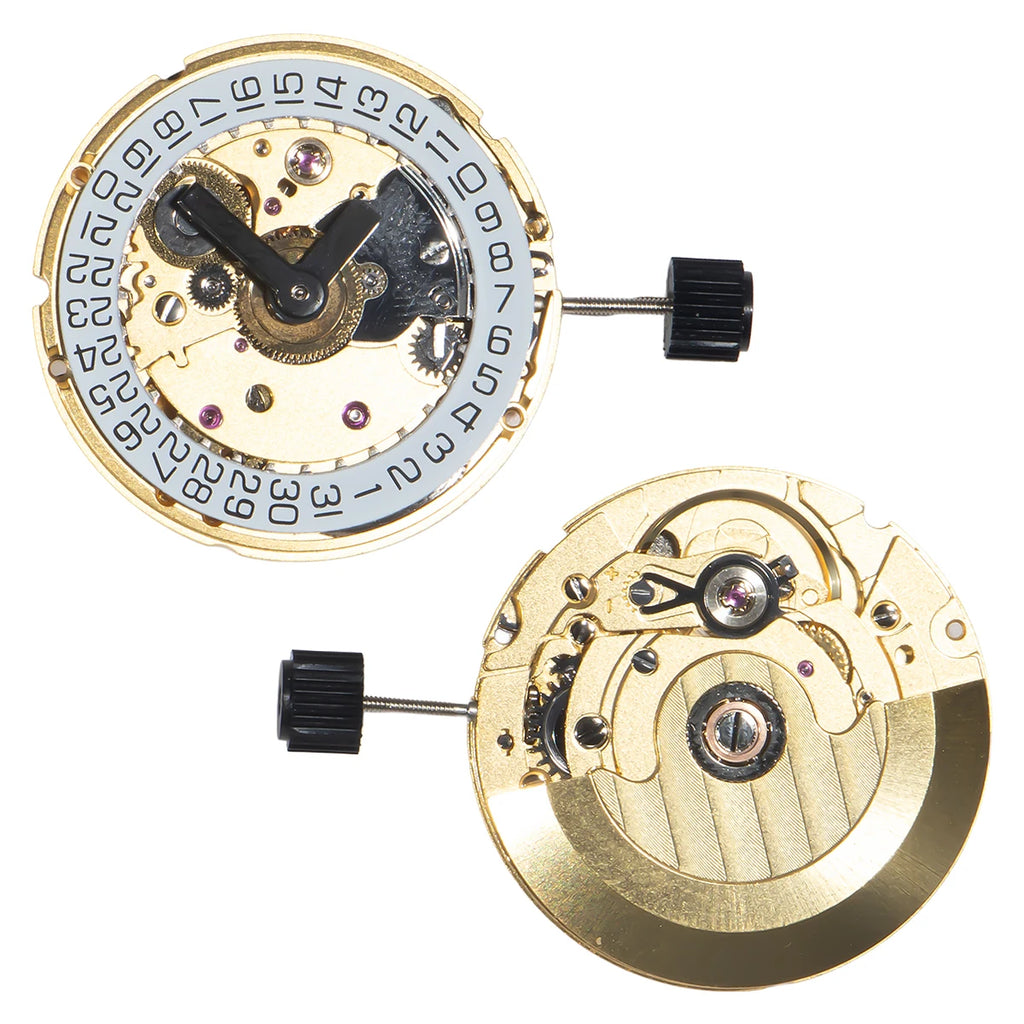

  • PT5000 Automatic Mechanical Watch Movement, 25 Jewel, Date Function – G

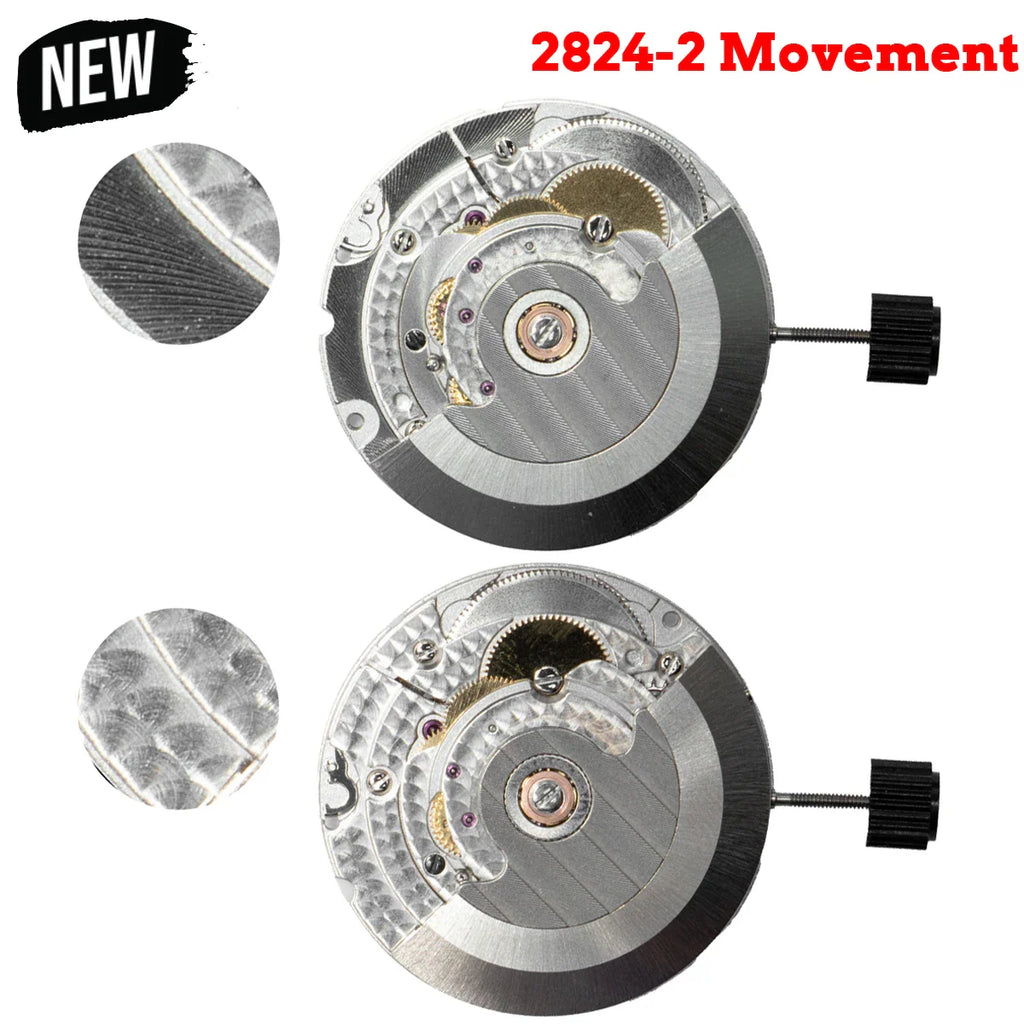

  • A mechanical watch movement showing two different perspectives and circular close-ups of details.

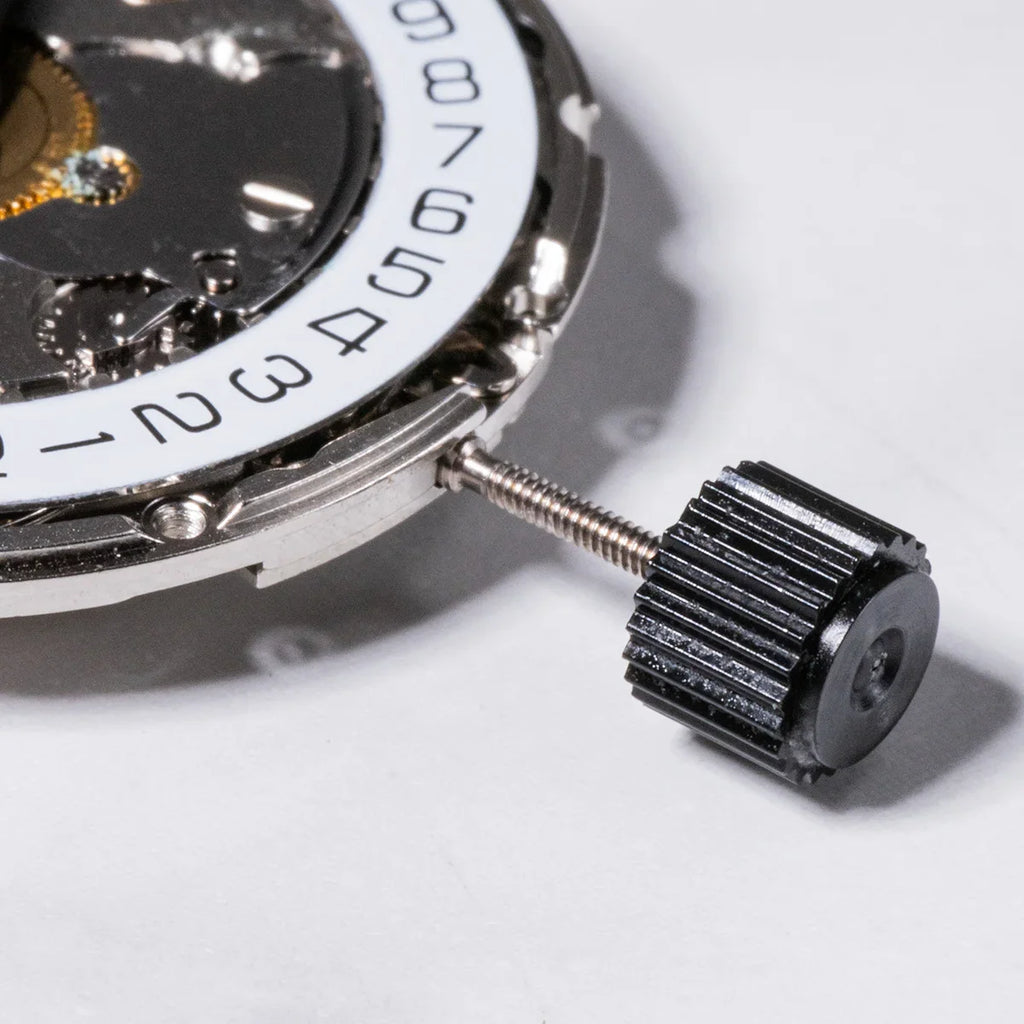

  • A close-up of a silver mechanical watch movement with a date wheel and a black winding stem.

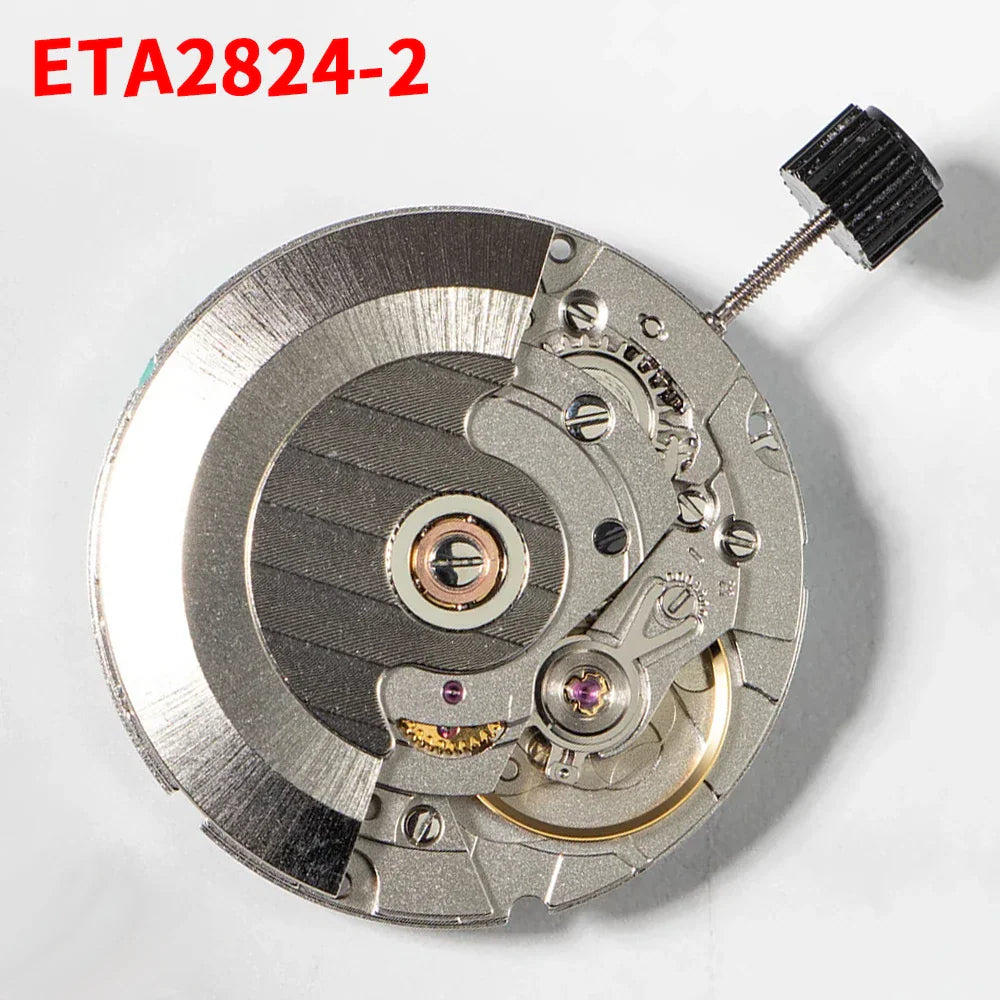

  • Top-down view of a mechanical watch movement showing the gears, balance wheel, and winding stem.

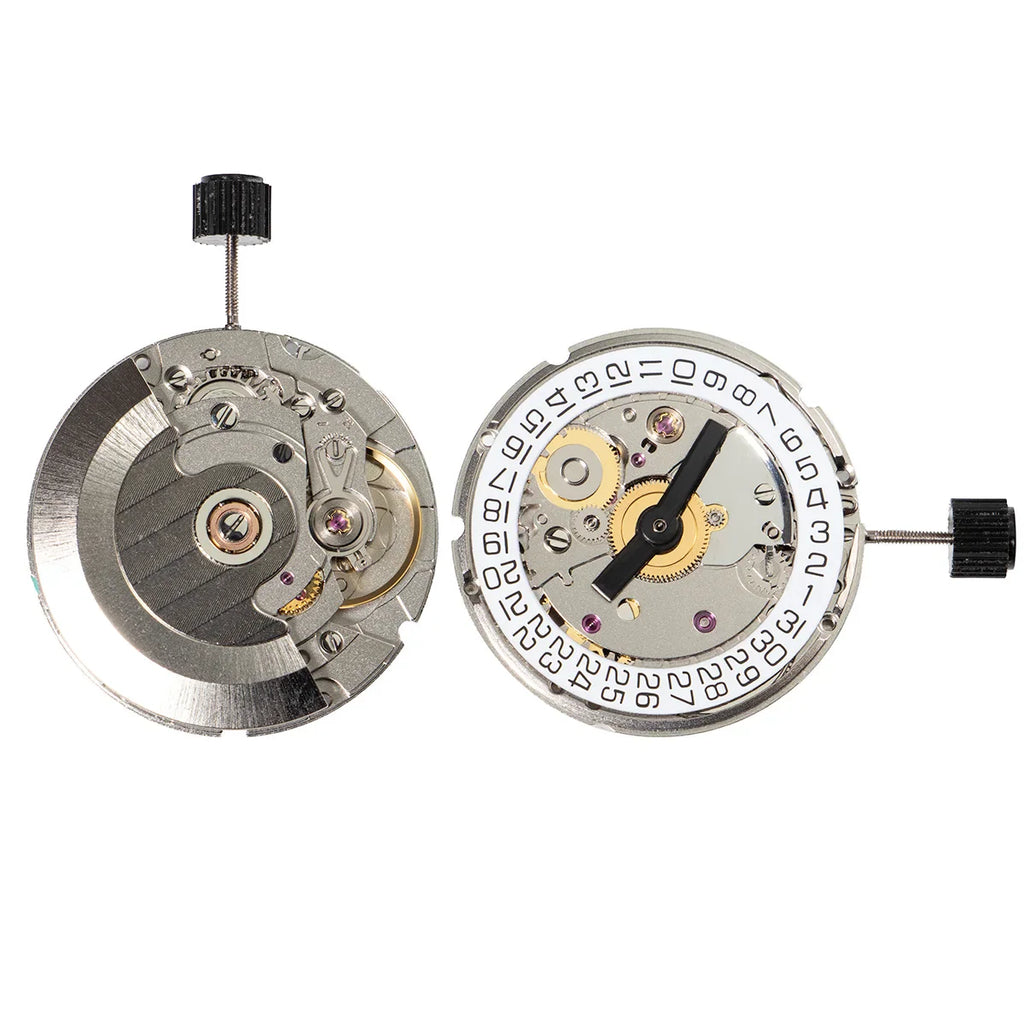

  • Two mechanical watch movements side-by-side, one showing the gear bridge and the other showing the date wheel.

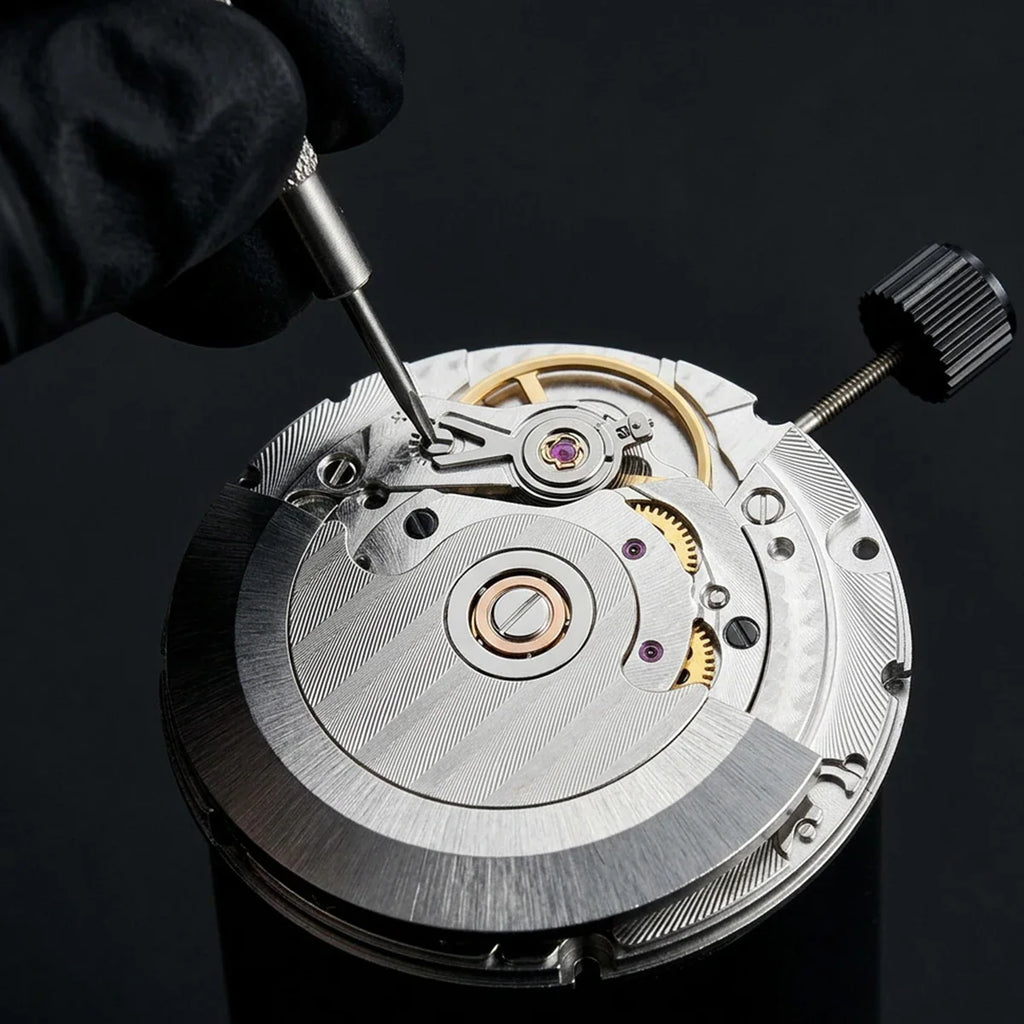

  • A gloved hand using a professional tool to adjust the balance wheel on a mechanical watch movement.

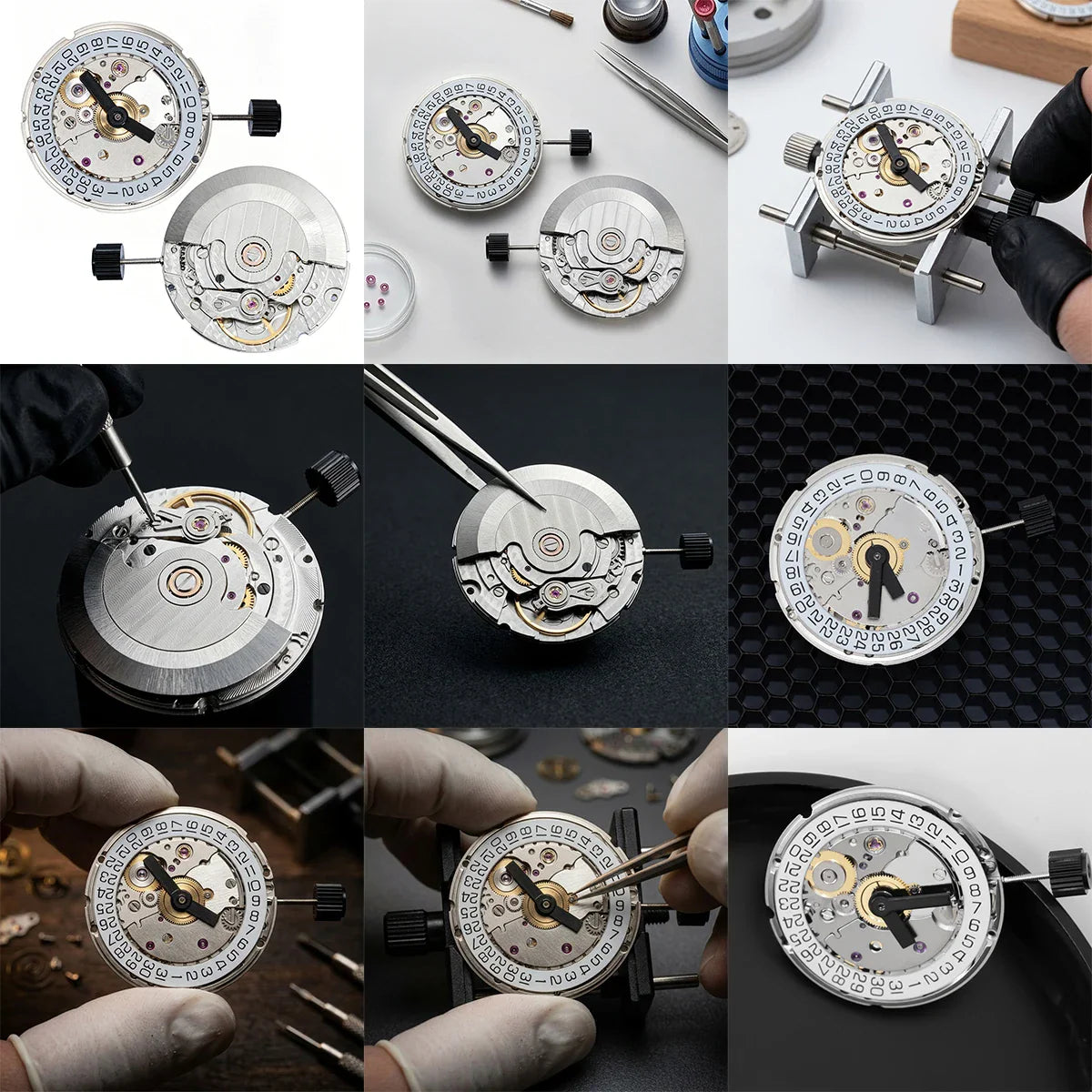

  • A composite image showing various steps of watch movement assembly and adjustment.
  • PT5000 Automatic Mechanical Watch Movement, 25 Jewel, Date Function – G
  • A mechanical watch movement showing two different perspectives and circular close-ups of details.
  • A close-up of a silver mechanical watch movement with a date wheel and a black winding stem.
  • Top-down view of a mechanical watch movement showing the gears, balance wheel, and winding stem.
  • Two mechanical watch movements side-by-side, one showing the gear bridge and the other showing the date wheel.
  • A gloved hand using a professional tool to adjust the balance wheel on a mechanical watch movement.
  • A composite image showing various steps of watch movement assembly and adjustment.
PT5000 Automatic Mechanical Watch Movement, 25 Jewel, Date Function

PT5000 Automatic Mechanical Watch Movement, 25 Jewel, Date Function

$89.99
Color

The PT5000 is a 25-jewel automatic self-winding mechanical movement designed as a replacement for ETA 2824-2 and Seagull ST21 watch movements. It features an analog display with a date function and a power reserve of approximately 48 hours, making it suitable for watch repair and assembly projects.

Key features

  • Mechanical Precision – Operates at a frequency of 28800 vibrations per hour for consistent timekeeping.
  • Direct Replacement – Compatible with ETA 2824-2 and Seagull ST21 mechanical watch architectures.
  • Date Display – Includes an integrated datewheel function for everyday utility.
  • Reliable Power – Features a self-winding mechanism with an approximately 48-hour power reserve.
  • Jewel Count – Built with 25 jewels to reduce friction and improve the longevity of moving parts.

Specifications

Movement PT5000 Automatic
Diameter 25.6mm (1in)
Thickness 4.6mm (0.18in)
Jewels 25
Frequency 28800
Power Reserve 48 hours
Compatible Models ETA 2824-2, Seagull ST21
Variants G, W, Sfsm, Sksm

What's in the box

  • 1 x PT5000 Watch Movement
  • 1 x Movement Washer
  • Casing Clamps Tab and Screw Set

Ideal for

This movement is ideal for watchmakers, hobbyists, and repair professionals performing maintenance or custom builds on watches compatible with the ETA 2824-2 or Seagull ST21 platforms.

FAQ

Does this fit an ETA 2824-2 watch?

Yes, this PT5000 movement is specifically designed as a replacement for the ETA 2824-2.

How long is the power reserve?

The power reserve is approximately 48 hours when fully wound.

What is the movement thickness?

The movement has a thickness of 4.6mm (0.18in).
