reTerminal E1002 7.3-inch Full Color E-Paper Display with ESP32-S3
reTerminal E1002 7.3-inch Full Color E-Paper Display with ESP32-S3

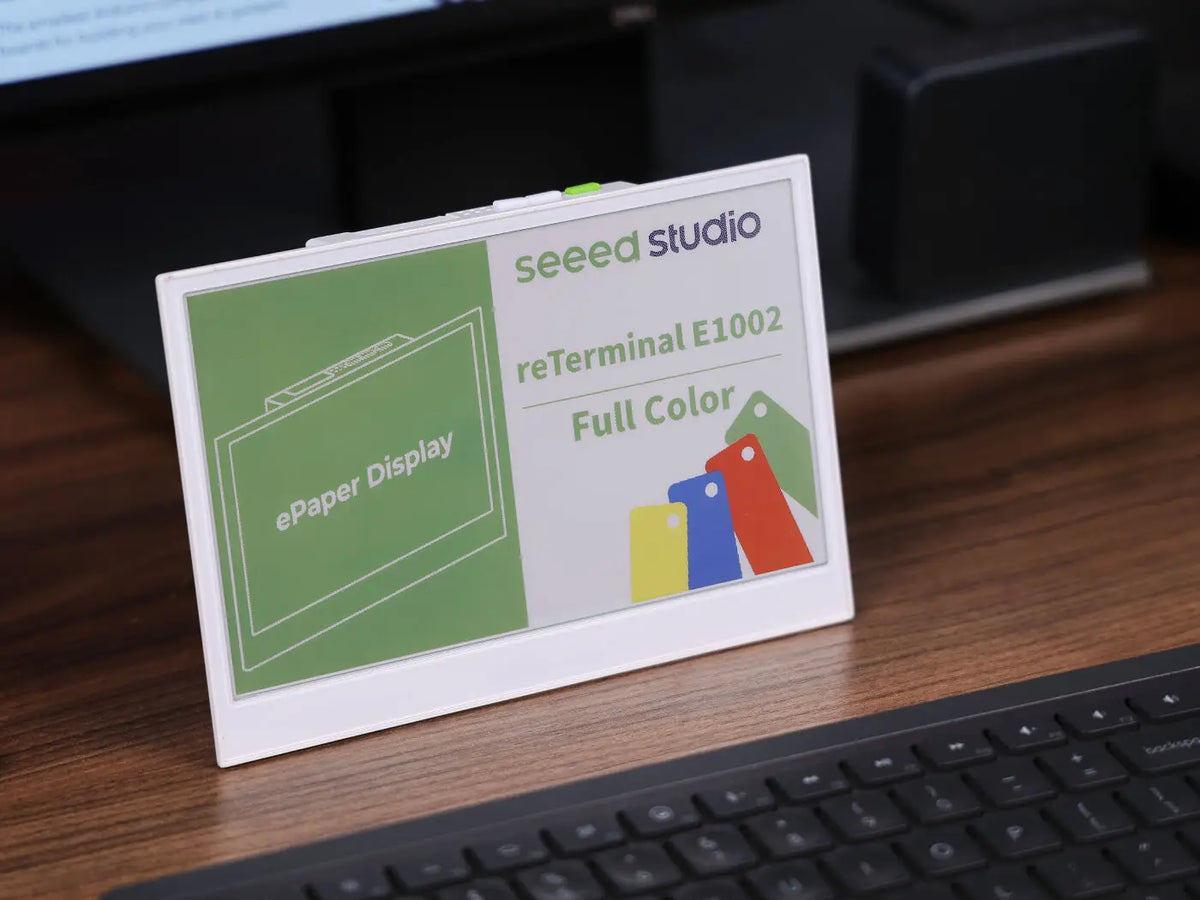

The reTerminal E1002 is a 7.3-inch full-color e-paper display powered by an Espressif ESP32-S3 processor, designed for long-term data visualization and home automation dashboards. With a battery life of up to 3 months, this energy-efficient device fits perfectly as a wall-mounted or desktop screen for your smart home, personal reminders, or office updates.
Key features
- Full-color display – Uses E Ink Spectra 6 technology to provide vivid visuals and crisp text for dashboards and digital frames.
- Long battery life – The 2000mAh battery supports up to 3 months of use when in deep sleep mode with a 6-hour refresh interval.
- Versatile software support – Compatible with SenseCraft HMI for no-code design, Home Assistant via ESPHome, and development environments like Arduino or ESP-IDF.
- Integrated sensors and audio – Features built-in temperature and humidity sensors, a buzzer for alerts, and a microphone reserved for voice interaction applications.
- Flexible deployment – Can be used as a desktop unit with the included stand or mounted on a wall to serve as a low-power, always-on information sign.
Specifications
| Display size | 7.3 inch |
|---|---|
| Resolution | 800x480 pixels |
| Processor | ESP32-S3 with 8MB Psram |
| Storage | 32MB Flash, supports up to 32GB Micro SD card |
| Battery | 2000mAh |
| Wireless | 2.4GHz Wi-Fi, Bluetooth 5.0 |
| Dimensions | 176mm × 120mm × 53mm (with stand) |
| Power Input | USB-C 5V/1A |
| Operating Temperature | 0–40°C |

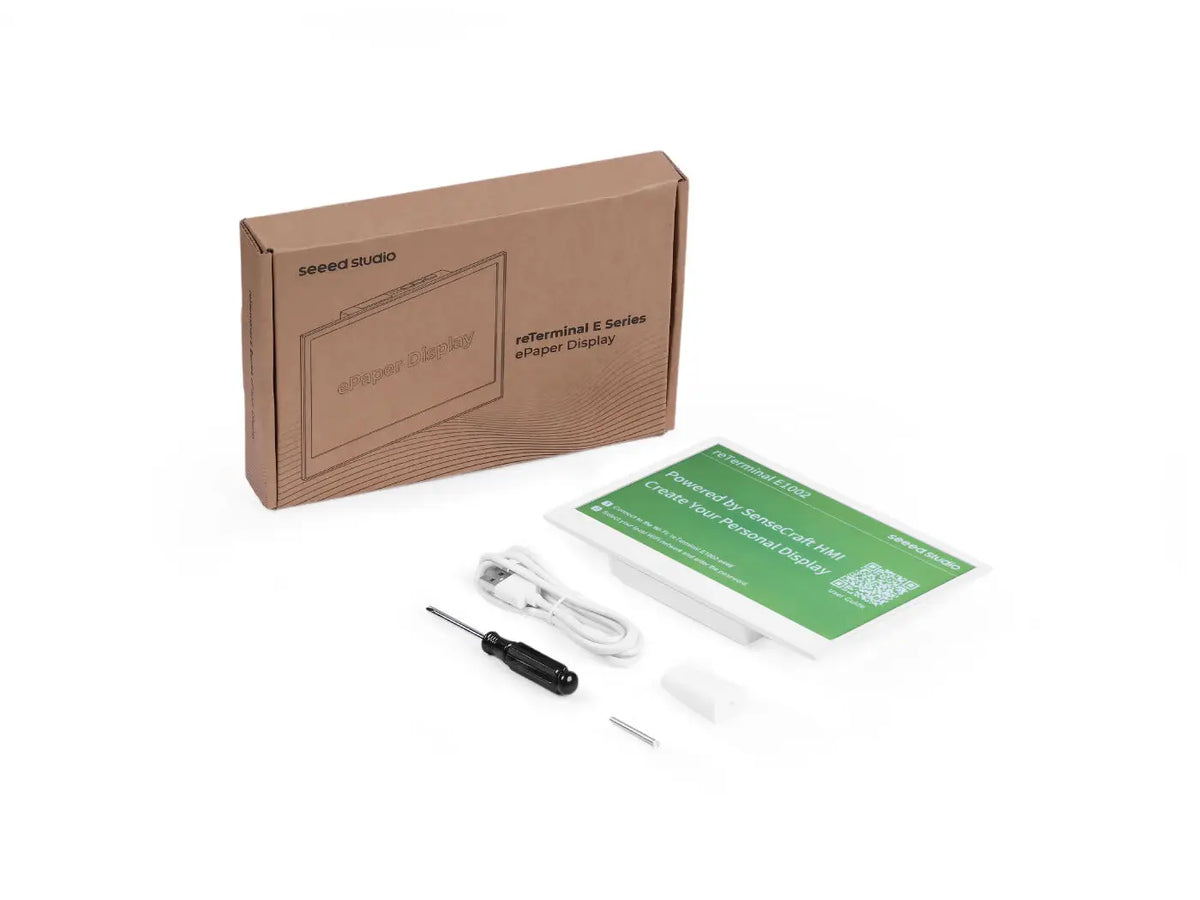

What's in the box
- 1 x reTerminal E1002 e-paper display
- 1 x USB Type-C cable
- 1 x Display stand with screw
- 1 x Screw driver
Ideal for
This display is ideal for smart home enthusiasts looking to track data via Home Assistant, office managers organizing meeting schedules, or students and developers prototyping IoT applications and custom UI dashboards.
FAQ
Does it work with Home Assistant?
Yes, the reTerminal E1002 supports ESPHome firmware for seamless integration with Home Assistant.
How long does the battery last?
The device provides up to 3 months of battery life on a single charge when used in deep sleep mode with a 6-hour refresh interval.
Can I design my own interface?
Yes, you can use the AI-powered SenseCraft HMI platform for no-code drag-and-drop design or develop custom applications using Arduino, PlatformIO, or Espressif IDF.
