Seeed Studio XIAO ESP32C6 Development Board with Wi-Fi 6, BLE 5, Zigbee
Seeed Studio XIAO ESP32C6 Development Board with Wi-Fi 6, BLE 5, Zigbee

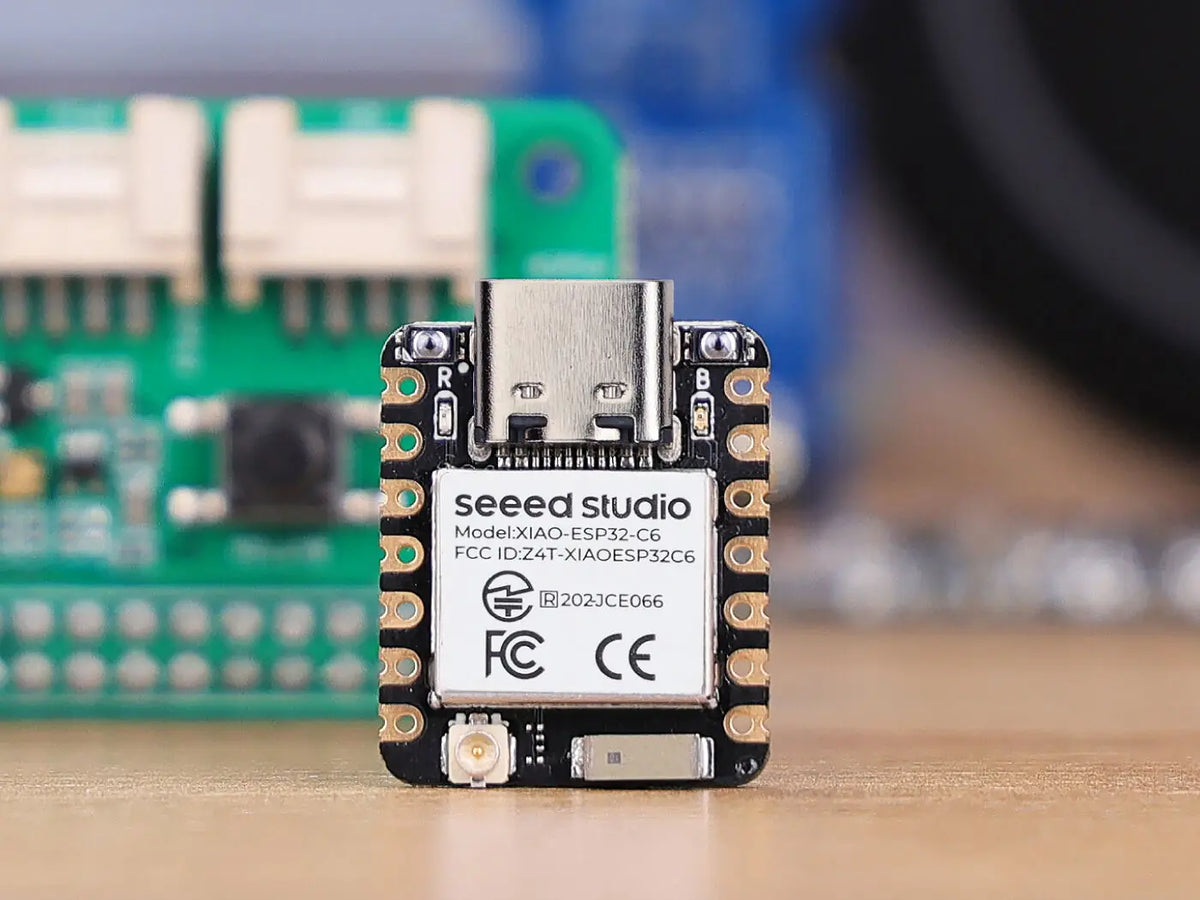

The Seeed Studio XIAO ESP32C6 is a compact 21 x 17.8mm development board featuring the Espressif ESP32-C6 SoC with integrated 2.4GHz Wi-Fi 6, BLE 5, Zigbee, and Thread connectivity. Designed for space-constrained and battery-powered applications, this board offers powerful wireless capabilities in a thumb-sized form factor.
Key features
- Versatile Connectivity – Supports 2.4GHz Wi-Fi 6, Bluetooth 5 (LE), Zigbee, and Thread protocols for Matter-compliant smart home integration.
- Dual RISC-V Processors – Features two 32-bit processors with a high-performance core clocking up to 160 MHz and a low-power core up to 20 MHz.
- Energy Efficient – Includes four working modes with power consumption as low as 15 μA in deep sleep, alongside built-in lithium battery charge management.
- Compact Design – Maintains the signature XIAO series single-sided mount and 21 x 17.8mm footprint ideal for small-scale projects and wearables.
- Enhanced Security – Provides secure boot, on-chip encryption, and a Trusted Execution Environment (TEE).
Specifications
| Processor | Espressif ESP32-C6 SoC (Dual RISC-V) |
|---|---|
| On-chip Memory | 512KB SRAM, 4MB Flash |
| Wireless | Wi-Fi 6, BLE 5, Zigbee, Thread, IEEE 802.15.4 |
| Dimensions | 21 x 17.8mm |
| Interfaces | UART, LP_UART, IIC, LP_IIC, SPI, 11x GPIO(PWM), 7x ADC, SDIO |
| Power Input | 5V (USB-C), 4.2V (Battery) |
| Operating Temperature | -40°C to 85°C |
What's in the box
- 1 x Seeed Studio XIAO ESP32C6
- 2 x 7 Pin Header
Ideal for
This board is well-suited for developers building Matter-compliant smart home devices, space-limited wearables, and IoT projects requiring reliable wireless data transmission.
FAQ
Does this board support Matter?
Yes, the XIAO ESP32C6 supports building Matter-compliant smart home projects through its integrated wireless connectivity.
Can this be powered by a battery?
Yes, it supports lithium battery power with an input voltage of 4.2V and features battery charge management.
What is the power consumption in deep sleep?
In deep sleep mode, the board consumes approximately 15 μA.
Is an external antenna supported?
Yes, the board includes an on-board antenna and reserves an interface for an external UFL antenna.
