Sipeed NanoKVM Mini HDMI Remote Control Server for Raspberry Pi
Sipeed NanoKVM Mini HDMI Remote Control Server for Raspberry Pi
The Sipeed NanoKVM is a remote control and maintenance server that allows you to manage computer systems over a network with up to 1080P 60fps image transmission. It is designed for IT professionals and remote administrators who need to perform diagnostics or system operations via an HDMI connection.
Key features
- Remote Operation – Supports HID keyboard, mouse, and web virtual keyboard control for complete system navigation.
- High-Definition Video – Streams video output at up to 1080P 60fps for clear remote monitoring.
- System Connectivity – Features a 100M Ethernet port for stable network communication.

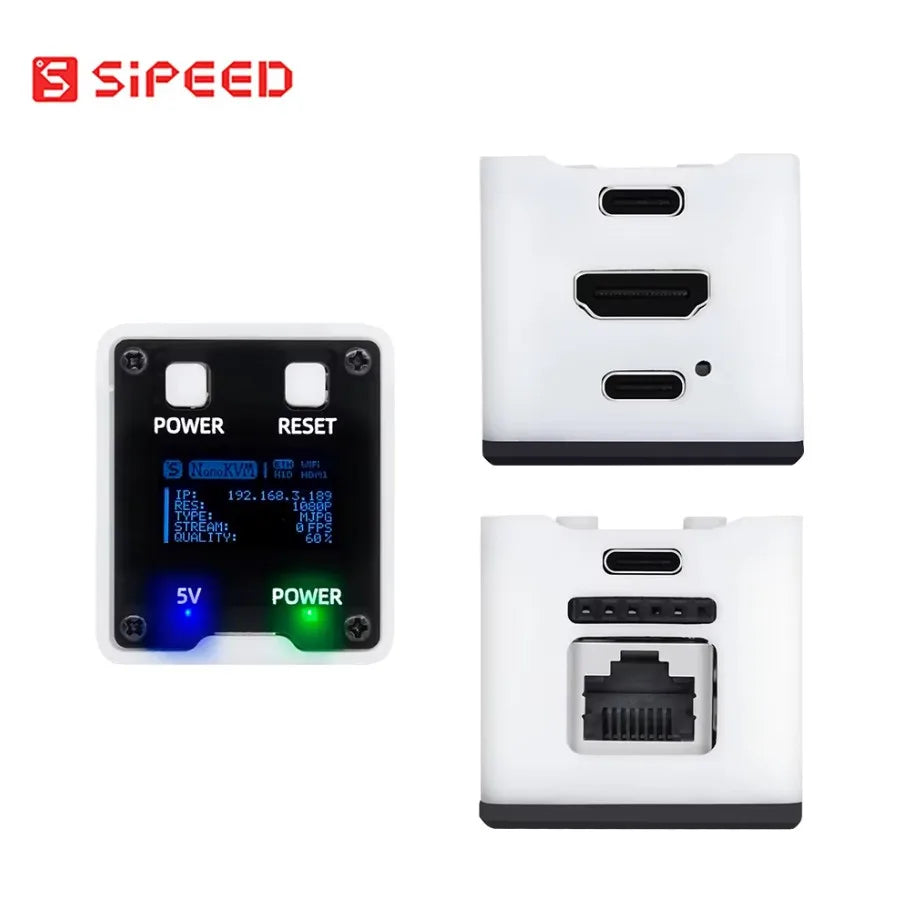

- Informative Display – The Full version includes an OLED screen to view the IP address, video resolution, frame rate, and CPU usage.
- Power Management – The Full version supports remote startup and IO power control for hardware management.
Specifications
| Model | Sipeed NanoKVM |
|---|---|
| Core | RISC-V |
| Dimensions (Lite) | 23 × 37 × 15 mm |
| Dimensions (Full) | 40 × 36 × 36 mm |
| Case Material (Full) | Photosensitive resin |
| Interfaces (Lite) | HDMI, PC-USB, 100M Ethernet |
| Interfaces (Full) | AUX-Power, HDMI, PC-USB, ATX-Power, 6P Dual Serial Port, 100M Ethernet |
| Available Variants | KVM Lite, KVM Full Black, KVM Full White |
Ideal for
This device is ideal for remote IT maintenance, server administration, and educational learning environments where physical access to the machine is not possible.
FAQ

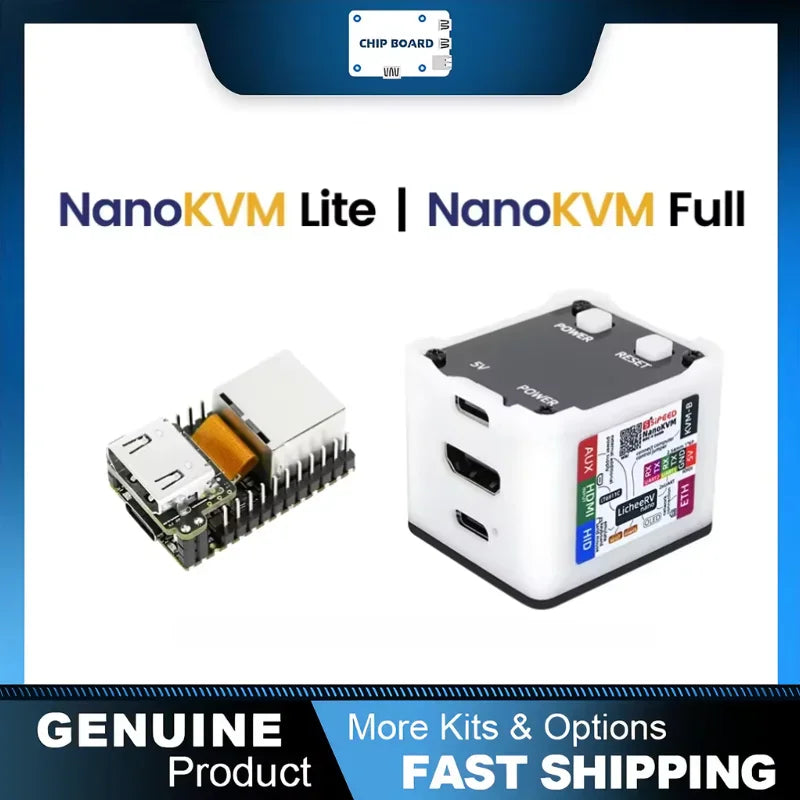

What is the difference between the Lite and Full versions?
The Lite version is more compact (23 × 37 × 15 mm) and includes HDMI, PC-USB, and 100M Ethernet, while the Full version adds power control, an OLED screen, and extra interface ports like ATX-Power and 6P Dual Serial.
Does it support remote power control?
Yes, the Full version supports remote startup and IO power control.
What resolutions does the video transmission support?
It supports image transmission at resolutions up to 1080P at 60fps.
