Solar Panel Roof Mounting Bracket Kit for Glazed Tile & Brick Roofs
Solar Panel Roof Mounting Bracket Kit for Glazed Tile & Brick Roofs
This solar panel adjustable bracket kit is designed for mounting solar panels onto brick and glazed tile roofs. The system provides a secure, weather-resistant foundation for panels with a thickness of 30 mm or 35 mm (1.18" or 1.38").
Key features

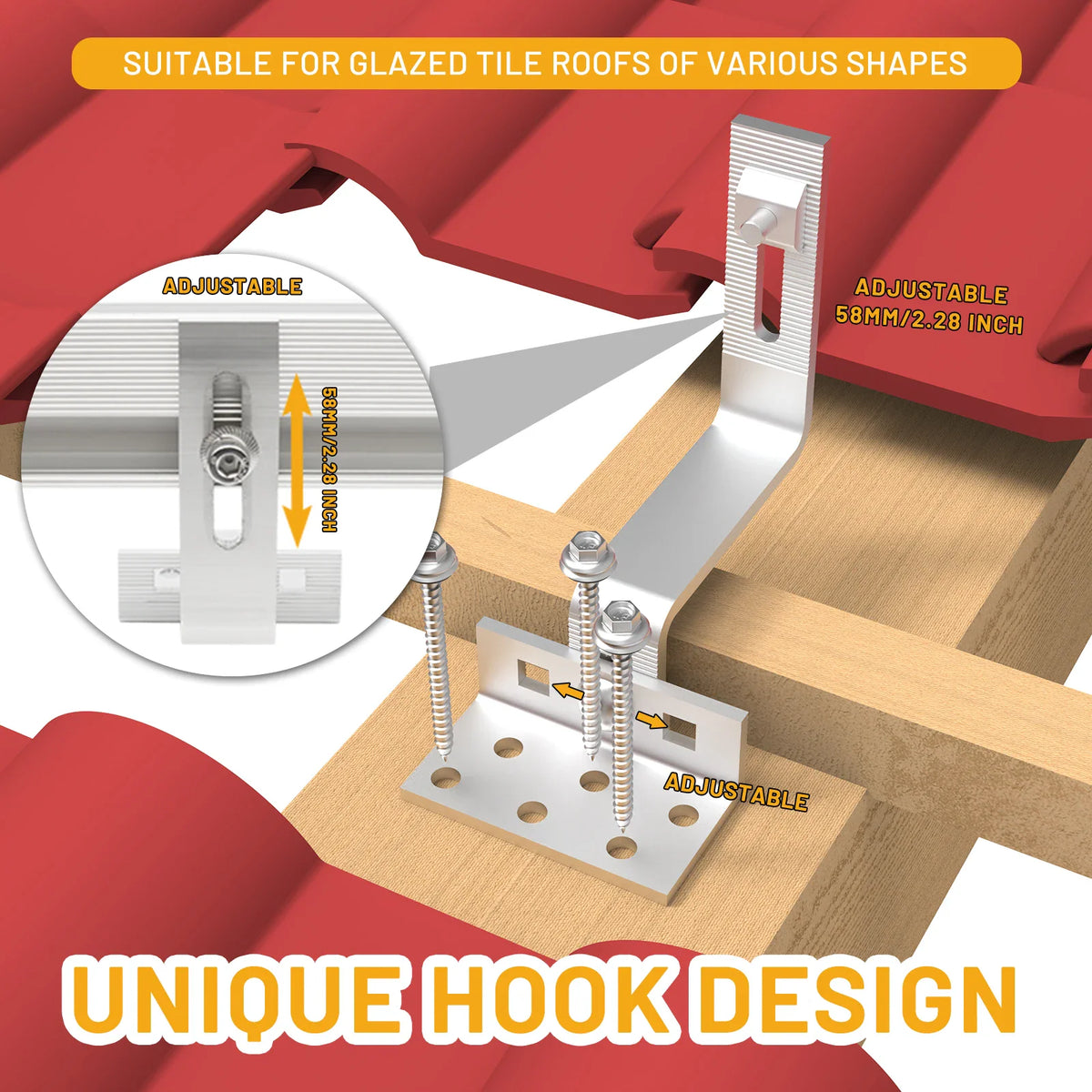

- Adjustable Design – The roof hooks are adjustable in all directions to ensure precise alignment on tiled surfaces.
- Weather Resistance – Built to withstand extreme weather conditions, including sun, storms, rain, and snow.
- Durable Construction – Made from aluminum for a balance of strength and lightweight performance.

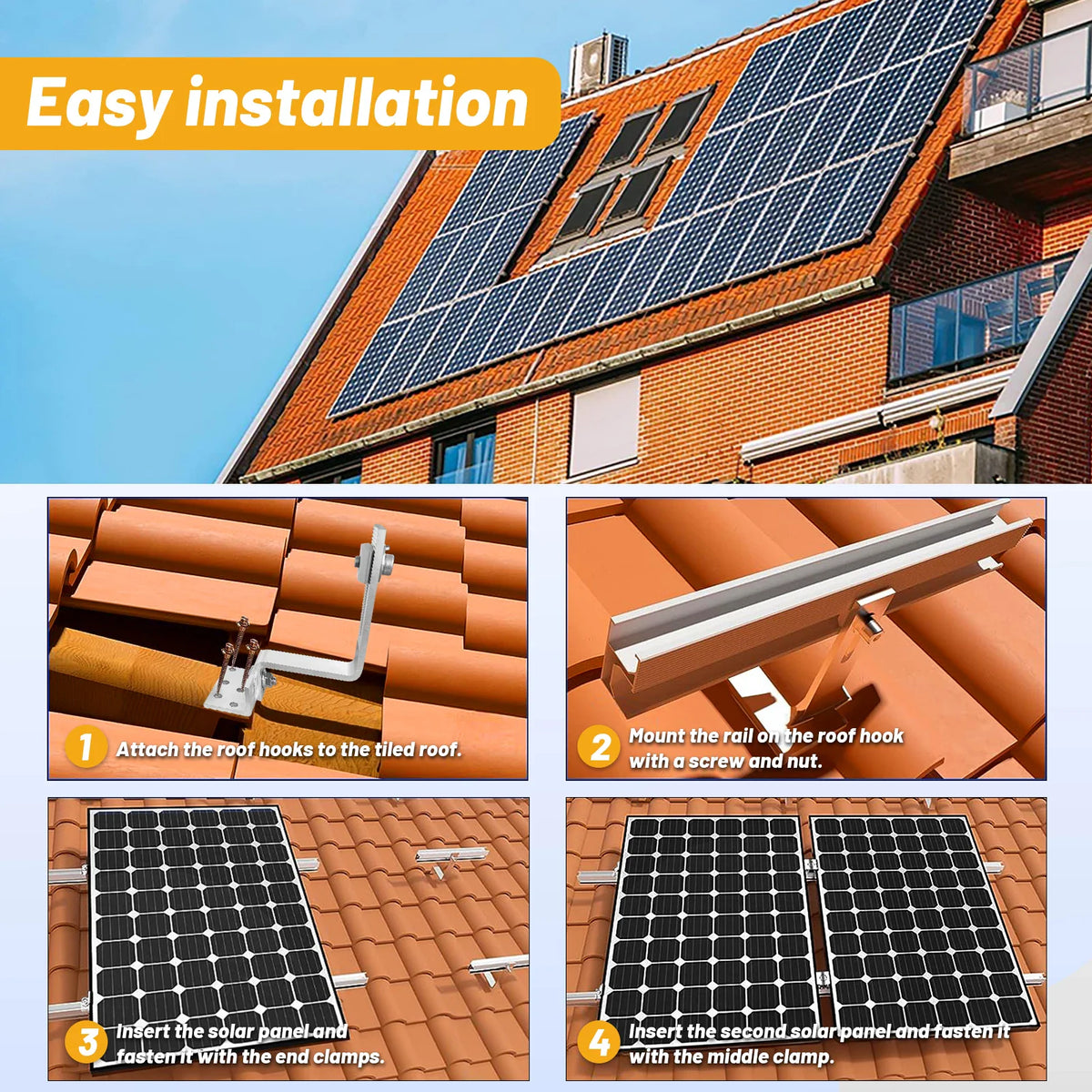

- Easy Installation – Engineered for straightforward mounting to simplify the setup process on sloped roofs.

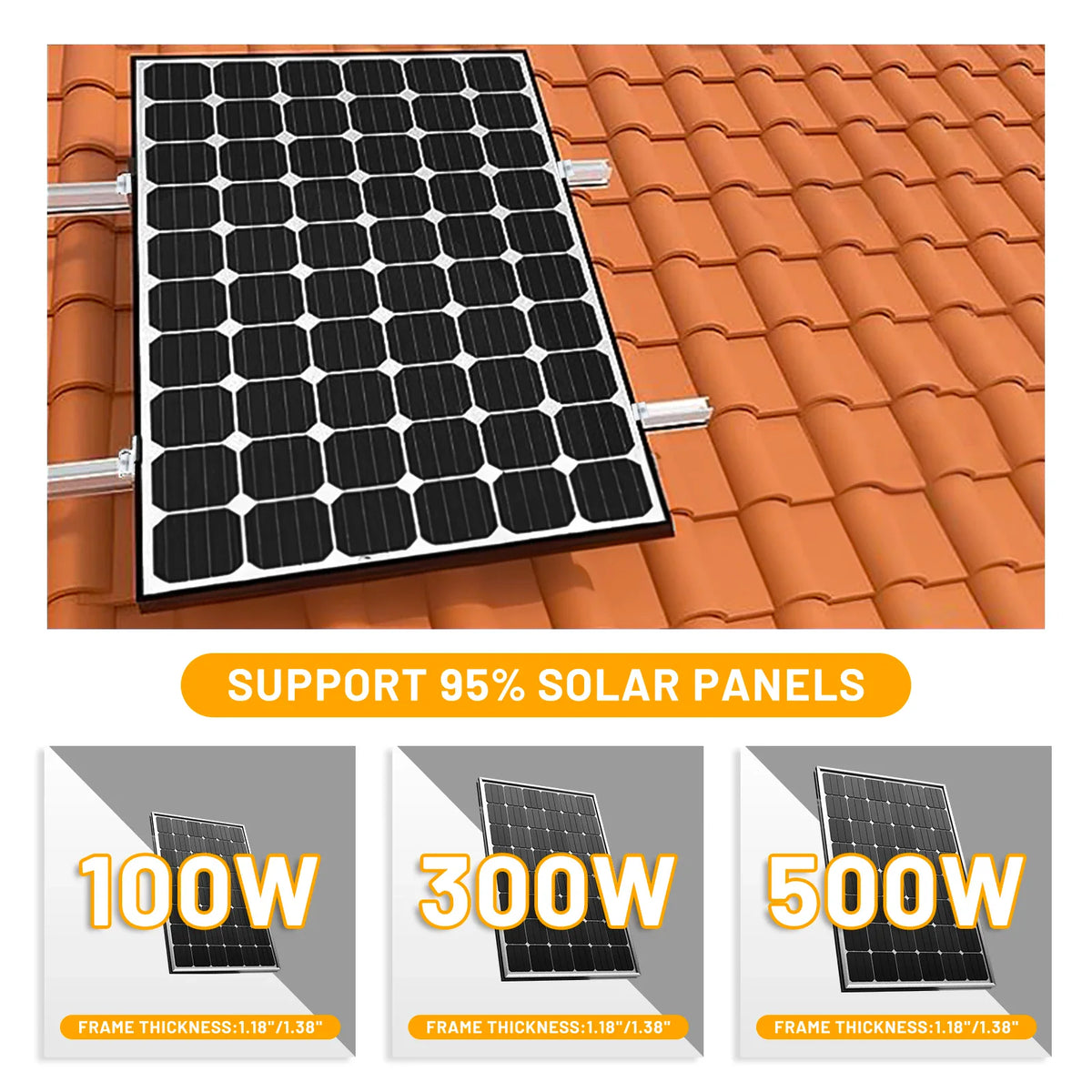

- Broad Compatibility – Designed to fit solar panels with a thickness of 30 mm to 35 mm.

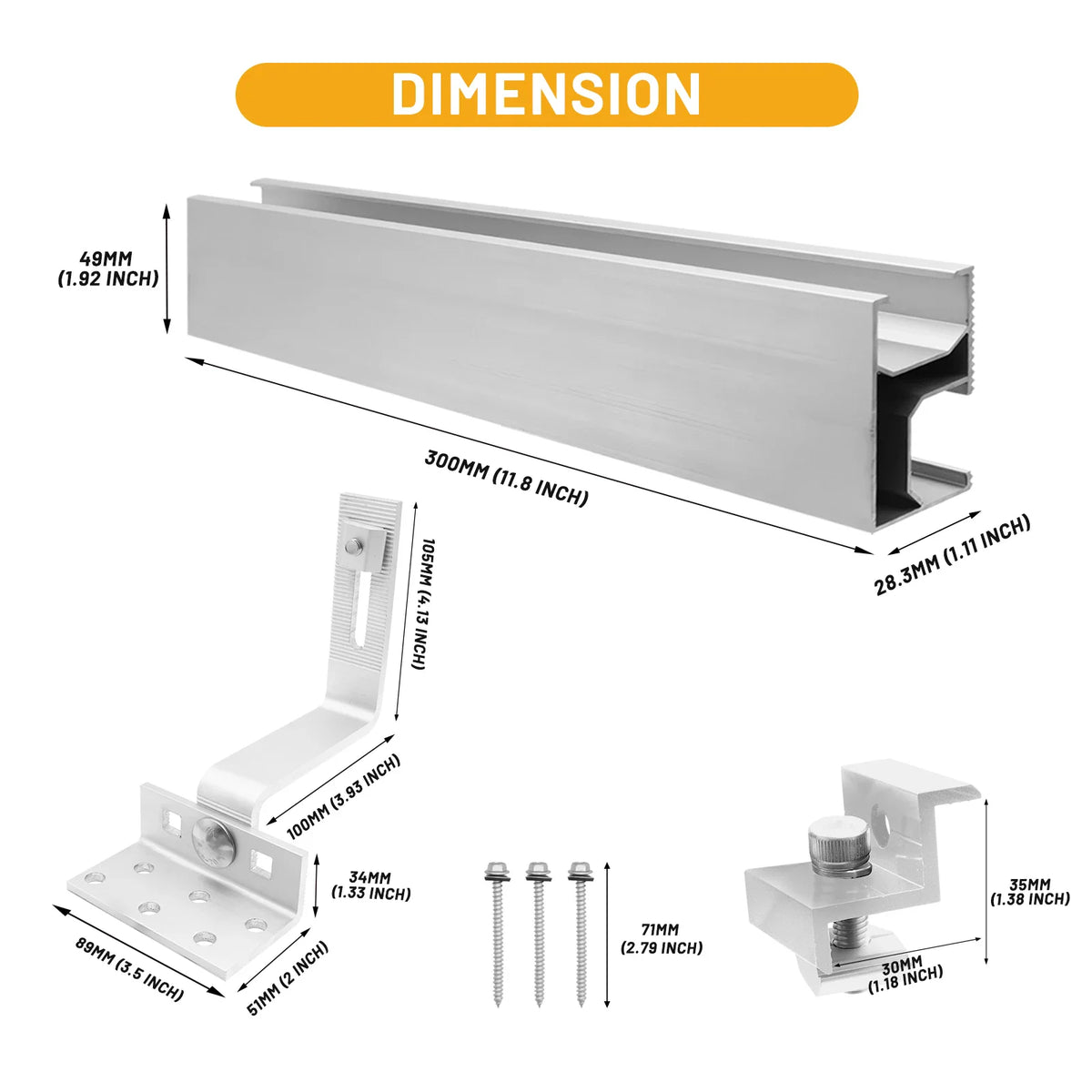

Specifications
| Material | Aluminium |
|---|---|
| Mount Rail Length | 300 mm |
| Compatible Panel Thickness | 30 mm / 35 mm (1.18" / 1.38") |
| Compatible Roof Types | Brick, glazed tile |
| Available Sets | 4 PCS, 6 PCS, 10 PCS |
| Color | Silver |

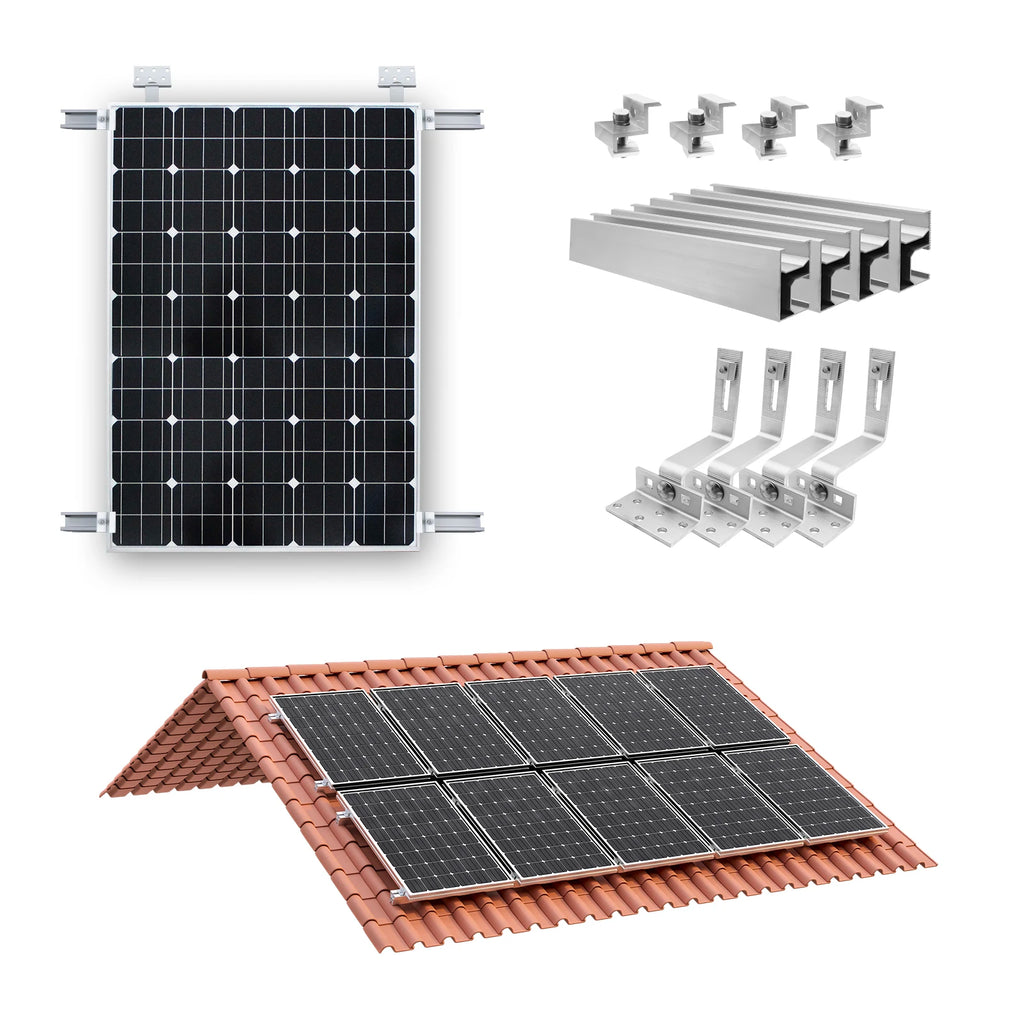

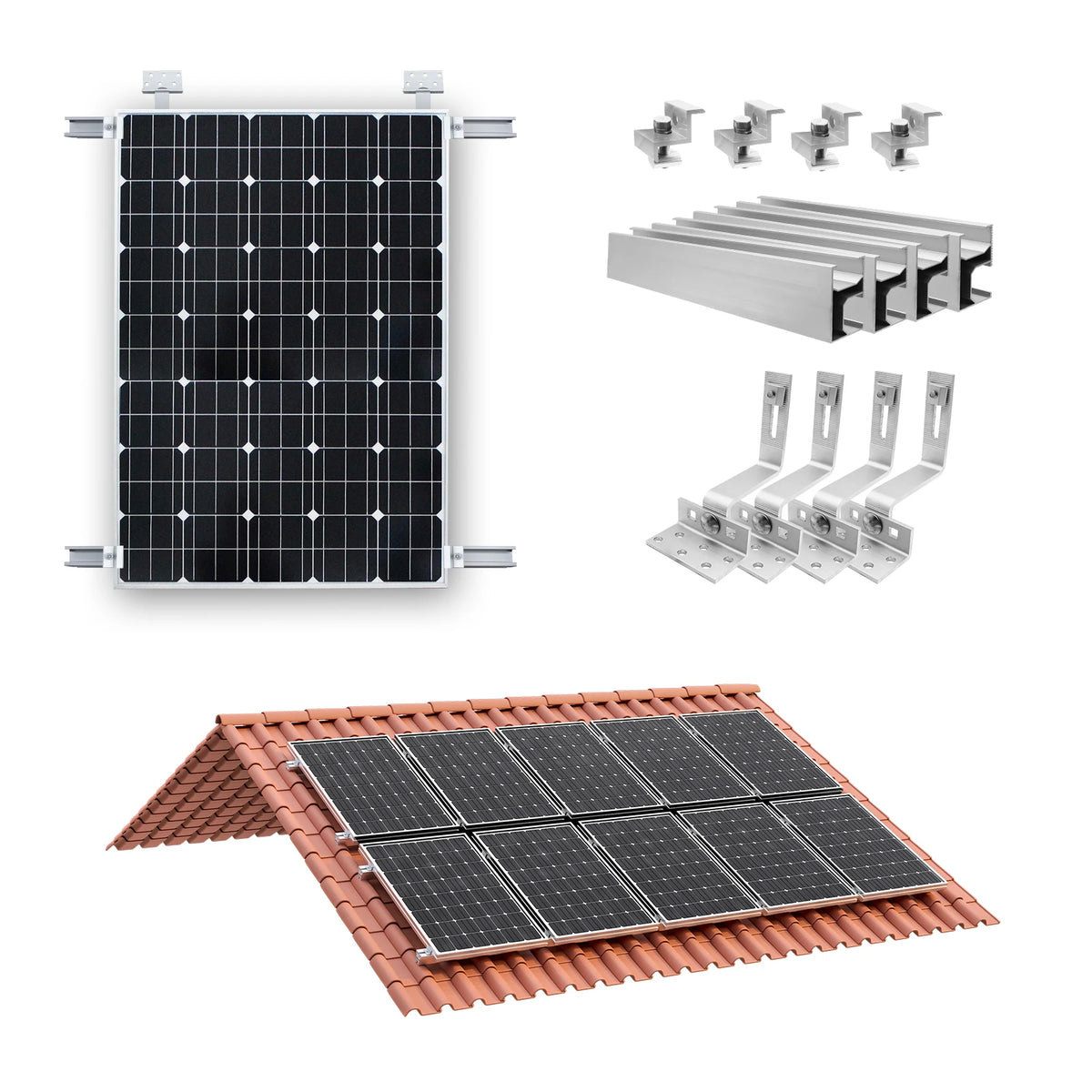

What's in the box
- Roof hooks
- Aluminum profile rails
- End clamps
- Middle clamps
- Screws
- Nuts
Ideal for
This mounting kit is suitable for homeowners and installers fitting solar panels onto residential roofs finished with bricks or glazed tiles.
FAQ
Does this fit my solar panel?
This kit is compatible with any solar panel that has a thickness of 30 mm or 35 mm (1.18" or 1.38").
What roof types does this work on?
This bracket kit is specifically designed for installation on brick and glazed tile roofs.
Is it resistant to bad weather?
Yes, the bracket is constructed to withstand extreme weather environments, including rain, snow, storms, and sunny conditions.
