Stepperonline Nema 17 Stepper Motor 48mm 55Ncm 2A
Stepperonline Nema 17 Stepper Motor 48mm 55Ncm 2A
The Stepperonline Nema 17 stepper motor is a 48mm hybrid motor designed for precision motion control in 3D printers, CNC engraving, and milling machines. It features a 55Ncm holding torque and operates on a 2A current, providing reliable performance for automated hardware builds.
Key features
- Holding Torque – Provides 55Ncm of force for stable movement under load.
- Precise Step Angle – Offers a 1.8-degree step angle for accurate positioning control.

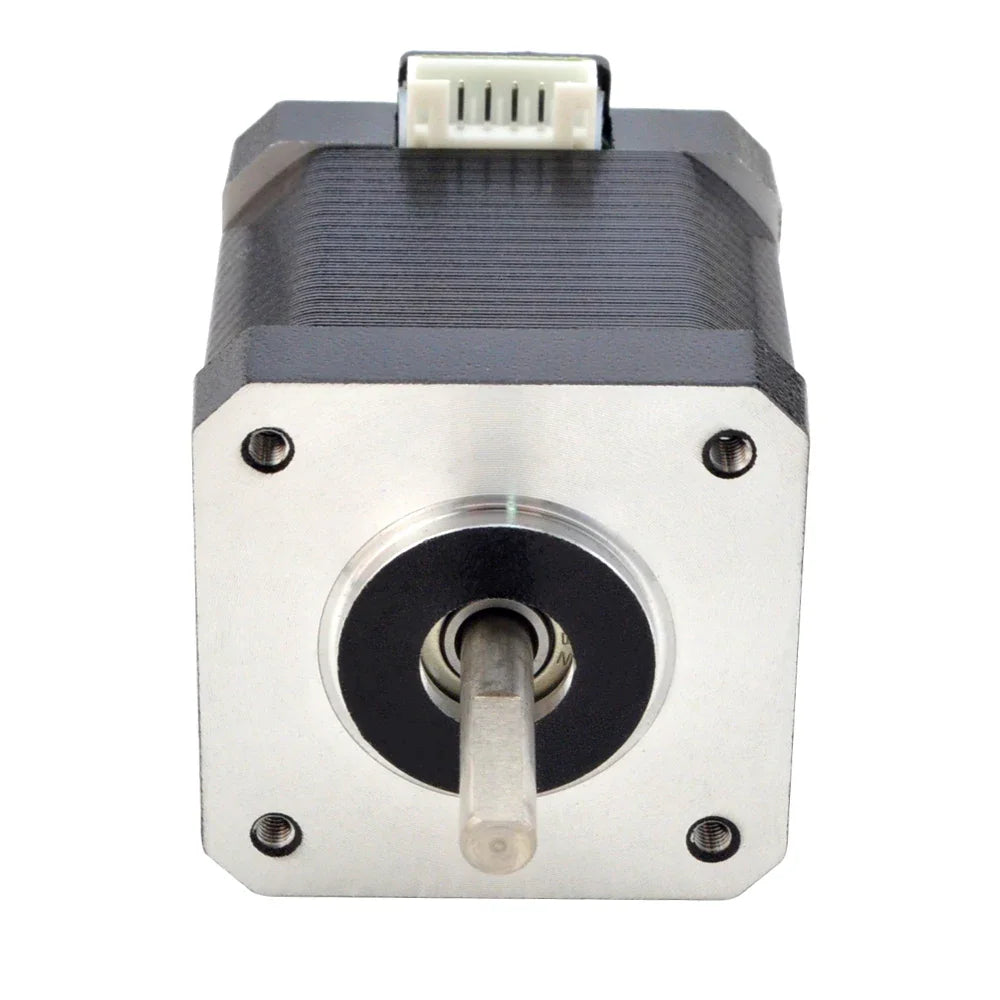

- Durable Construction – Features a 42 x 42mm frame size and a 5mm shaft diameter for standard mounting compatibility.

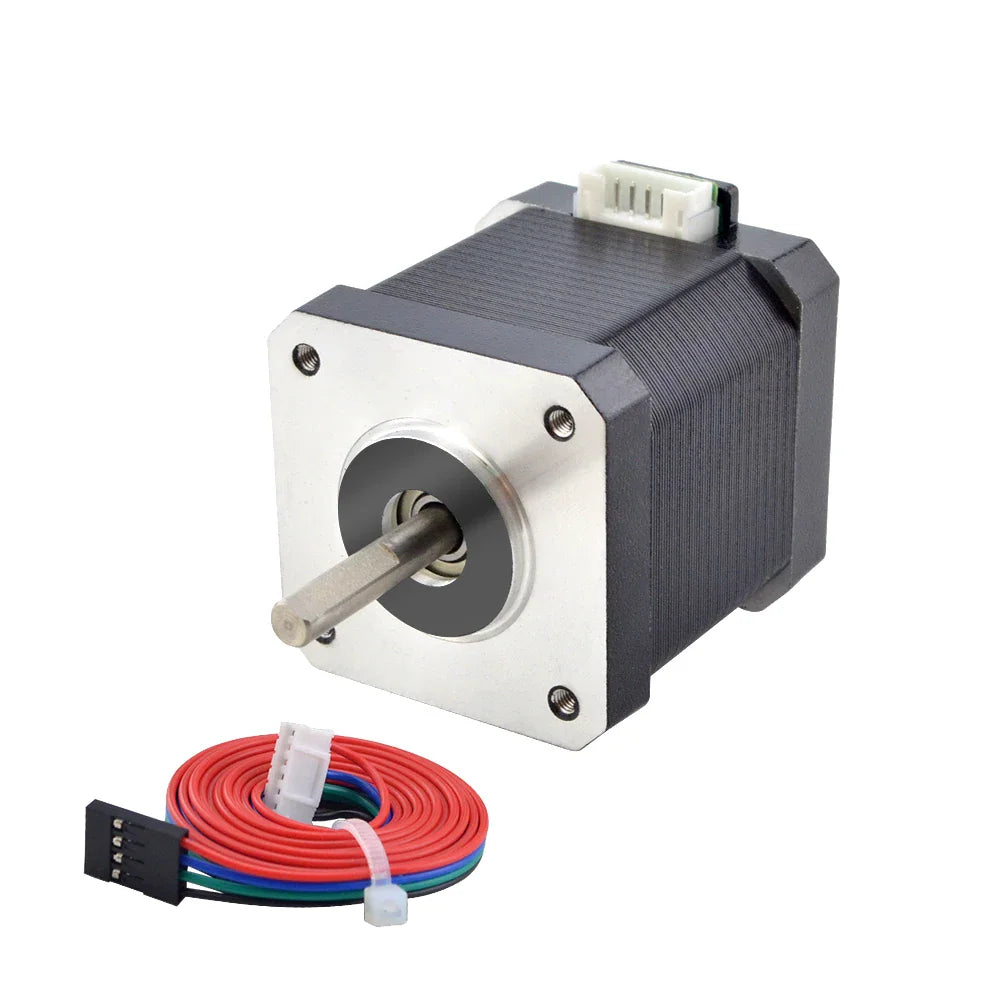

- Connectivity – Includes a 1000 mm lead wire for flexible installation in various machine chassis.
Specifications
| Model Number | 17HE19-2004S |
| Frame Size | 42 x 42mm |
| Body Length | 48mm |
| Holding Torque | 55Ncm |
| Rated Current | 2.0 A |
| Step Angle | 1.8 degrees |
| Shaft Diameter | 5mm |
| Shaft Length | 24mm |
| Weight | 400 g |
| Cable Length | 1000 mm |
| Lead count | 4 |
| Phase Resistance | 1.3 ohms |

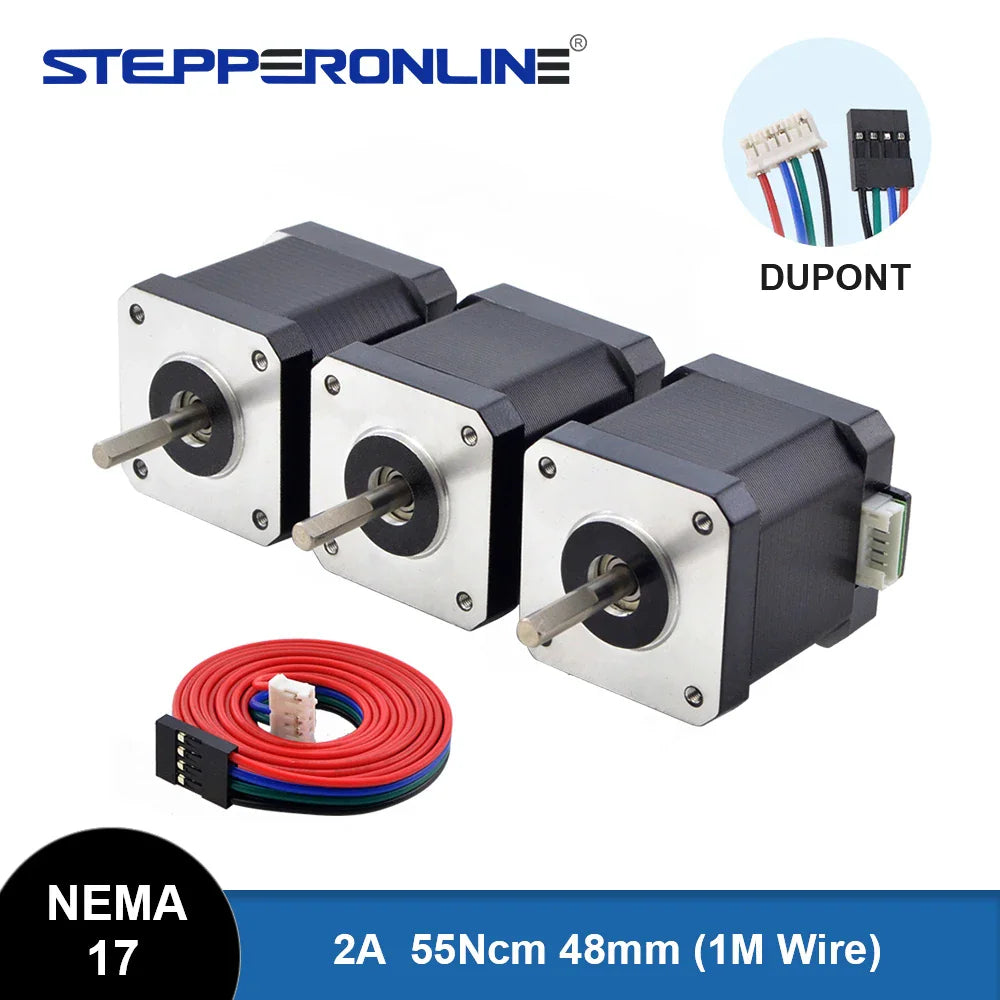

| Options | 1PCS or 3PCS 17HE19-2004S |
Ideal for
This motor is ideal for builders and engineers working on DIY 3D printers, small CNC engraving machines, and custom milling equipment that requires a standard Nema 17 mounting footprint.
FAQ
Does this motor fit standard Nema 17 mounts?
Yes, this motor uses a 42 x 42mm frame size with a mounting hole spacing of 31mm, which is standard for Nema 17 applications.
What power supply voltage is recommended?
The torque curve data is based on a 24 V power supply at 2 A of current.
How many wires does the motor have?
The motor features 4 leads with a PH-6AWJ connector type.
