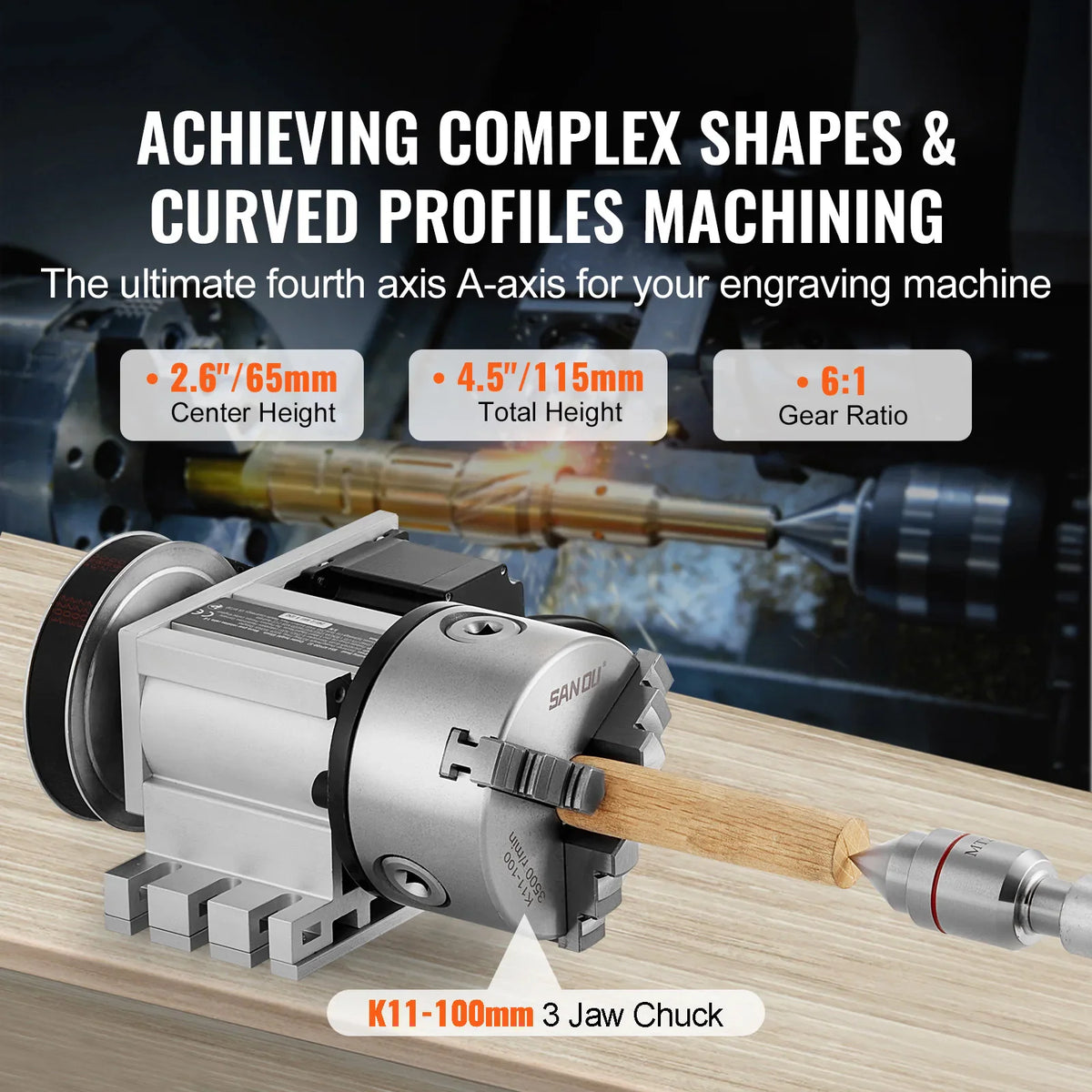

The SucceBuy 4th Axis Dividing Head is a CNC rotational axis tool designed to assist with precise milling and engraving tasks on complex, multifaceted parts. Featuring a 6:1 gear ratio, a 65 mm center height, and a Nema23 2-phase stepper motor, this unit provides the controlled positioning needed for high-accuracy machining.
Key features
- 4th Axis Functionality – Allows for carving and machining from multiple angles, suitable for parts with curves or angular features.

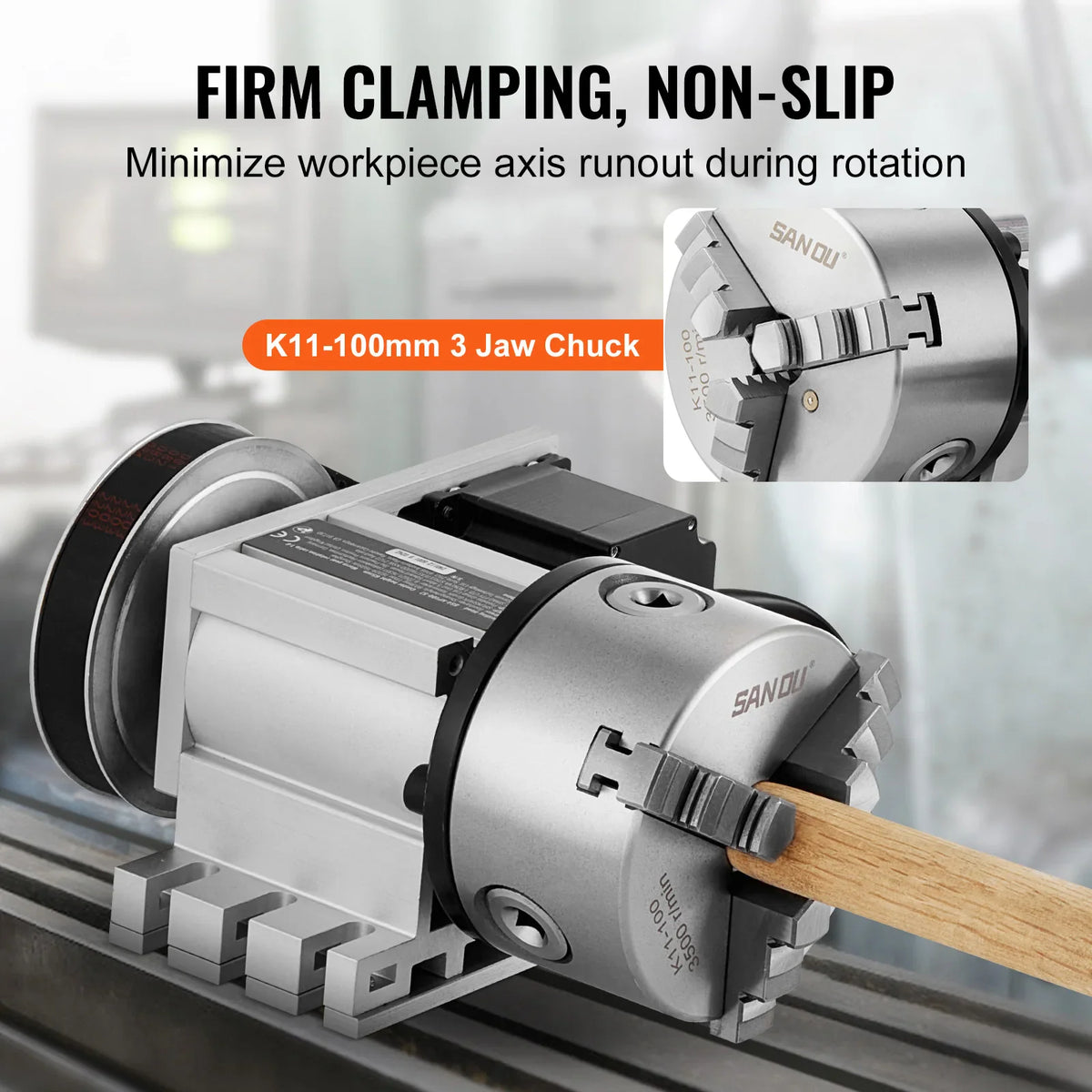

- K11-100mm 3-Jaw Chuck – Secures workpieces with a 22 mm through-hole diameter and includes both internal and external jaws for versatile clamping.

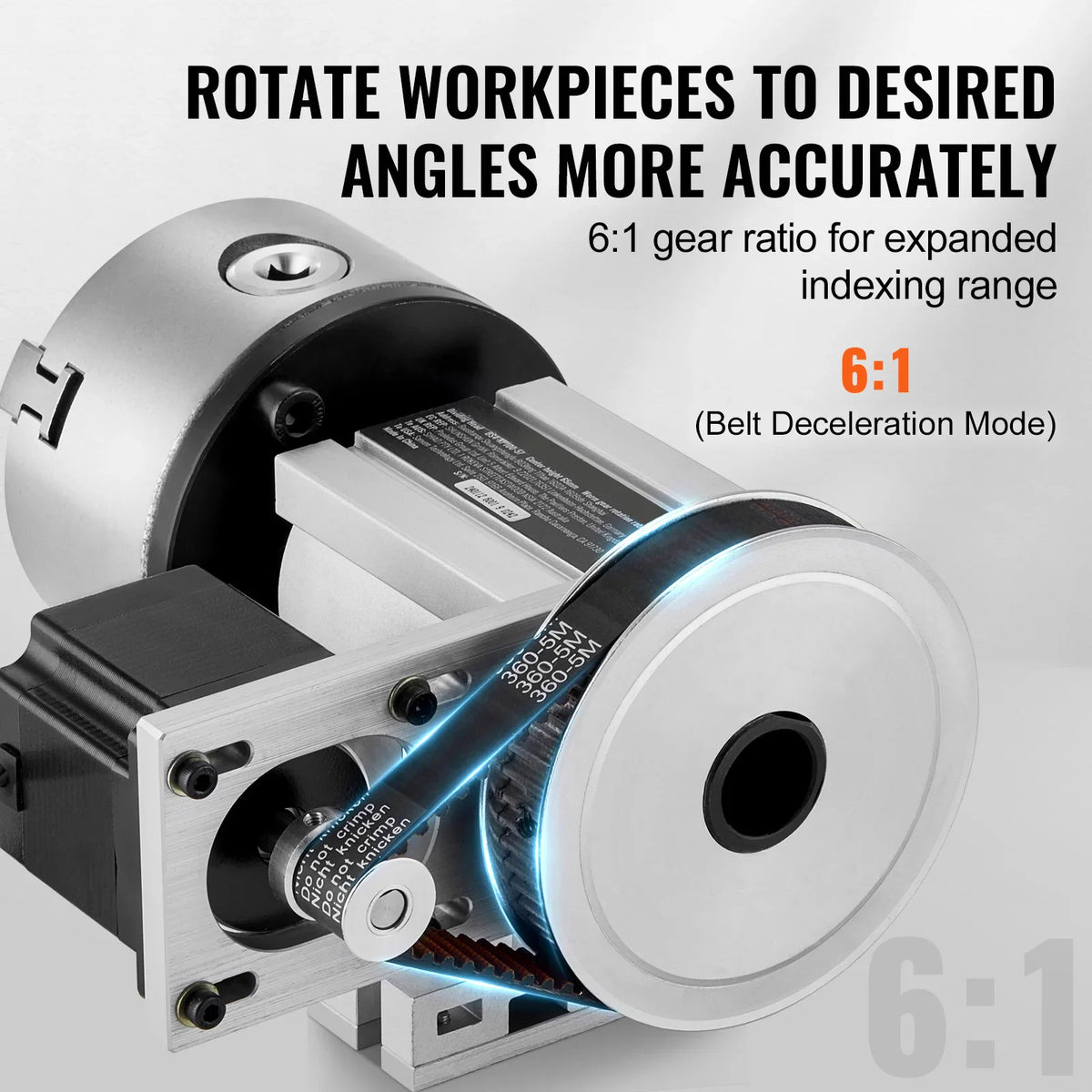

- Precision Control – Uses a 6:1 reduction ratio to lower motor speed for smoother operation and higher indexing accuracy.

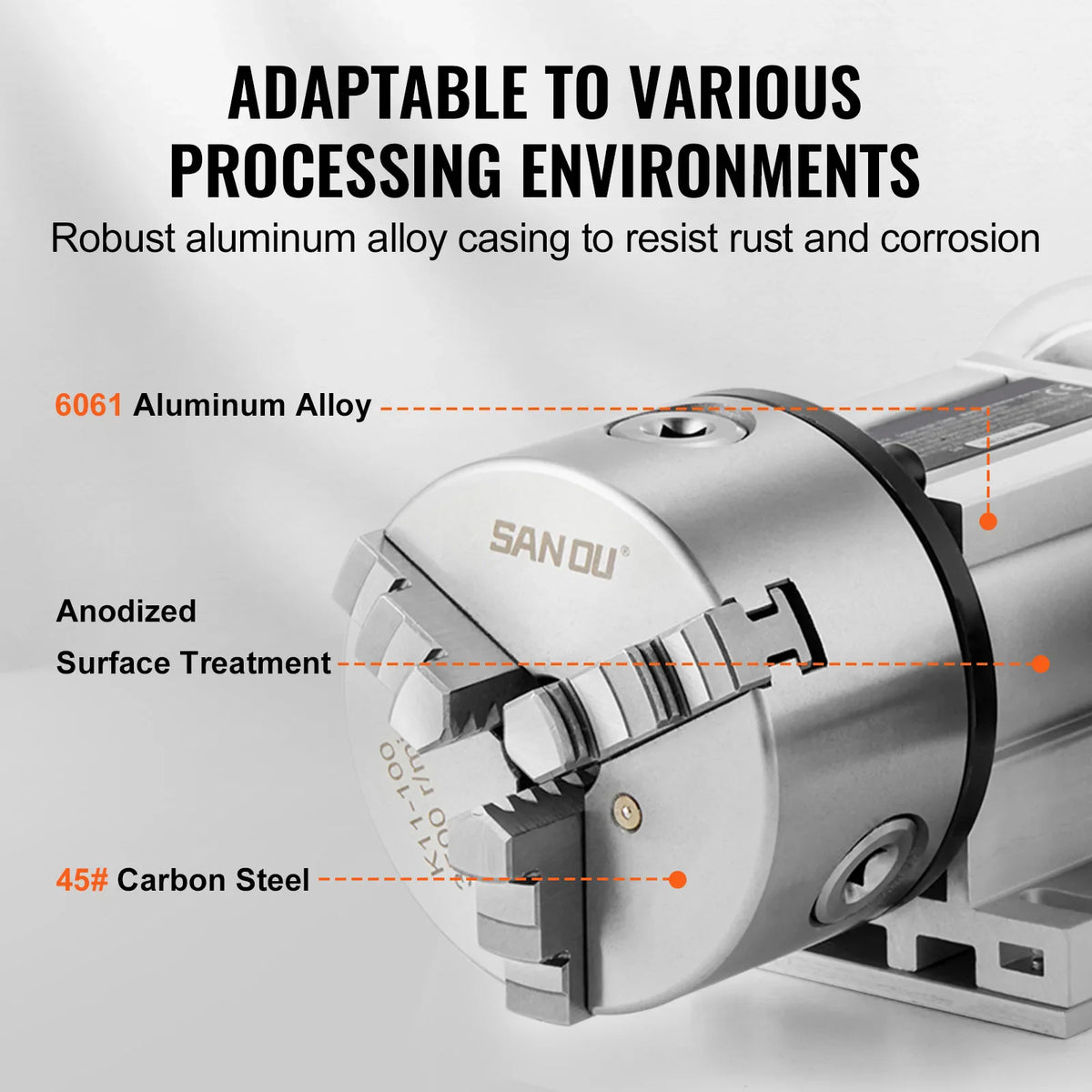

- Durable Construction – Built with 6061 aluminum alloy featuring an anodized finish for enhanced wear and corrosion resistance.
- MT2 Tailstock – Includes a tailstock with an MT2 taper and a 40 mm travel range to support workpieces during operation.
Specifications
| Center Height | 2.6" / 65 mm |
|---|---|
| Gear Ratio | 6:1 |
| Chuck Type | K11-100 mm 3-jaw chuck |
| Internal Jaw Capacity | 0.08–1.18" / 2–30 mm |
| External Jaw Capacity | 1.18–3.15" / 30–80 mm |

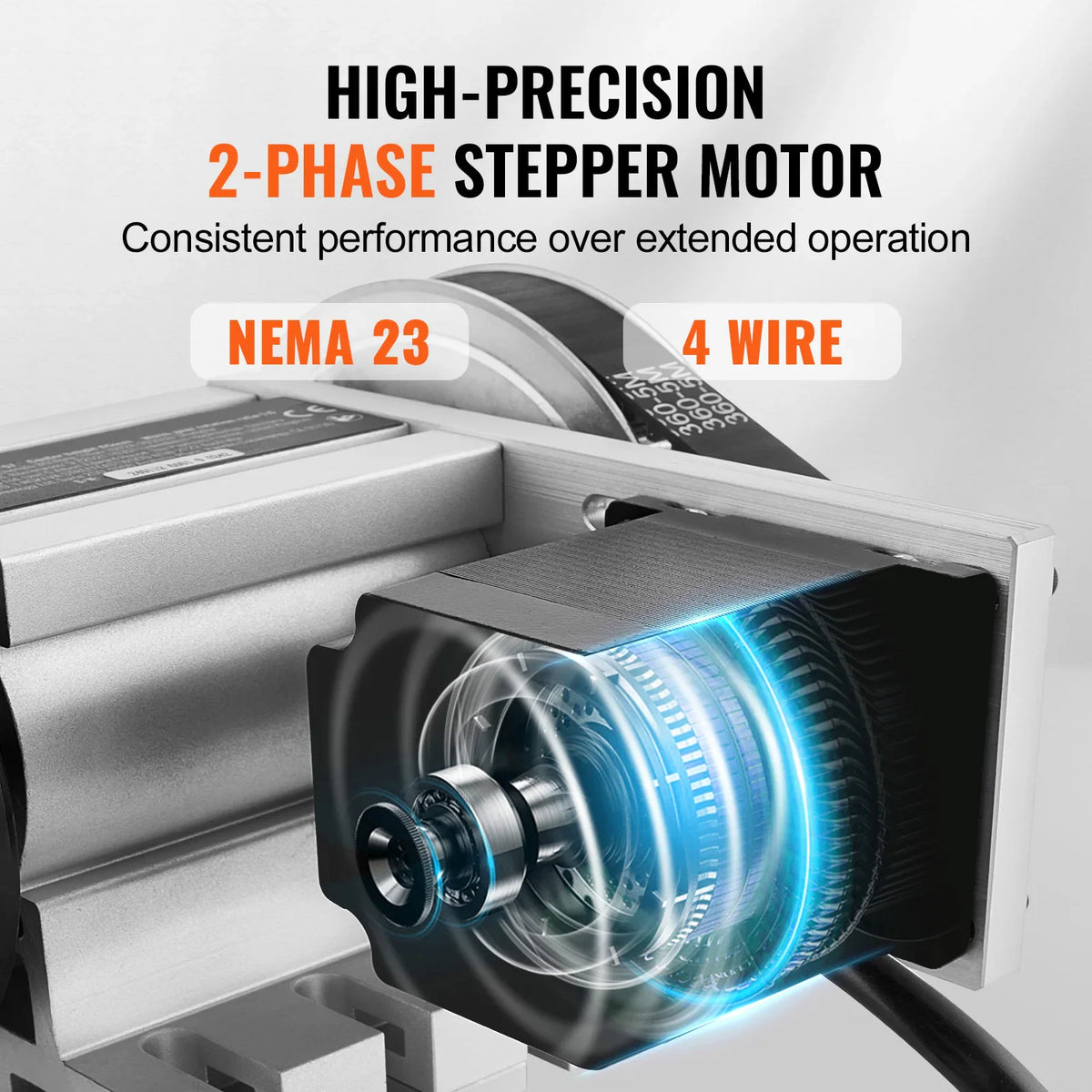

| Motor Type | Nema23 2-phase stepper motor |
| Motor Dimensions | 2.2 x 2.2 x 2.2" / 57 x 57 x 56 mm |
| Tailstock Travel | 1.6" / 40 mm |
| Net Weight | 17.6 lbs / 8 kg |

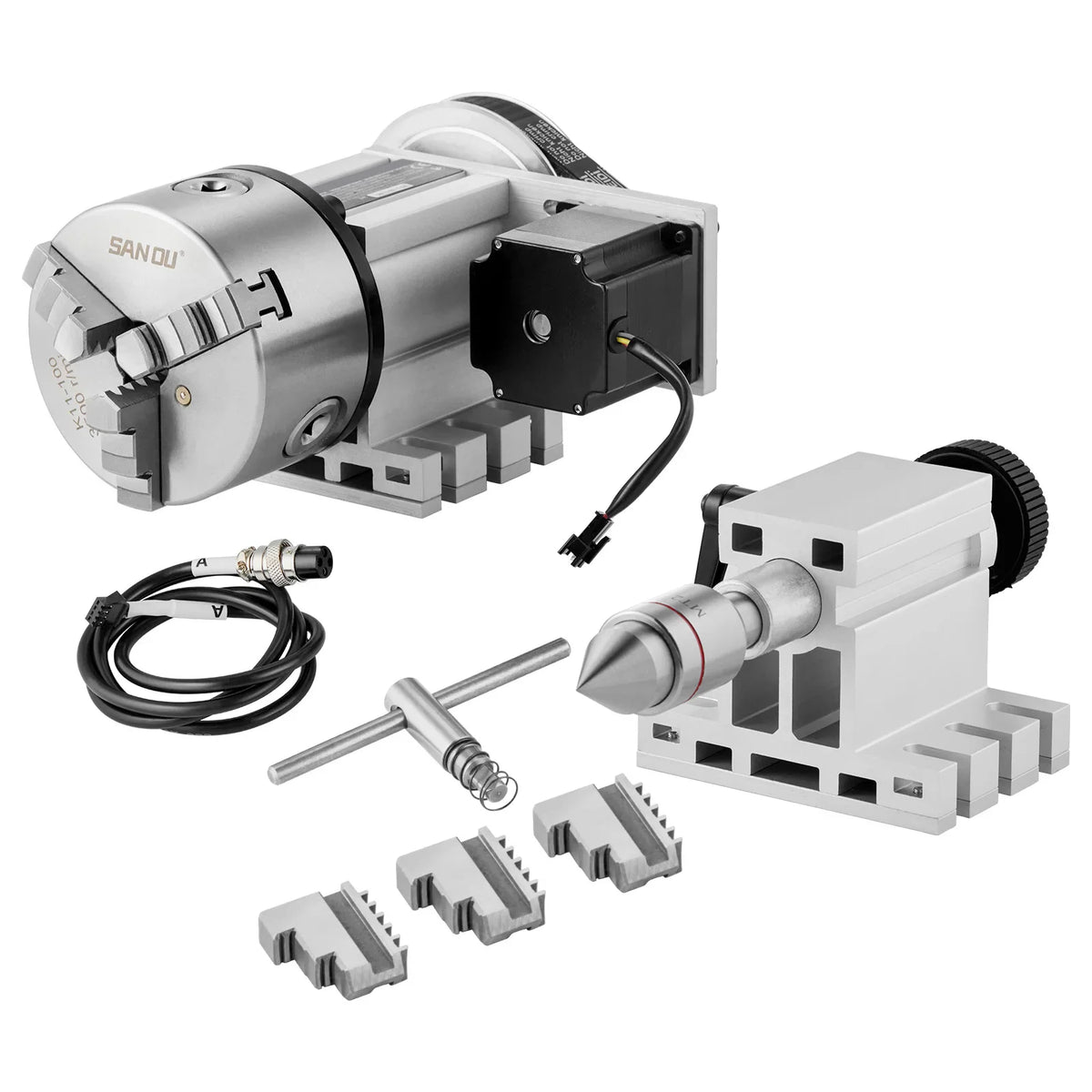

What's in the box
- Dividing head with K11-100mm 3-jaw chuck
- Tailstock with MT2 taper
- 3 internal jaws
- 3 external jaws
- T-wrench
- Signal cable
Ideal for
This dividing head is ideal for CNC operators and machinists performing high-precision engraving, milling, and complex indexing work that requires reliable workpiece rotation.
FAQ
Does it come with a tailstock?
Yes, it includes a tailstock featuring an MT2 taper and a 40 mm travel range.
What is the clamping range of the chuck?
The 3-jaw chuck supports internal clamping from 2 mm to 30 mm and external clamping from 30 mm to 80 mm.
How is the motor powered?
It is equipped with a Nema23 2-phase stepper motor operating at DC 3.75V, 2.5A.
