SucceBuy 7" x 14" Benchtop Metal Lathe, 500W, 0-2200 RPM
SucceBuy 7" x 14" Benchtop Metal Lathe, 500W, 0-2200 RPM

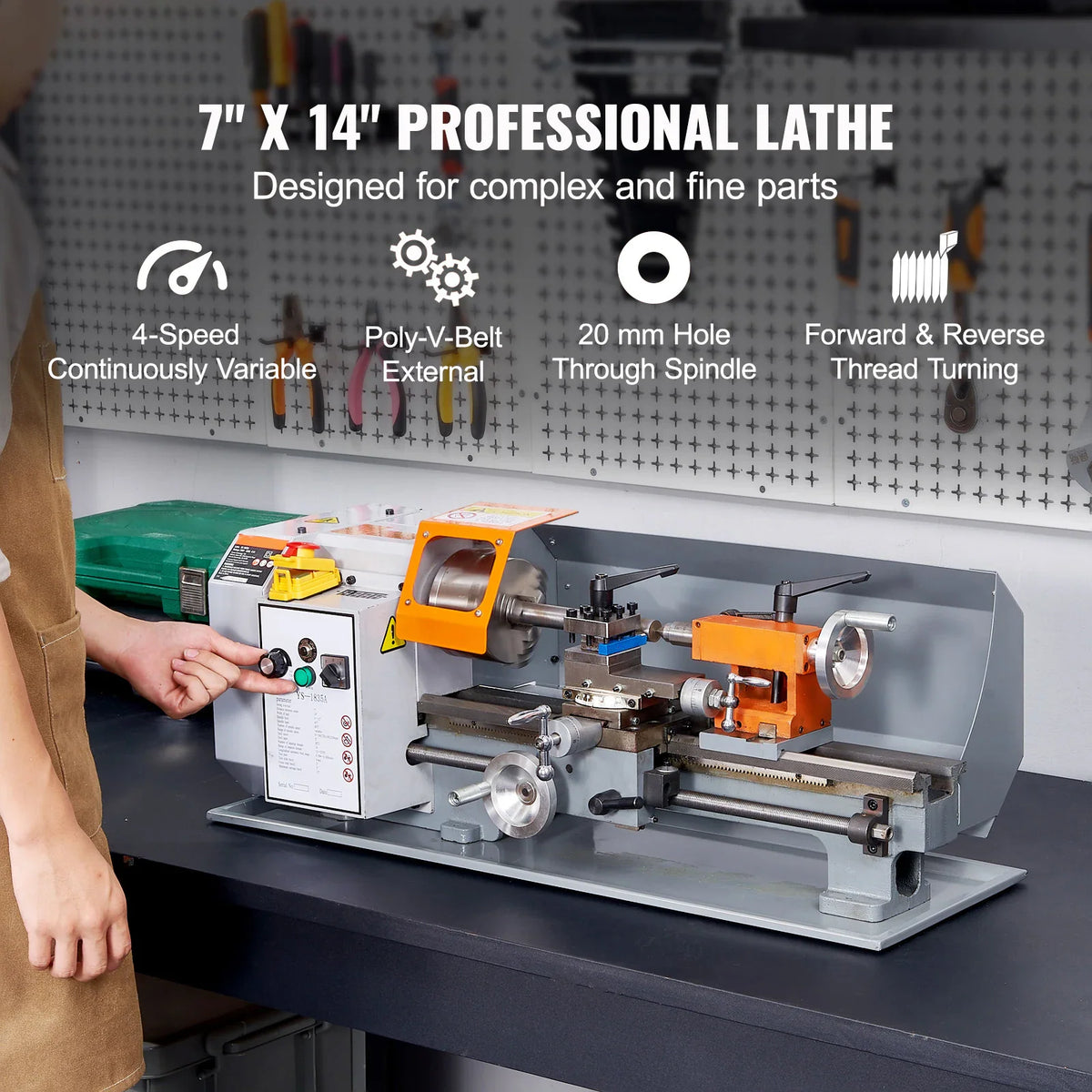

The SucceBuy benchtop metal lathe is a 7" x 14" machine powered by a 500W motor, designed for precision processing of stainless steel, iron, and wood parts. Featuring a robust HT200 cast iron body and continuously variable speed settings up to 2200 RPM, it provides a stable and accurate platform for threading and rotating surface tasks.
Key features

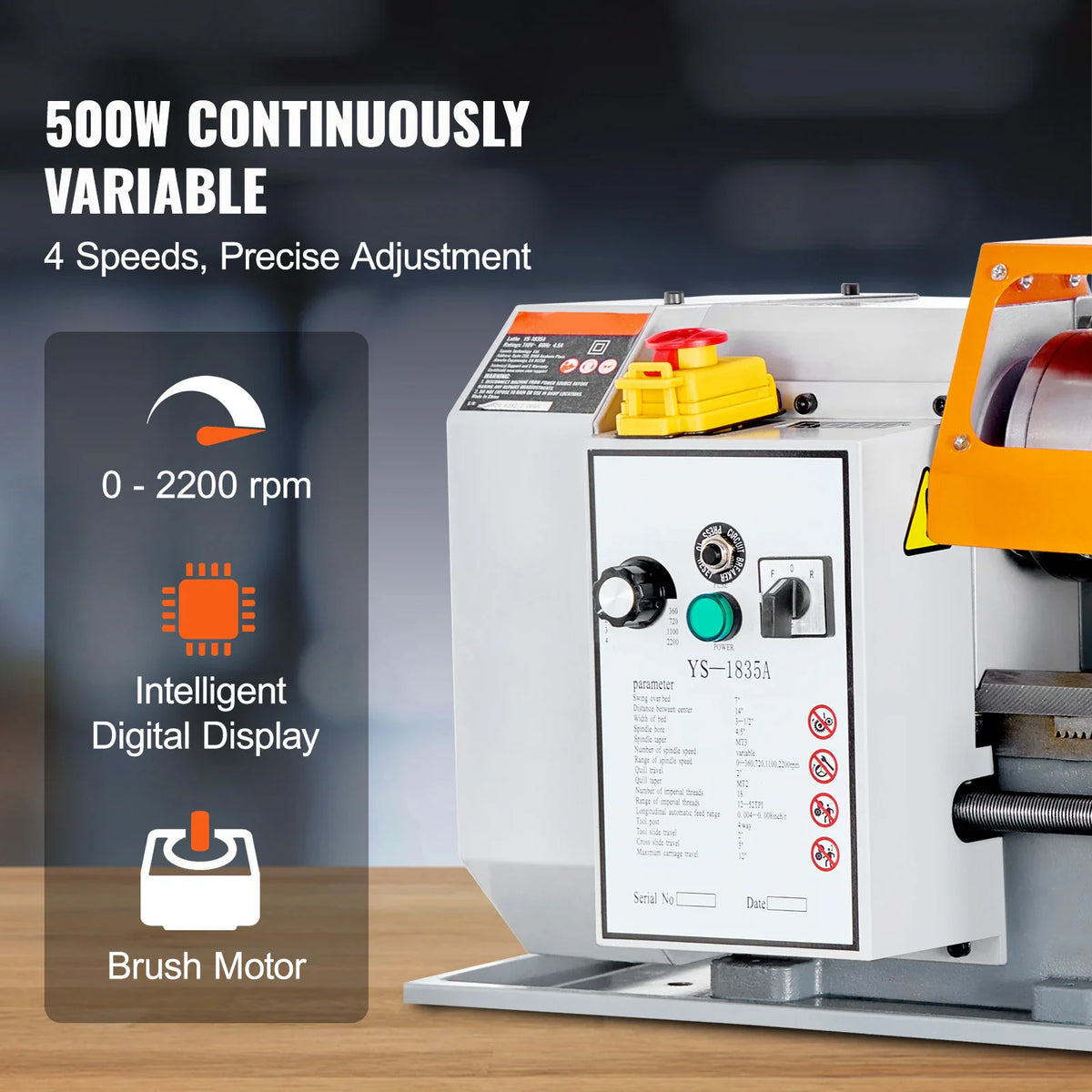

- Variable Speed Control – Easily adjust the spindle speed between 0 and 2200 RPM for various materials using the digital display.

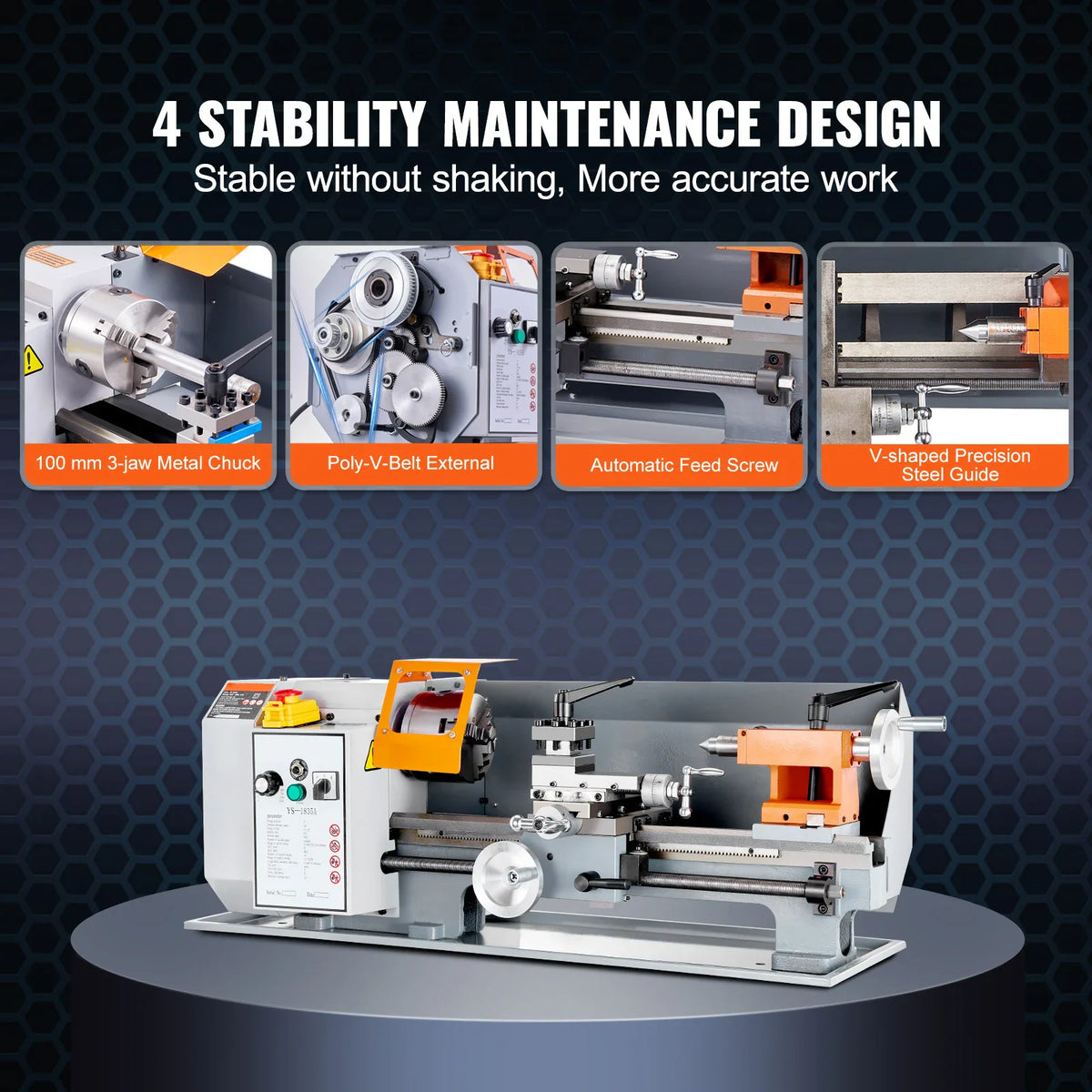

- Increased Torque – The poly-V-belt transmission increases output torque by 3 times for improved turning of 45# steel bars.
- Safety Protections – Includes chuck cover disconnection protection, automatic overload protection, and circuit board guards for operational safety.

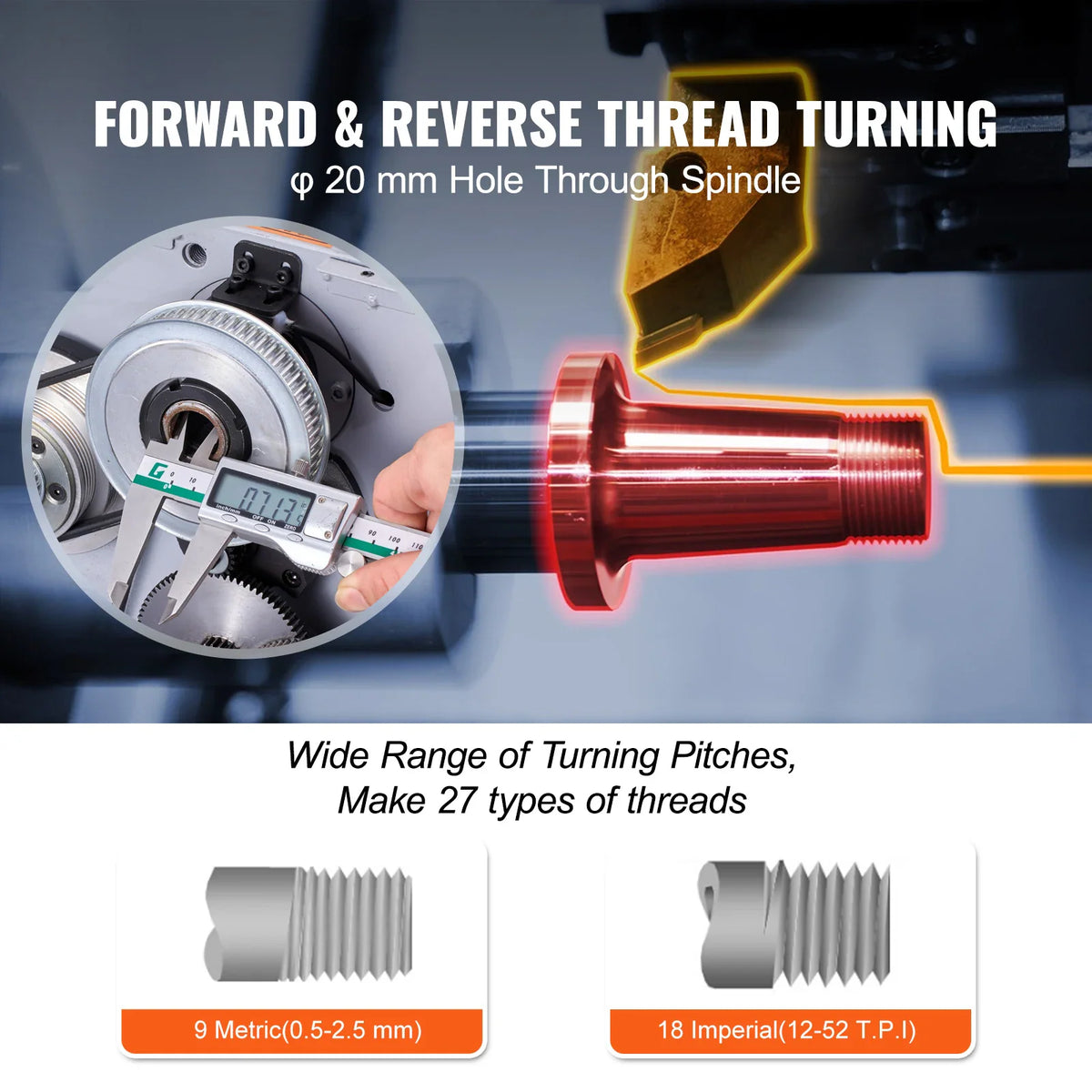

- Thread Turning Capabilities – Supports 18 types of imperial threads ranging from 12-52 T.P.I in both forward and reverse directions.
- Precision Tailstock – The tailstock features an MT2 taper and a precision dial on the handle for accurate, professional-grade adjustments.

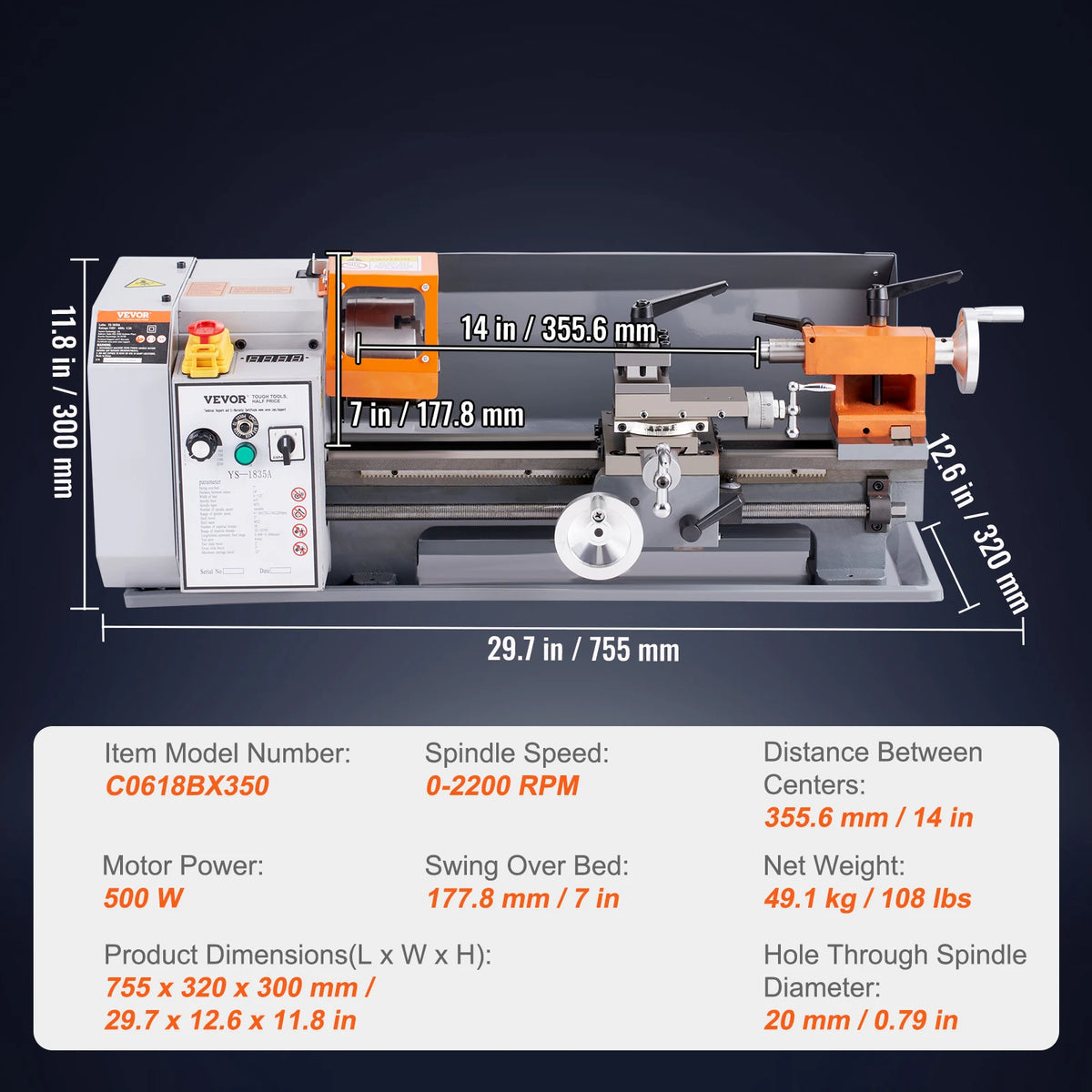

Specifications
| Main Material | HT200 Cast Iron |
|---|---|
| Motor Power | 500W |
| Spindle Speed | 0-2200 RPM |
| Hole Through Spindle | 20 mm / 0.79 in |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Chuck Diameter | 3.9 in |
| Dimensions | 755 x 320 x 300 mm / 29.7 x 12.6 x 11.8 in |
| Net Weight | 49.1 kg / 108 lbs |
| Model Number | C0618BX350 |
Ideal for
This benchtop lathe is ideal for machinists and hobbyists requiring a compact yet powerful machine for precise metalworking, threading, and small-part processing in home or professional workshops.
FAQ
What is the maximum spindle speed?
The spindle speed is continuously variable from 0 to 2200 RPM.
What materials can be processed?
This lathe is capable of processing stainless steel, iron, and wood.
Does it come with safety features?
Yes, it features automatic overload protection, chuck cover disconnection protection, and high-speed reverse fool-proofing.
