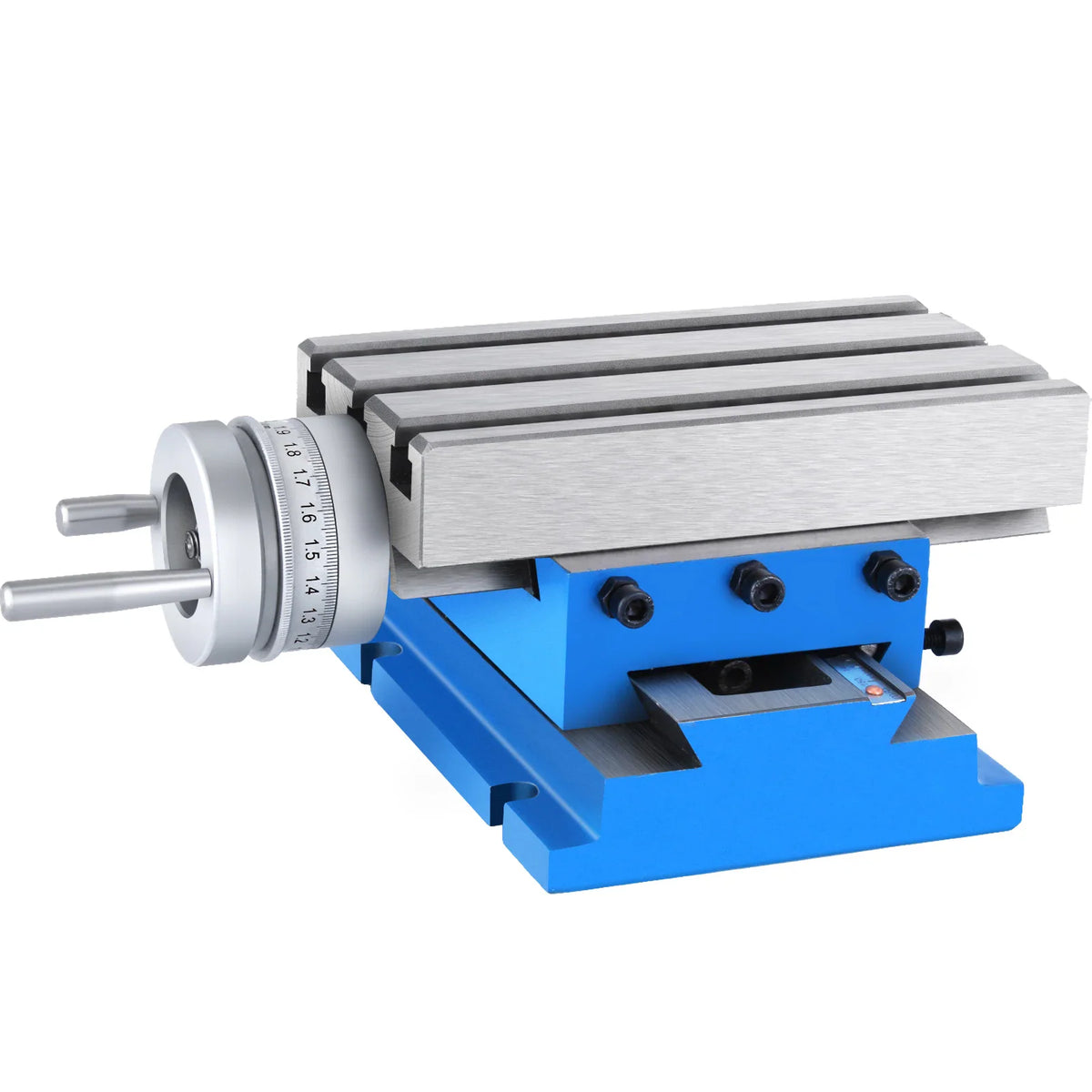

SucceBuy Compound Slide Milling Table, 7.3 x 4 Inch Worktable
SucceBuy Compound Slide Milling Table, 7.3 x 4 Inch Worktable
This SucceBuy compound slide milling table provides a stable 7.3 x 4 inch work surface for drill stands, drilling, and milling machines. It is designed for machinists and hobbyists who need precise positioning, milling, or drilling with a maximum workpiece weight capacity of 66 lbs.
Key features

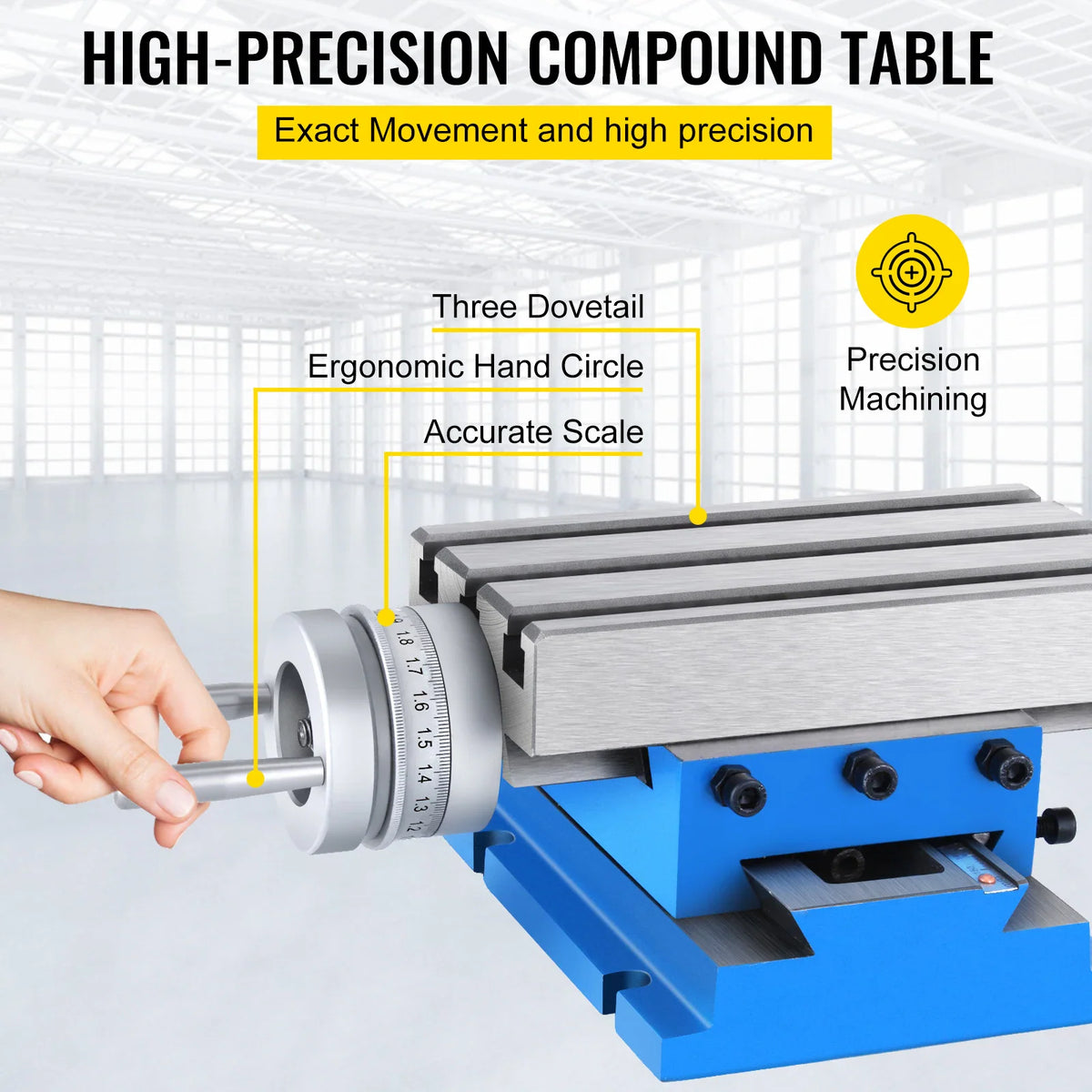

- Ergonomic Cranks – Designed for comfortable operation with precise scales for micro-adjustments as fine as 0.01 mm.
- Widened Tabletop – Features a 100 mm wide work area to accommodate various processing needs.
- T-Shaped Grooves – Includes three grooves with a 10 mm length and 33 mm interval width for tight, reliable clamping of materials.

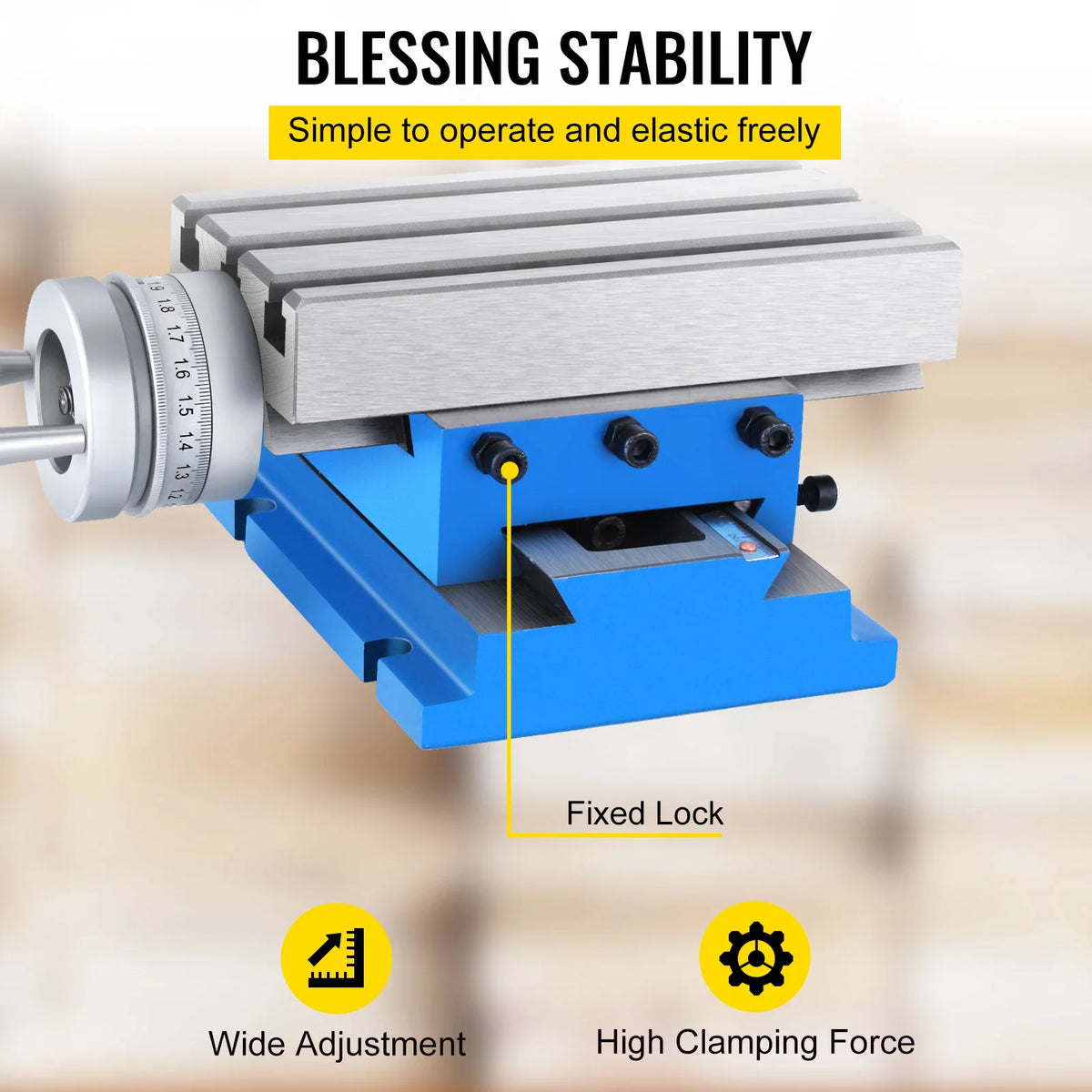

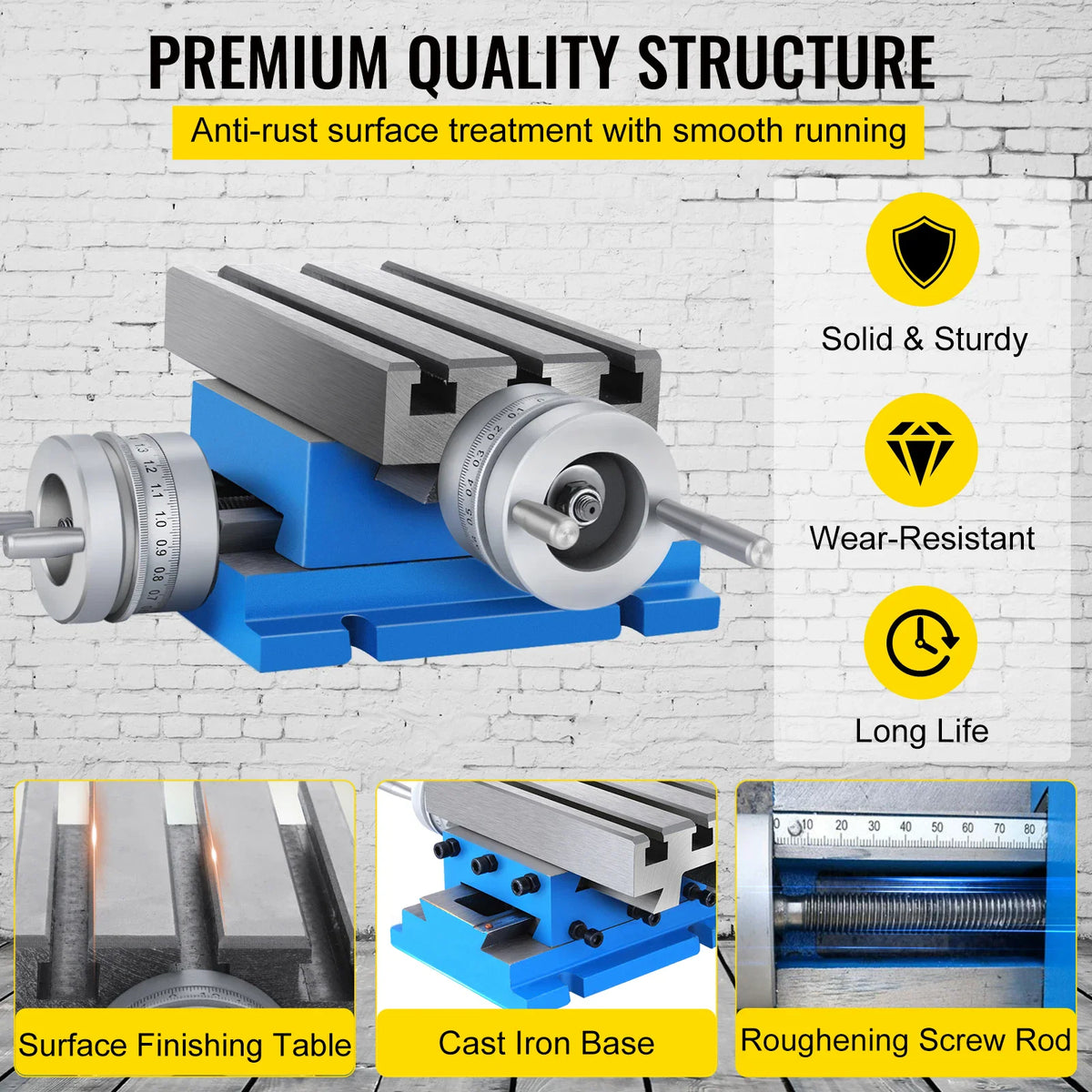

- Cast Iron Base – Built with a solid base to provide stability and enhance processing precision during operation.

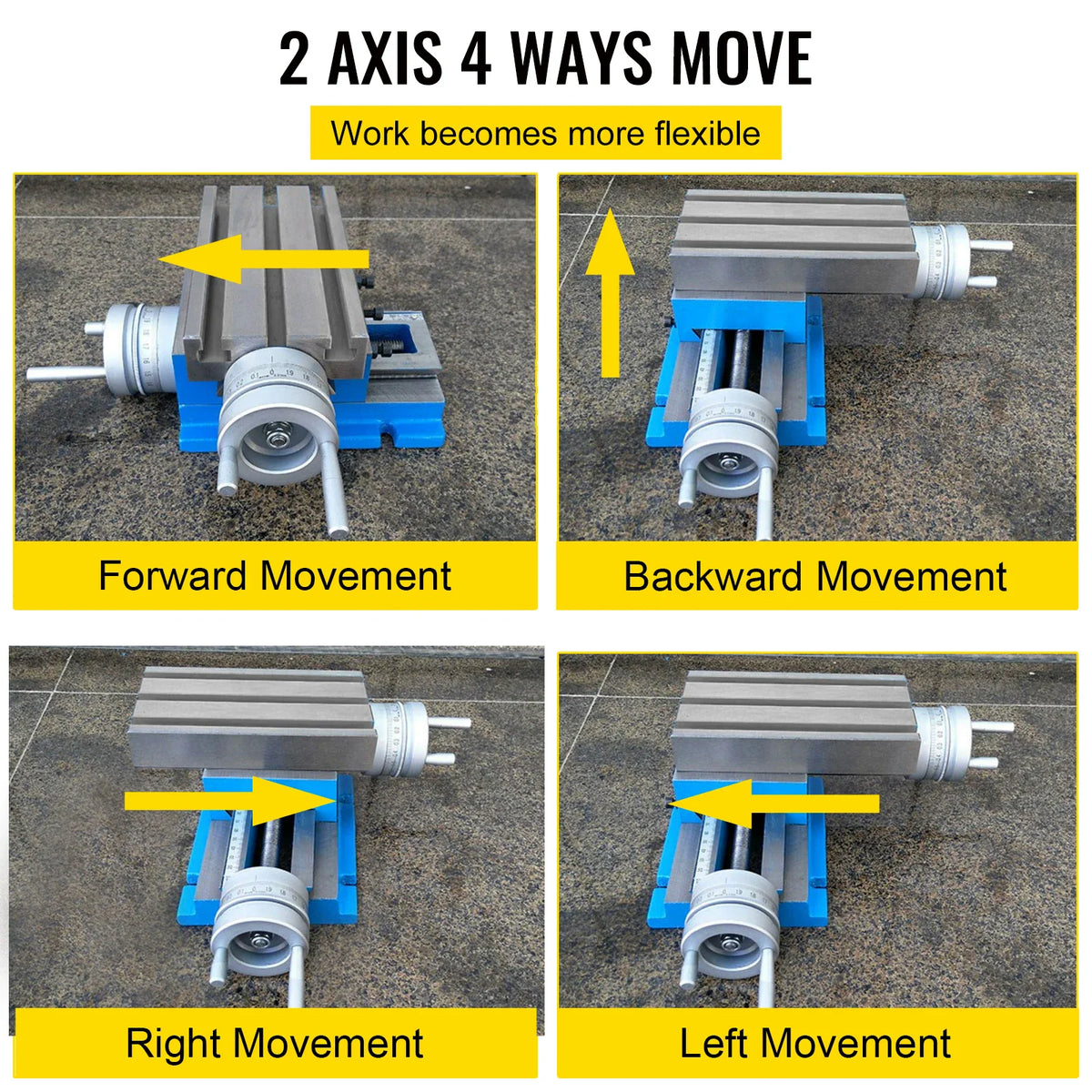

- Adjustable Movement – Allows for both forward/backward and left/right movement using six adjustment screws.

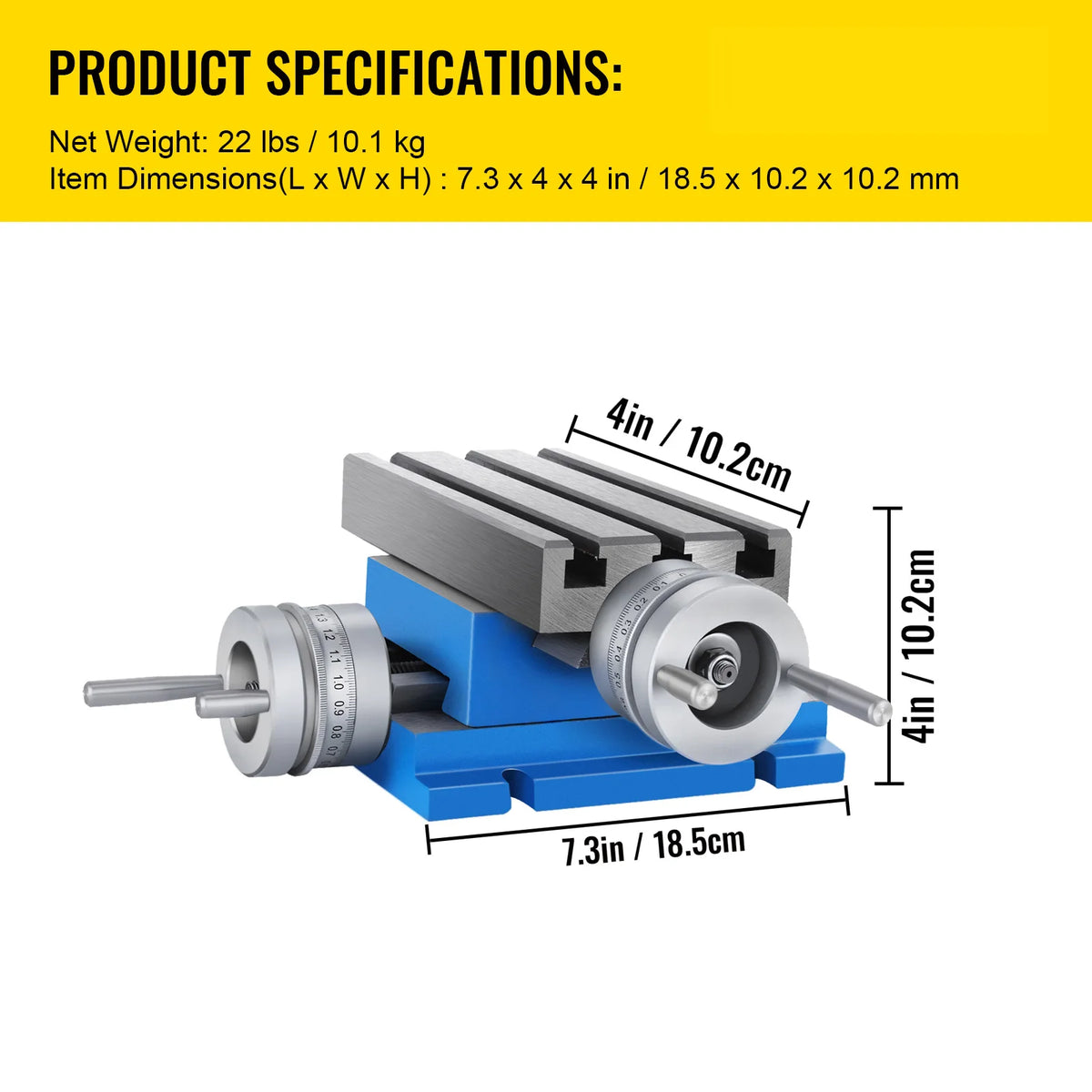

Specifications
| Working Table Size | 7.3 x 4 in / 185 x 100 mm |
|---|---|
| Travel Length | 3 in / 80 mm |
| Vertical Travel | 3 in / 75 mm |
| Working Height | 4 in / 102 mm |
| Maximum Workpiece Weight | 66 lbs / 30 kg |
| Dial Spacing | 0.0004 in / 0.01 mm |
| Net Weight | 22 lbs / 10.1 kg |
What's in the box
- 1 x MX-75 Multifunction Milling Support Table
Ideal for

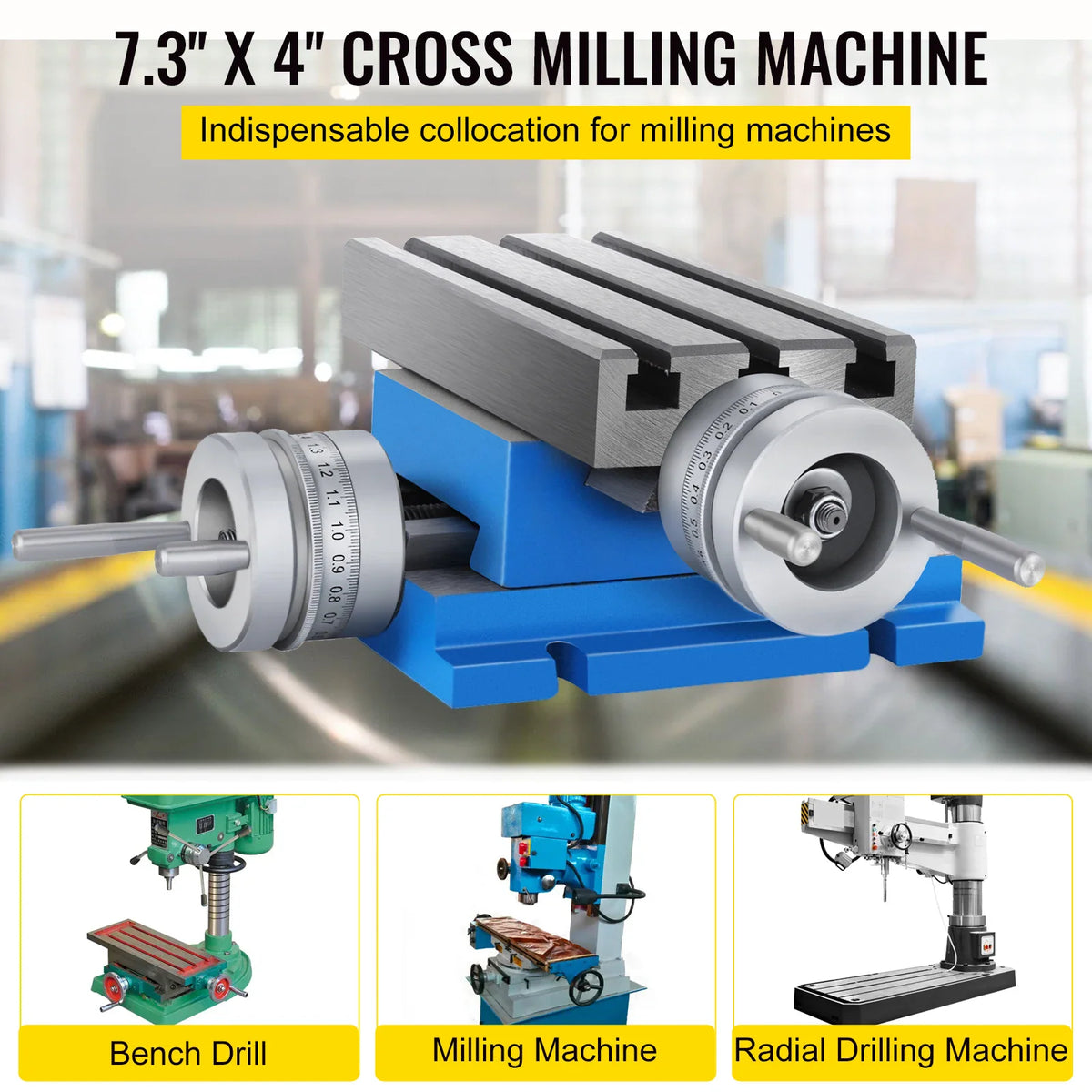

This table is ideal for workshops using drill stands, milling machines, or drilling presses for tasks involving positioning, optical viewing, and staging.
FAQ
Does it fit all drill stands?
Yes, this worktable is designed to be suitable for all drill stands, as well as general drilling and milling machines.
How much weight can the table hold?
The table supports a maximum workpiece weight of 66 lbs (30 kg).
How precise is the adjustment?
The cranks include a scale with a dial spacing length of 0.0004 in (0.01 mm) for accurate micro-adjustments.
