SucceBuy Manual Push Beam Trolley, 2200 lbs Capacity, Adjustable Width
SucceBuy Manual Push Beam Trolley, 2200 lbs Capacity, Adjustable Width

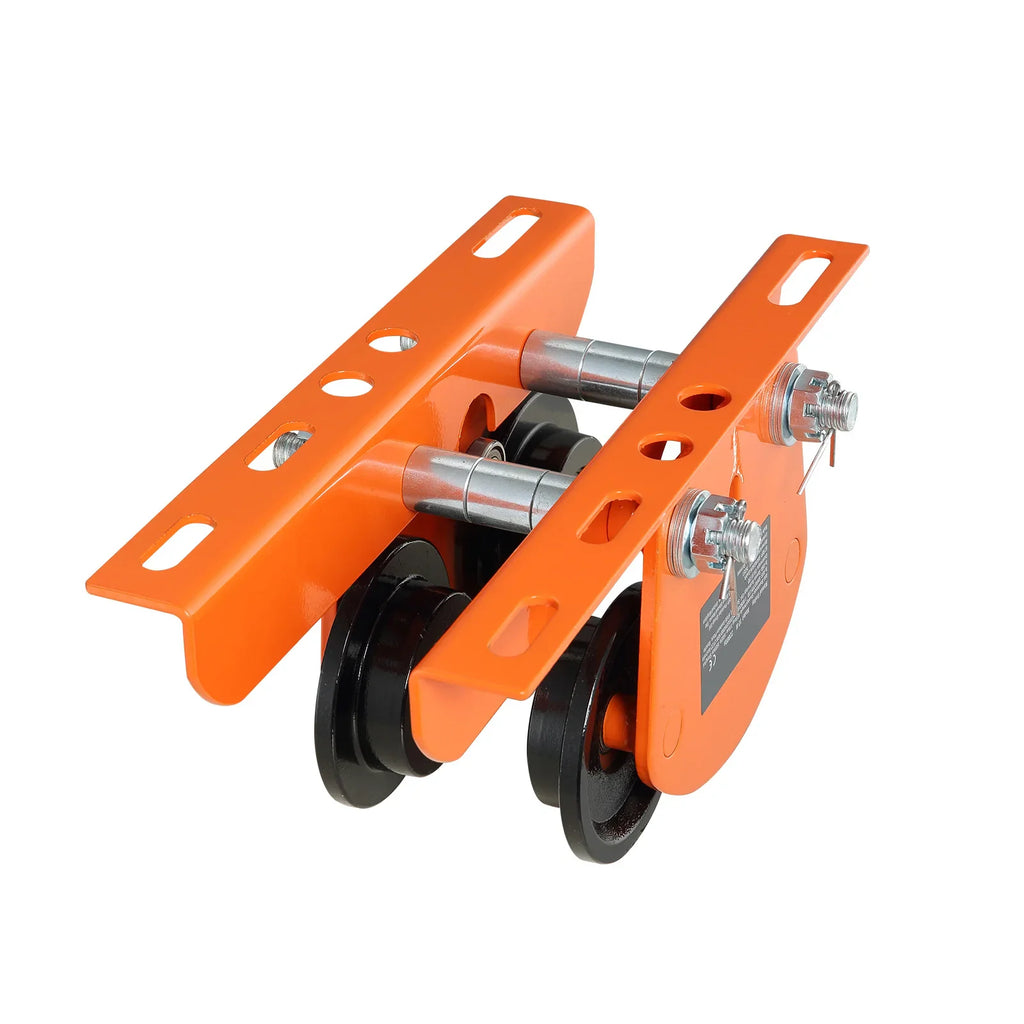

The SucceBuy Manual Push Beam Trolley is a heavy-duty lifting accessory with a 2200 lbs (1T) load capacity, designed to glide smoothly along I-beams and H-beams. It is ideal for construction sites, warehouses, and factories where you need to maneuver electric hoists on straight or curved tracks.
Key features

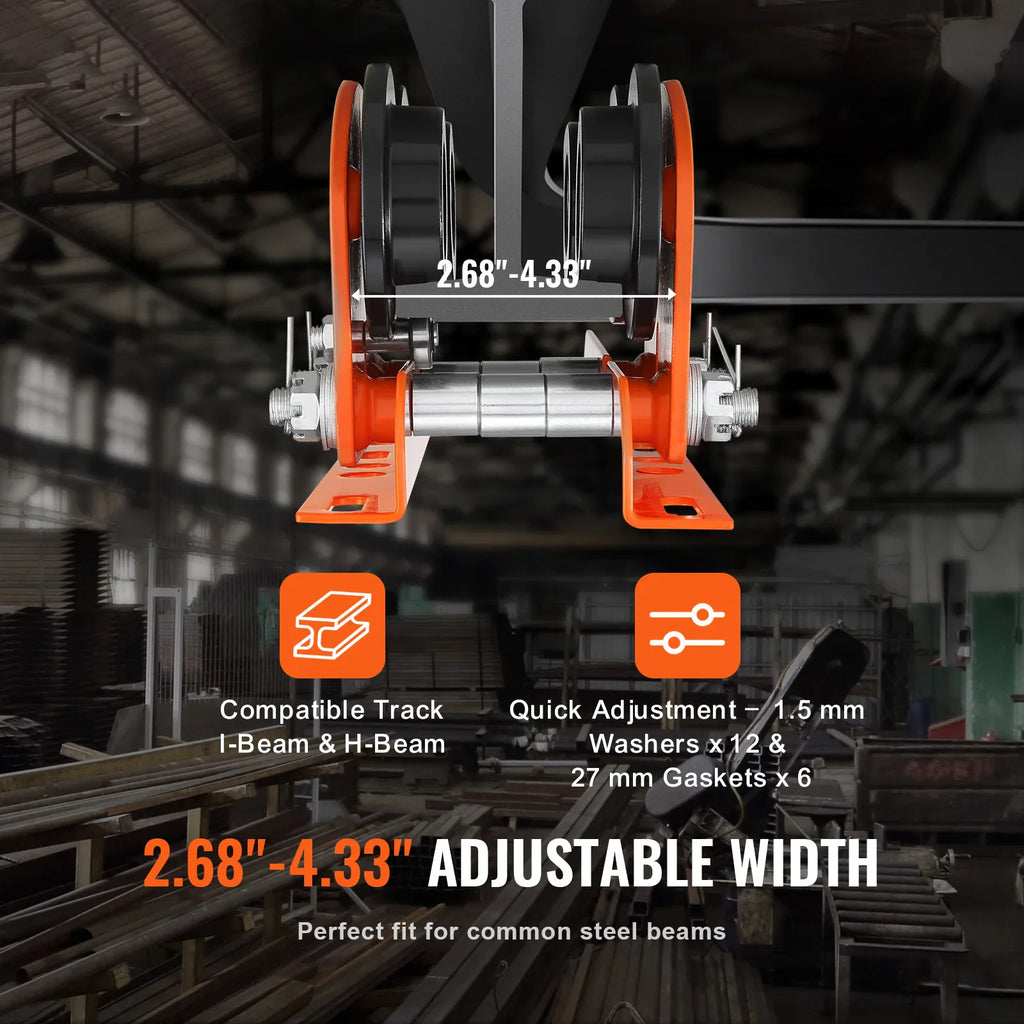

- Adjustable Width – Fits various beam sizes with an adjustable range of 2.68 to 4.33 inches using included washers and gaskets.

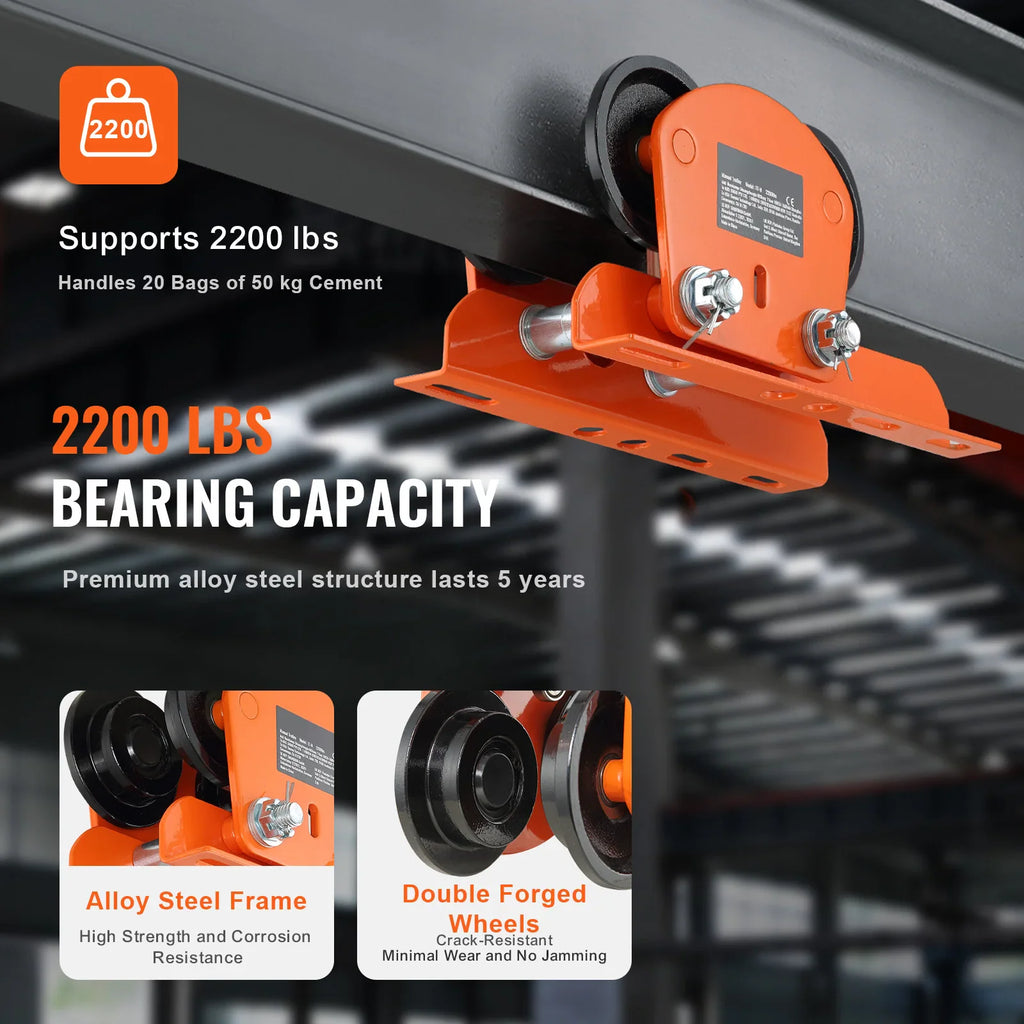

- Smooth Operation – Features a dual-wheel design with four toothless, wear-resistant precision steel wheels for easy sliding.
- Broad Compatibility – Designed to work with electric hoists including PA200, PA250, PA300, PA400, and PA500 models.
- Enhanced Security – Includes a crown nut and wire pin locking system to keep the trolley securely in place on the beam.
- Durable Construction – Built from robust, corrosion-resistant alloy steel to handle heavy-duty lifting tasks.

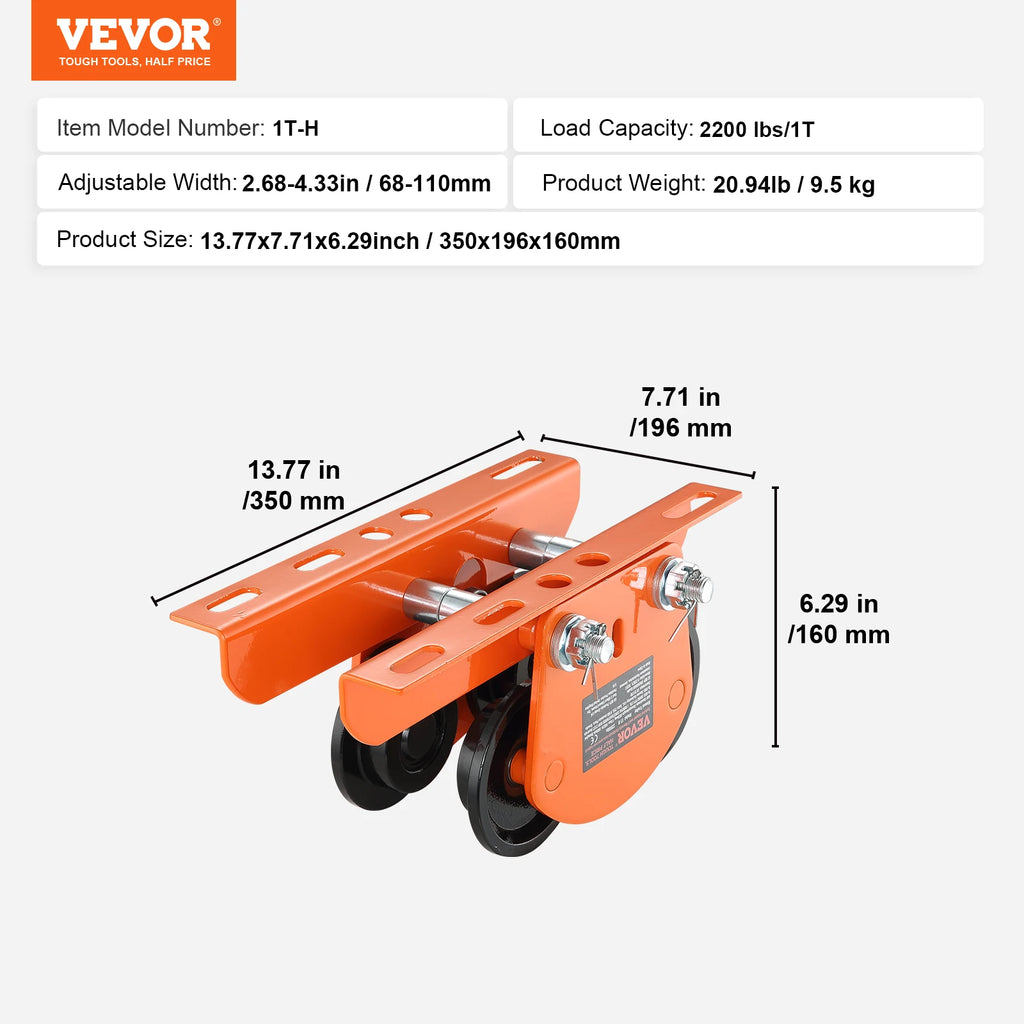

Specifications
| Load Capacity | 2200 lbs / 1T |
|---|---|
| Adjustable Width | 2.68–4.33 in / 68–110 mm |
| Product Dimensions | 13.77 x 7.71 x 6.29 in / 350 x 196 x 160 mm |
| Product Weight | 20.94 lbs / 9.5 kg |
| Available Variants | 1T, 0.5T |
Ideal for
This trolley is suited for professional settings like factories, mines, and construction sites requiring a secure and mobile mounting point for electric hoists on steel beam tracks.
FAQ
What beam sizes does this trolley fit?
It features an adjustable width between 2.68 and 4.33 inches (68–110 mm) to accommodate different I-beam and H-beam sizes.

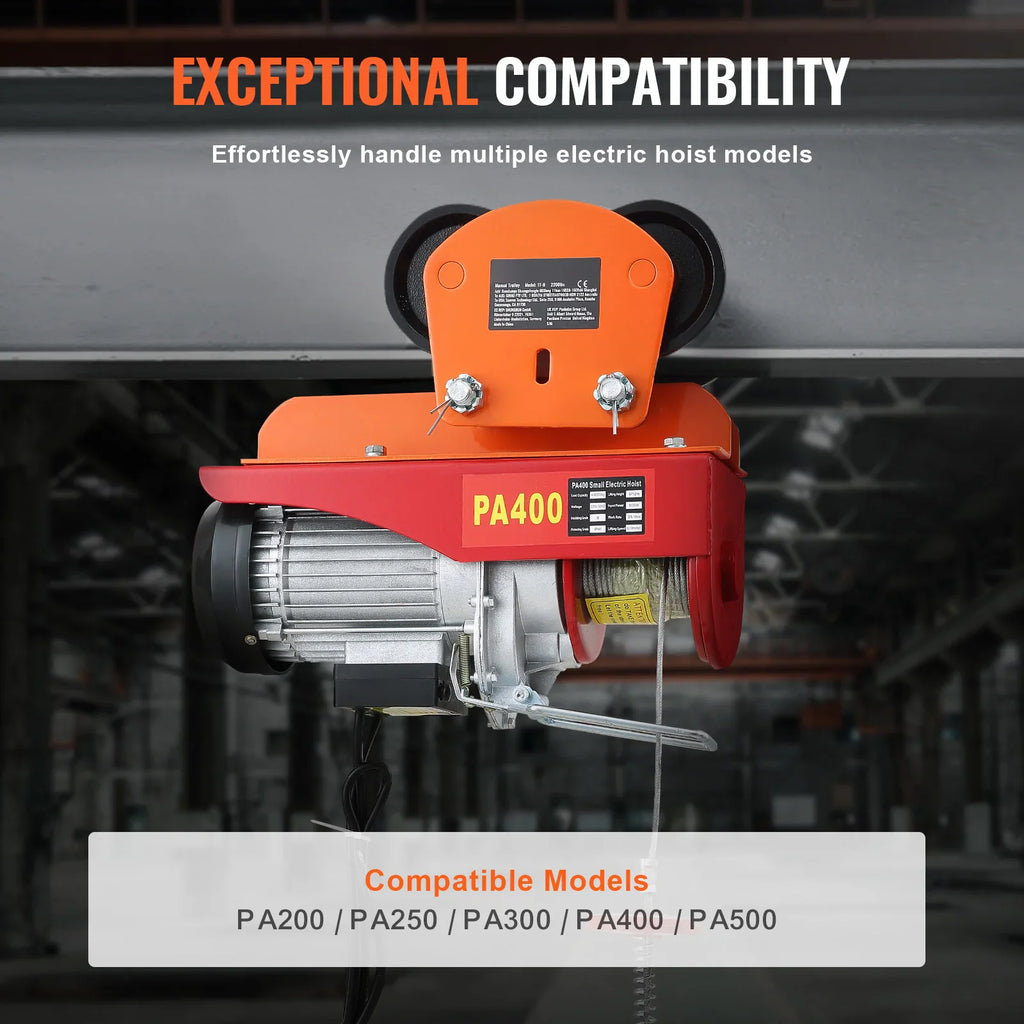

Which hoists are compatible with this trolley?
It is designed for compatibility with PA200, PA250, PA300, PA400, and PA500 electric hoists.
Is it suitable for curved tracks?
Yes, the dual-wheel design with four smooth-running wheels is engineered to work on both straight and curved tracks.
