Universal Turbo Intercooler Kit 600x300x76mm with 2.5" Aluminum Piping
Universal Turbo Intercooler Kit 600x300x76mm with 2.5" Aluminum Piping
This universal turbo intercooler kit features a 600 x 300 x 76 mm core and 2.5-inch aluminum piping designed to cool compressed intake air for turbocharged and supercharged engines. It helps increase air density supplied to the engine and is rated for up to 700 HP.
Key features

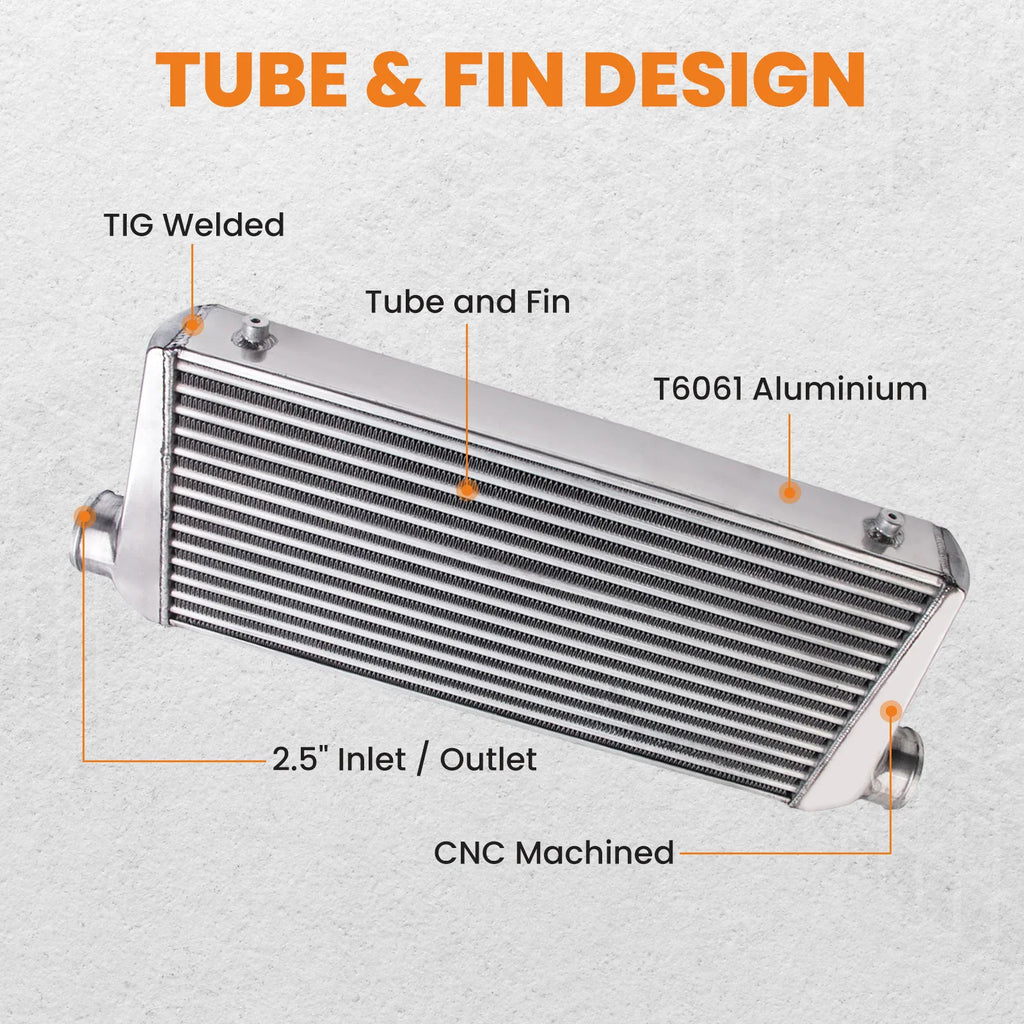

- Efficient Cooling – The tube and fin core design reduces intake air temperature for improved engine efficiency.
- Durable Construction – The 1.8 mm thick aluminum pipes resist rust and corrosion for long-term use.

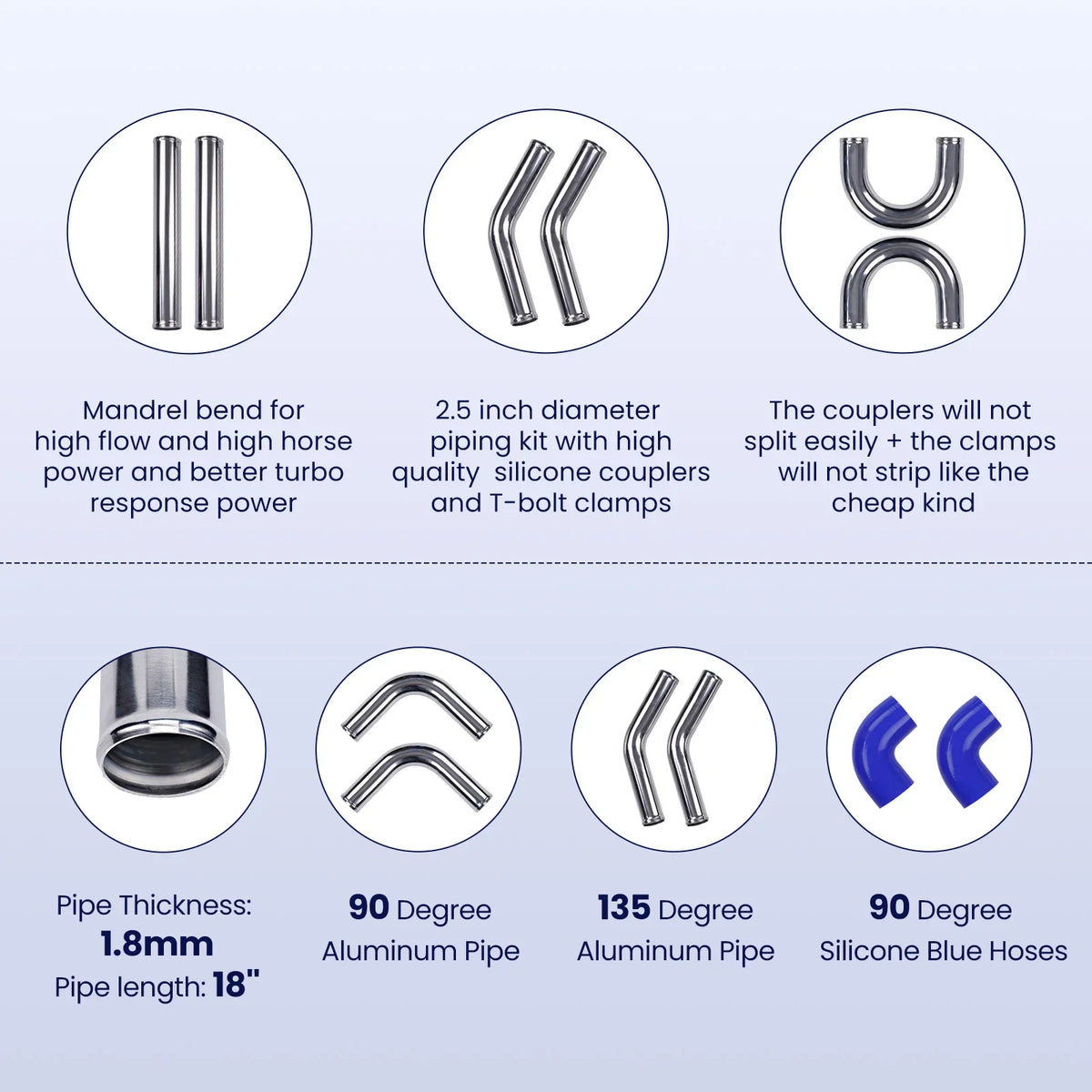

- Complete Piping Kit – Includes various pipe angles (90 degree, 135 degree, U-shape, straight) and silicone hoses to support custom turbo projects.
- High Capacity – Designed to handle up to 700 HP in performance applications.
Specifications

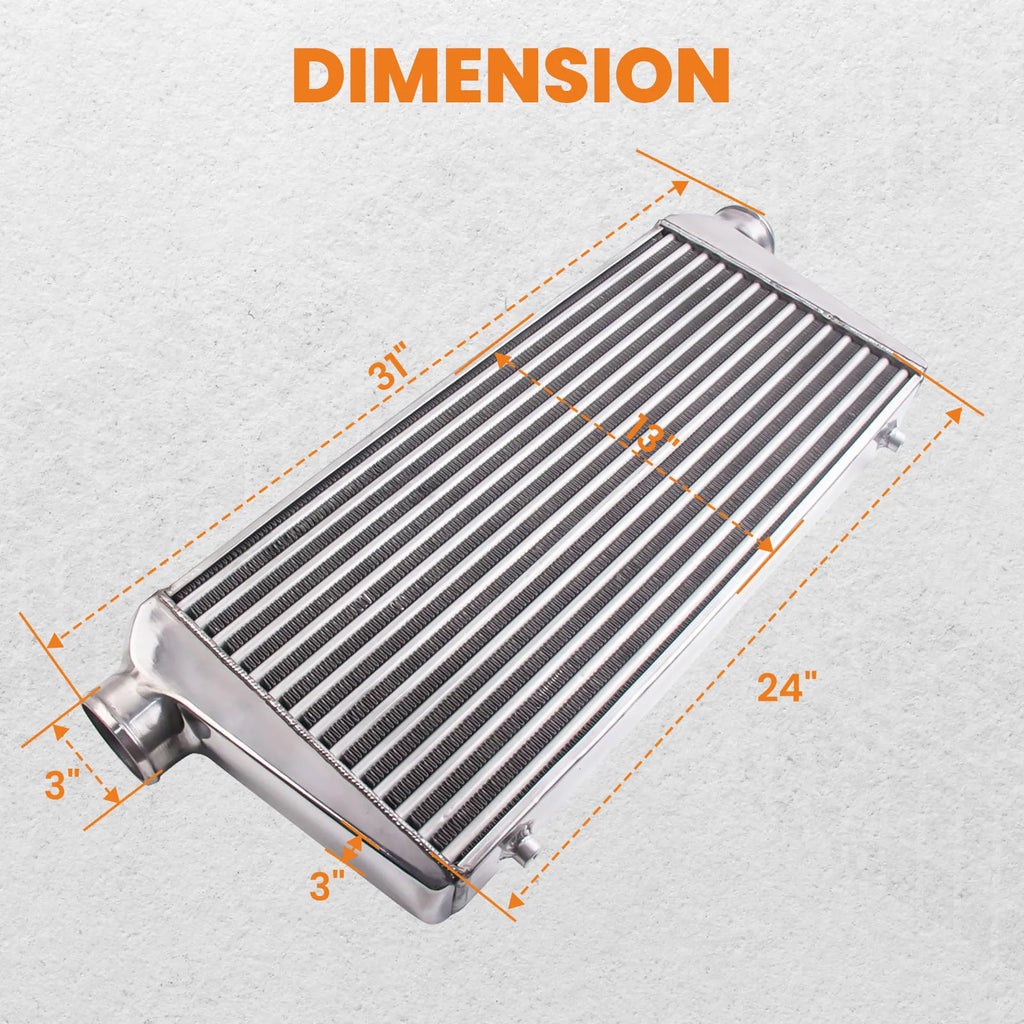

| Intercooler Core Size | 600 x 300 x 76 mm |
|---|---|
| Intercooler Inlet/Outlet | 3 inch |
| Pipe Diameter | 2.5 inch |
| Pipe Thickness | 1.8 mm |
| Pipe Material | Aluminum |
| Max Horsepower | 700 HP |
| Total Item Weight | 7.7 kg |

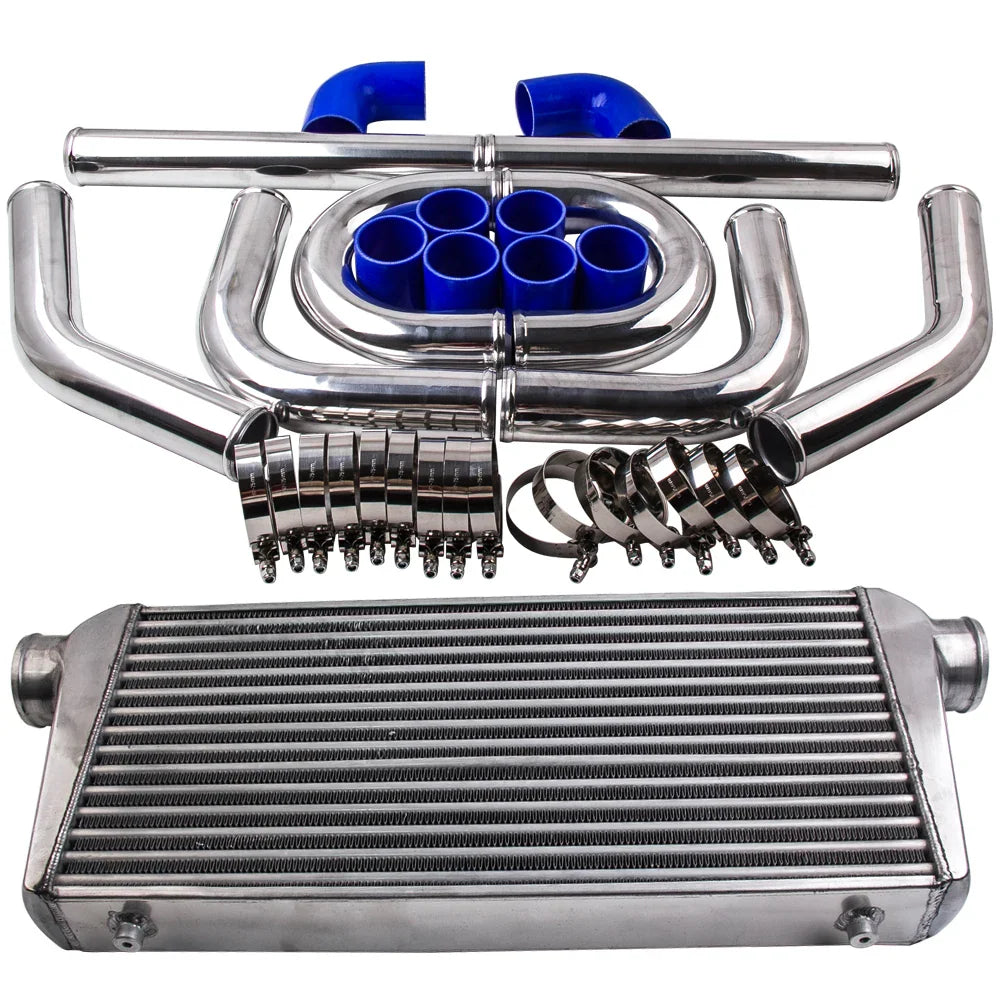

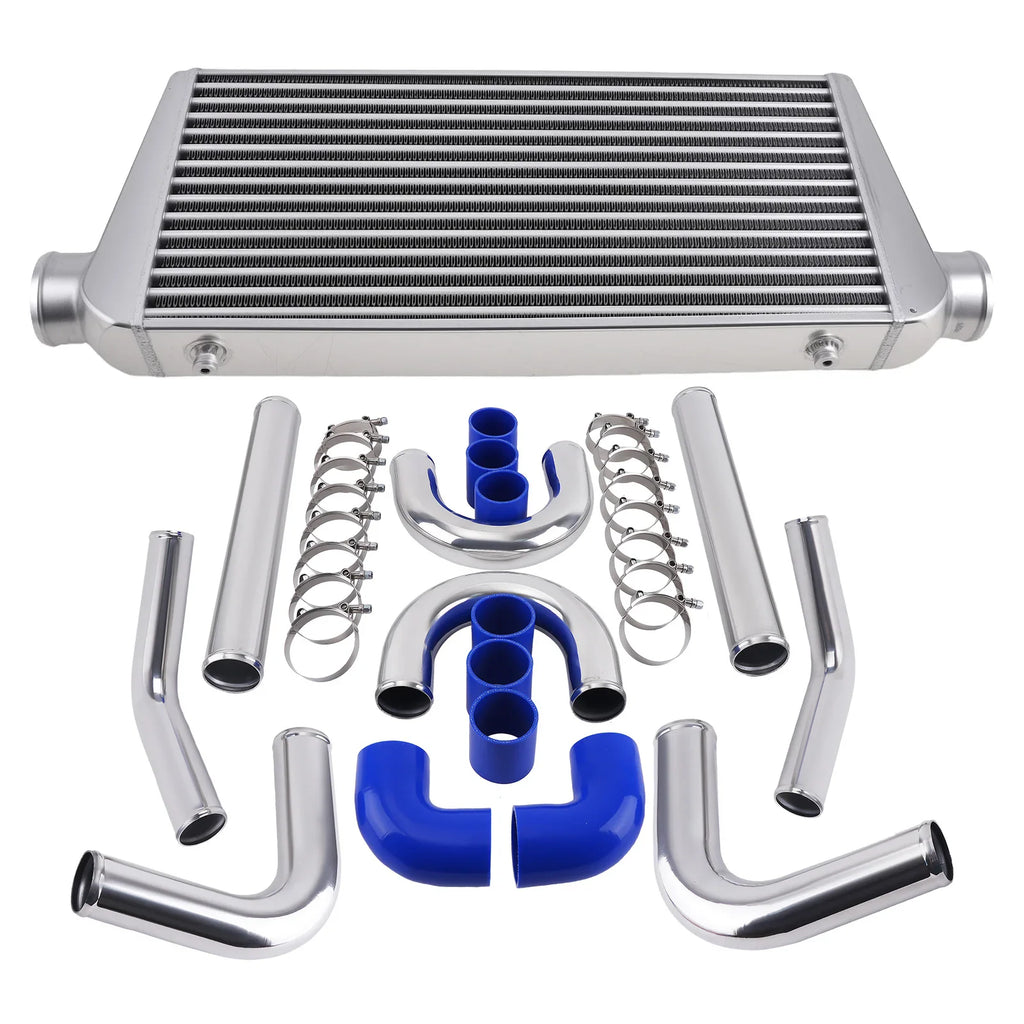

What's in the box
- 1 x Intercooler
- 2 x 90 Degree Aluminum Pipes (2.5")
- 2 x Straight Aluminum Pipes (2.5")
- 2 x 135 Degree Aluminum Pipes (2.5")
- 2 x U-Shape Aluminum Pipes (2.5")

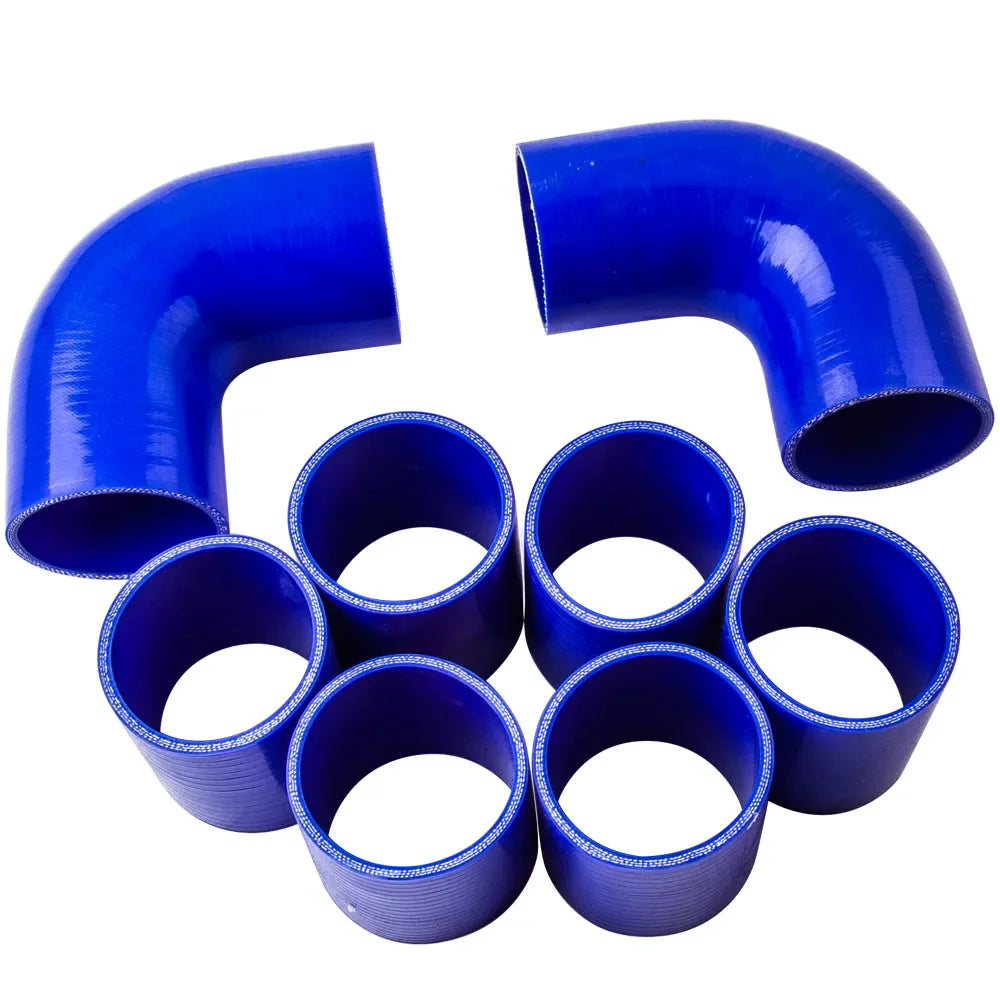

- 6 x Straight Silicone Hoses (2.5", Blue)
- 2 x 90 Degree Silicone Hoses (2.5", Blue)
- 16 x Clamps (2.5")
Ideal for
This kit is suitable for automotive enthusiasts and professionals working on universal turbo or supercharger projects requiring custom front-mount intercooler piping configuration.
FAQ
Does this fit my specific car model?
This is a universal kit designed for turbo and supercharged projects. Professional installation is recommended as it may require custom fitting for your specific vehicle.
What is the maximum horsepower rating?
This intercooler kit is rated for a maximum of 700 HP.
What materials are included?
The kit includes aluminum pipes with a 1.8 mm thickness and blue silicone hoses.
