Varstrom 1000W Rear Hub Motor E-Bike Conversion Kit 48V
Varstrom 1000W Rear Hub Motor E-Bike Conversion Kit 48V
The Varstrom 1000W rear hub motor conversion kit upgrades your standard bicycle into a powerful electric bike with a 48V brushless gearless system. Designed for DIY enthusiasts, this kit provides a 66 N.m max torque and speeds up to 55 km/h to assist with hill climbing and long-distance riding.
Key features
- High Efficiency – Achieves over 82% efficiency for improved range and power performance.
- Powerful Output – Delivers 1000W rated power and 66 N.m of torque for strong acceleration.
- Weather Resistance – Rated IPX5 waterproof to ensure reliable operation in various weather conditions.
- Quiet Performance – The brushless, gearless design maintains noise levels below 55 dB.

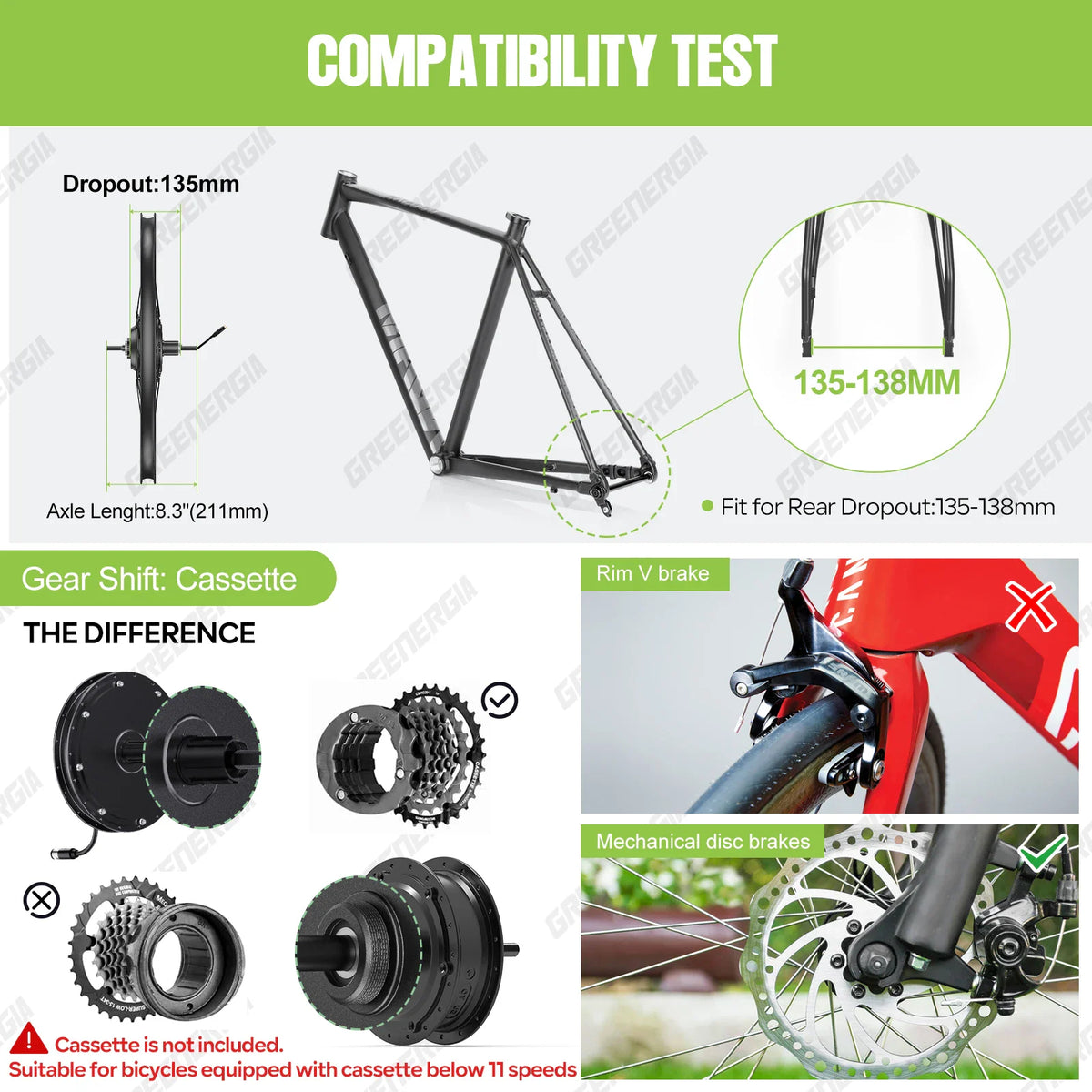

- Versatile Braking – Compatible with mechanical or hydraulic brakes depending on your choice of sensor or lever.
Specifications
| Voltage | 48V |
|---|---|
| Rated Power | 1000W |
| Max Torque | 66 N.m |
| Max Speed | 55 km/h |
| Motor Type | Brushless gearless rear hub |

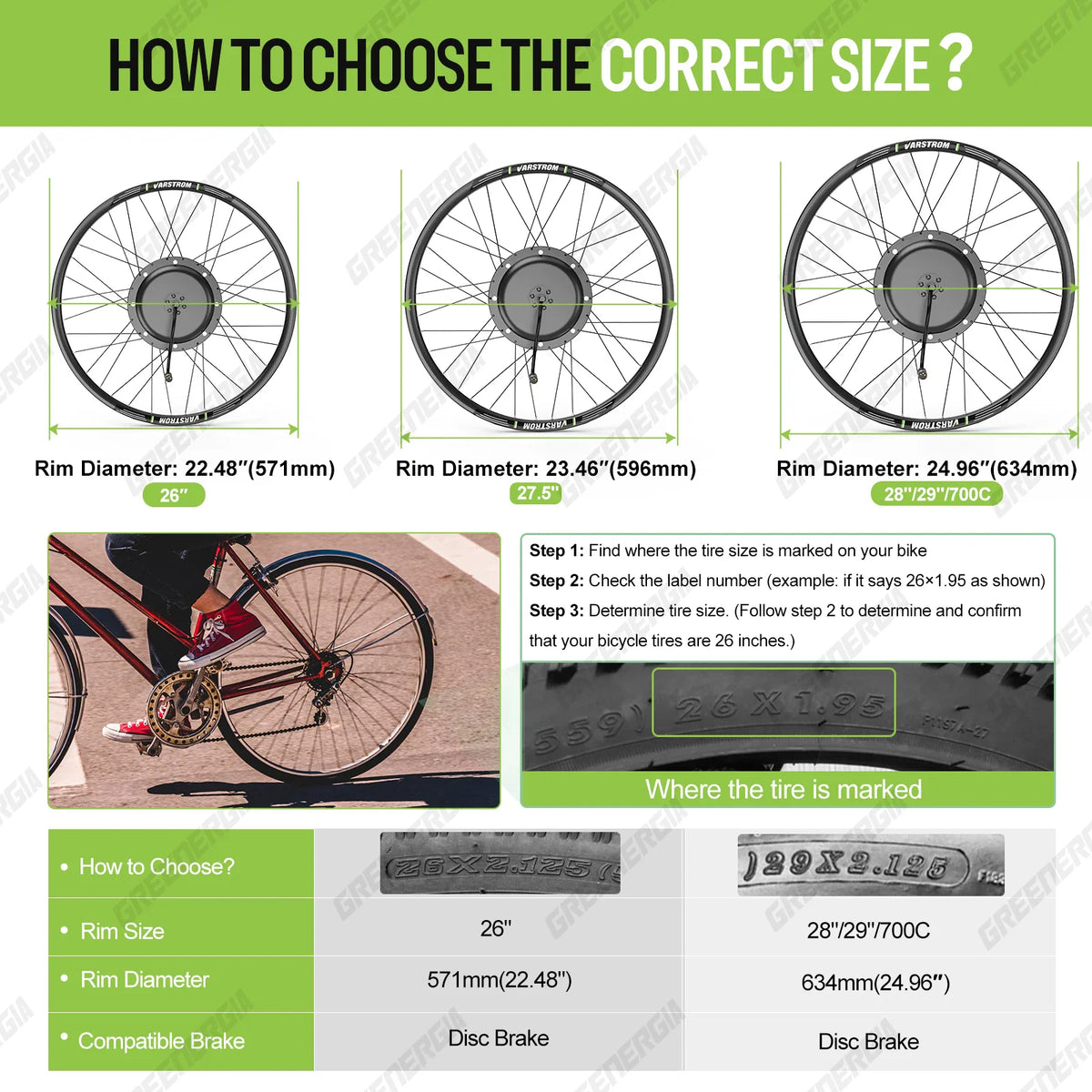

| Available Wheel Sizes | 26", 27.5", 700C (28"/29") |
| Max Controller Output | 30A |
| Waterproof Rating | IPX5 |

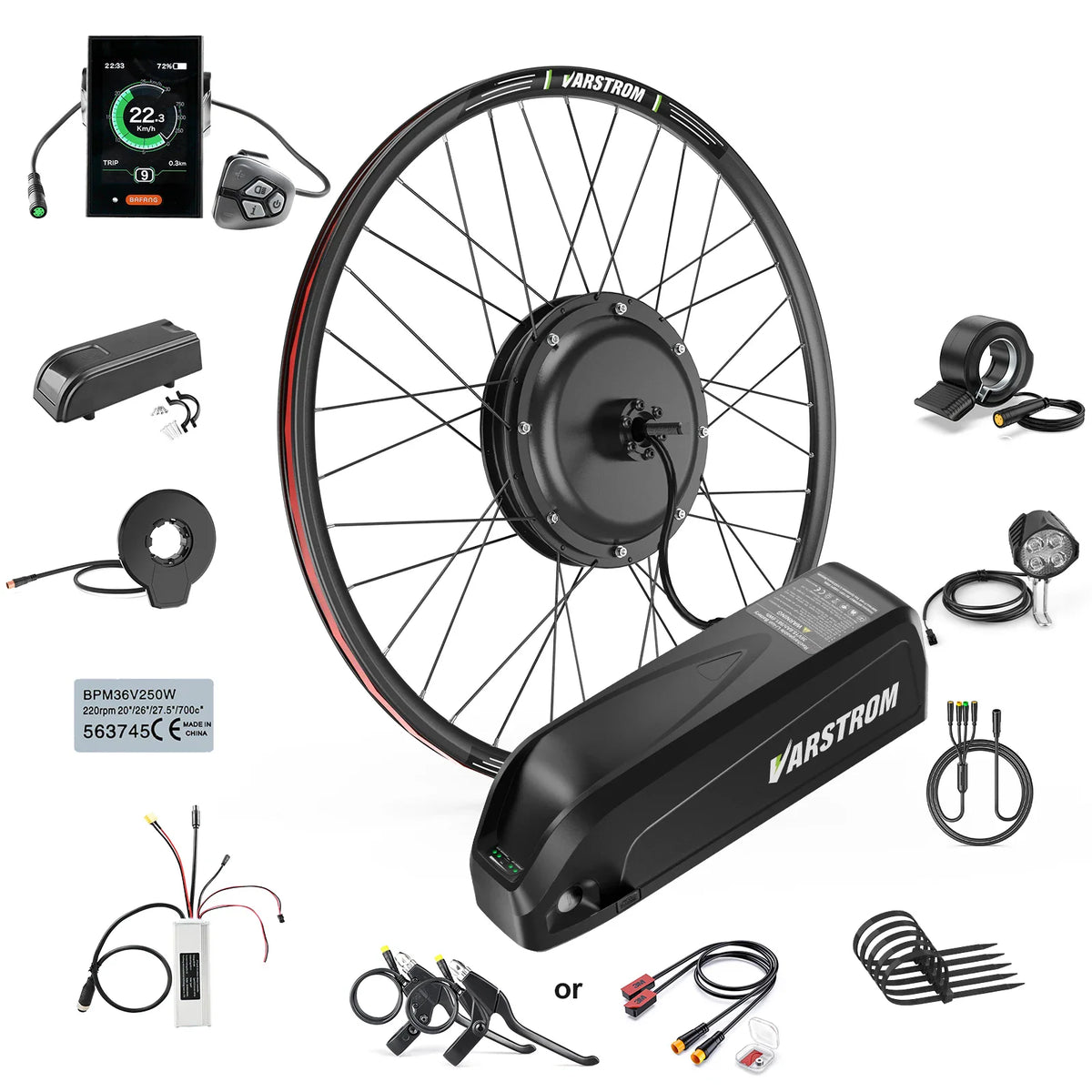

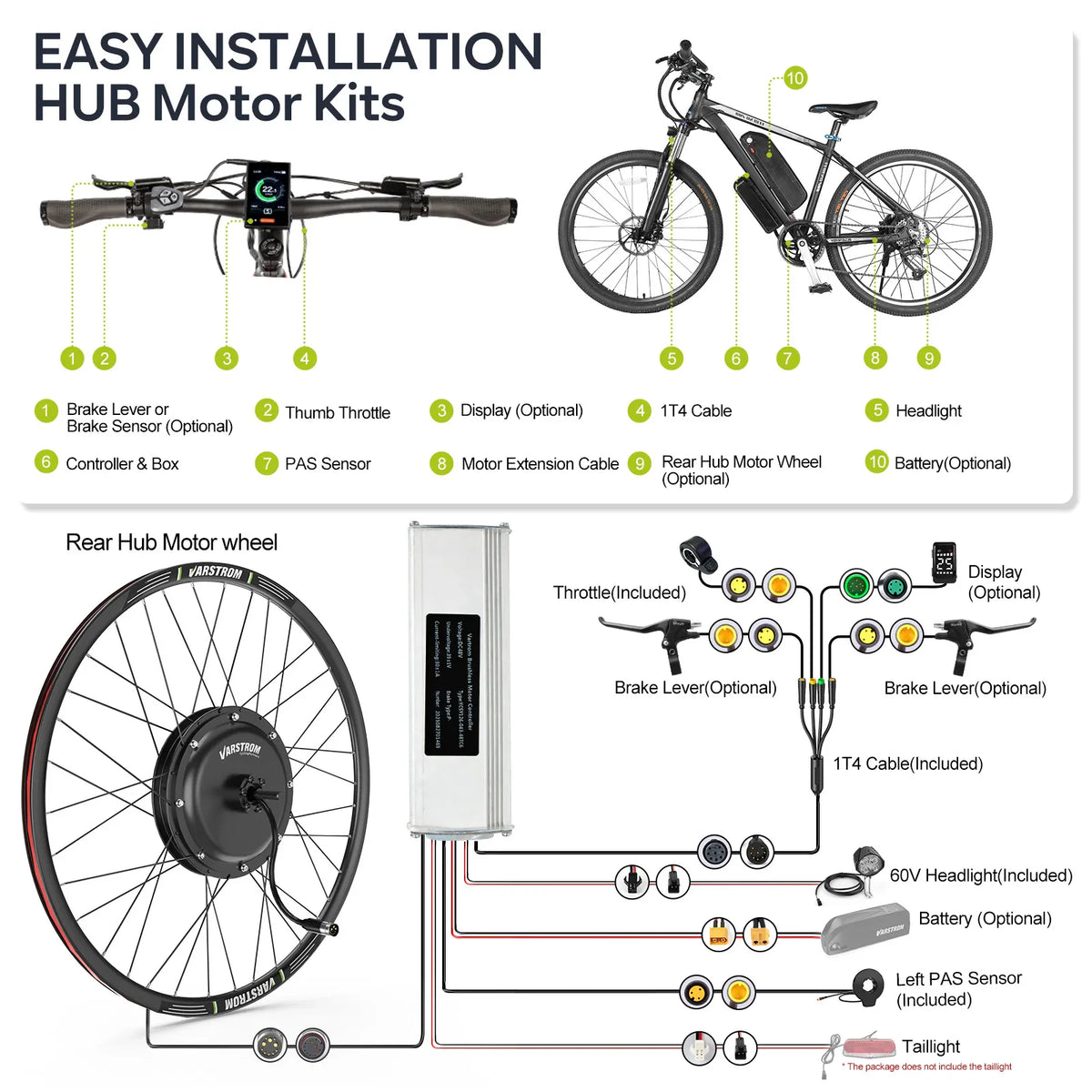

What's in the box
- 1 x Hub Motor Wheel
- 1 x 48V Controller
- 1 x Controller Box

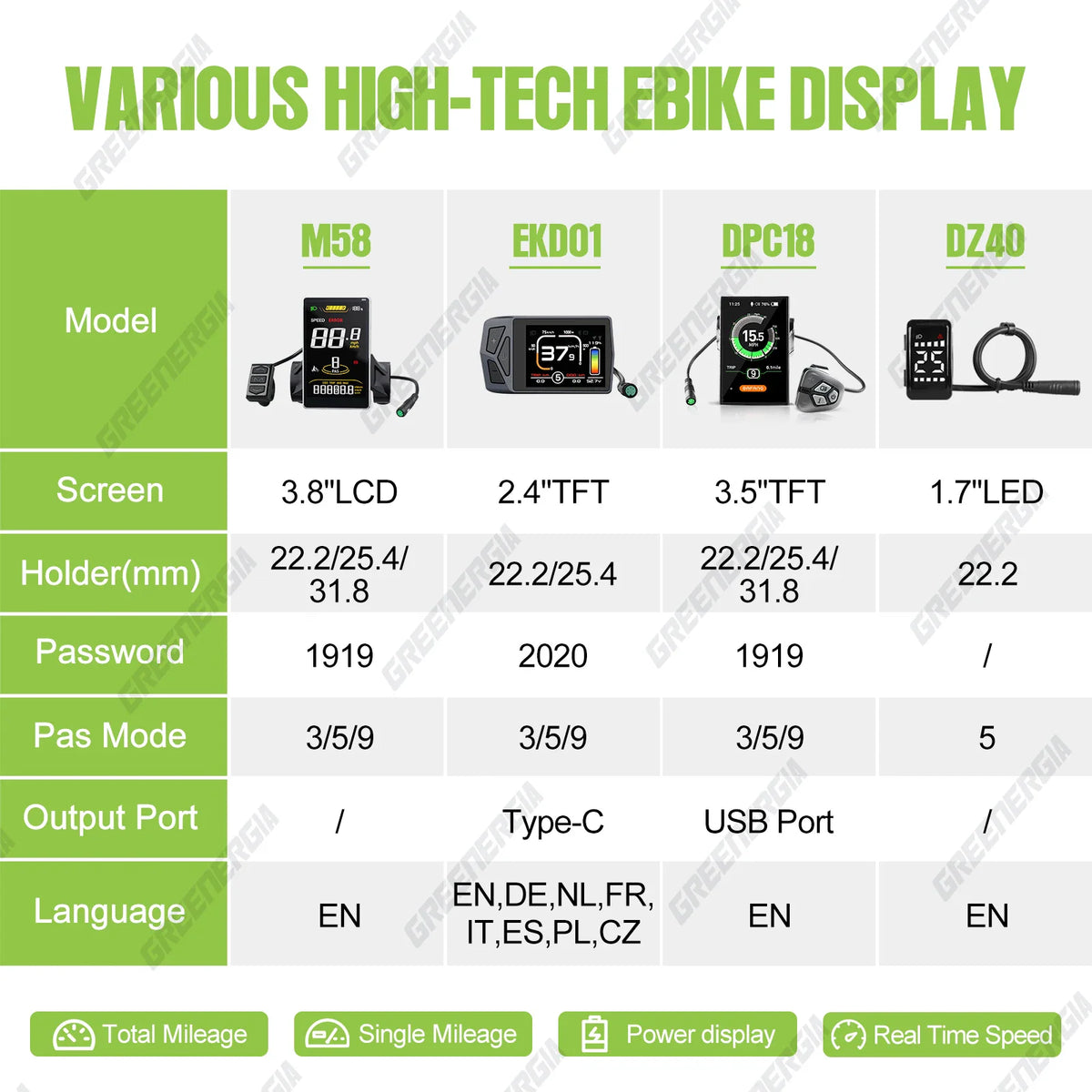

- 1 x Display
- 1 x Thumb Throttle
- 1 x PAS Sensor
- 1 x 1T4 Cable
- 1 Pair x Brake Levers
- 1 x Front Light
Ideal for
This kit is suitable for cyclists looking to convert their existing 26", 27.5", or 700C frame bike into an electric commuter or mountain e-bike.
FAQ
Does this kit include a battery?

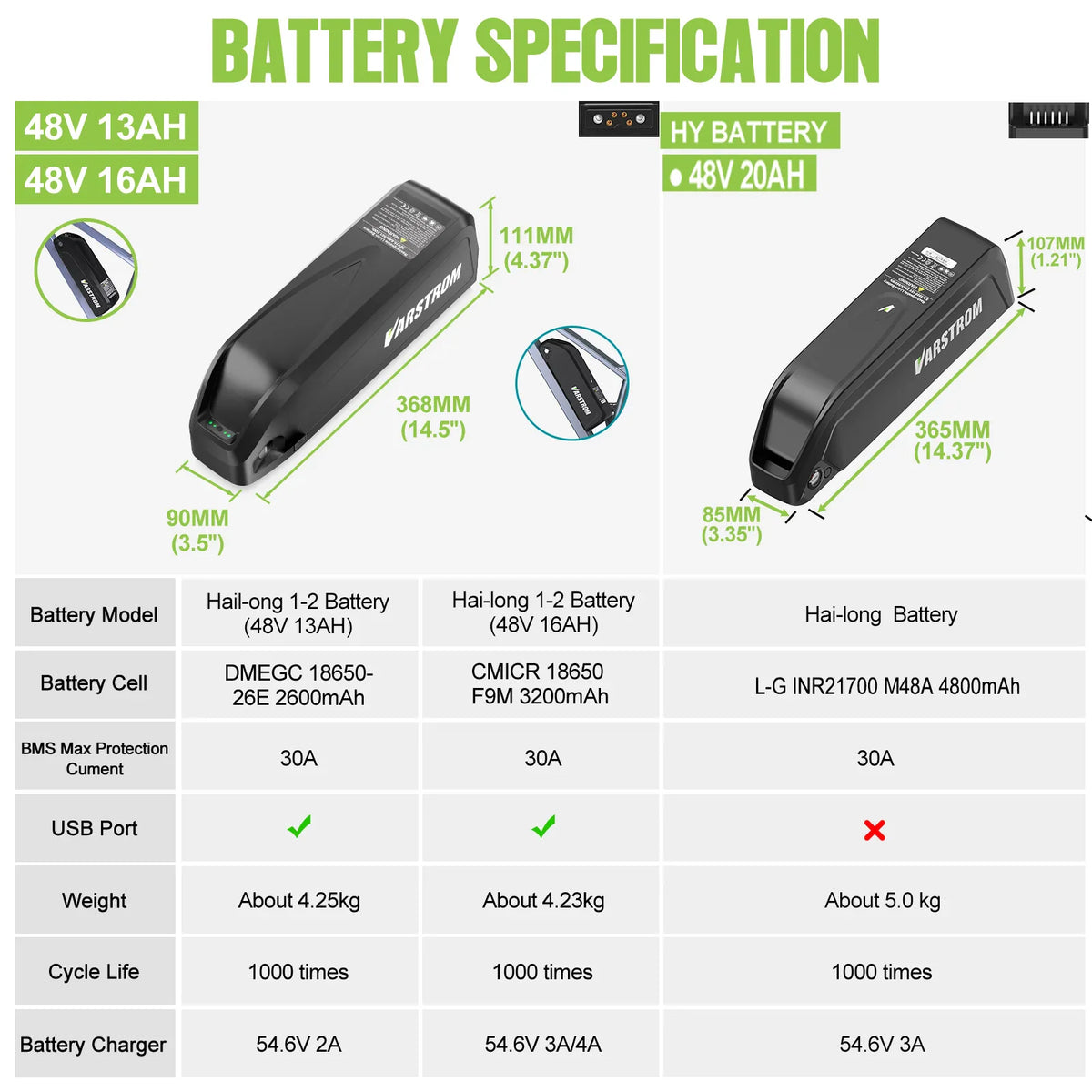

No, the battery is sold separately and is not included in this conversion kit.
What is the maximum speed of this motor?
The motor is capable of reaching a maximum speed of 55 km/h.
Is this kit waterproof?
Yes, the motor has an IPX5 waterproof rating for reliable performance in different weather conditions.
Can I use this with hydraulic brakes?
Yes, if you choose the brake sensor option, the system is compatible with both mechanical and hydraulic brakes.
