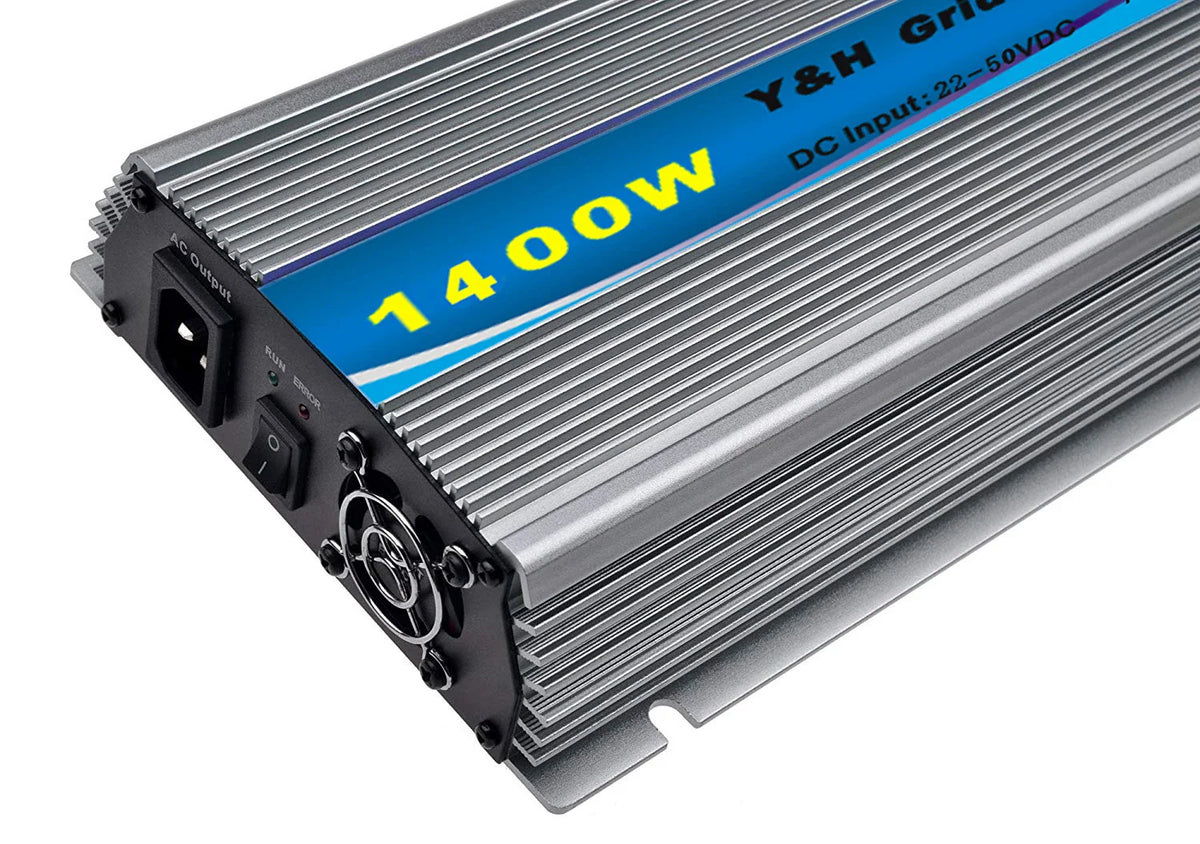

Y&H 1400W MPPT Grid Tie Solar Inverter, 24V/36V Input, AC 110V Output
Y&H 1400W MPPT Grid Tie Solar Inverter, 24V/36V Input, AC 110V Output

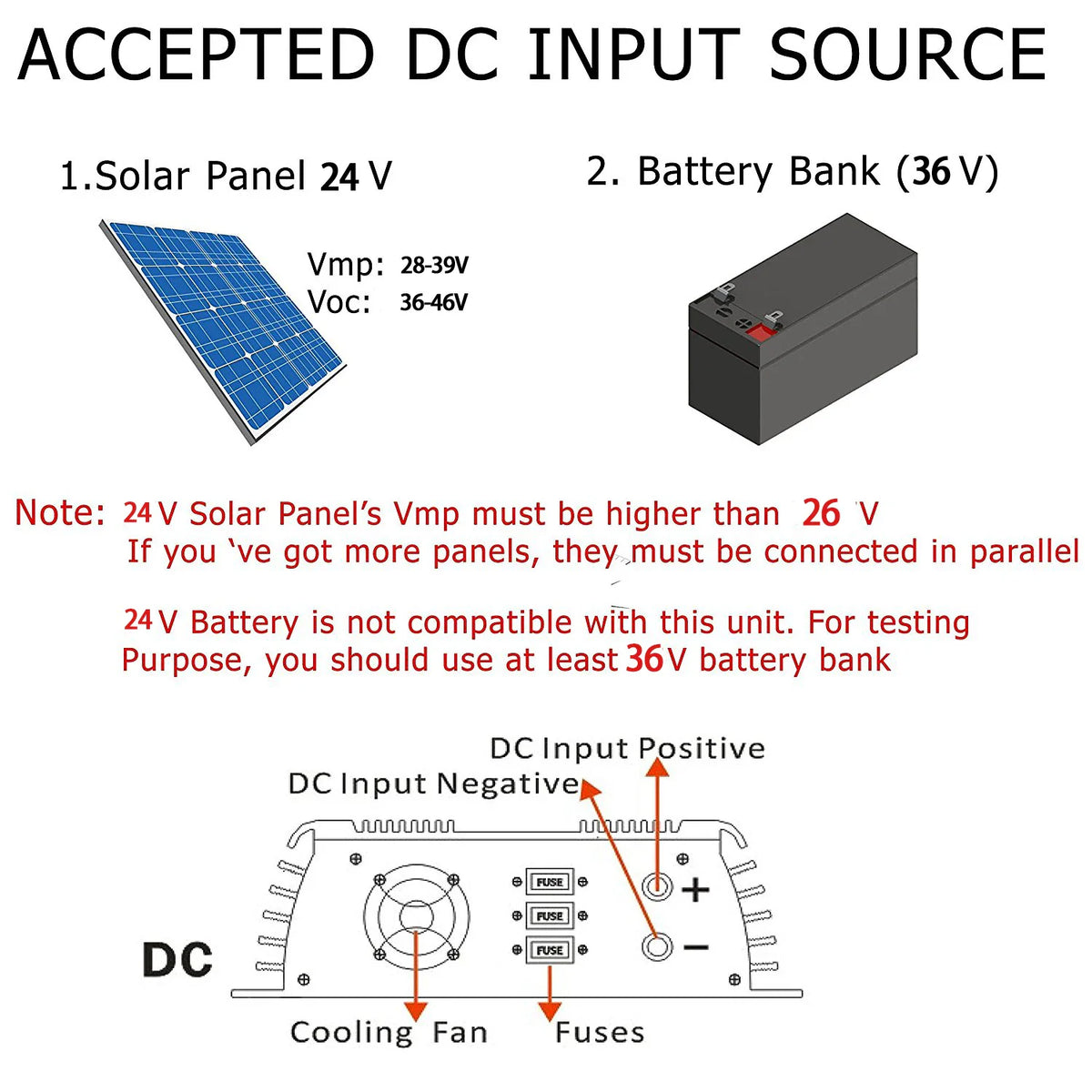

The Y&H 1400W MPPT Grid Tie Solar Inverter converts DC power from solar panels or batteries into synchronized AC utility grid power. It is designed for those looking to integrate solar energy into their home system, supporting 24V or 36V battery inputs and solar panels with a Vmp of 26-39V.
Key features
- Pure Sine Wave Output – Ensures synchronized and in-phase power for household appliances and office equipment.
- MPPT Technology – Optimizes energy harvest with a tracking range of 26-39V for solar panels.

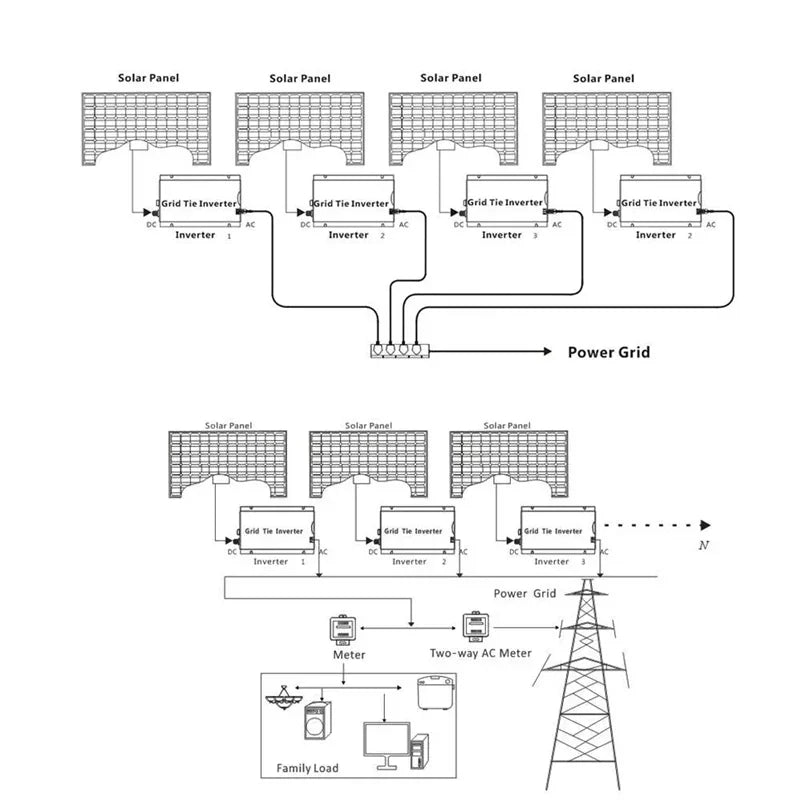

- Stackable Design – Allows for multiple units to be connected to increase total system power capacity without quantity restrictions.
- Integrated Protection – Features safeguards against islanding, short-circuits, over/under voltage, and high temperatures.

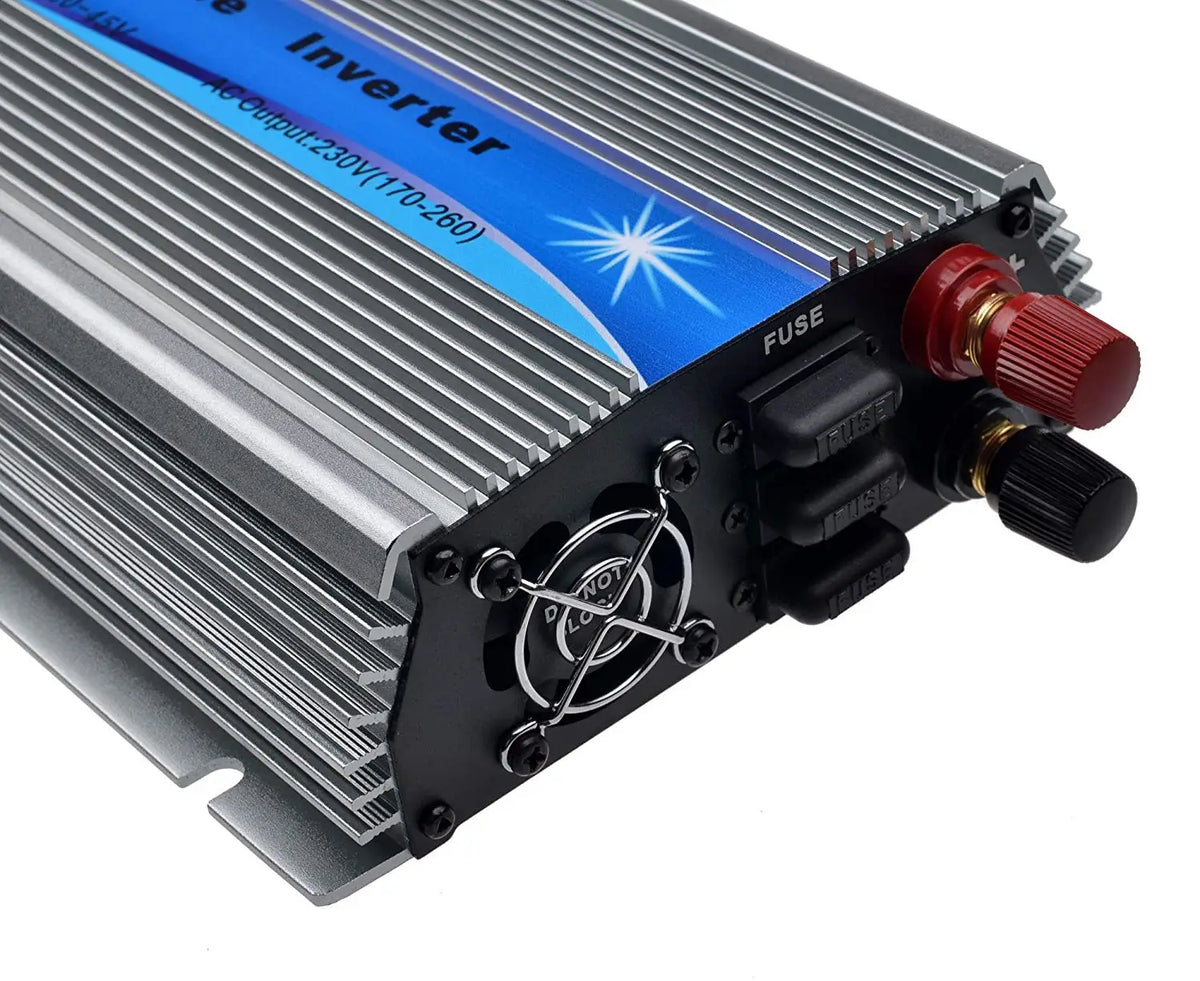

- Active Cooling – Equipped with an electric fan that activates when internal temperatures exceed 45℃.
Specifications
| Max Output Power | 1400W |
|---|---|
| DC Input Range | 22-50V |
| MPPT Voltage Range | 26-39V |
| AC Output Voltage | 110V-120V |
| Frequency Range | 48Hz-62Hz (Auto) |
| Dimensions | 39.5 × 21 × 11.5 cm |
| Net Weight | 2.2 kg |
| Certifications | CE, RoHS, FCC |
| Operating Temp | -20℃ to +65℃ |
Ideal for
This inverter is ideal for grid-tied solar setups requiring up to 1400W of power, suitable for users operating 24V or 36V battery systems or solar panel arrays with a Vmp of 26-39V.
FAQ
Does this inverter work with 12V batteries?
While it accepts DC input, a 12V battery will not reach the maximum power point; we recommend using 36V batteries for optimal output.
Is this unit waterproof?
No, this inverter has an IP23 rating and is designed for indoor use only.
Can I connect multiple inverters together?
Yes, the unit is stackable, allowing you to connect multiple inverters to achieve higher power requirements.
