ZOYI ZT-101 Digital Auto-Ranging Multimeter with 6000 Counts
ZOYI ZT-101 Digital Auto-Ranging Multimeter with 6000 Counts
The ZOYI ZT-101 is a digital auto-ranging multimeter designed for precise electrical measurements in appliance repair and DIY projects. It features 6000 display counts, True RMS measurement, and comprehensive safety ratings to support accurate voltage, current, resistance, and capacitance testing.
Key features

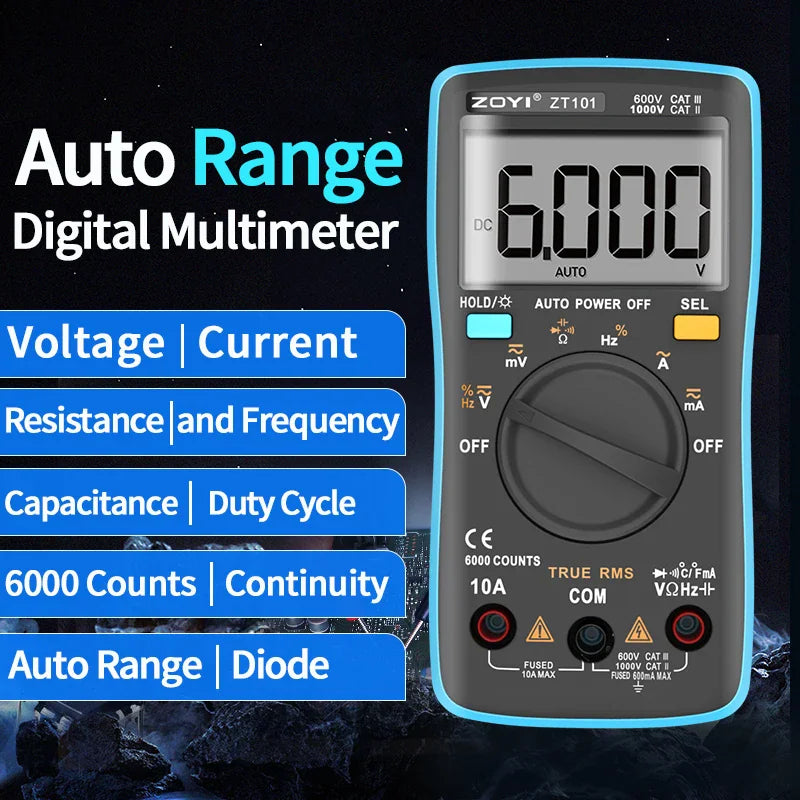

- Auto-Ranging Capability – Automatically selects the appropriate measurement range for convenience and efficiency.
- Safety Protection – Rated at 600V CAT III and 1000V CAT II for reliable use in electrical environments.

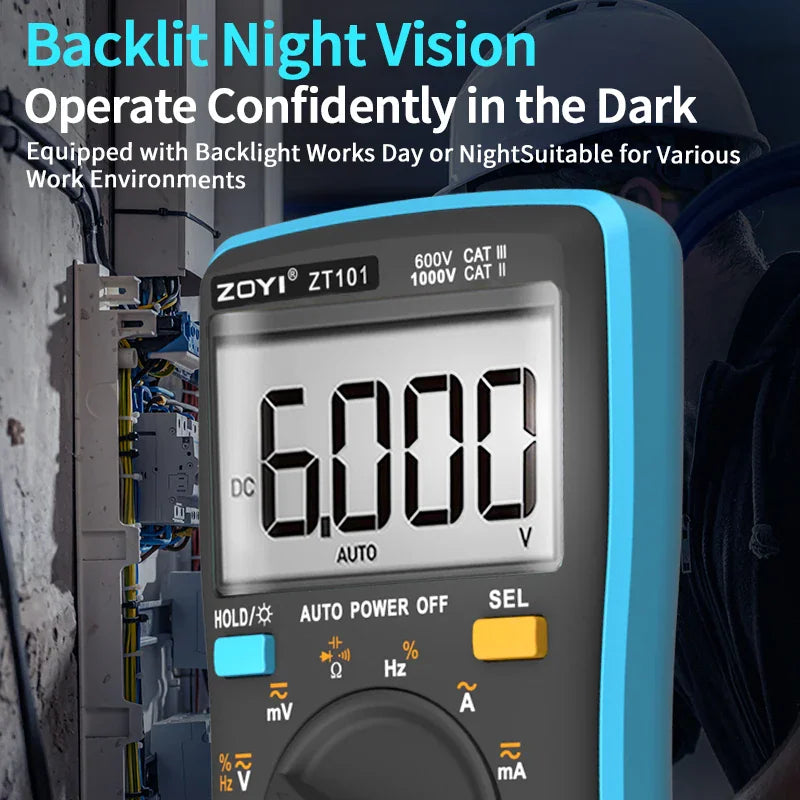

- Clear Backlit Display – Ensures visibility of measurements in low-light conditions.
- True RMS Measurement – Provides accurate readings for various electrical signals.
- Fused Port Protection – Includes dedicated protection for current inputs up to 10A and other ports up to 600mA.
Specifications
| Model | ZT-101 |
|---|---|
| Display Counts | 6000 counts |
| Sampling Rate | 3 times/second |
| DC Voltage Range | 60.00mV to 1000V |
| AC Voltage Range | 60.00mV to 750V |
| DC/AC Current Range | 60.00mA to 10.00A |
| Resistance Range | 600.0Ω to 60.00MΩ |
| Capacitance Range | 9.999nF to 9.999mF |
| Dimensions | 130 × 65 × 32 mm |
| Power | Battery included |
Ideal for
This multimeter is suitable for DIY electrical projects, appliance repair, and general circuit troubleshooting that requires compact, high-precision measurement tools.
FAQ
What electrical modes can this measure?

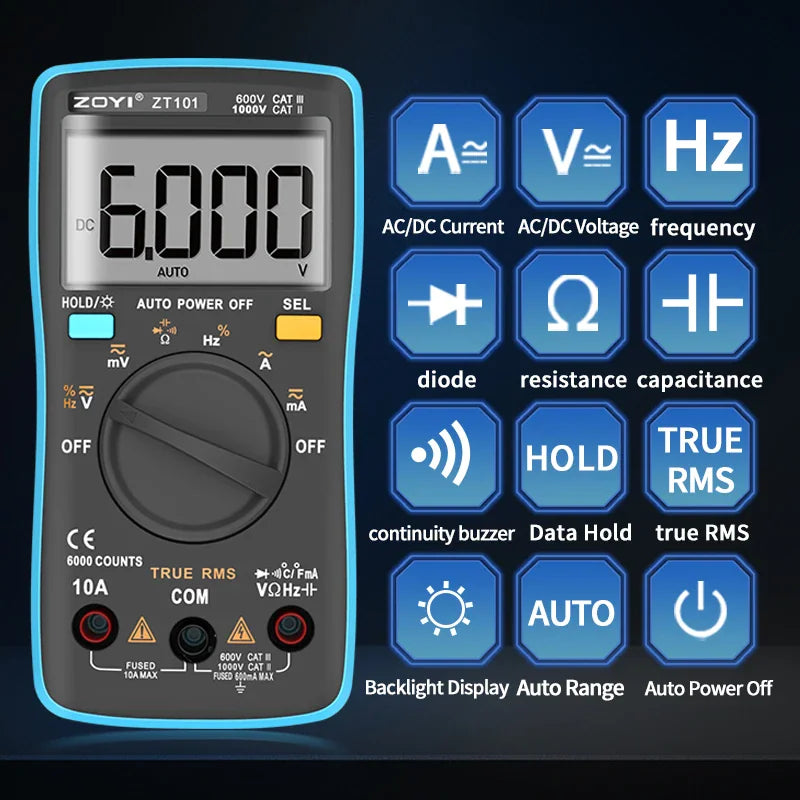

It supports AC/DC voltage, AC/DC current, resistance, frequency, capacitance, duty cycle, continuity, and diode testing.
Does the multimeter have an auto-off function?
Yes, the ZT-101 includes an auto power-off feature to conserve battery life.
Is the battery included?
Yes, the unit comes with a battery included.
